Pneumatic components
The profiles of a machine frame can also be used as a compressed air line, maximum 10 bar.Pneumatic connections
Pneumatic connections
Pneumatic connections
Pneumatic connections
ZI-1705
Compressed Air Manifold
Your compressed air supply always where it is needed.<br>With our compressed air supply unit.Mount the unit on the profiles of the workplace and use three bleed couplings for quick and safe<br>connection of your compressed air tools.
ZI-1680
Dichtung 8 80x40 PE, natural
Pneumatic connection plates are used to seal the end-face profile surfaces. The Pofil is thus used as a compressed air supply system The connection plate is fastened with half-round screws. A pneumatic seal is used as a seal.
ZI-1685
Dichtung 8 80x80 PE, natural
Pneumatic connection plates are used to seal the end-face profile surfaces. The Pofil is thus used as a compressed air supply system The connection plate is fastened with half-round screws. A pneumatic seal is used as a seal.
ZI-1690

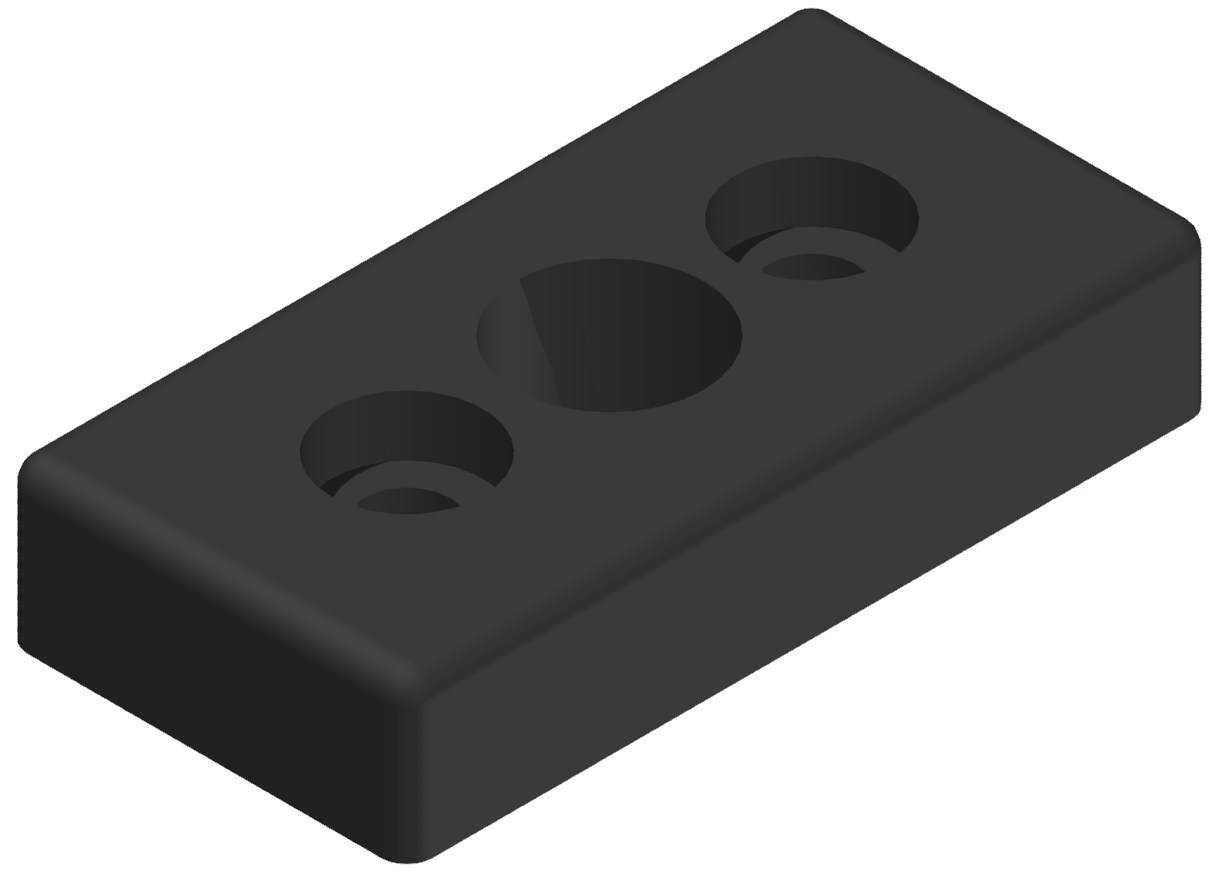

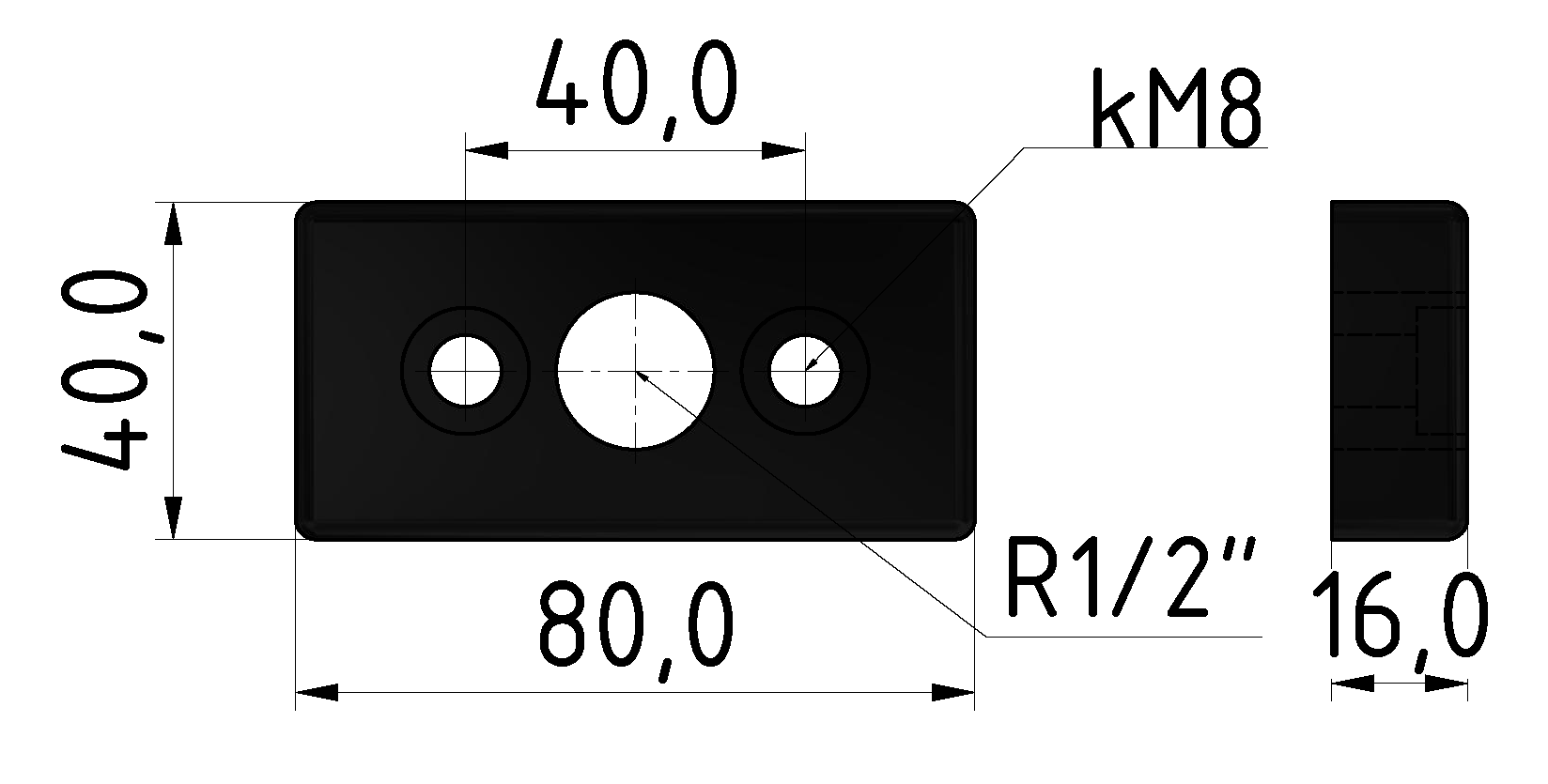

Pneumatic Connecting Plate 8 80x40 G1/2, black
Pneumatic connection plates are used to seal the end-face profile surfaces. The Pofil is thus used as a compressed air supply system The connection plate is fastened with half-round screws. A pneumatic seal is used as a seal.
ZI-1695

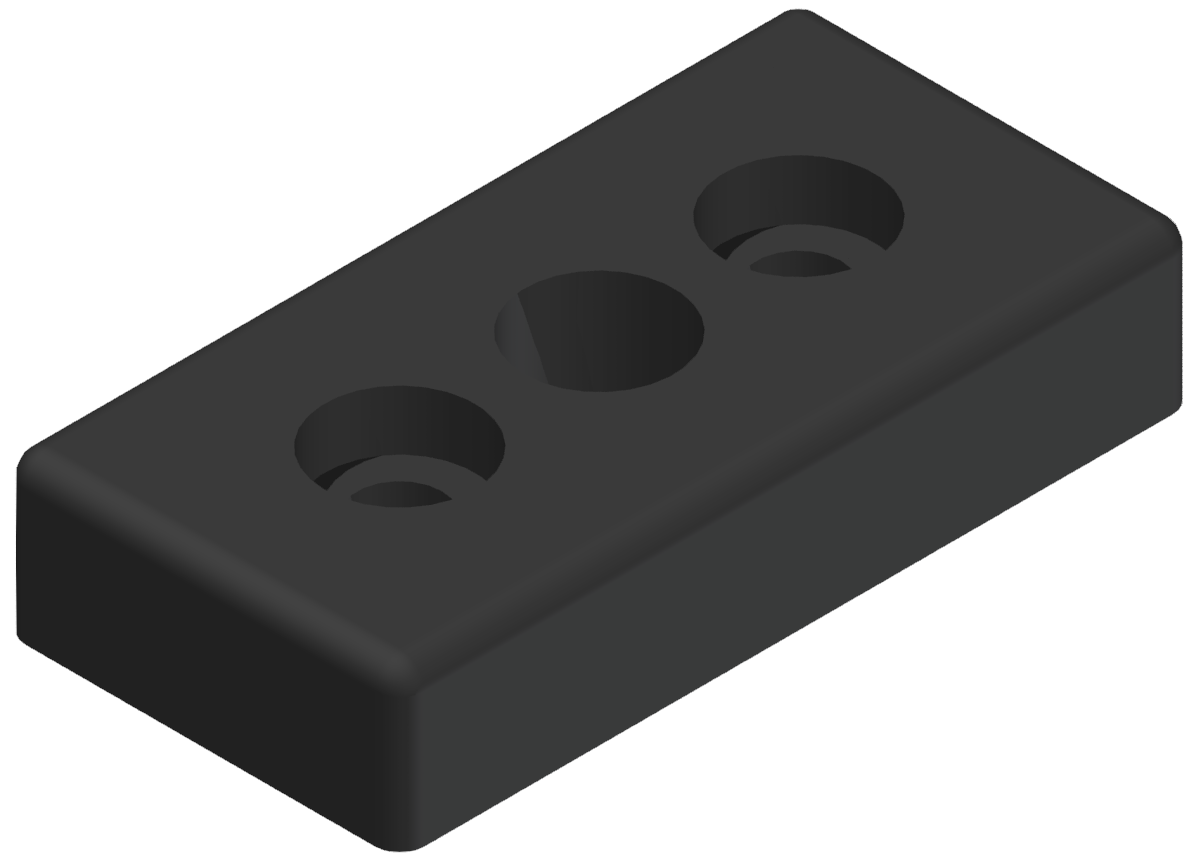

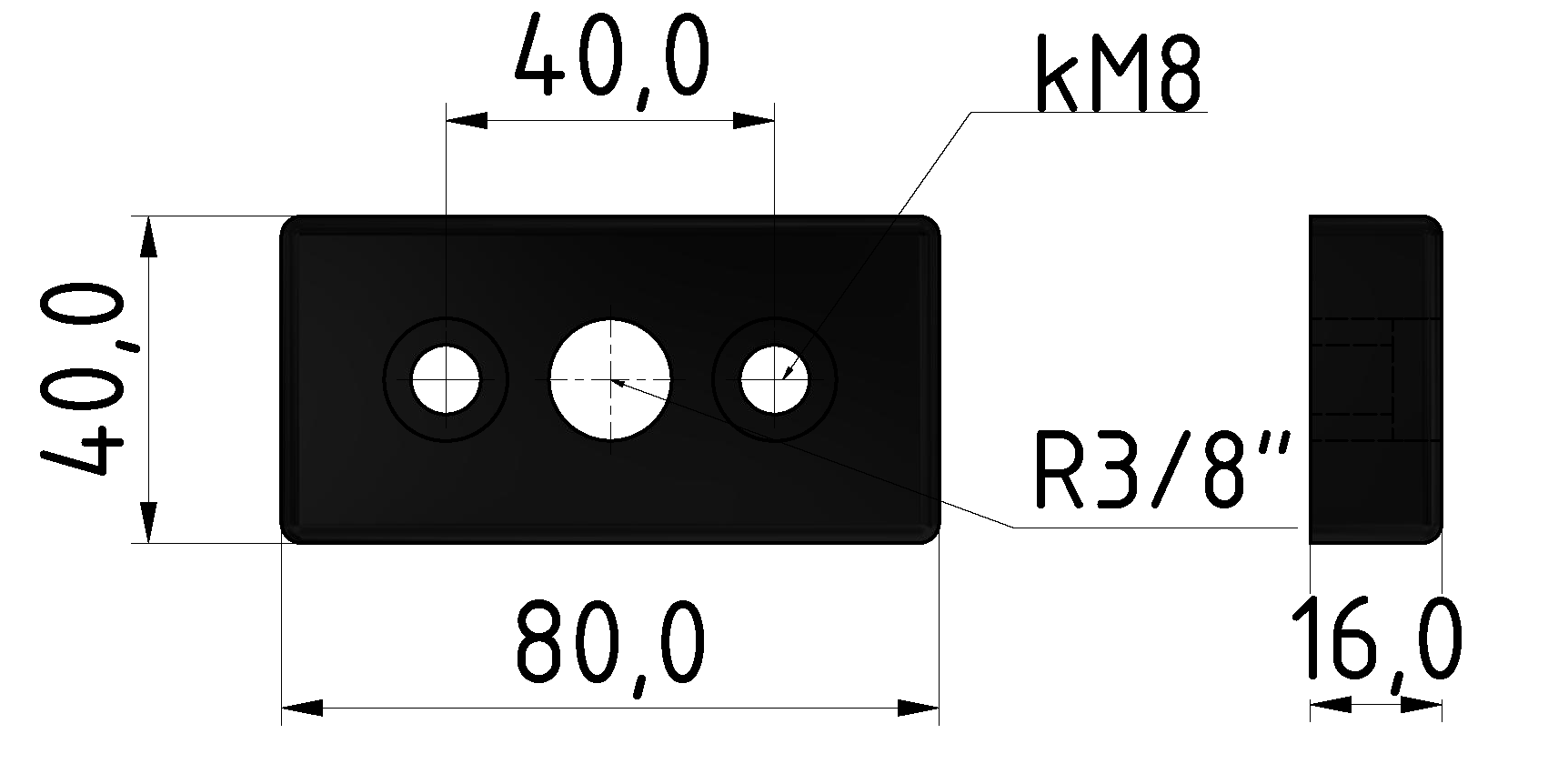

Pneumatic Connecting Plate 8 80x40 G3/8, black
Pneumatic connection plates are used to seal the end-face profile surfaces. The Pofil is thus used as a compressed air supply system The connection plate is fastened with half-round screws. A pneumatic seal is used as a seal.Compatible with item 0.0.678.23
ZI-1700

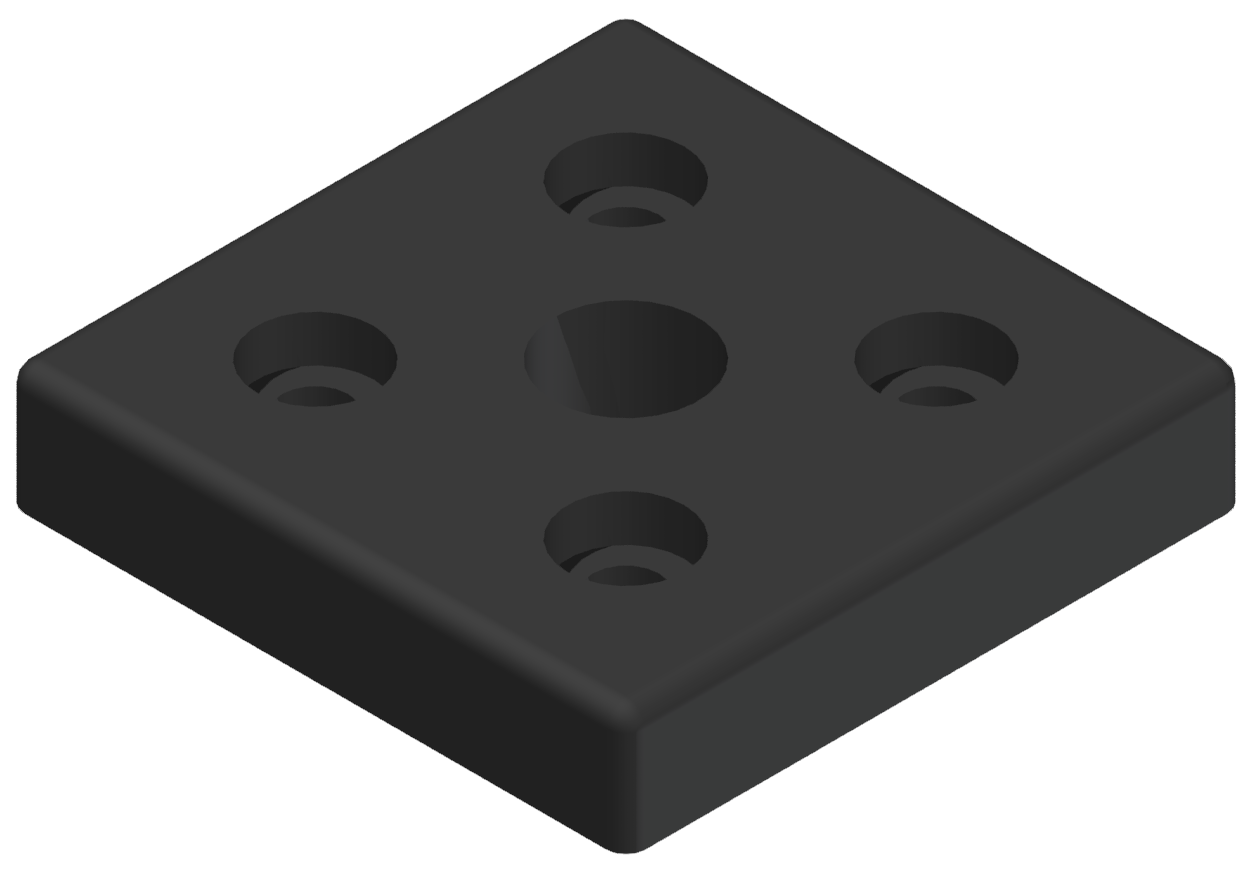

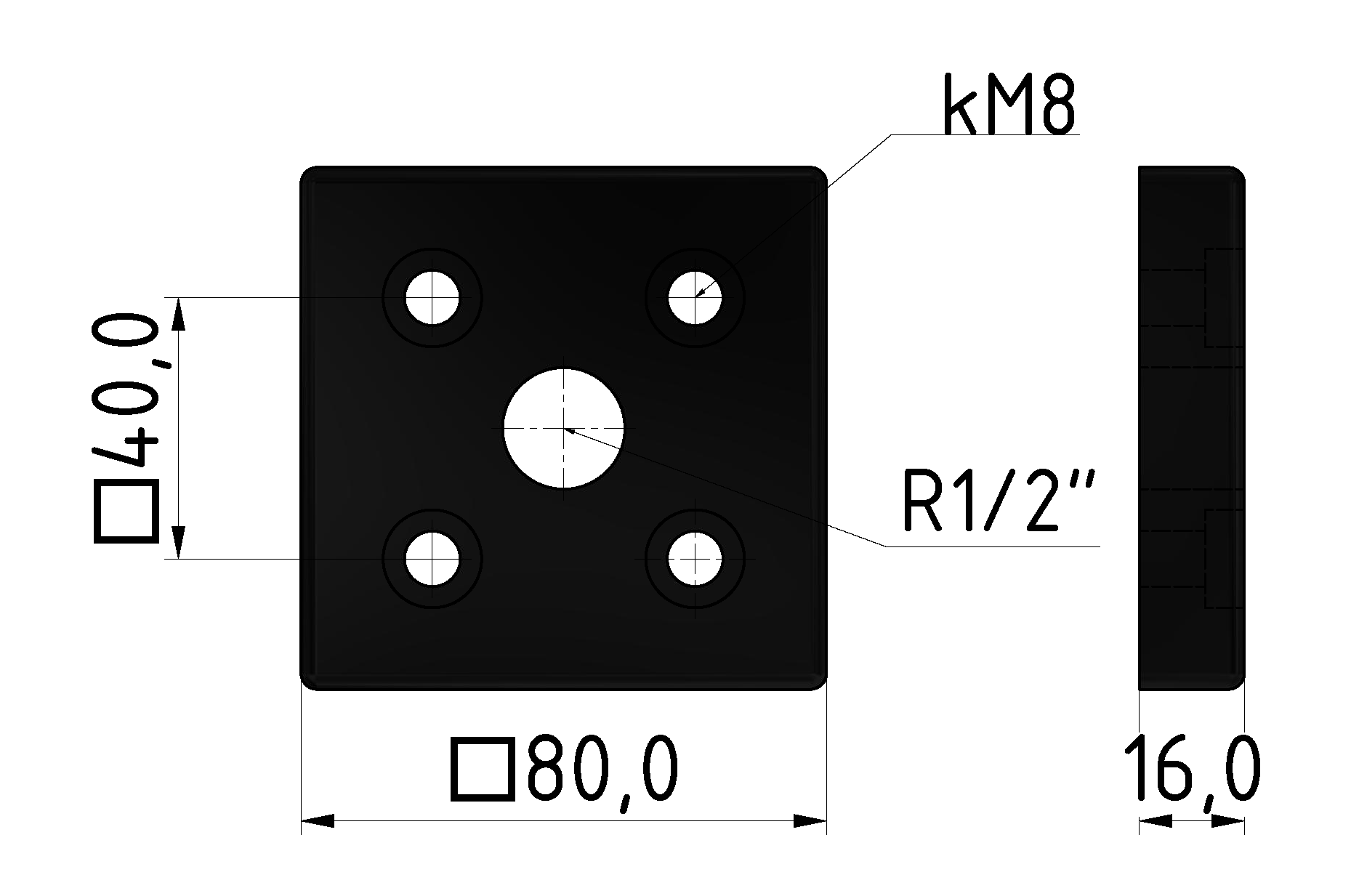

Pneumatic Connecting Plate 8 80x80 G1/2, black
Pneumatic connection plates are used to seal the front profile surfaces. The Pofil is thus used as a compressed air supply system. The connection plate is fastened with half-round screws. A pneumatic seal is installed as a seal.
