Angle and flat profiles - Versatile solutions for sophisticated constructions

Our angled and flat profiles are indispensable elements in modern construction technology. These versatile aluminium profiles are characterized by their flexibility and stability and offer numerous application possibilities. By using angle profiles and smooth profile strips without grooves, sensors and other components can be easily attached to construction profiles. Angle profiles can also be used as grip strips, to finish edges or to reinforce surfaces. This versatility makes them an indispensable component in the world of aluminum profile systems.

Versatile application possibilities

From sensor connections to edge reinforcements
Easy installation: Smooth surfaces allow components to be attached with ease
High flexibility: Ideal for customization and special design requirements
Robust construction: Reinforcement of surfaces and edges for increased stability
Aesthetic design: Clean lines and professional appearance

PI-1417 SN2000

Profile 8 W80x80 E, natural

Angle and flat profiles can be used in a variety of ways, e.g. for edging panel elements, as end or support strips, etc.Delivery length 200 mm

From €102.56*

PI-1417 SZ

Profile 8 W80x80 E, natural

Angle and flat profiles can be used in a variety of ways, e.g. for edging panel elements, as end or support strips, etc. Cut to size max. 3000 mmCompatible with item 7.0.001.12

€60.20 / 1000 mm *

Details

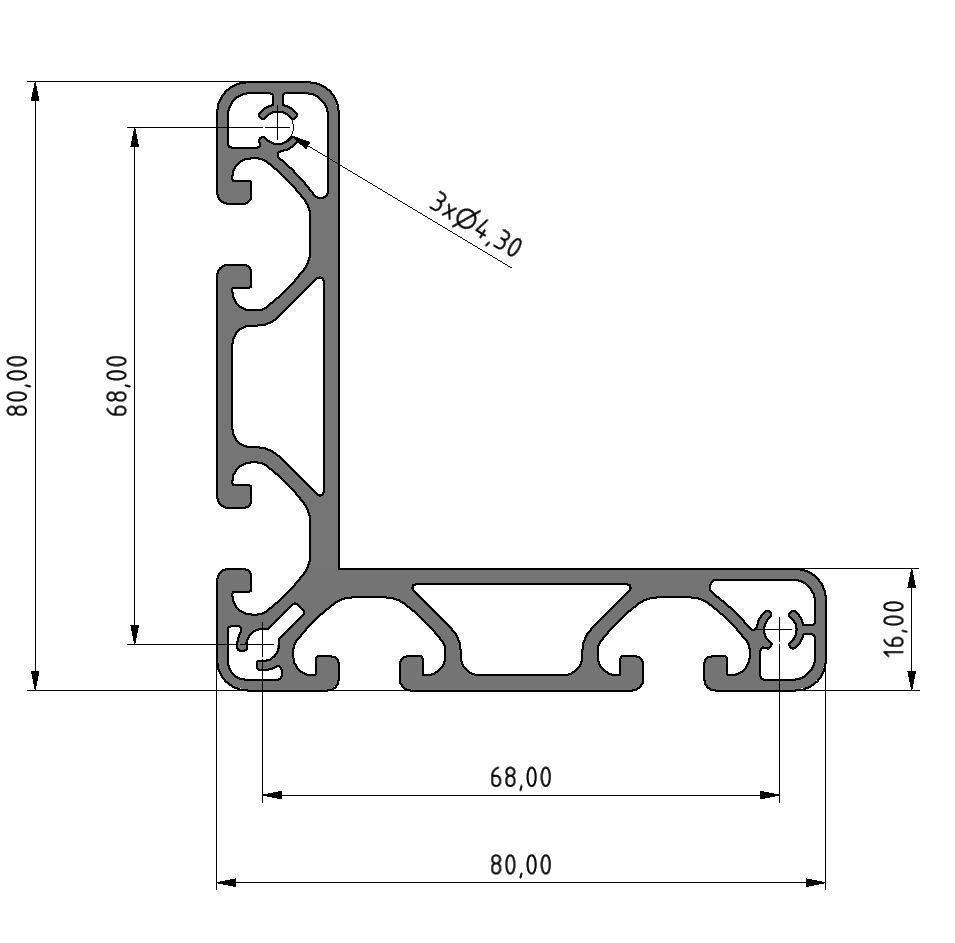

PI-1545 SN3000

Profile 8 W80x80 E, natural

Angle and flat profiles can be used in a variety of ways, e.g. for edging panel elements, as end or support strips, etc.Delivery length 200 mm

From €121.20*

PI-1545 SZ

Profile 8 W80x80 E, natural

Angle and flat profiles can be used in a variety of ways, e.g. for edging panel elements, as end or support strips, etc. Cut to size max. 3000 mmCompatible with item 7.0.001.12

€46.30 / 1000 mm *

Details

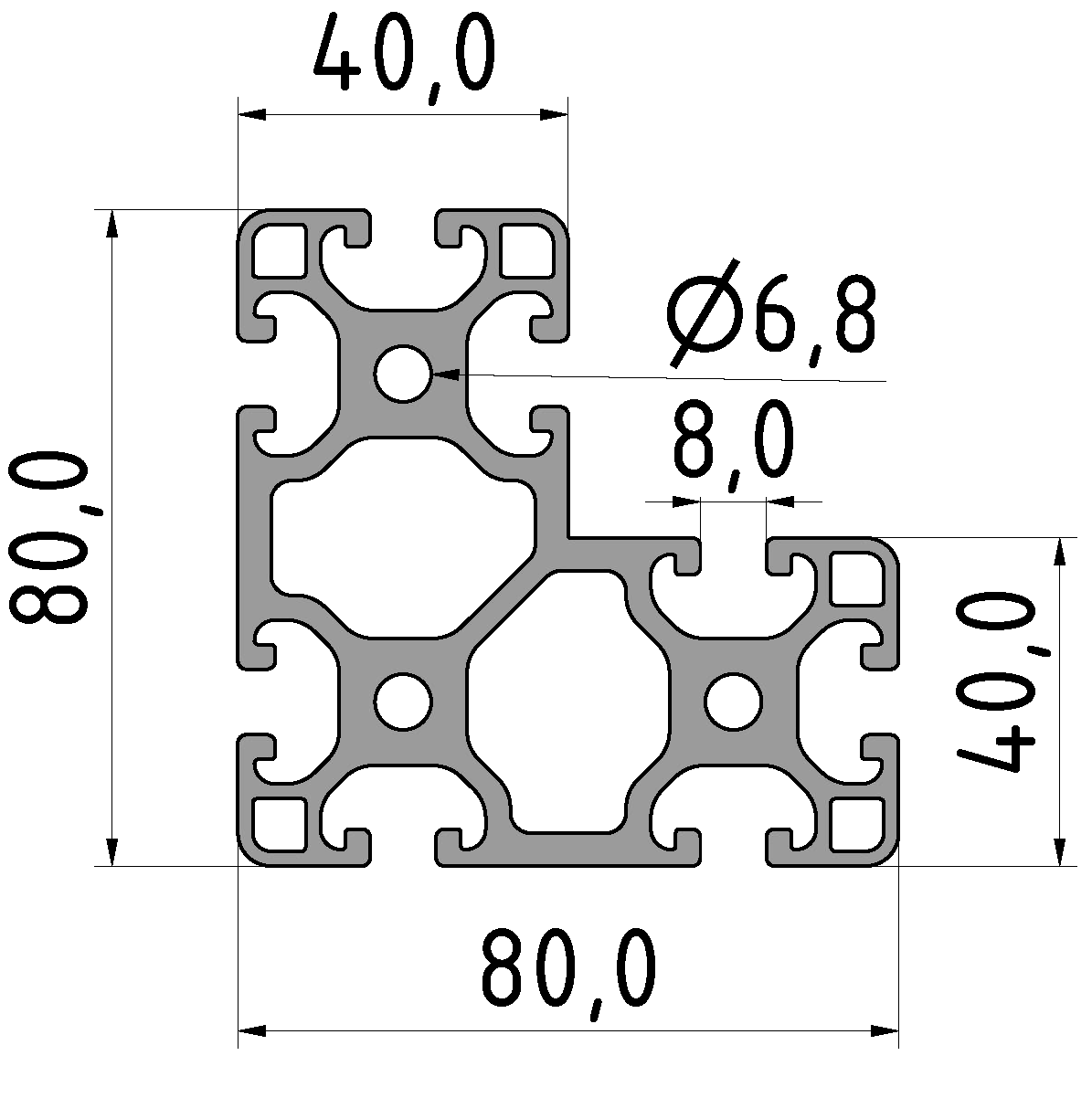

PI-1650 SN6000

Profile 8 W80x80x40 light, natural

Angle and flat profiles can be used in a variety of ways, e.g. for edging panel elements, as end or support strips, etc.Delivery length 6030 mm

From €317.28*

PI-1650 SZ

Profile 8 W80x80x40 light, natural

Angle and flat profiles can be used in a variety of ways, e.g. for edging panel elements, as end or support strips, etc. Cut to size max. 6000 mm

€62.76 / 1000 mm *

Details

PI-1415 SN3000

Profile M 40x40x4 E natural

Angle and flat profiles can be used in a variety of ways, e.g. for edging panel elements, as end or support strips, etc.Delivery length 2000 mmCompatible with item 7.0.002.7

From €30.87*

PI-1415 SZ

Profile M 40x40x4 E natural

Angle and flat profiles can be used in a variety of ways, e.g. for edging panel elements, as end or support strips, etc. Cut to size max. 2000 mmCompatible with item 7.0.001.30

€12.26 / 1000 mm *

Details

PI-1416 SN2000

Profile M 40x40x4 E natural

Angle and flat profiles can be used in a variety of ways, e.g. for edging panel elements, as end or support strips, etc.Delivery length 2000 mmCompatible with item 7.0.002.7

From €22.62*

PI-1416 SZ

Profile M 40x40x4 E natural

Angle and flat profiles can be used in a variety of ways, e.g. for edging panel elements, as end or support strips, etc. Cut to size max. 2000 mmCompatible with item 7.0.001.30

€13.36 / 1000 mm *

Details

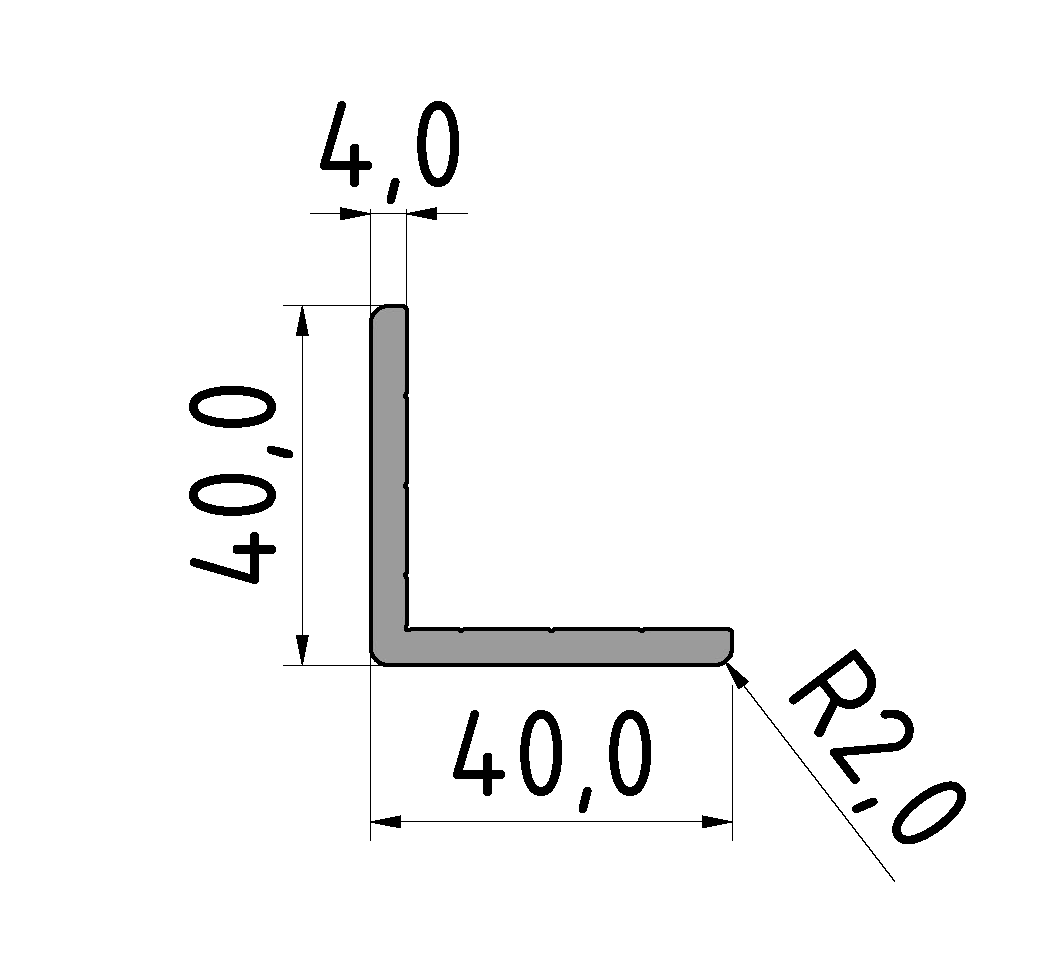

PI-1404 SZ

Profile M 40x40x4 E natural

Angle and flat profiles can be used in a variety of ways, e.g. for edging panel elements, as end or support strips, etc. Cut to size max. 2000 mmCompatible with item 7.0.001.30

€18.10 / 1000 mm *

Details

PI-1404 SN2000

Profile M 40x40x4 E natural

Angle and flat profiles can be used in a variety of ways, e.g. for edging panel elements, as end or support strips, etc.Delivery length 2000 mmCompatible with item 7.0.002.7

€31.00*

PI-1418 SN2000

Profile M 80x8 E, natural

Angle and flat profiles can be used in a variety of ways, e.g. for edging panel elements, as end or support strips, etc.Delivery length 200 mmCompatible with item 7.0.002.67

From €20.60*

PI-1418 SZ

Profile M 80x8 E, natural

Angle and flat profiles can be used in a variety of ways, e.g. for edging panel elements, as end or support strips, etc. Cut to size max. 2000 mmCompatible with item 7.0.001.22

€12.41 / 1000 mm *

Details

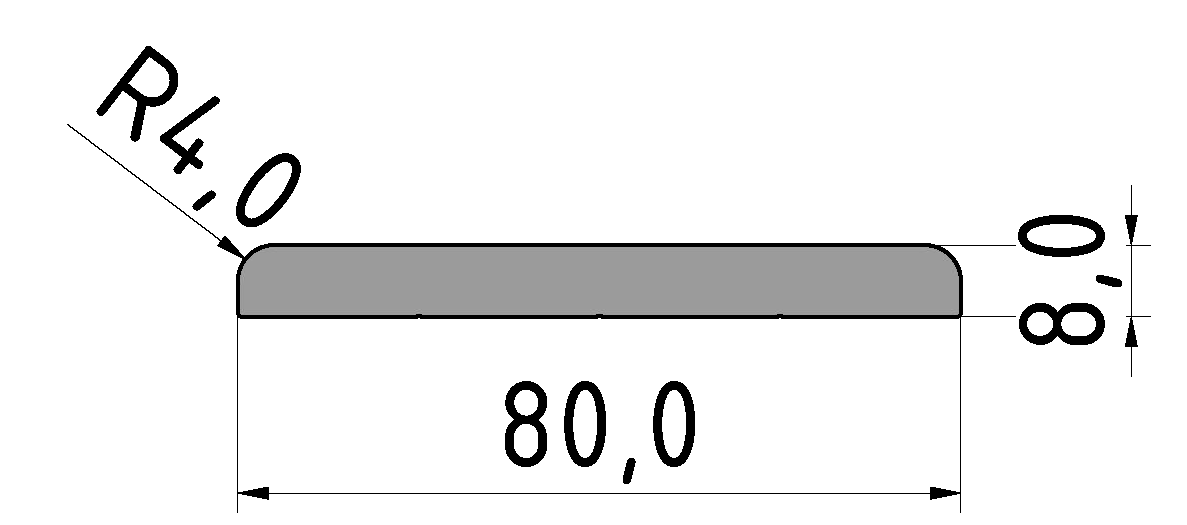

PI-1540 SN2000

Profile M 80x8 E, natural

Angle and flat profiles can be used in a variety of ways, e.g. for edging panel elements, as end or support strips, etc.Delivery length 200 mmCompatible with item 7.0.002.67

From €117.00*

PI-1540 SZ

Profile M 80x8 E, natural

Angle and flat profiles can be used in a variety of ways, e.g. for edging panel elements, as end or support strips, etc. Cut to size max. 2000 mmCompatible with item 7.0.001.22

€19.00 / 1000 mm *

Details

Areas of application

Our angle and flat profiles are used in various areas:

Mechanical and plant engineering
Sensors and measurement technology
Furniture and interior design
Trade fair and exhibition construction
Laboratory equipment and clean rooms

Product overview

maunsystem offers a wide range of angle and flat profiles:

Angle profiles: Available in sizes from 20x20 mm to 80x80 mm
Flat profiles: Available in dimensions from 40x16 mm to 160x16 mm
Special designs available on request

Technical details

Material: High-quality aluminum EN AW-6063 T66
Surface: Anodized E6/EV1 for increased corrosion resistance
Compatible with the entire maunsystem profile range

Installation and accessories

We offer suitable accessories for simple and flexible installation:

Special connecting elements for angled and flat profiles
Cover caps and end pieces for neat finishes
Fastening sets for attaching sensors and other components

FAQ

How are sensors attached to angled and flat profiles?

Thanks to the smooth surfaces, sensors can be mounted directly to the profiles using screws, clamps or special adapter plates.

Can angle profiles be used to reinforce existing structures?

Yes, angle profiles are ideal for the subsequent reinforcement of corners and edges in existing structures.

Are the profiles suitable for outdoor use?

The anodized surface makes our angle and flat profiles weatherproof and therefore suitable for outdoor use.

Can the profiles be processed individually?

Yes, the profiles can easily be sawn, drilled or milled to adapt them to specific requirements.

Discover our extensive range of angle and flat profiles to find the perfect solution for your project. Our expert team is ready to assist you with any inquiries you may have.
