Series 12 aluminum profiles - Maximum stability for demanding constructions
Series 12 aluminum profiles represent the strongest profiles in our modular system. These robust construction elements are characterized by their exceptional load-bearing capacity, with the grooves per screw connection allowing pull-out forces of up to 10,000 N. Thanks to their outstanding stability, Profiles 12 enable the construction of highly loaded base frames and racks, making them the ideal choice for demanding industrial applications. The stable profiles therefore offer an optimum solution for constructions that have to withstand the highest loads.

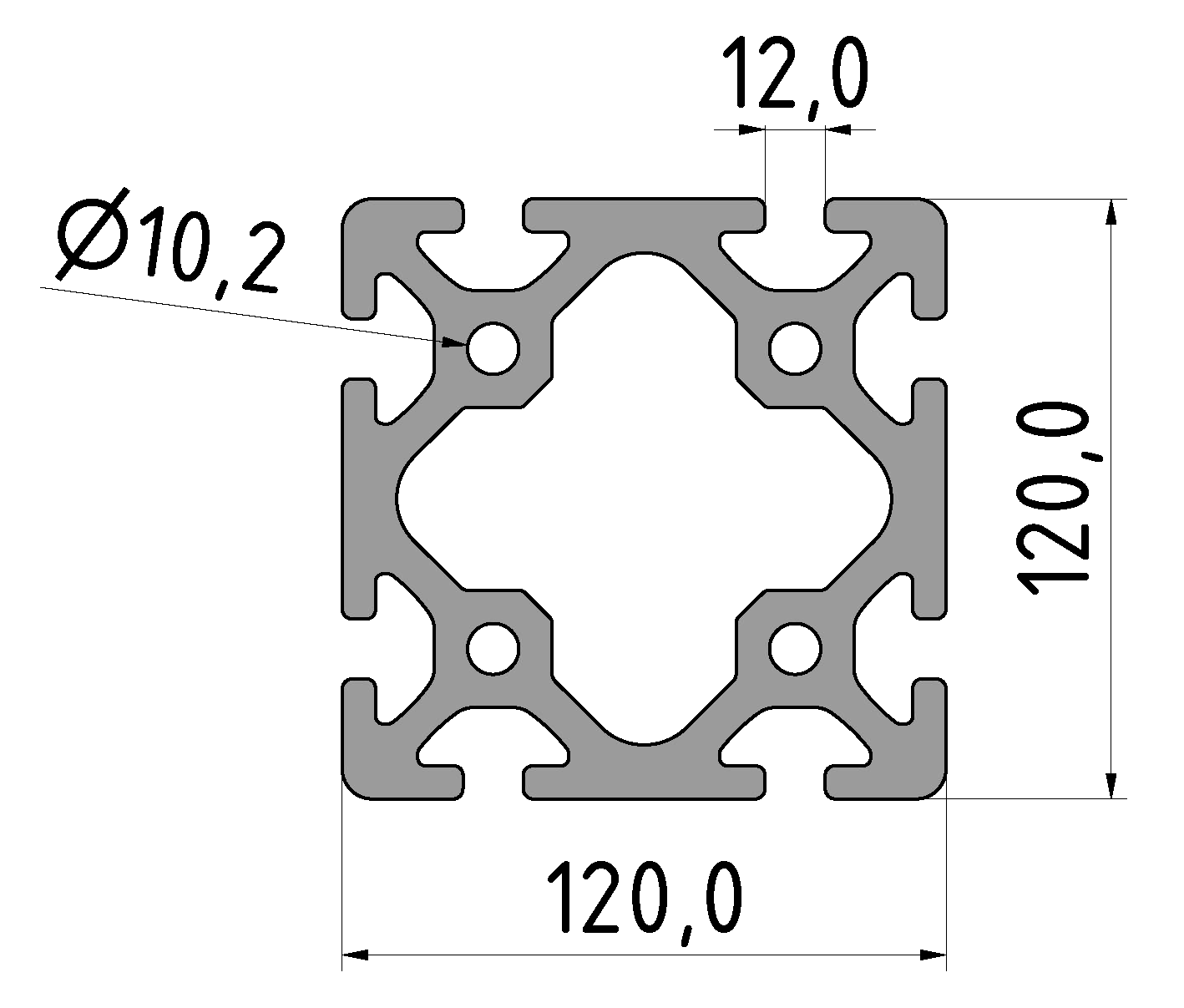

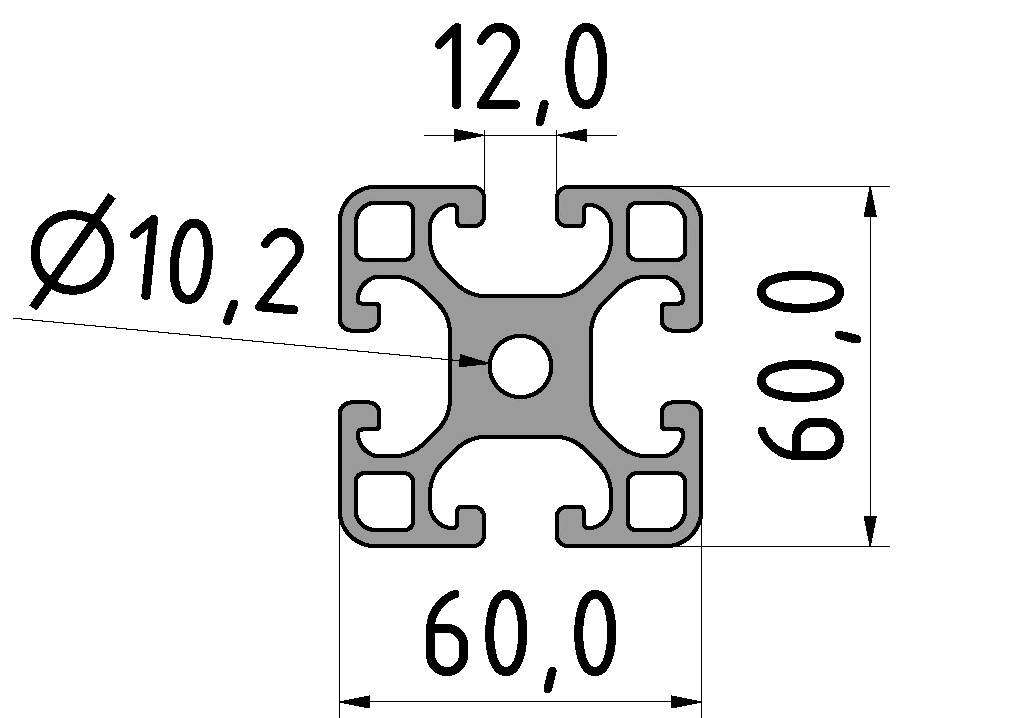

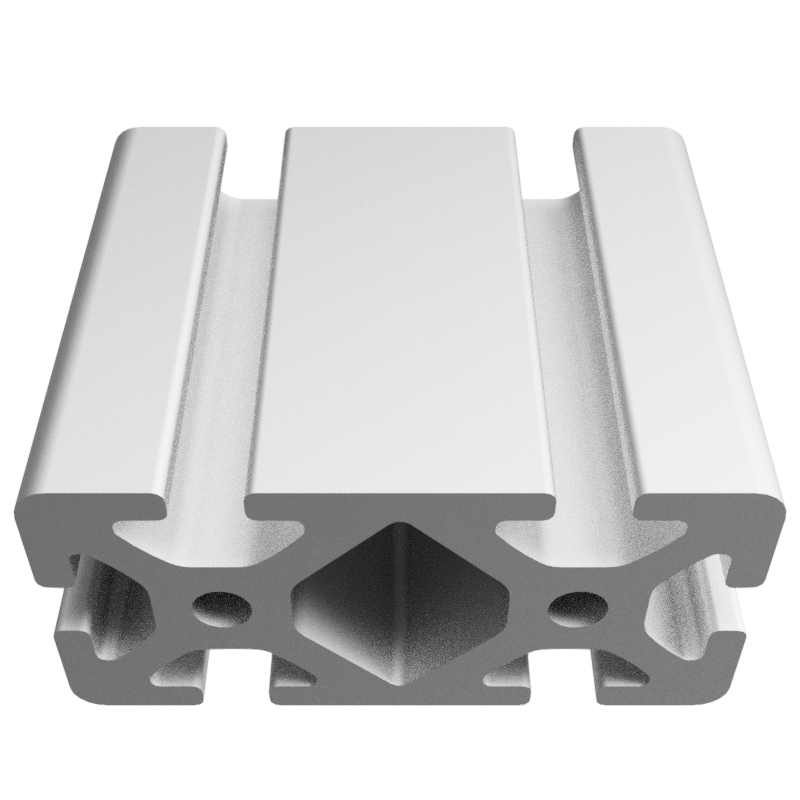

The Series 12 aluminum profiles from MAUN System are available in different versions
- Slot width: 12 mm for maximum stability
- Material: High-strength aluminum EN AW-6063 T66
- Surface treatment: Anodized E6/EV1
Features and benefits
- Maximum load capacity: Suitable for the heaviest loads and complex structures
- High pull-out forces: Up to 10,000 N per screw connection
- Versatility: Perfect for highly loaded base frames and racks
- Precision: Precise manufacturing for perfectly fitting connections
- Durability: Robust and low-maintenance even under extreme conditions
Areas of application
The high-performance profiles in the 12 series are used in numerous demanding areas:
- Heavy engineering and industrial plants
- Heavy-duty conveyor and transport systems
- Robust protective enclosures for large systems
- Support structures for heavy loads
- Special constructions in engineering and plant construction
Compatibility and accessories
MAUN System offers an extensive range of compatible accessories for maximum flexibility and load-bearing capacity:
- High-strength connecting elements and brackets
- Reinforced guide rails and rollers
- Robust cover profiles and seals
- Special fastening material for heavy-duty applications
FAQ about Series 12 aluminum profiles
Why are Series 12 profiles particularly resilient?
Series 12 is characterized by its special design and the 12 mm wide grooves, which enable pull-out forces of up to 10,000 N per screw connection.
What types of projects is Series 12 best suited to?
These profiles are ideal for heavy-duty constructions such as base frames, heavy racks, and industrial installations that require maximum stability.
Are special fasteners required for Series 12?
Yes, maunsystem offers specially developed, high-strength fasteners that are optimally matched to the high loads of Series 12.
Can Series 12 profiles be combined with lighter profiles?
Absolutely. Series 12 can be perfectly combined with other profile series to create customized solutions for different load requirements.
How is the durability of the profiles ensured under extreme conditions?
Thanks to the use of high-strength aluminum and the special surface treatment, the profiles are extremely corrosion-resistant and robust, which ensures their durability even under demanding conditions.
Discover our extensive range of series 12 aluminum profiles now and find the perfect solution for your project. Our expert team will be happy to answer any questions you may have.
