Roller guide profiles: Precise linear systems for industrial applications

Roller guide profiles for aluminum profiles offer versatile solutions for the construction of linear systems. These profiles enable precise movements and high load-bearing capacity with simple installation. They are available in various designs, including track roller profiles, which are used for individual bearing units up to 3000 mm in length, and shaft clamp profiles, which use standard profiles as the basis of the linear guide. These profiles are ideal for building stable and durable guide systems in industrial applications.


Properties of the roller guide profiles

At Maunsystem you will find an extensive selection of roller guide profiles:

  • Roller profiles: Ideal for individual bearing units
  • Shaft clamping profiles: Use standard profiles as a basis
  • Accessories: Matching components for optimum functionality
Filter
Bearing Unit 8 D14 e Bearing Unit 8 D14 e
ZI-1640
Bearing Unit 8 D14 e
Linear slides are built up with bearing units. They are used in pairs, 1 piece eccentrically (this is set backlash-free) and opposite 1 piece centrically. To minimise wear, a wiper lubrication system must always be installed on each bearing unit.

From €38.50*
Bearing Unit 8 D14 z Bearing Unit 8 D14 z
ZI-1635
Bearing Unit 8 D14 z
Linear slides are built up with bearing units. They are used in pairs, 1 piece eccentrically (this is set backlash-free) and opposite 1 piece centrically. To minimise wear, a wiper lubrication system must always be installed on each bearing unit.

From €34.20*
Bolt 8 D14 e, bright zinc-plated Bolt 8 D14 e, bright zinc-plated
ZI-1675
Bolt 8 D14 e, bright zinc-plated
Bolt for fixing and adjusting the track roller D14 on the eccentric side.

From €8.50*
Bolt 8 D14 z, bright zinc-plated Bolt 8 D14 z, bright zinc-plated
ZI-1670
Bolt 8 D14 z, bright zinc-plated
Bolt for fastening the track roller D14 on the centric side.

From €5.10*
Double-Bearing Unit 8 D14 e Double-Bearing Unit 8 D14 e
ZI-1650
Double-Bearing Unit 8 D14 e
Linear slides are built with storage units. They are used in pairs, 1 each eccentric (this is set free of play) and opposite 1 centric. In order to minimize wear, a wiper lubrication system must be installed on every bearing unit.

From €68.50*
Double-Bearing Unit 8 D14 e, stainless Double-Bearing Unit 8 D14 e, stainless
ZI-1652
Double-Bearing Unit 8 D14 e, stainless
Linear slides are built with storage units. They are used in pairs, 1 each eccentric (this is set free of play) and opposite 1 centric. In order to minimize wear, a wiper lubrication system must be installed on every bearing unit.

From €72.50*
Double-Bearing Unit 8 D14 z Double-Bearing Unit 8 D14 z
ZI-1645
Double-Bearing Unit 8 D14 z
Linear slides are built with storage units. They are used in pairs, 1 each eccentric (this is set free of play) and opposite 1 centric. In order to minimize wear, a wiper lubrication system must be installed on every bearing unit.

From €61.20*
Double-Bearing Unit 8 D14 z, stainless Double-Bearing Unit 8 D14 z, stainless
ZI-1647
Double-Bearing Unit 8 D14 z, stainless
Linear slides are built with storage units. They are used in pairs, 1 each eccentric (this is set free of play) and opposite 1 centric. In order to minimize wear, a wiper lubrication system must be installed on every bearing unit.

€72.44*
End Cap and Lubricating System 8 D14, black End Cap and Lubricating System 8 D14, black
ZI-1655
End Cap and Lubricating System 8 D14, black
To minimise wear, a wiper lubrication system should always be fitted to each bearing unit.

From €8.50*
Roller D14 Roller D14
ZI-1665
Roller D14
Precision roller for use in the bearing units 8.

From €13.10*
Roller D14, stainless Roller D14, stainless
ZI-1666
Roller D14, stainless
Precision roller for use in the bearing units 8.

From €28.50*
Roller Profile 8 D14, natural Roller Profile 8 D14, natural
PI-1413 SN6000
Roller Profile 8 D14, natural
The track roller profile is used to create bearing units D14 in suitable length up to 6000mm.

€347.00*
Roller Profile 8 D14, natural Roller Profile 8 D14, natural
PI-1413 SZ
Roller Profile 8 D14, natural
The track roller profile is used to create bearing units D14 in suitable length up to 6000mm. Cut to size max. 6000 mmCompatible with item 0.0.426.02

€43.18 / 1000 mm *
Details
Roller Profile 8 D14, natural Roller Profile 8 D14, natural
PI-1430 SN6000
Roller Profile 8 D14, natural
The track roller profile is used to create bearing units D14 in suitable length up to 6000mm.

From €250.98*
Roller Profile 8 D14, natural Roller Profile 8 D14, natural
PI-1430 SZ
Roller Profile 8 D14, natural
The track roller profile is used to create bearing units D14 in suitable length up to 6000mm. Cut to size max. 6000 mmCompatible with item 0.0.426.02

€43.18 / 1000 mm *
Details
Shaft clamp Profile 8 D14, natural Shaft clamp Profile 8 D14, natural
PI-1535 SN3000
Shaft clamp Profile 8 D14, natural
The shaft clamping profile is used to hold the guide shaft d14. The shaft is pressed into the profile groove by pressing in the shaft clamping profile. The shafts are secured by a DIN6325 cylindrical pin.

From €16.10*
Shaft clamp Profile 8 D14, natural Shaft clamp Profile 8 D14, natural
PI-1535 SN6000
Shaft clamp Profile 8 D14, natural
The shaft clamping profile is used to hold the guide shaft d14. The shaft is pressed into the profile groove by pressing in the shaft clamping profile. The shafts are secured by a DIN6325 cylindrical pin.

From €27.36*
Shaft clamp Profile 8 D14, natural Shaft clamp Profile 8 D14, natural
PI-1535 SZ
Shaft clamp Profile 8 D14, natural
The shaft clamping profile is used to hold the guide shaft d14. The shaft is pressed into the profile groove by pressing in the shaft clamping profile. The shafts are secured by a DIN6325 cylindrical pin.

€5.03 / 1000 mm *
Details
Shaft clamp profile 8 D25, natural Shaft clamp profile 8 D25, natural
PI-1537 SN3000
Shaft clamp profile 8 D25, natural
The shaft clamp profile is used to hold the guide shaft d25.The shaft clamp profile is screwed on with S1397 countersunk screws M6x16 DIN 7991 and NI-1040 slot nuts M6, galvanised-8.The holes for the screw connection are 200 mm apart.

€125.00*
Shaft clamp profile D10, natural-8 Shaft clamp profile D10, natural-8
PI-1536 SZ
Shaft clamp profile D10, natural-8
The shaft clamping profile is used to hold the guide shaft d10. The shaft is pressed into the profile groove by pressing in the shaft clamping profile. The shafts are secured by a DIN6325 cylindrical pin. Compatible with item 0.0.442.03

€11.50 / 1000 mm *
Details
Shaft clamp profile D10, natural-8 Shaft clamp profile D10, natural-8
PI-1536 SN3000
Shaft clamp profile D10, natural-8
The shaft clamping profile is used to hold the guide shaft d10. The shaft is pressed into the profile groove by pressing in the shaft clamping profile. The shafts are secured by a DIN6325 cylindrical pin. Compatible with item 0.0.452.23

€34.00*
Shaft clamp profile D25, natural-8 Shaft clamp profile D25, natural-8
PI-1537 SZ
Shaft clamp profile D25, natural-8
The shaft clamp profile is used to hold the guide shaft d25. The shaft clamp profile is screwed on with S1397 countersunk screws M6x16 DIN 7991 and NI-1040 slot nuts M6, galvanised-8. The holes for the screw connection are 200 mm apart. Compatible with item 0.0.350.02

€42.50 / 1000 mm *
Details
Timing Belt R25 T10, black Timing Belt R25 T10, black
ZI-1996
Timing Belt R25 T10, black
For creating highly dynamic linear drives with toothed belt drive.

€29.53*

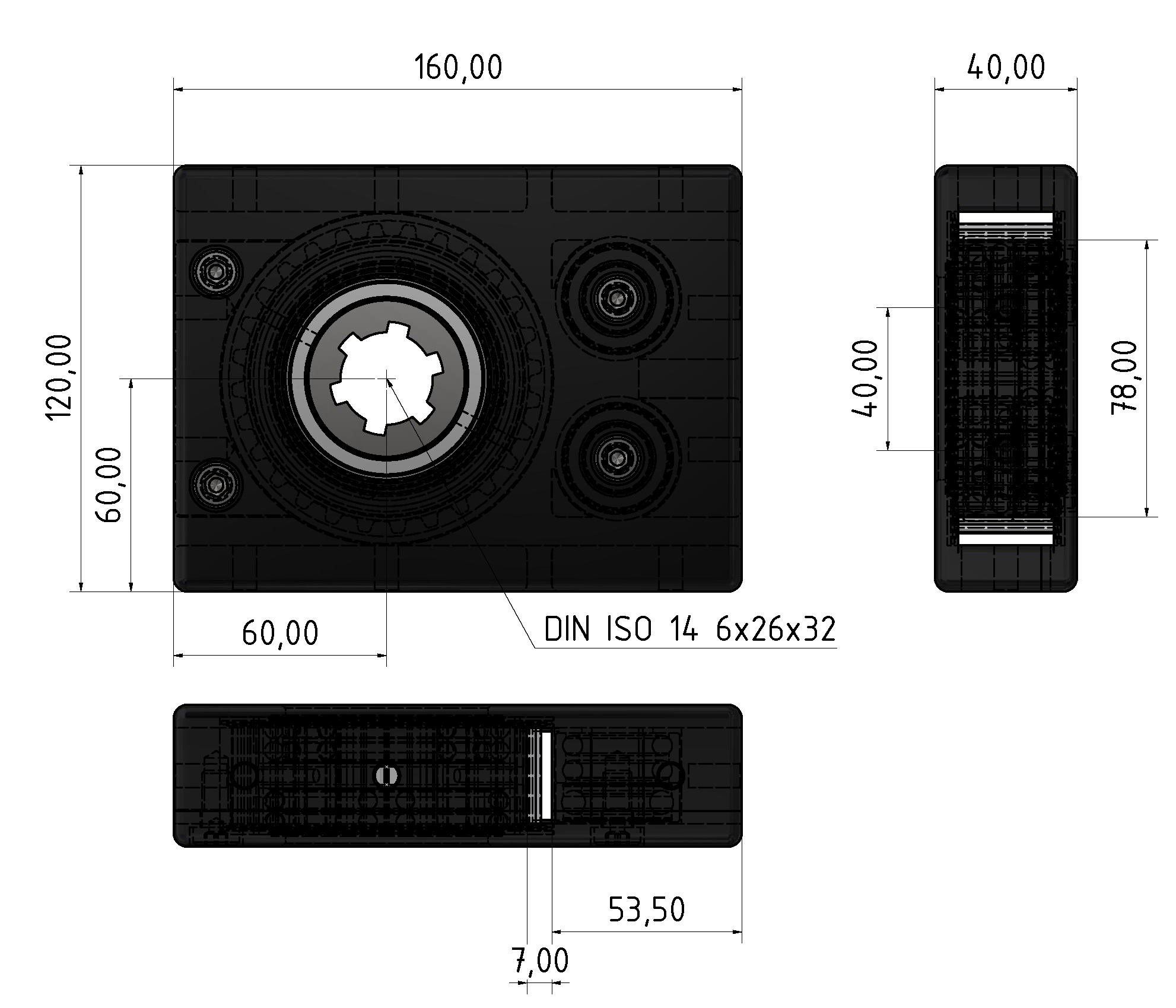

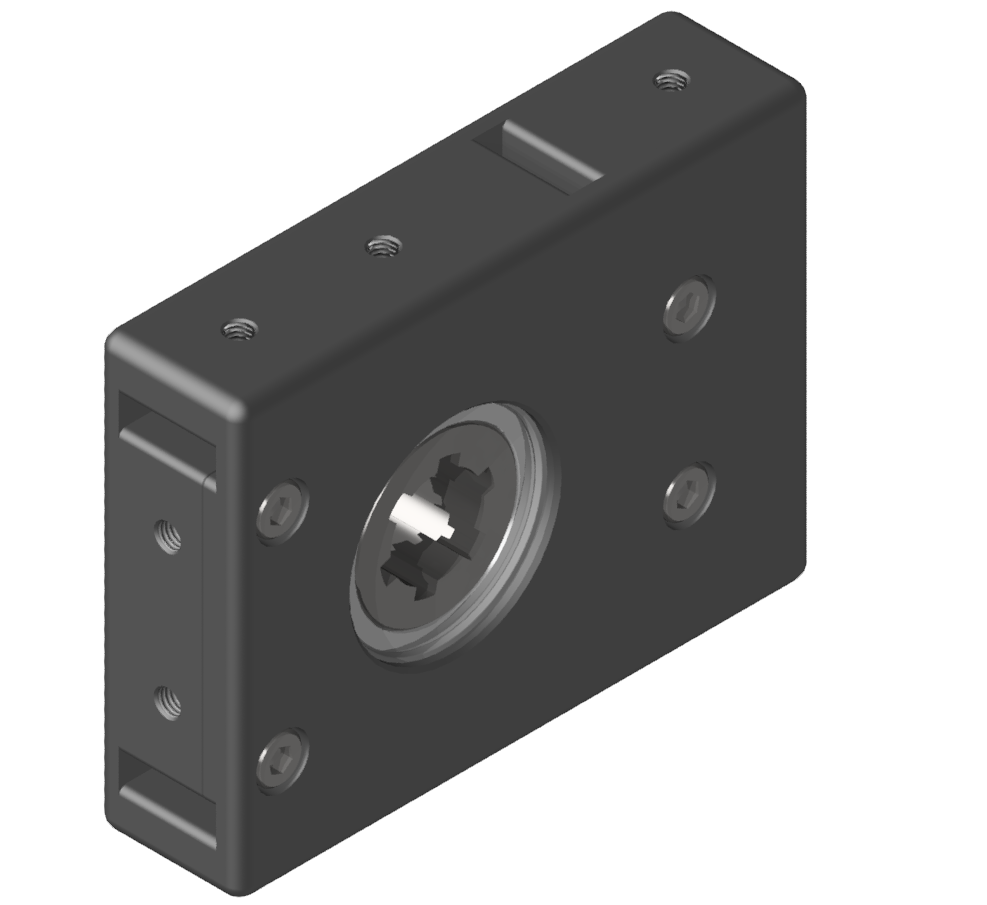

Timing-Belt Reverse Unit 8 80 R25 with Bore Timing-Belt Reverse Unit 8 80 R25 with Bore
ZI-1613
Timing-Belt Reverse Unit 8 80 R25 with Bore
For creating highly dynamic linear drives with toothed belt drive.  Compatible with item 0.0.366.07

From €295.00*

Versatile application possibilities

Roller guide profiles are used in numerous areas of industry and technology:

  • Automation technology: Precise motion sequences in production lines
  • Conveyor technology: Efficient material handling and transportation
  • Mechanical engineering: Robust linear guides for various machine types
  • Robotics: Precise positioning of robot arms and grippers

Advantages of roller guide profiles

  • High precision: Ensure accurate and repeatable movements
  • Ruggedness: Robust enough for demanding industrial environments
  • Flexibility: Easily adaptable to different applications
  • Low maintenance: Durable construction reduces downtime
  • Cost effective: Good price-performance ratio for industrial solutions

FAQ about roller guide profiles

What lengths are available for roller guide profiles?

Roller guide profiles are available in lengths of up to 3000 mm, allowing flexibility to adapt to different project requirements.

Are roller guide profiles compatible with other aluminum profiles?

Yes, many roller guide profiles are designed to be seamlessly combined with other aluminum profiles, allowing for easy integration into existing systems.

What loads can roller guide profiles take?

The load capacity varies depending on the model, but many roller guide profiles are designed for high industrial loads. Specific load values can be up to 150 N or more.

How easy is it to install roller guide profiles?

Roller guide profiles are designed for easy installation. They can often be combined like a modular system, which makes installation and customization easier.

Can roller guide profiles be used for precision applications?

Yes, roller guide profiles are ideal for precision applications as they enable accurate and repeatable movements.


Explore the robust features of roller guide profiles and discover how they can enhance your industrial applications. Our team is ready to assist you with any inquiries or specific requirements you may have.
