Angle Bracket 8 40x40 slotted hole Zn, white aluminium
Maunsystem GmbH
3D
Loading...
| Quantity | Unit price |
|---|---|
| To 9 |
€2.34*
|
| To 99 |
€2.22*
|
| From 100 |
€2.10*
|
accessories
Product number:
ZI-1089
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1003219
Weight:
0.088 kg

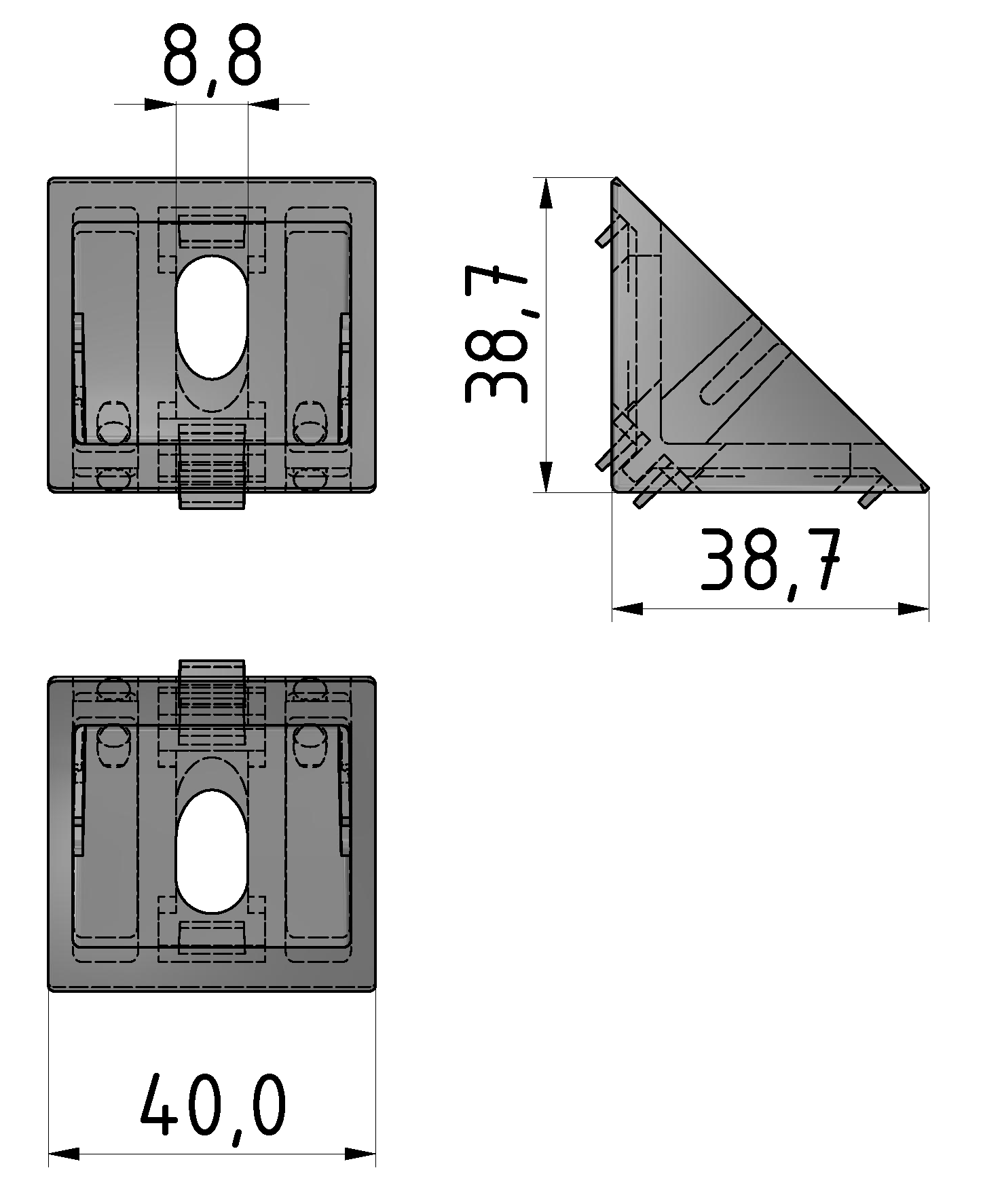

Product information "Angle Bracket 8 40x40 slotted hole Zn, white aluminium"
Angles are a force-locking and unworkable connection. These are also used as additional reinforcement of connections and as a fastening element for attachments. Integrated twisting fuses for fixation in the profile are available. These are removed if necessary.
Step-Datei
Download| Angle bracket type: | Angle bracket ZN |
|---|---|
| Colour: | white aluminium |
| Compatible with: | item |
| Force limitation: | F < 1.000 N |
| Material: | GD-Zn |
| Part type : | Winkel |
| Series: | Series 8 |
| Size: | 40x40 mm |
| Torque limitation: | F x l < 50 Nm |
ZI-1094

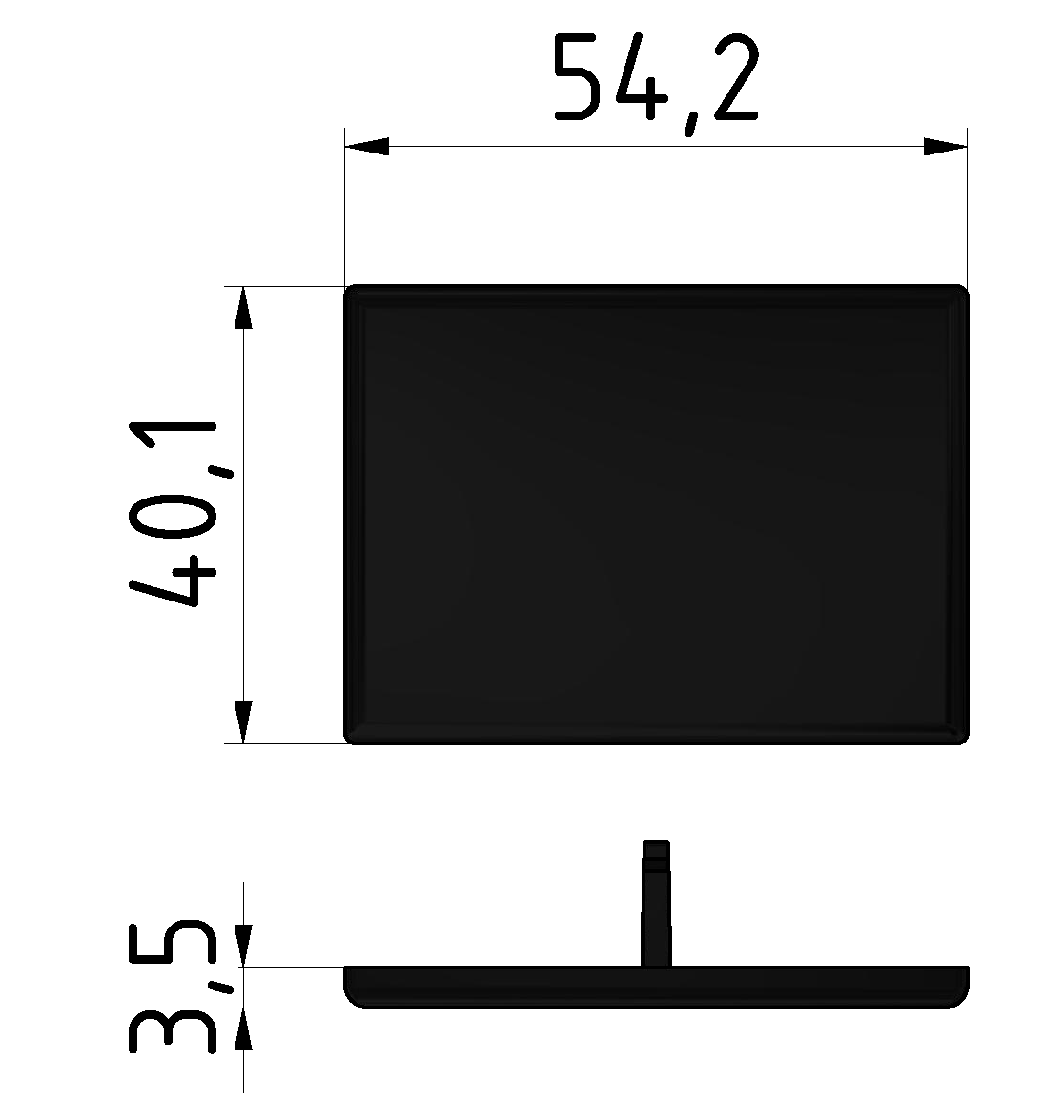

Angle-Cap 8 40x40 slotted hole, black
Angle cover caps PA for angles provide a better look. They avoid cuts and prevent the use of the angle. The assembly is simple.
