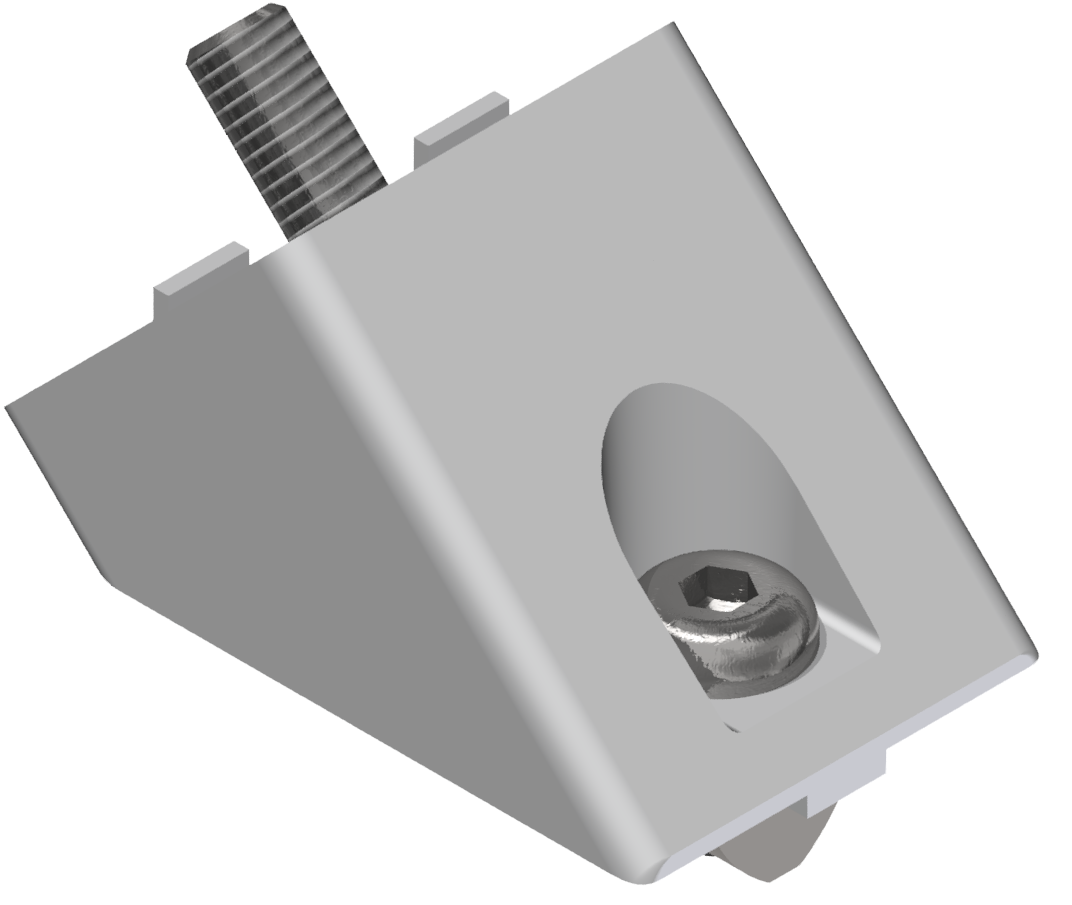

Angle Fastener-Set 8 40x40-45°

Angle Fastener-Set 8 40x40-45°
3D
Click and move
Open AR View
Tap to place the object
Move the device to start
Angle Fastener-Set 8 40x40-45°
Angle Fastener-Set 8 40x40-45°
Angle Fastener-Set 8 40x40-45°
Angle Fastener-Set 8 40x40-45°
Angle Fastener-Set 8 40x40-45°
Angle Fastener-Set 8 40x40-45°
Angle Fastener-Set 8 40x40-45°
Quantity Unit price
To 99
€6.50*
From 100 To 499
€5.10*
From 500
€4.10*

Prices excl. VAT plus shipping costs

PDF-Datasheet
Product number: ZI-1361
Manufacturer: Maunsystem GmbH
Manufacturer number: 1003309
Weight: 0.214 kg

Product information "Angle Fastener-Set 8 40x40-45°"

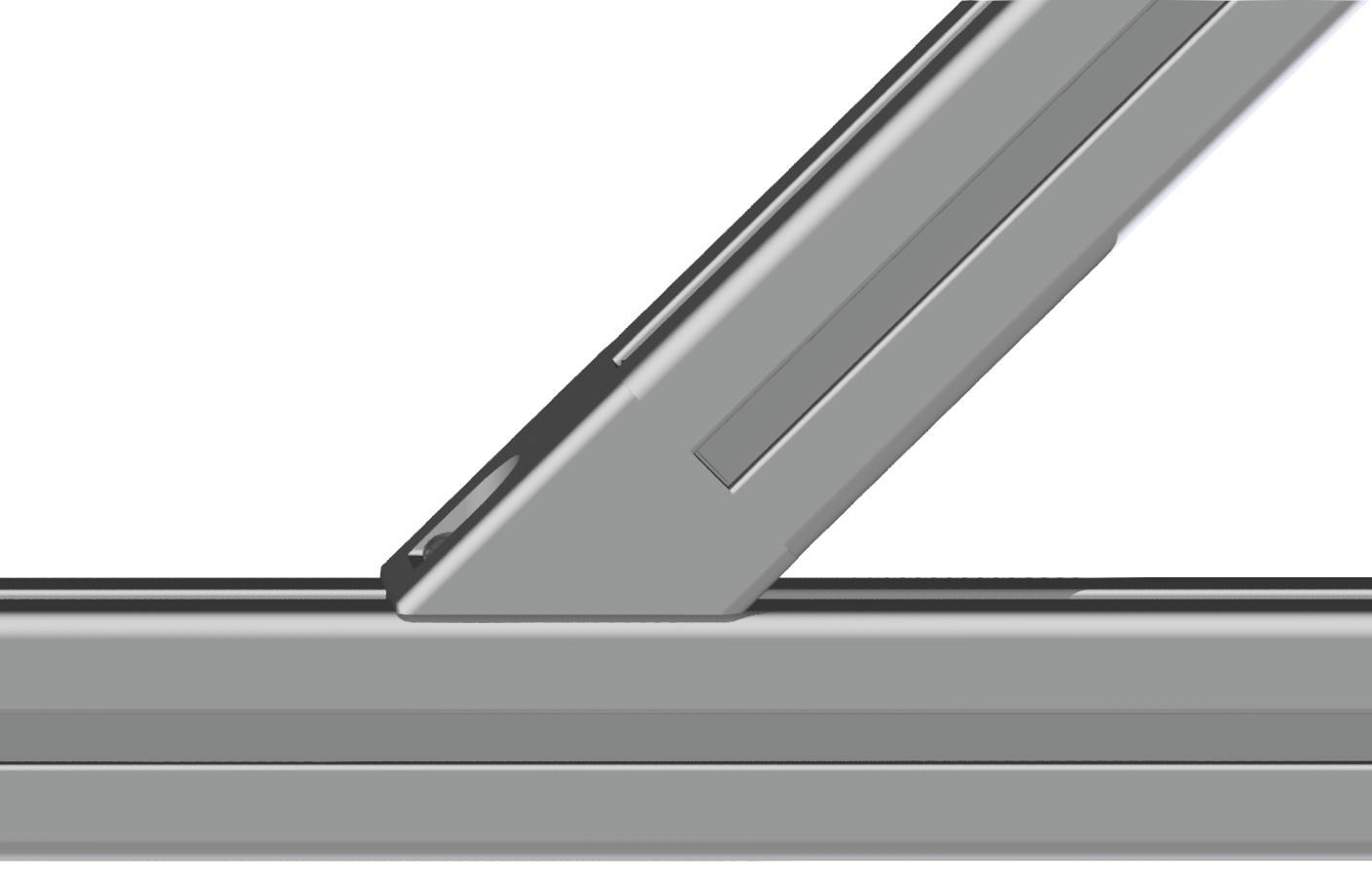

Angle connectors make it easy to connect two pofiles at a 45° angle. These are quick and easy to assemble.
 Compatible with item 0.0.677.56

Details

  • 1 Stück ZI-1381 Winkelverbinder 40x40 45°, weißaluminium-8
  • 1 Stück S-1330 Halbrundschraube M8x18 ISO 7380, verzinkt
  • 1 Stück S-1340 Halbrundschraube M8x25 ISO 7380, verzinkt
  • 2 Stück NI-1025 Nutenstein M8 steg, verzinkt-8

Step-Datei

Download
Colour: white aluminium
Compatible with: item
Connector type : Angle connectors
Material: GD-Al, natur
Series: Series 8
