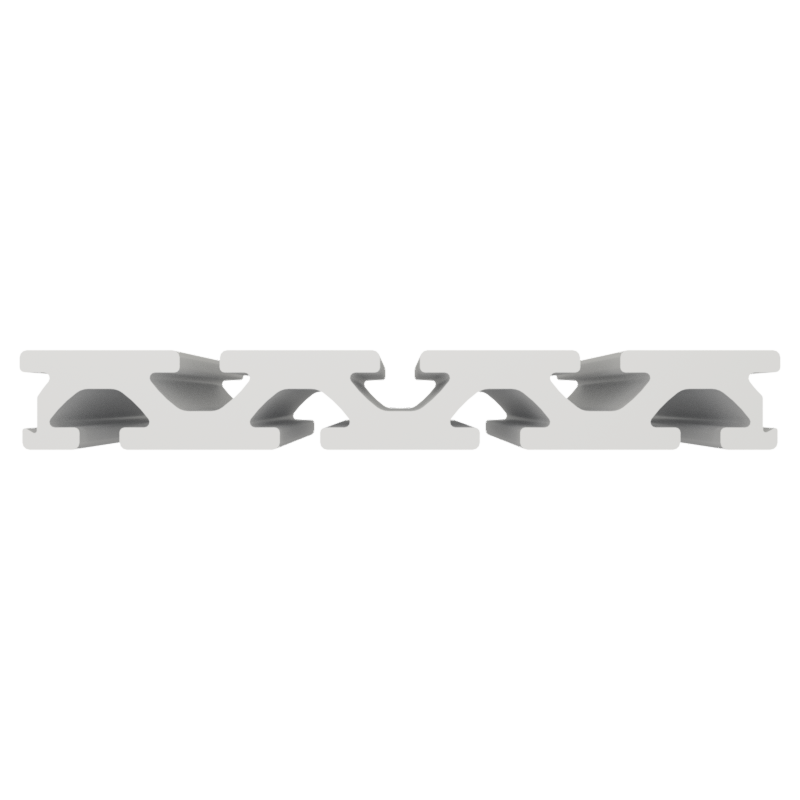

Bed Plate Profile 8 8 152x20, natural
Maunsystem GmbH
3D
Loading...
Product number:
PI-1003 SN6000
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1001296
Length:
6000 mm
Weight:
29.82 kg
Product information "Bed Plate Profile 8 8 152x20, natural"
Plate profiles 8 are used for the production of variably sized surfaces with grooves 8 in a 40. grid. The fastening can be done on profile racks of different types
Delivery length 6030 mm
Delivery length 6030 mm
Compatible with item 0.0.465.79
Details

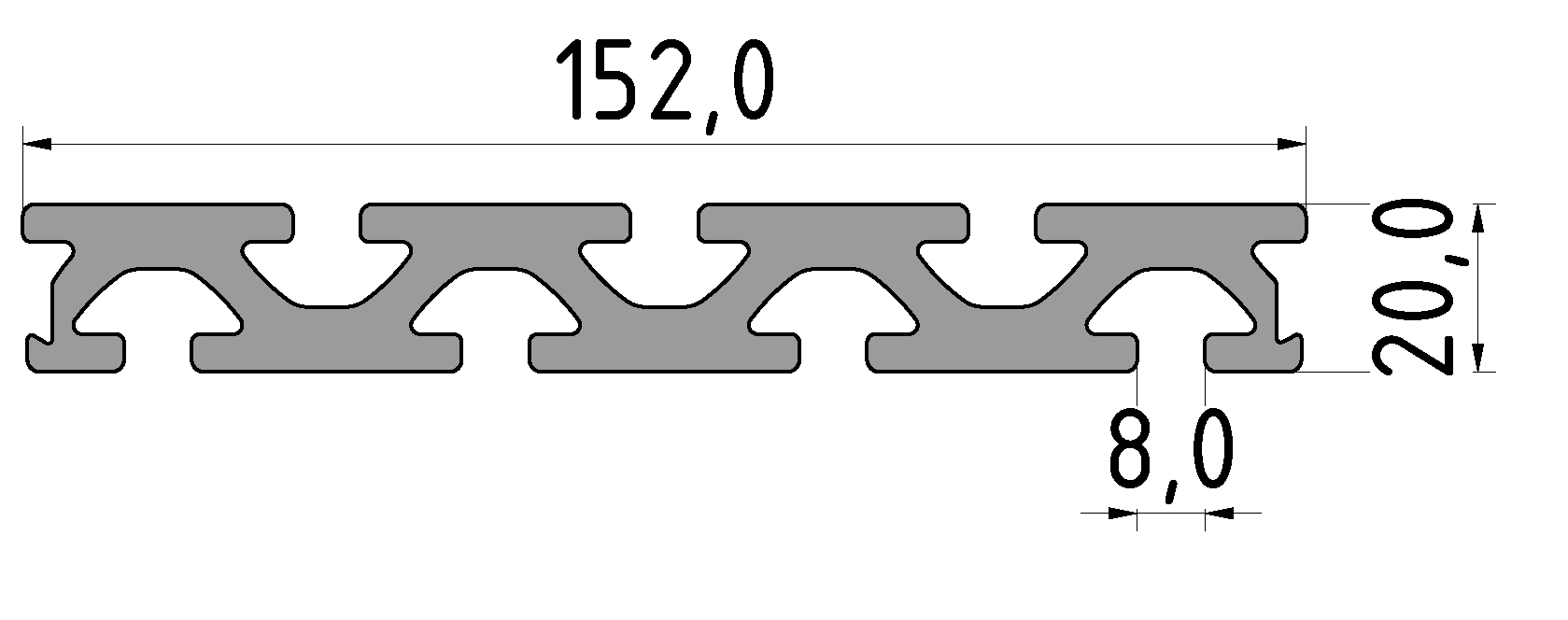

Ix 7,39 cm4
Iy 350,5 cm4
Wx 7,2 cm3
Wy 46,12 cm3
Profilfläche 18,39 cm2
Gewicht 4,97 kg/m
Iy 350,5 cm4
Wx 7,2 cm3
Wy 46,12 cm3
Profilfläche 18,39 cm2
Gewicht 4,97 kg/m
Step-Datei
Download| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Contour: | Rectangular |
| Delivery unit: | Rods |
| Execution: | heavy |
| Groove shape: | Open grooves |
| Material: | Al Mg Si 0.5 F25, artificially aged |
| Nutauszugskraft: | F=5.000 N |
| Profile length: | 6000 mm bar |
| Series: | Series 8 |
| Size: | 20x152 mm |
| Tolerances: | EN 12020-2 |
PI-1003 SZ
Bed Plate Profile 8 8 152x20, natural
Plate profiles 8 are used for the production of variably sized surfaces with grooves 8 in a 40. grid. The fastening can be done on profile racks of different types
Cut to size max. 6000 mm
PI-1004 SN6000

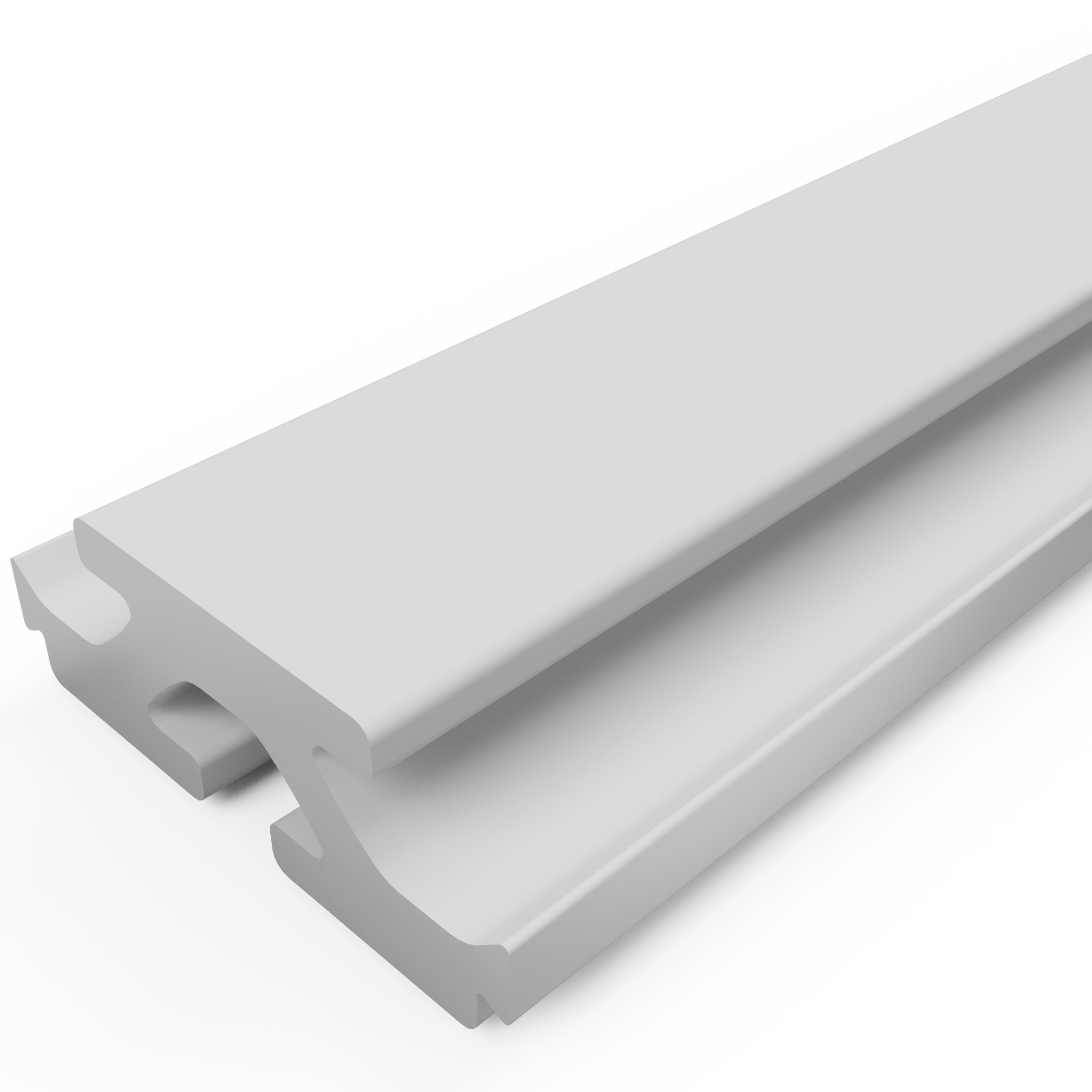

Bed Plate Connection Profile 8 55x20, natural
Plate profiles 8 are used for the production of variably sized surfaces with grooves 8 in a 40. grid. The fastening can be done on profile racks of different typesDelivery length 6030 mm
