Clamp Profile 8 40x40, natural
Maunsystem GmbH
3D
Loading...
| Quantity | Unit price |
|---|---|
| To 14 |
€173.31*
|
| From 15 |
€165.38*
|
accessories
Product number:
PI-1396 SN6000
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1017624
Length:
6000 mm
Weight:
10.56 kg
Product information "Clamp Profile 8 40x40, natural"
Profiles 8 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves and the core holes of the profiles 8 are designed for M8 screws. Clamping profiles are used to build large and stable protective panels. The panel elements are screwed together with cylinder head screws and clamping strips. The direct screwing of the panel element supports the stability of the panel. Panel size: clear inside dimension +30.0 mm
Delivery length 6030 mm
Delivery length 6030 mm
Compatible with item 0.0.452.21
Details
- Eigenschaft natur ESD ESD-sicher = Nein
- Fläche A = 6,5 cm2
- Flächenträgheitsmoment Torsion It = 1,07 cm4
- Flächenträgheitsmoment um x-Achse Ix = 8,79 cm4
- Flächenträgheitsmoment um y-Achse Iy = 10,67 cm4
- Gewicht spez. Länge [kg/m] m = 1,76 kg/m
- Liefereinheit 1 Stück à 6000 mm
- Material Al, eloxiert
- Widerstandsmoment um x-Achse Wx = 4,29 cm3
- Widerstandsmoment um y-Achse Wy = 5,25 cm3
| Colour: | natural |
|---|---|
| Compatible with: | item |
| Contour: | Square |
| Delivery unit: | Rods |
| Execution: | economy |
| Groove shape: | Clamp Profile |

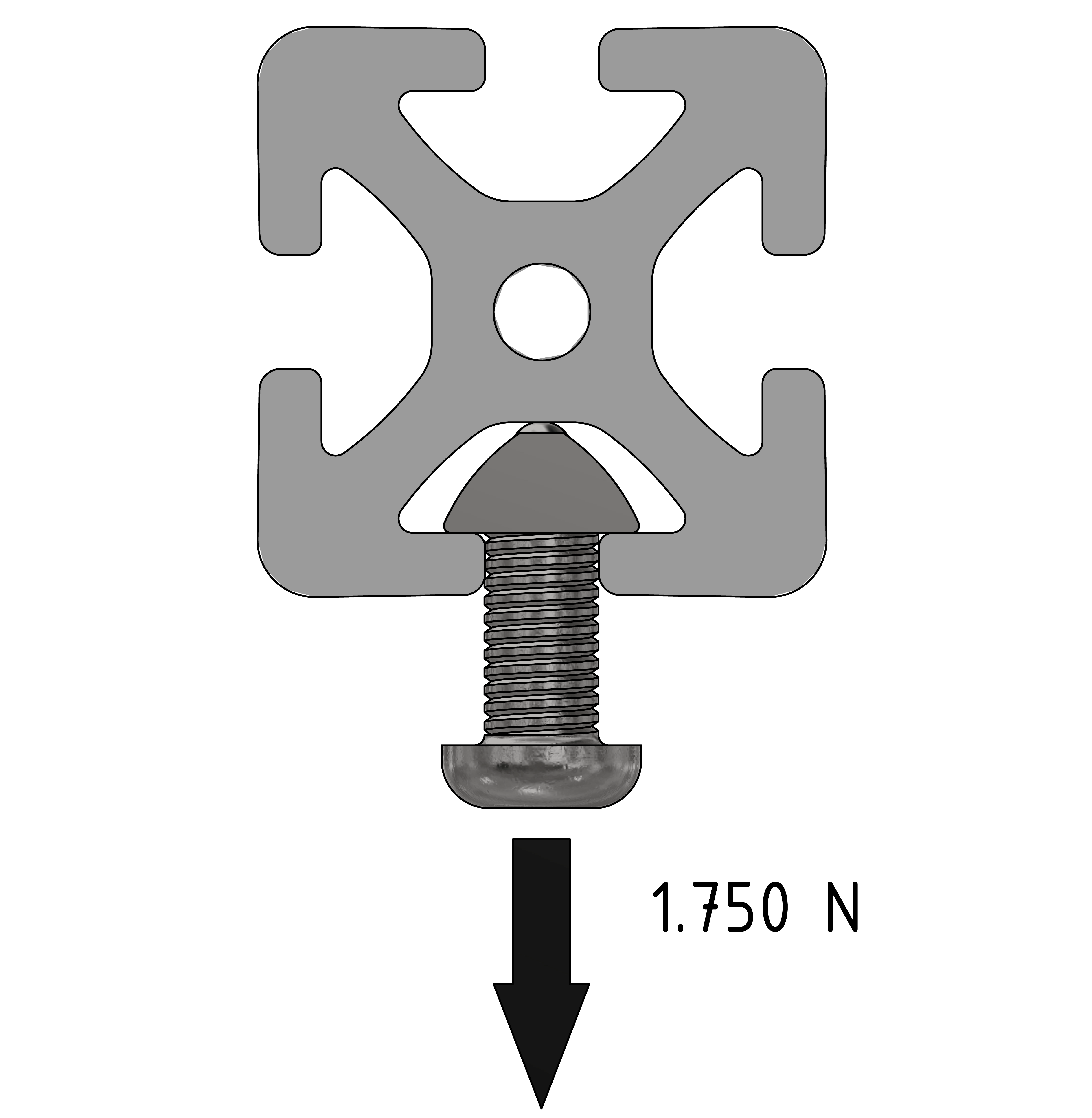

| Nutauszugskraft: | F=1.750 N |
| Profile length: | 6000 mm bar |

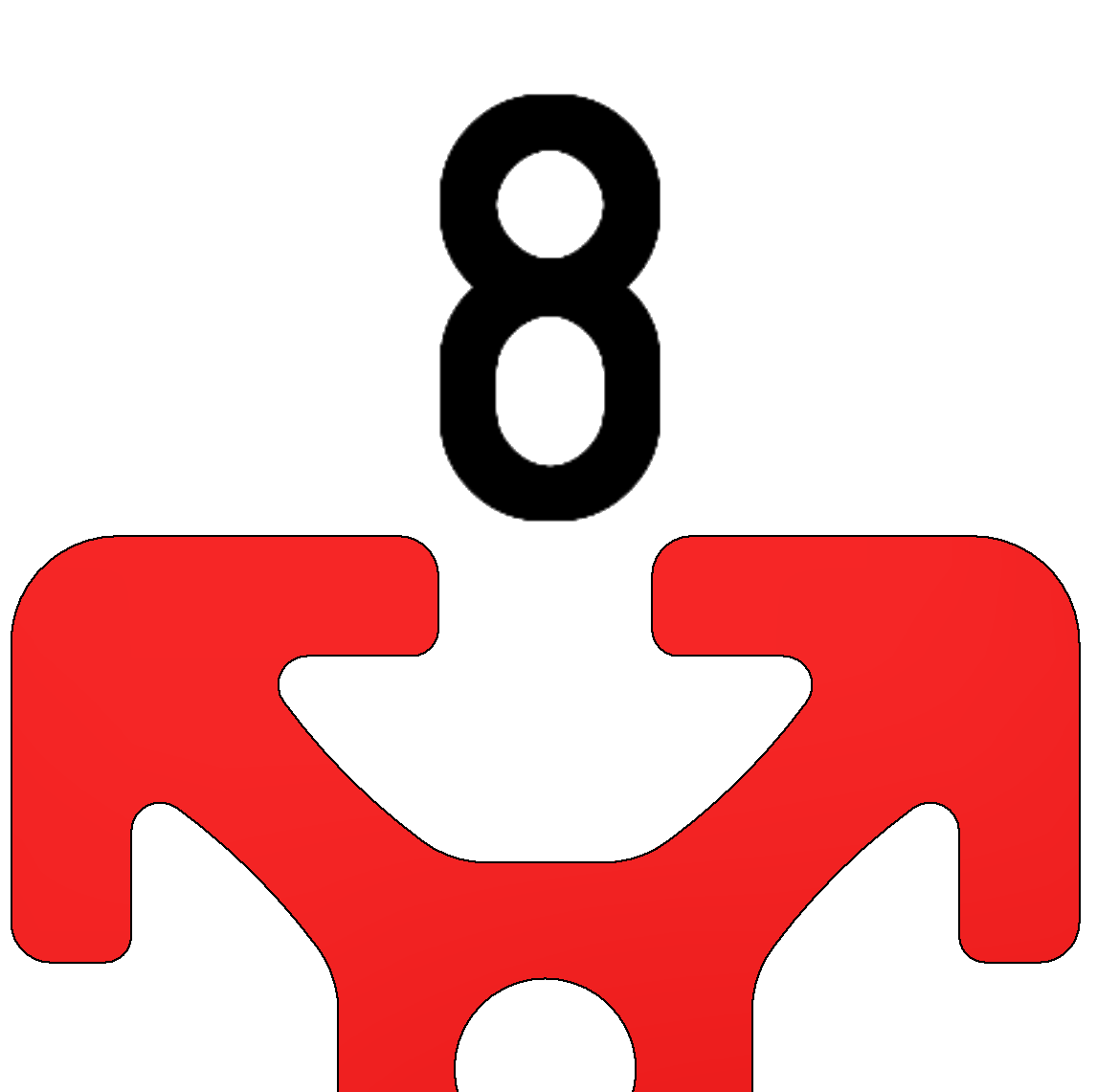

| Series: | Series 8 |
| Size: | 40x40 mm |
PI-1396 SZ
Clamp Profile 8 40x40, natural
Profiles 8 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves and the core holes of the profiles 8 are designed for M8 screws. Clamping profiles are used to build large and stable protective panels. The panel elements are screwed together with cylinder head screws and clamping strips. The direct screwing of the panel element supports the stability of the panel. Panel size: clear inside dimension +30.0 mm
Cut to size max. 6000 mm
