Fastening Set for Angle Bracket 8 160x160 M8
Maunsystem GmbH
| Quantity | Unit price |
|---|---|
| To 9 |
€4.10*
|
| To 99 |
€3.95*
|
| From 100 |
€3.57*
|
accessories
Product number:
ZI-1861
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1003519
Weight:
0.072 kg
Product information "Fastening Set for Angle Bracket 8 160x160 M8"

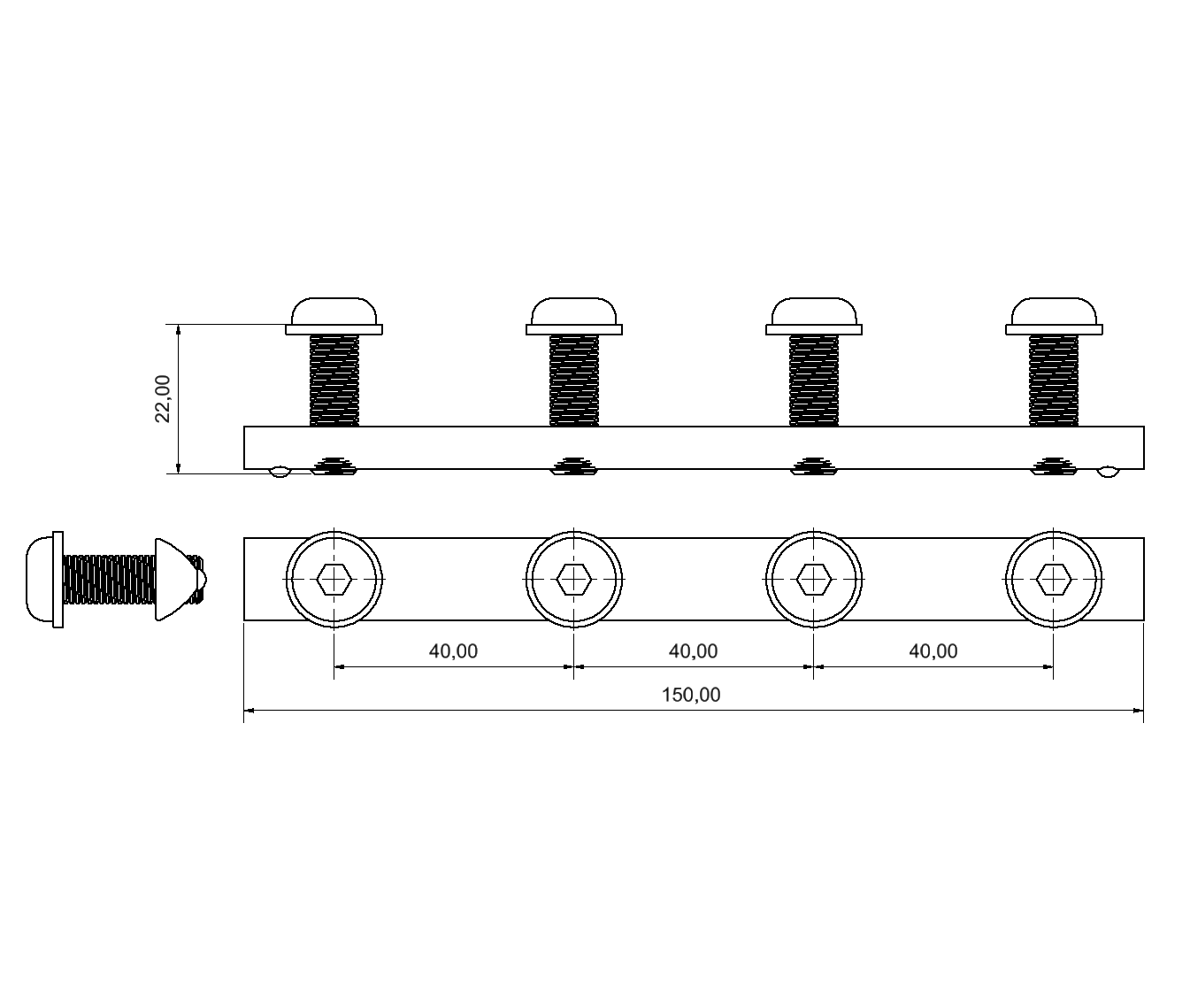

The fastening set is the screw connection set for Angle 8 160x160
Compatible with item 0.0.479.96
Details
- 1 Stück Befestigungsnutenstein 4xM8 mit Kugel
- 4 Stück S-1338 Halbrundschraube M8x22 ISO 7380, verzinkt
- 4 Stück Scheibe DIN 125 / A8,4
Step-Datei
Download| Angle bracket type: | Angle bracket Al, Fastening sets |
|---|---|
| Colour: | galvanized |
| Compatible with: | item |
| Material: | Galvanized steel |
| Part type : | Winkel , Befestigungssätze |
| Screw size: | M8x22 |
| Screw type of the fastening set: | Semicircular head screw |
| Series: | Series 8 |
| Size: | 160x160 mm |
ZI-1864
Angle Bracket 8 160x160 Al M8, white aluminium
Angles are a force-locking and machining-free connection. These are also used as additional reinforcement of connections and as a fastening element for attachments
ZI-1863
Angle Bracket 160x160-40 Al M8, white aluminium-8
Angles are a force-locking and machining-free connection. These are also used as additional reinforcement of connections and as a fastening element for attachments.Compatible with item 0.0619.56

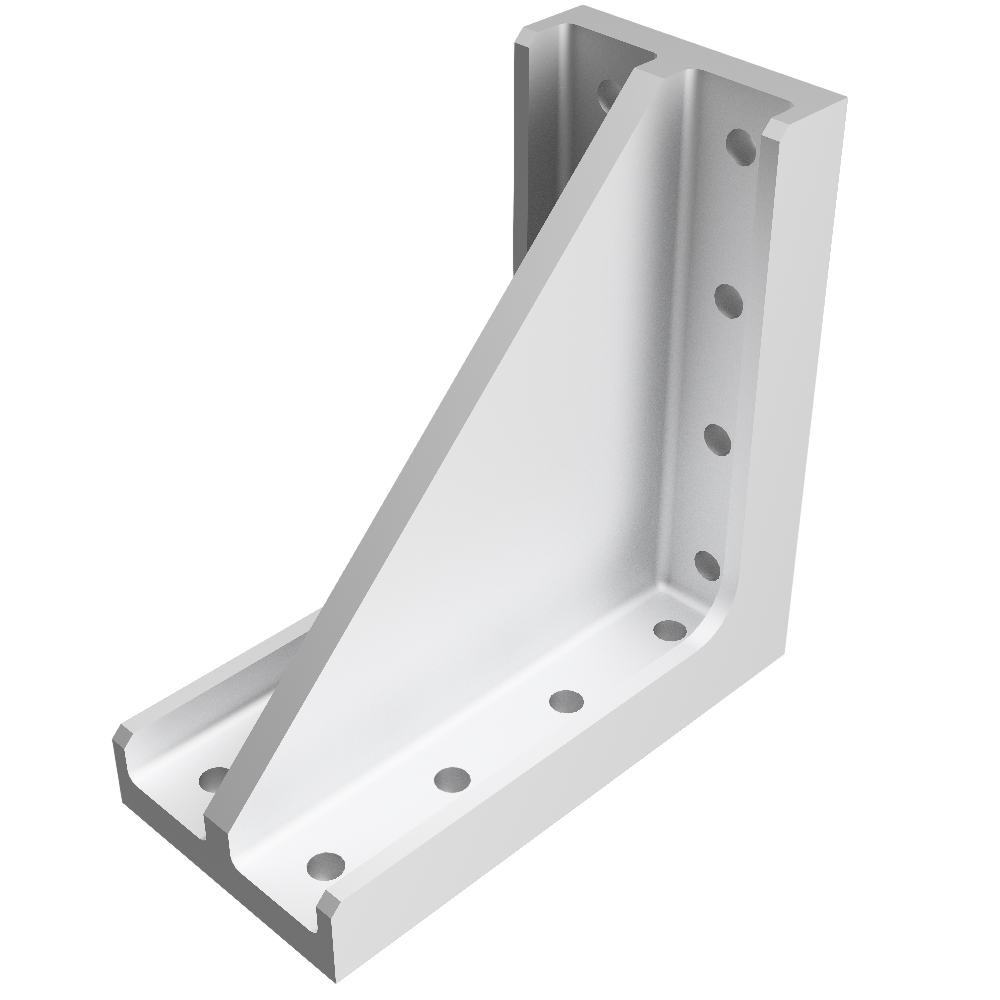

ZI-1862

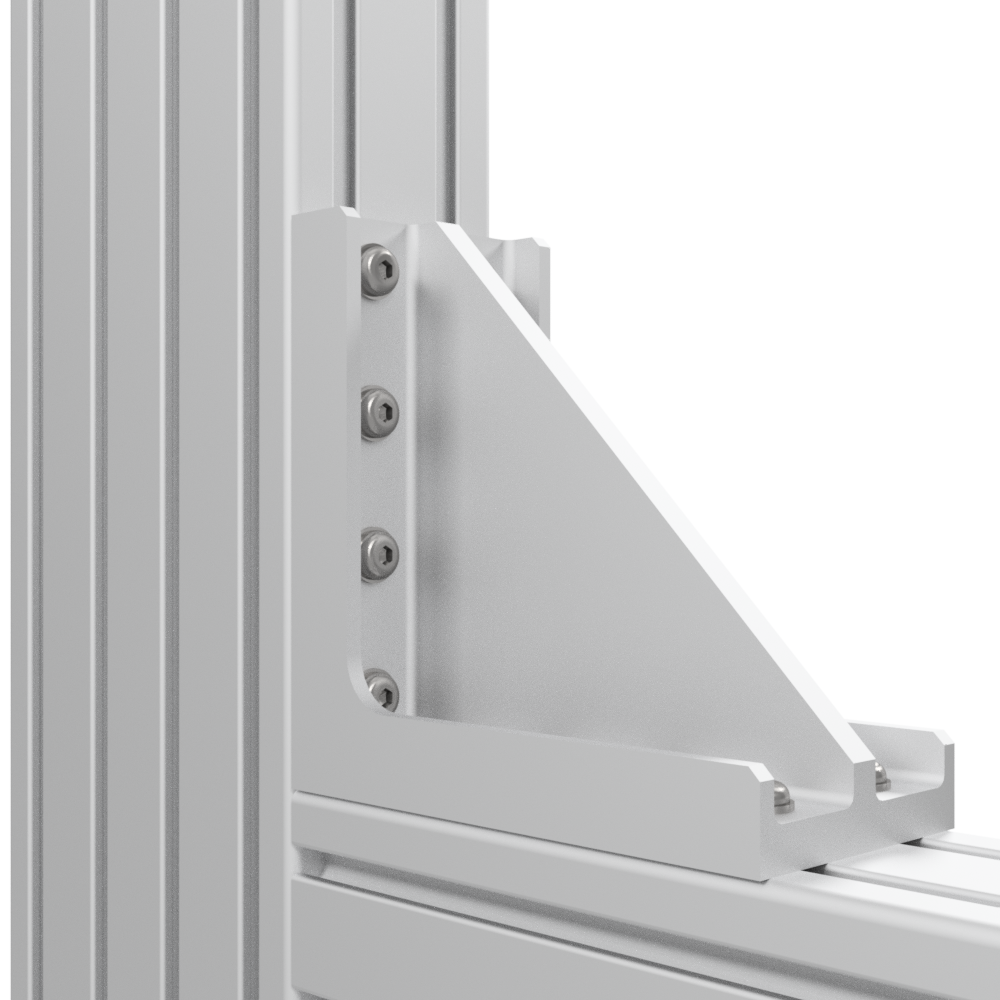

Angle Bracket 8 160x160 Al M8, white aluminium
