i-Lean D30 ALU: Lightweight aluminum tubes for flexible lean production

Discover the versatile i-Lean D30 ALU tubes and components at maunsystem. These lightweight aluminum tubes are ideal for creating modular and flexible structures in lean production. Thanks to the robust design and simple connection technology, you can develop customized solutions for your specific requirements. Optimize your production processes with the high-quality i-Lean D30 ALU components from maunsystem.

Flexible solutions for your production processes

The advantages of i-Lean D30 ALU components:

Lightweight and robust aluminum construction for maximum flexibility
Simple connection technology for customized solutions
Ideal for creating modular structures
Optimization of production processes through lean application

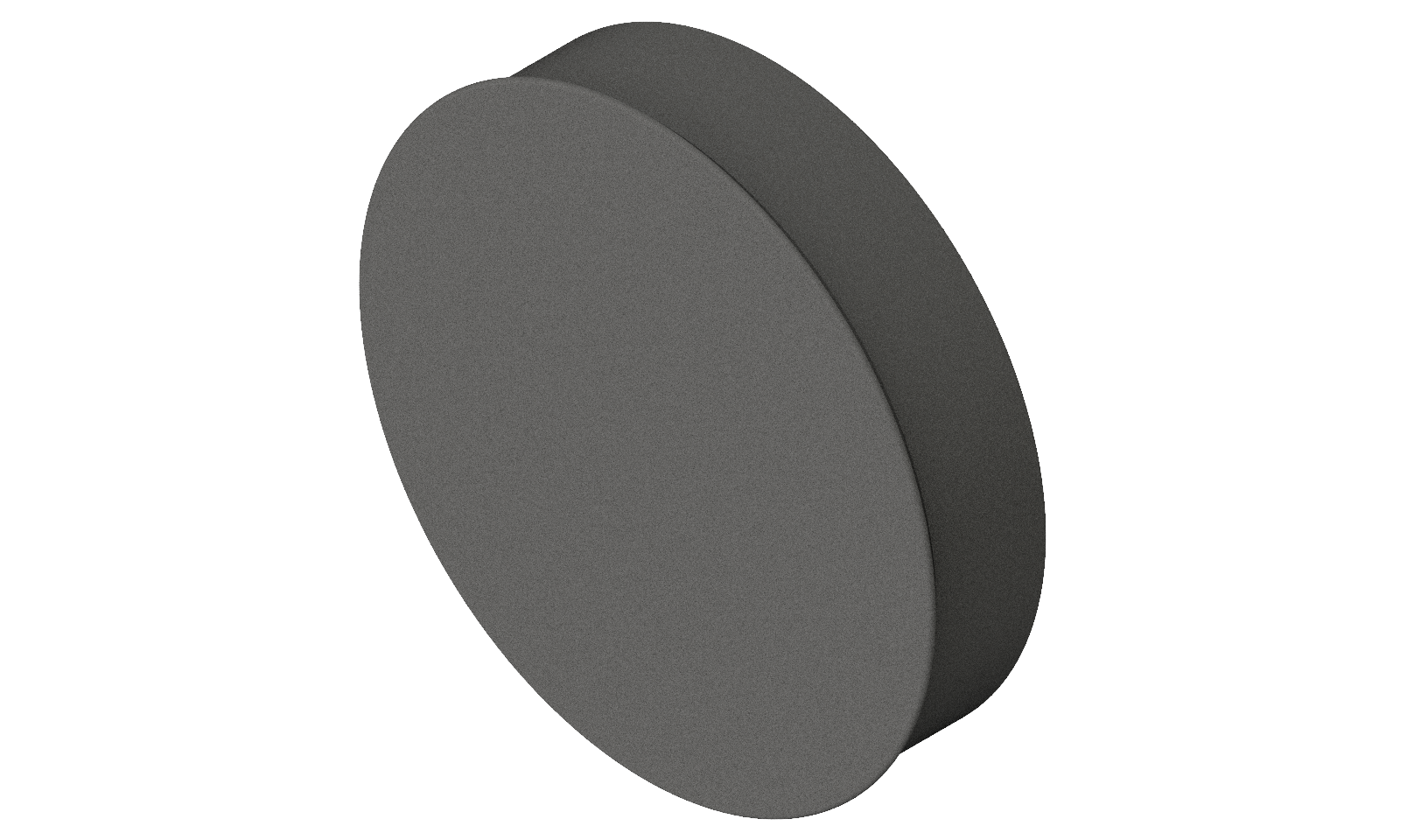

ZL-1912

Abdeckkappe D30 F, grau

Es stehen zwei Varianten von Abdeckkappen für Profil- und Rohrenden zur Auswahl: Grau und Schwarz in einer ESD-ableitfähigen Ausführung. Diese Unterscheidung ermöglicht eine klare Signalisierung für den beabsichtigten Verwendungszweck.

From €0.75*

ZL-1994

Adapter 8 D30

For connecting a round tube profile with outer diameter Ø 30 and a Series-8 profile. Compatible with item 0.0.630.51

From €2.70*

ZL-1936

Ball Joint Butt Fastener D30

For the adjustable connection of two round tube profiles with outer diameter Ø 30.

From €9.25*

ZL-1934

Ball Joint Fastener D30

For the adjustable connection of two round tube profiles with outer diameter Ø 30.

From €11.50*

ZL-1937

Ball Joint Transverse Fastener D30

For the adjustable connection of two round tube profiles with outer diameter Ø 30.

From €9.25*

ZL-1131

Ball Joint Transverse Fastener D30

For the adjustable connection of two round tube profiles with outer diameter Ø 30.

From €9.25*

ZL-1944

Bracing Strut D30-90°

For creating a stiffener for the connection of two round tube profiles with outer diameter Ø 30.

From €4.82*

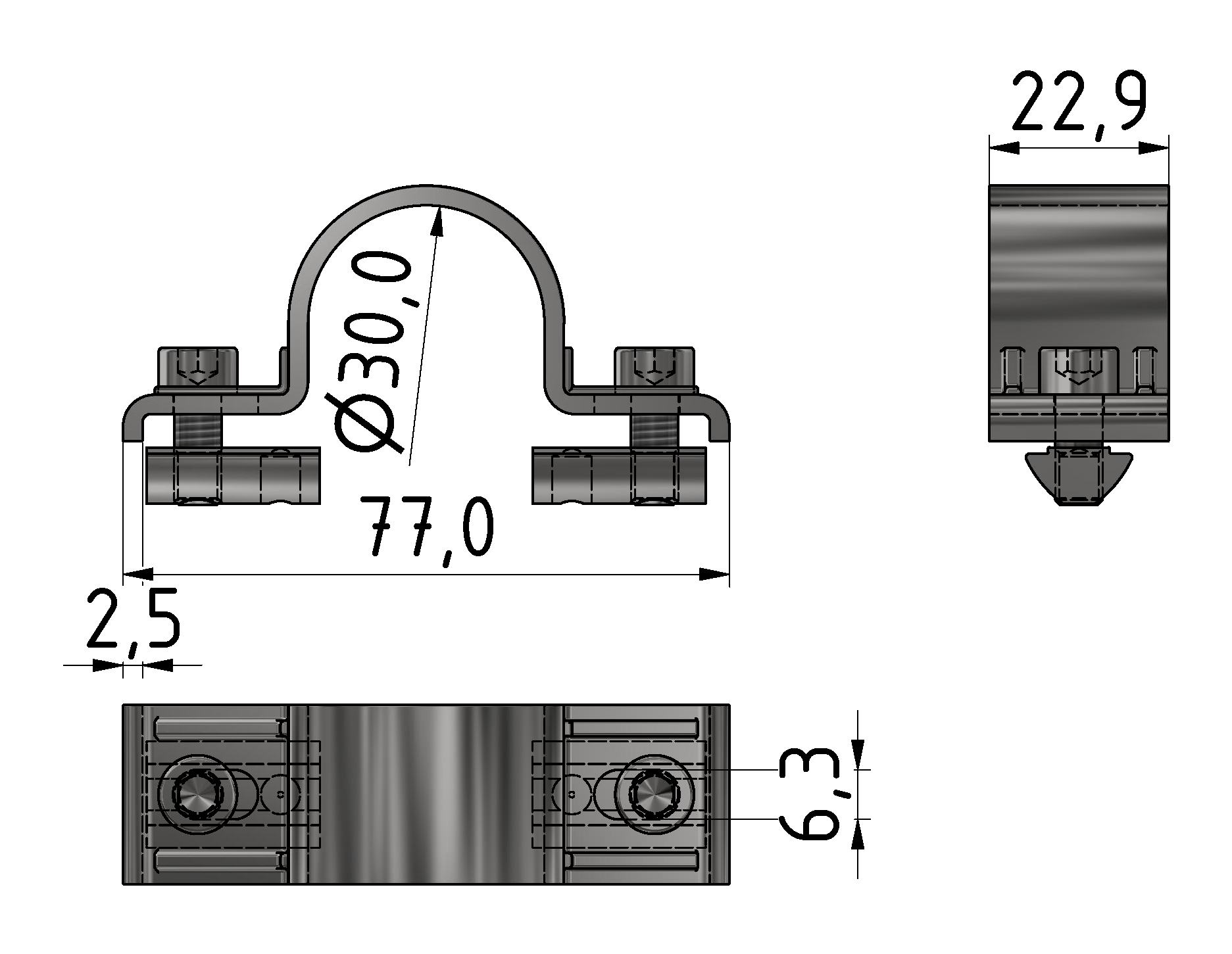

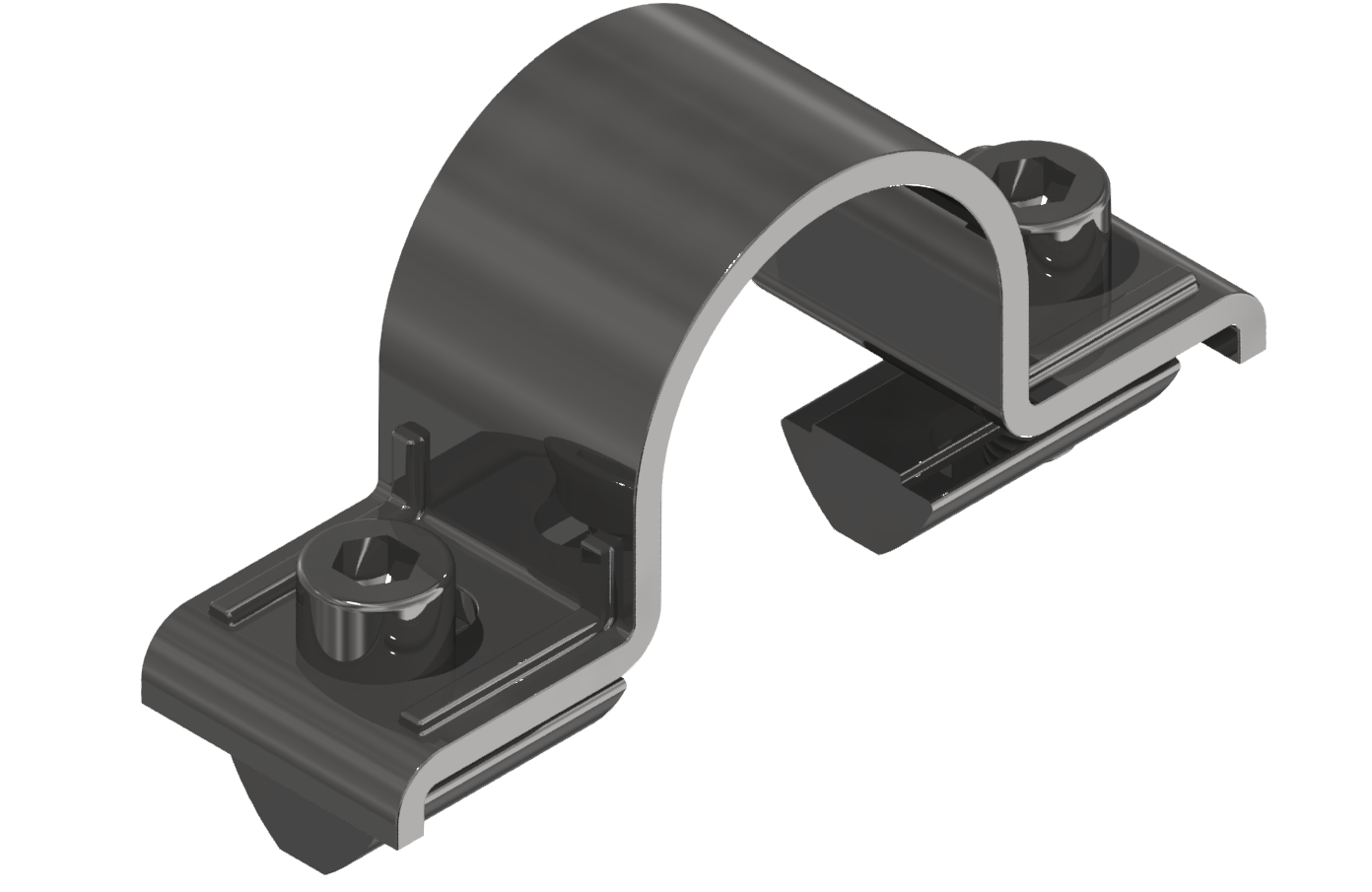

ZL-1998

Bracket 8 D30

For attaching a table top to frames made of round tube profiles with an outer diameter of Ø 30.

From €2.50*

ZL-1922

Butt Fastener D30-90° R25

For right-angled connection of two round tube profiles with outer diameter Ø 30

From €6.54*

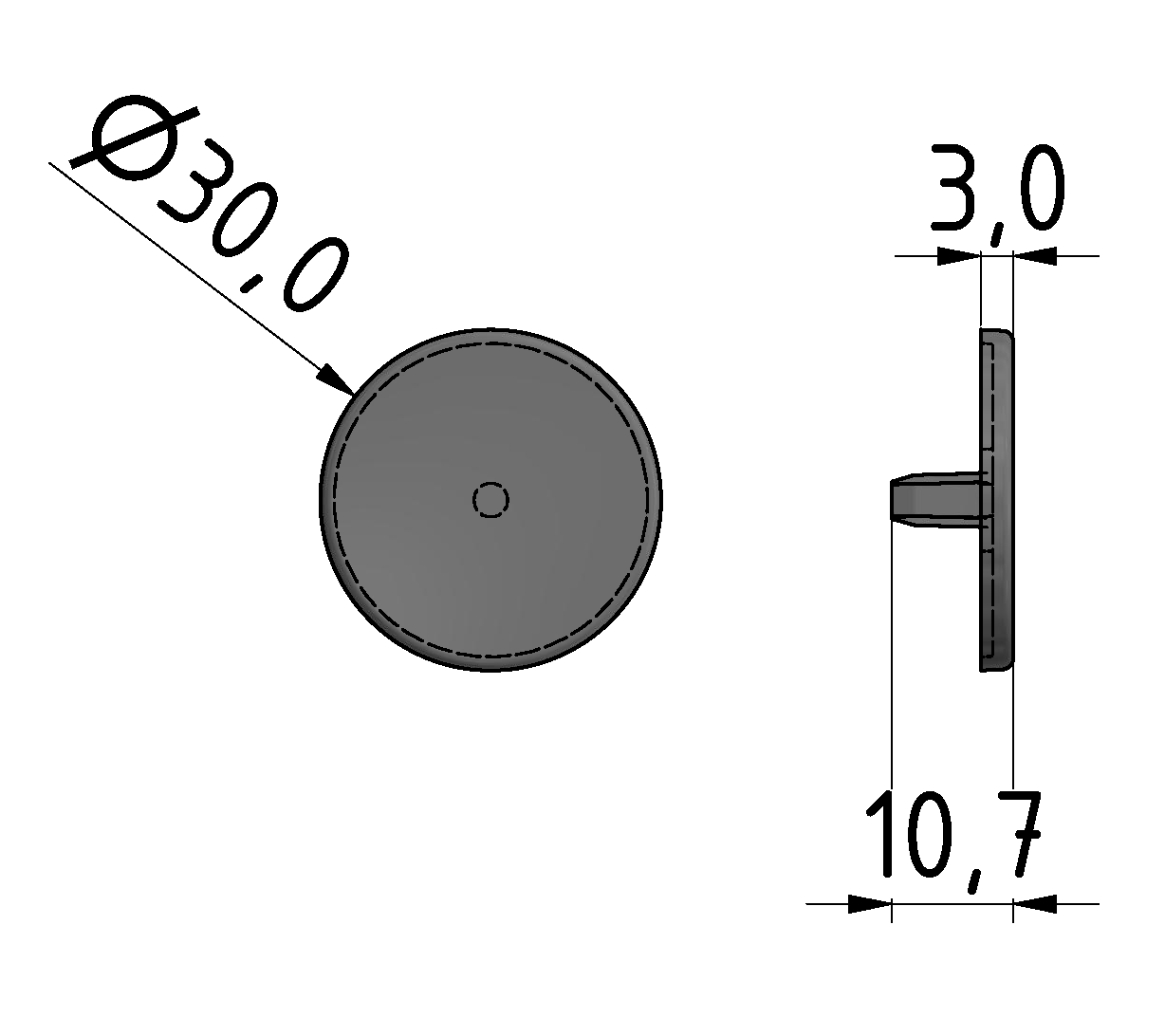

ZL-1916

Cap 6 D30, grey

Cover cap for connector

From €0.46*

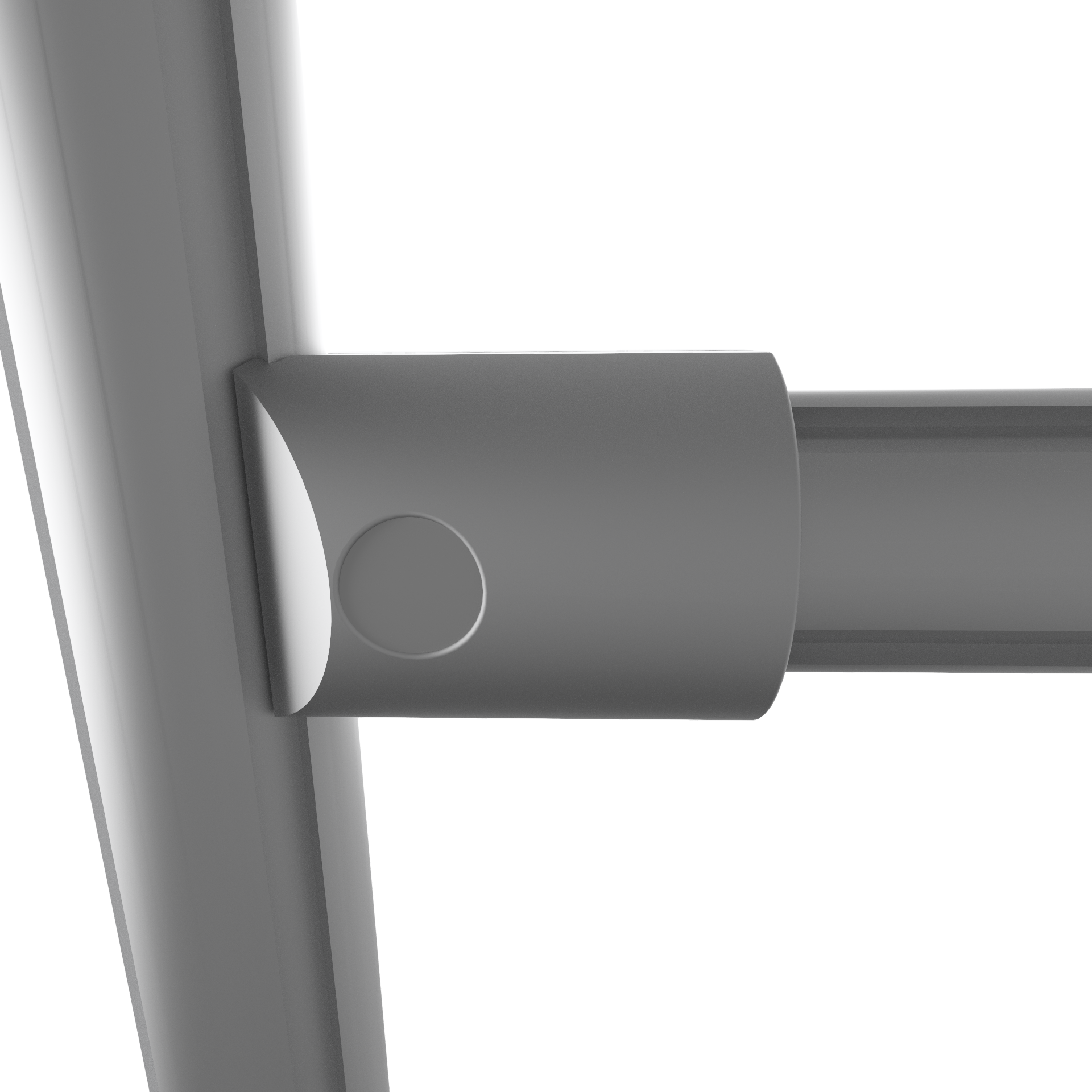

ZL-1914

Cap D30 R, grey

Cover cap for connector

From €0.22*

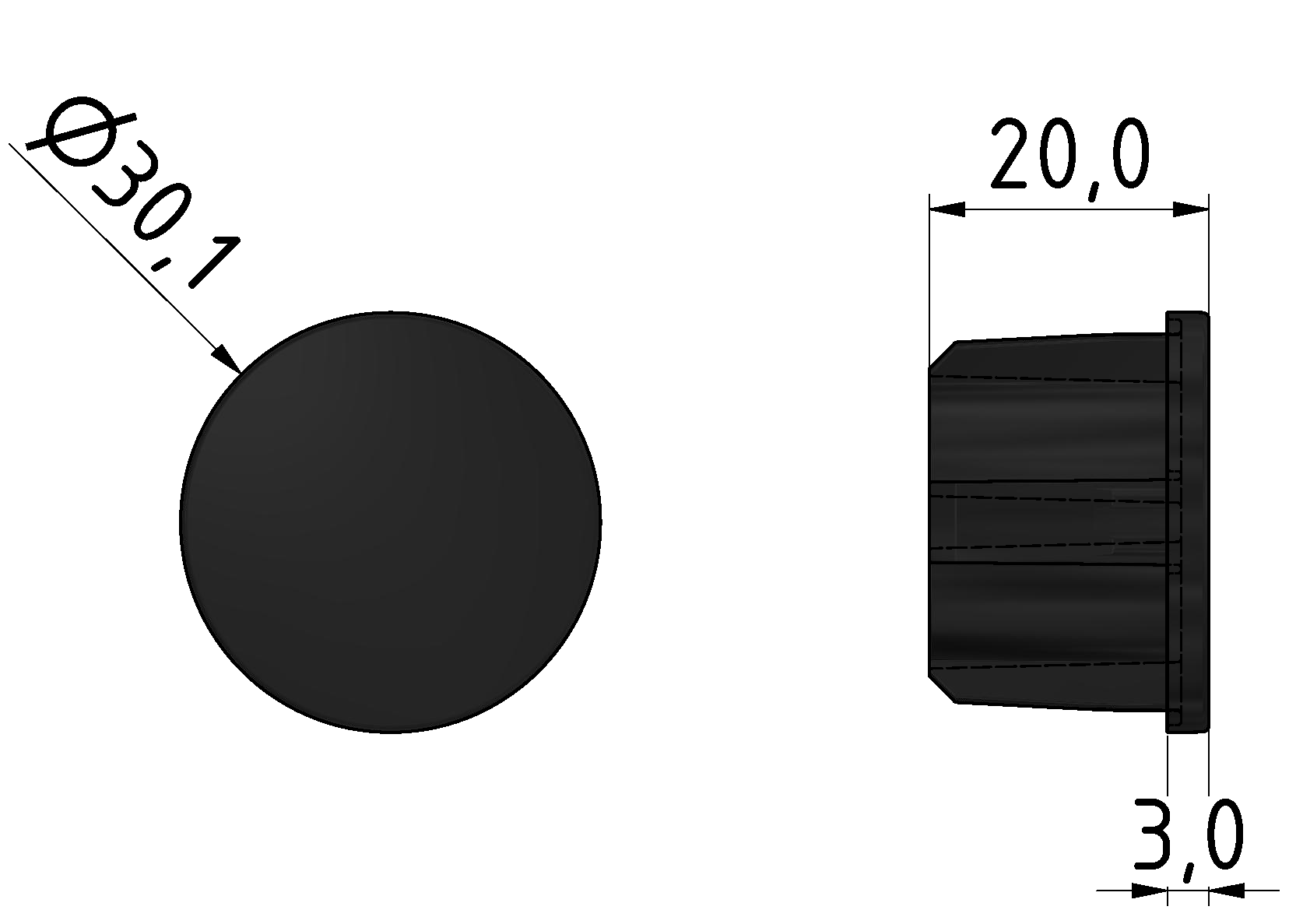

ZL-1910

Cap, Tube D30 ESD, black

Cover cap for tube ends

From €0.75*

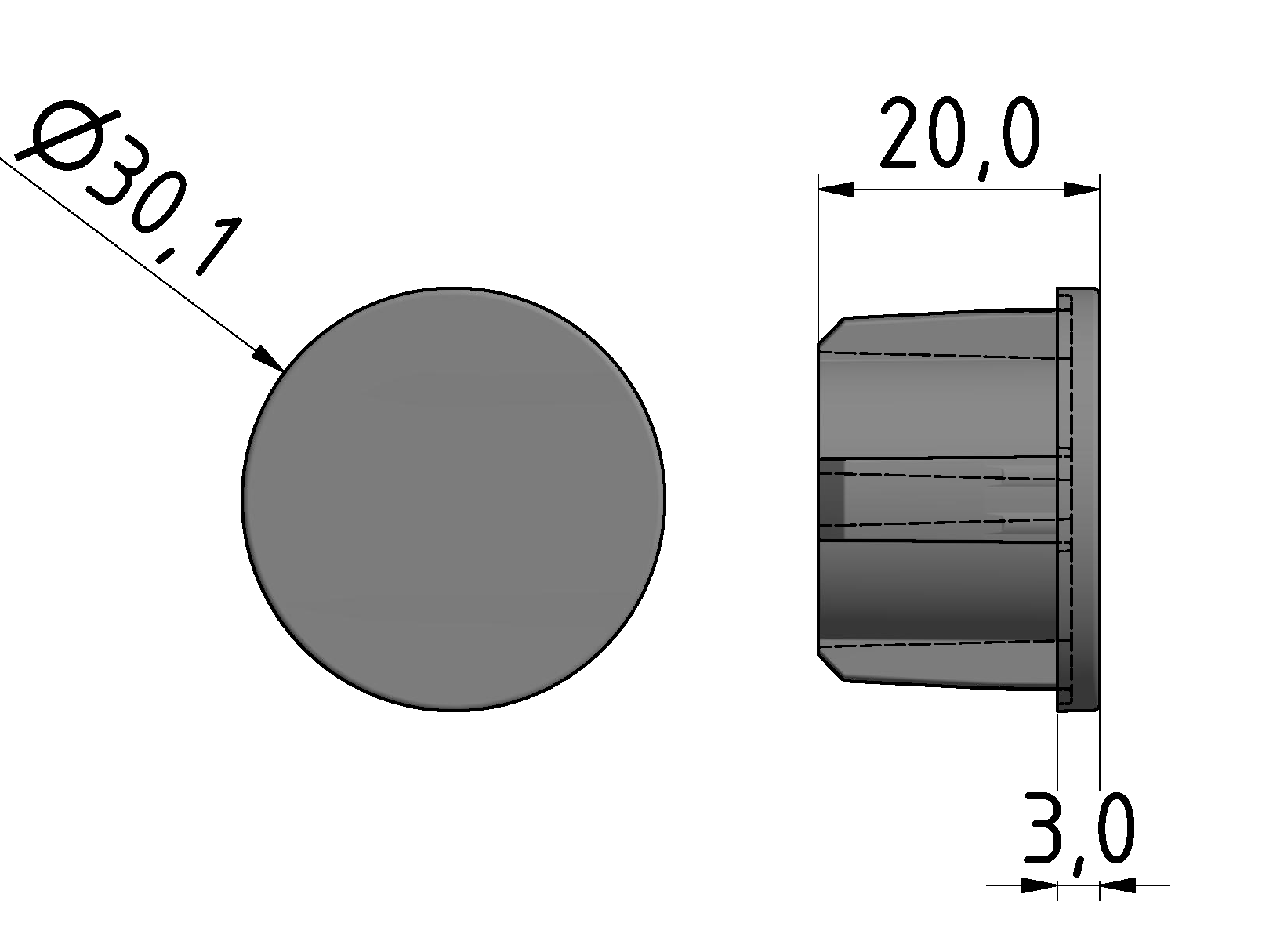

ZL-1905

Cap, Tube D30, grey

Cover cap for tube ends

From €0.49*

ZL-1946

End Connector 8 D30-90°

For creating a connection between a profile of series 8 and a round tube profile with outer diameter Ø 30.

€8.50*

ZL-1918

Fastener D30

For right-angled connection of two round tube profiles with outer diameter Ø 30

From €3.90*

ZL-1917

Fastener D30

For right-angled connection of two round tube profiles with outer diameter Ø 30

From €2.35*

ZL-1919

Fastener D30-45°

For 45° connection of two round tube profiles with outer diameter Ø 30

From €2.42*

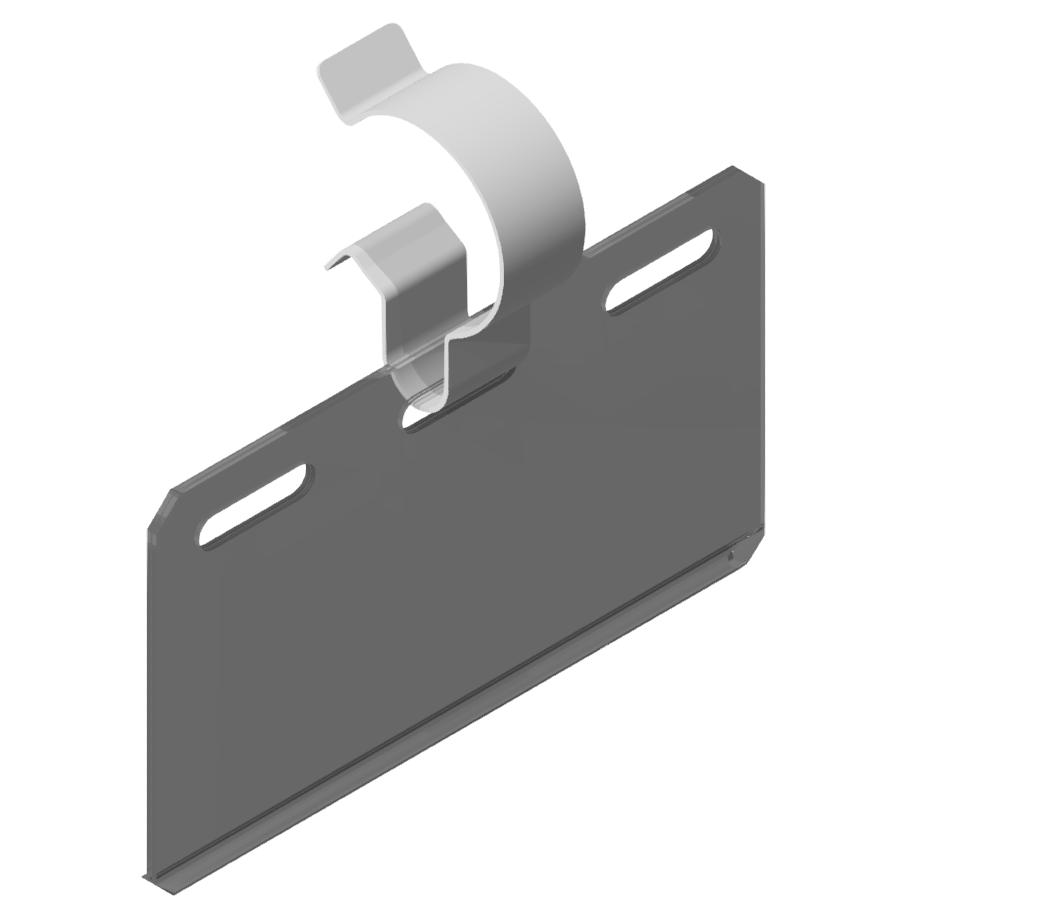

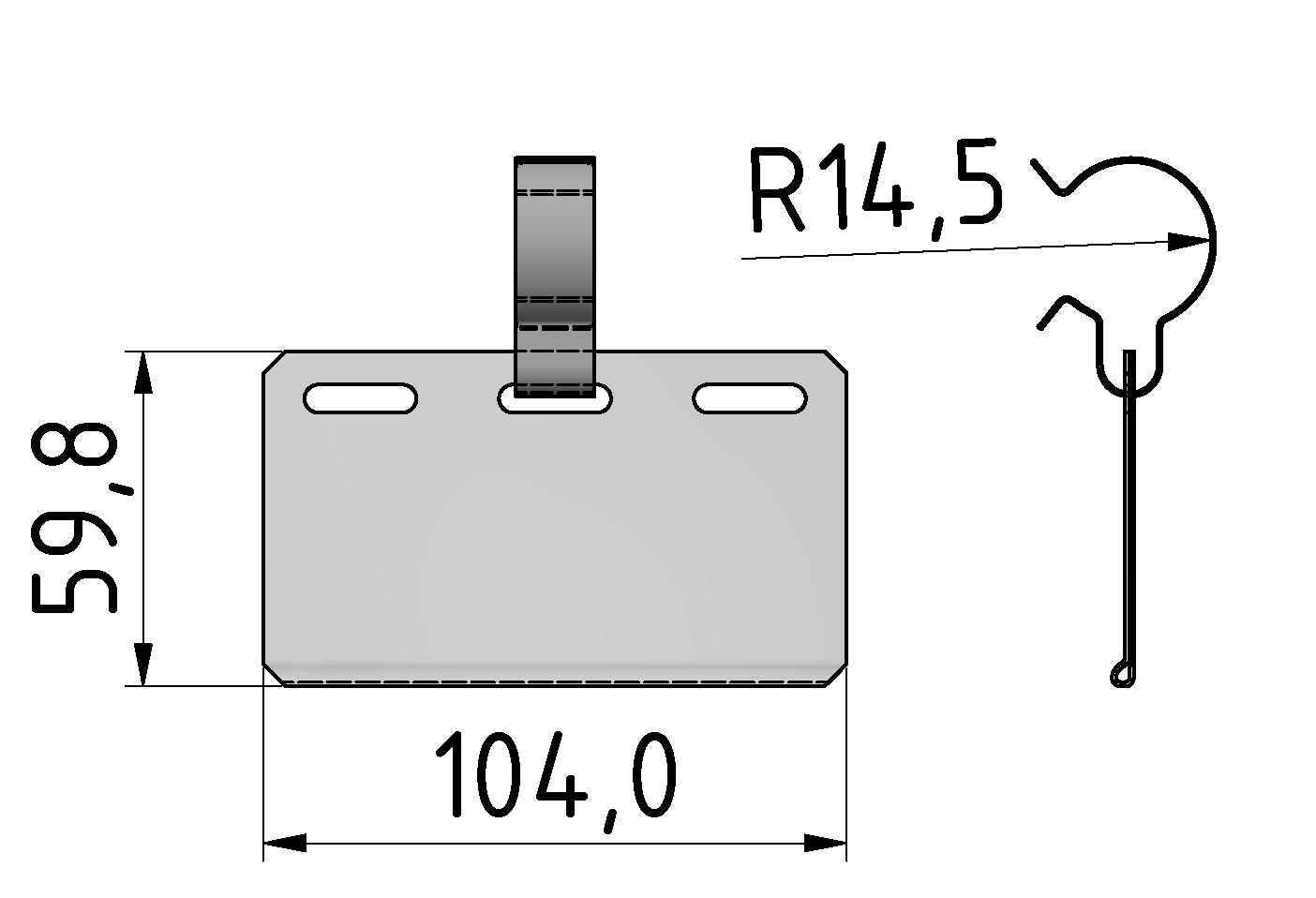

ZL-1964

Label Hanger D30-100

For creating inscriptions on frames made of round tubular profiles with outer diameter Ø 30

From €2.14*

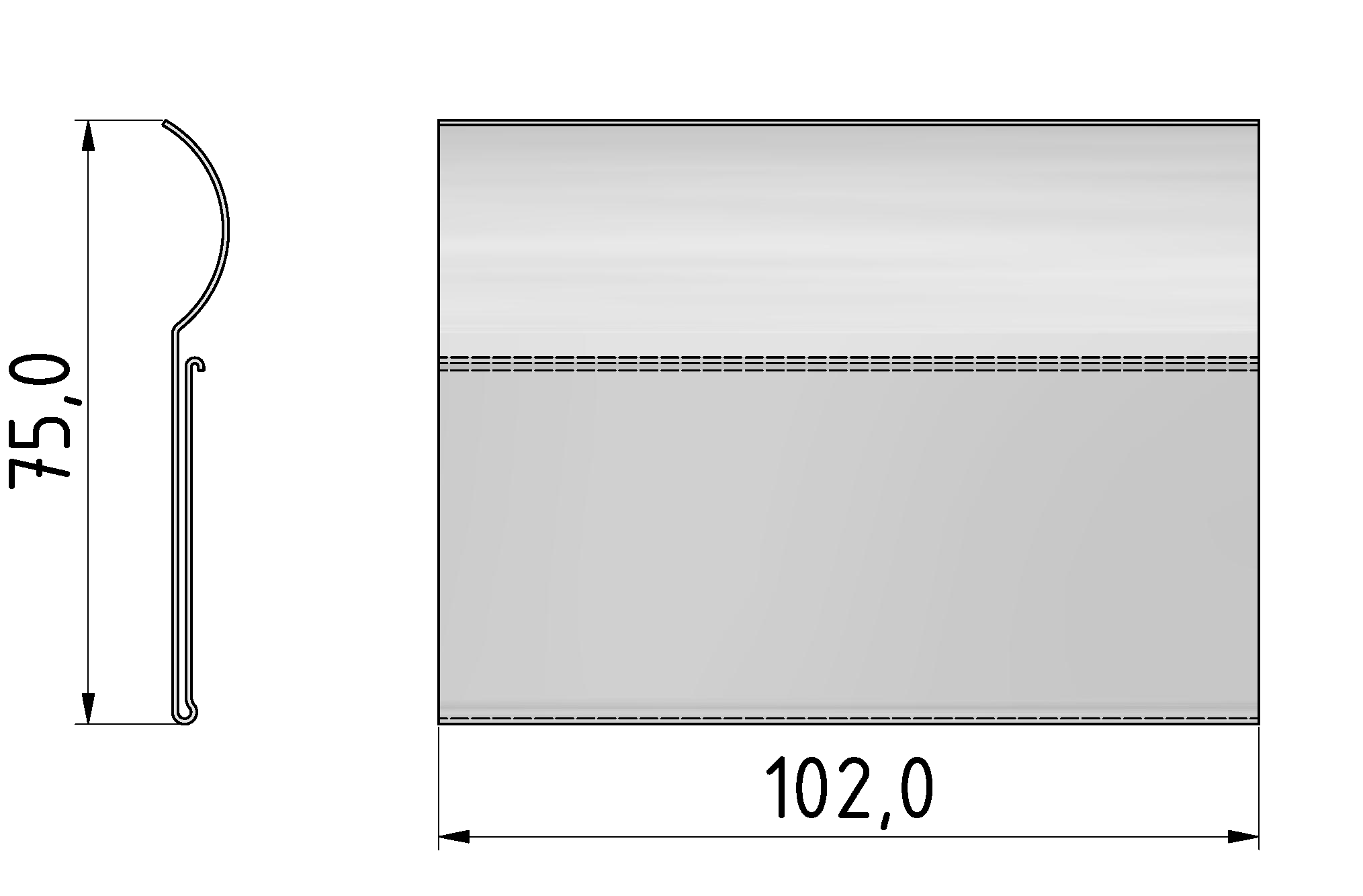

ZL-1966

Label Holder D30-100 flex, transparent

For creating inscriptions on frames made of round tubular profiles with outer diameter Ø 30

From €1.00*

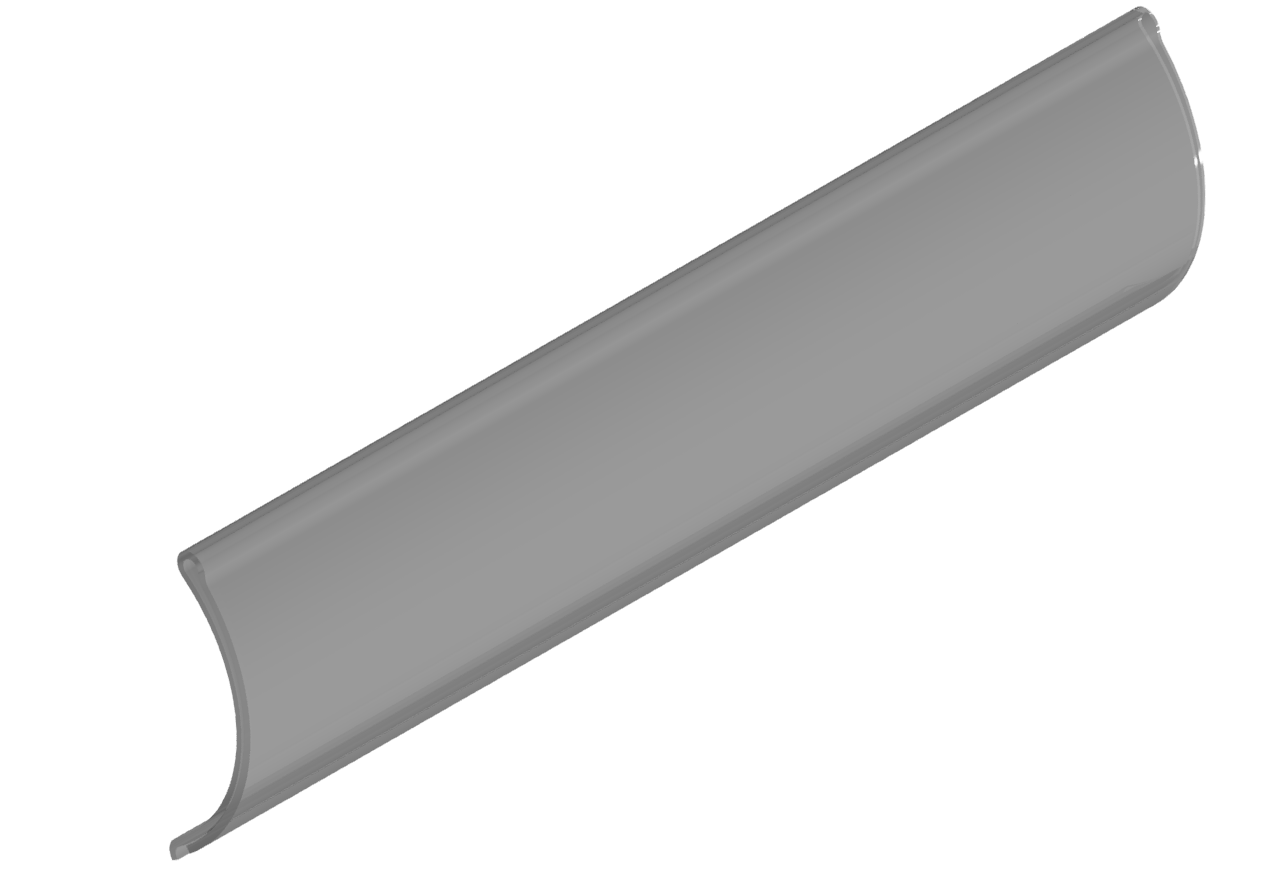

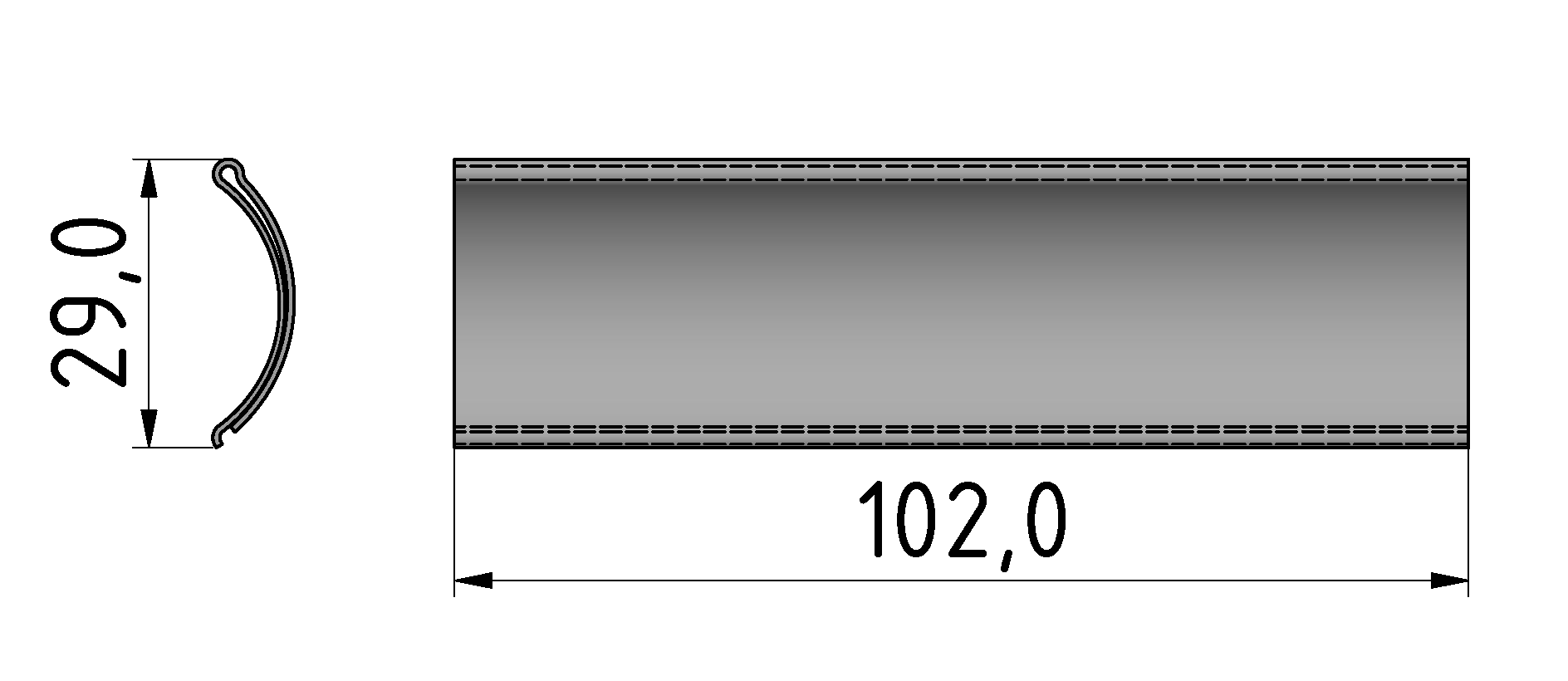

ZL-1960

Label Holder D30-100, transparent

For creating inscriptions on frames made of round tubular profiles with outer diameter Ø 30

From €0.76*

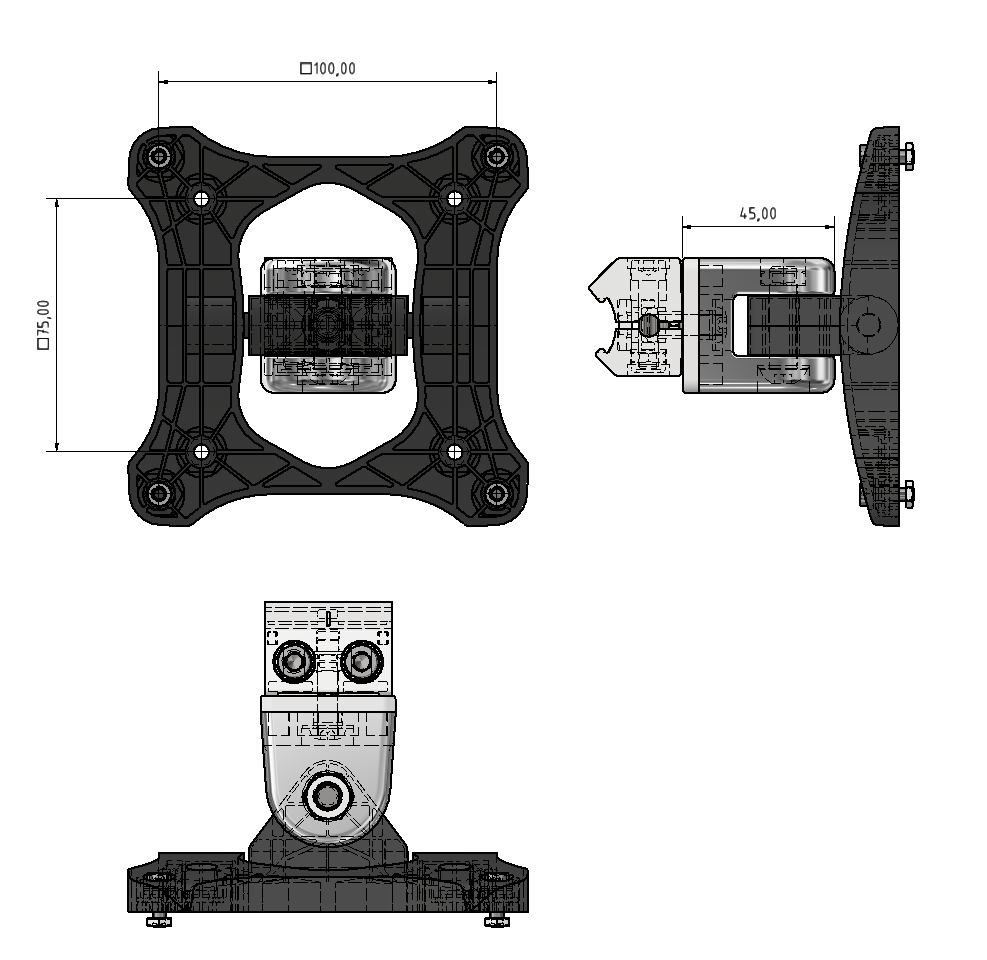

ZL-1310

Monitor Holder, white aluminium-8

The monitor holder is used for the movable attachment of flat screens to assemblies. The mounting plate is VESA MIS-D 75/100 compatible and adjustable horizontally and vertically to the viewing direction.

€83.50*

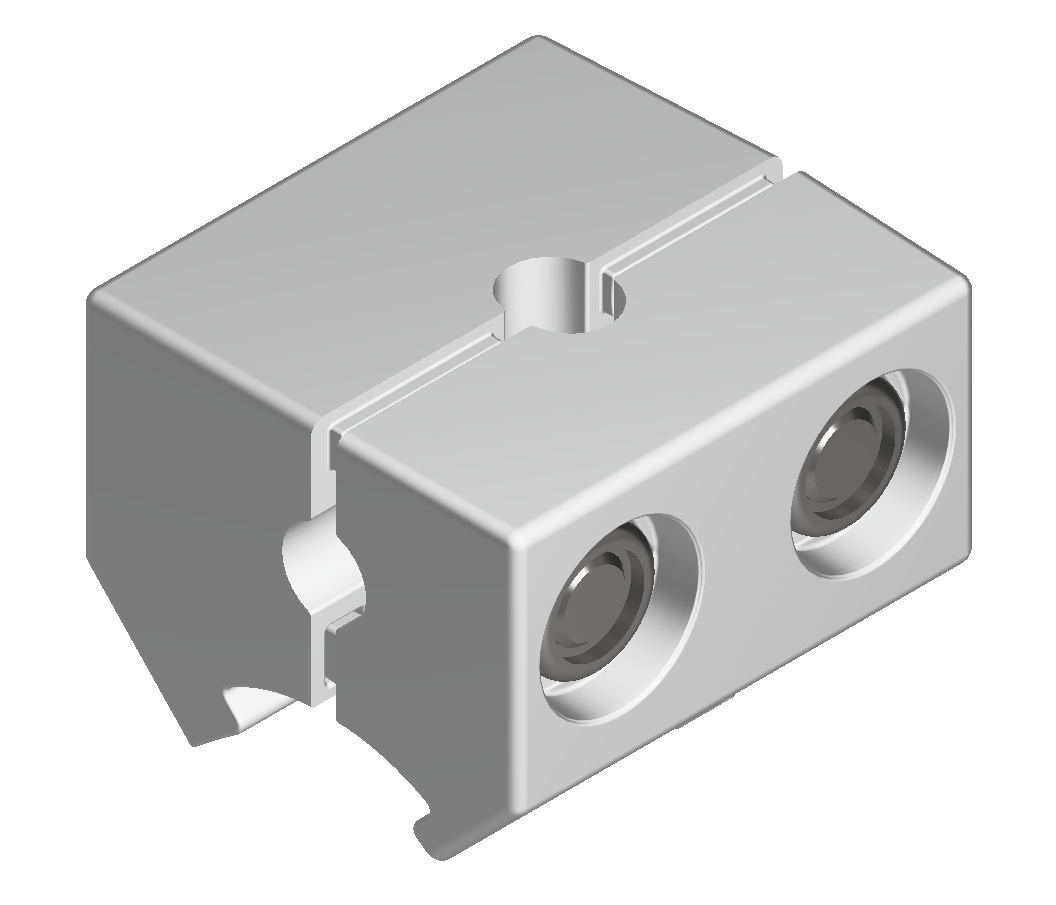

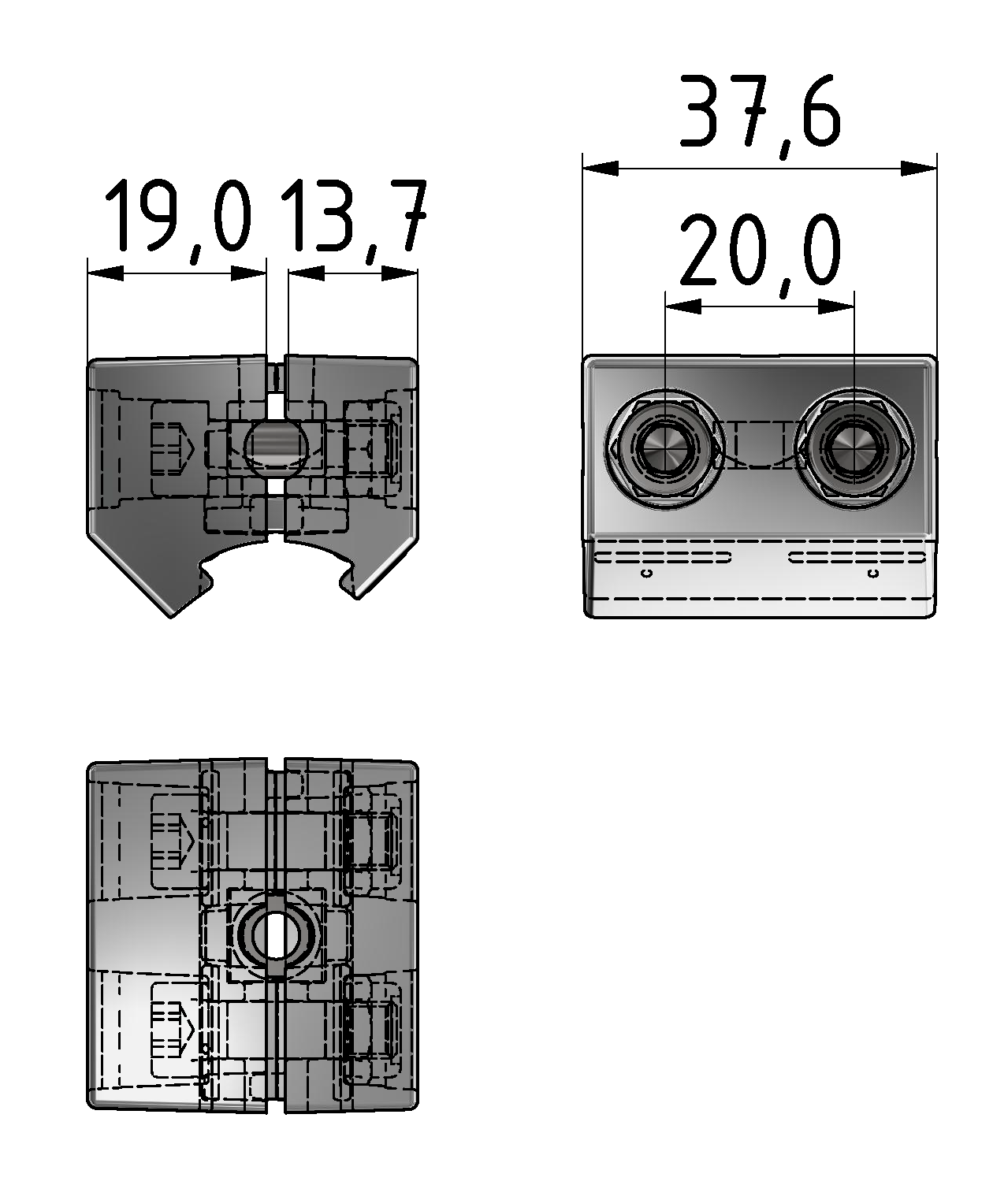

ZL-1950

Multiblock D30

For attaching panel elements to frames made of round tubular profiles with an outer diameter of Ø 30.

From €5.00*

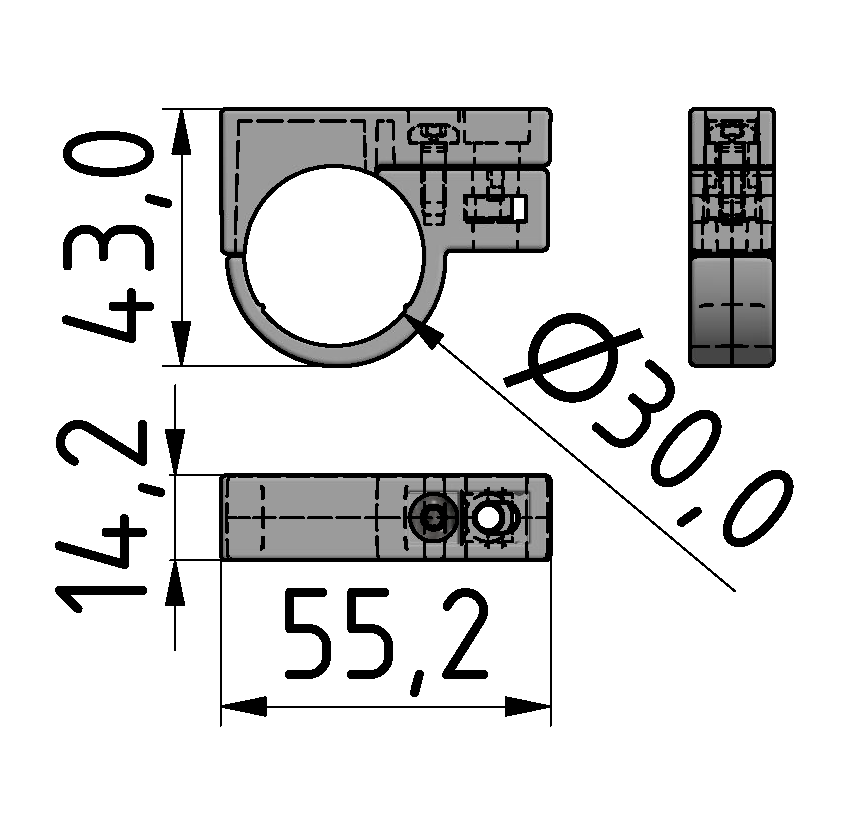

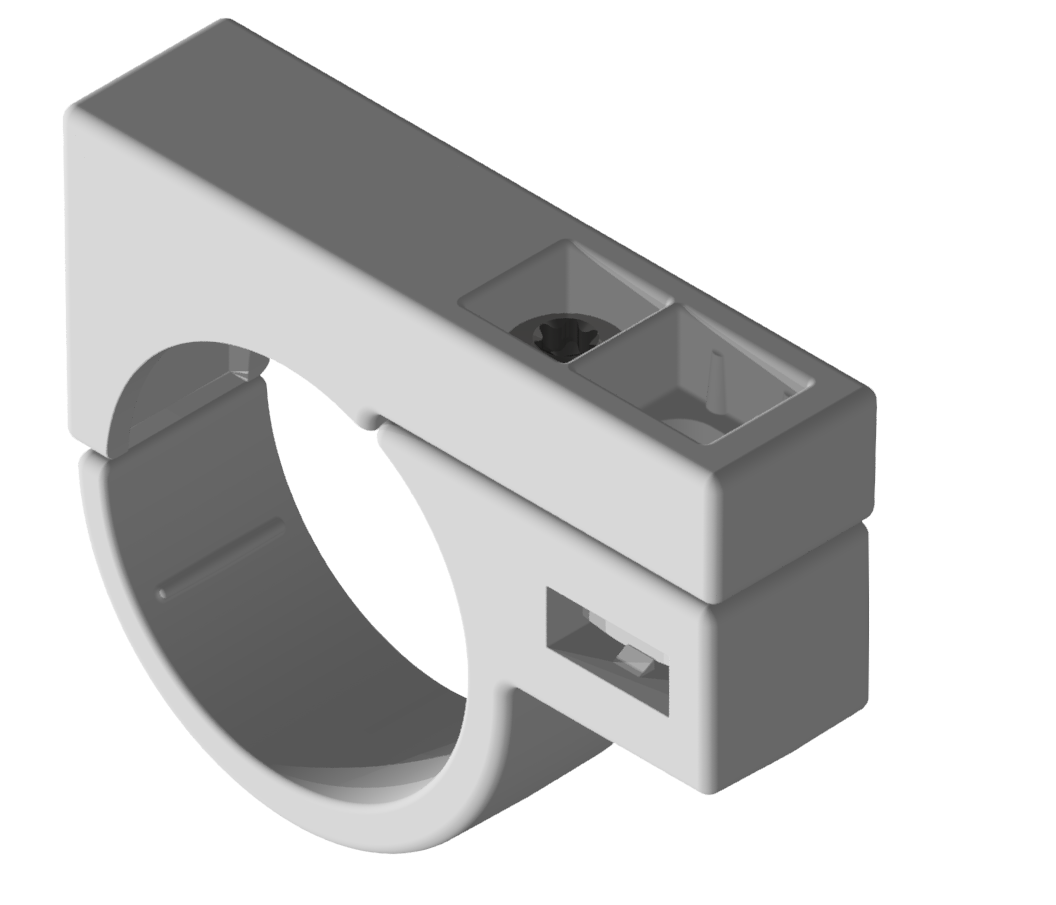

ZL-1962

Panel Fastener D30

For attaching panel elements to frames made of round tubular profiles with an outer diameter of Ø 30.

From €0.94*

Tip

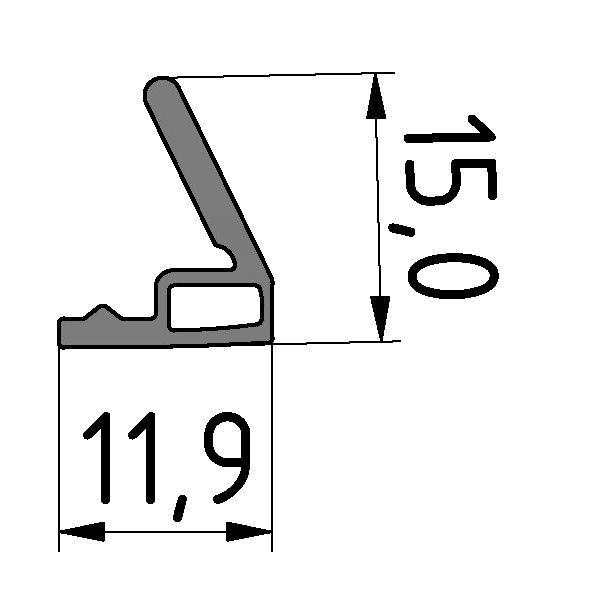

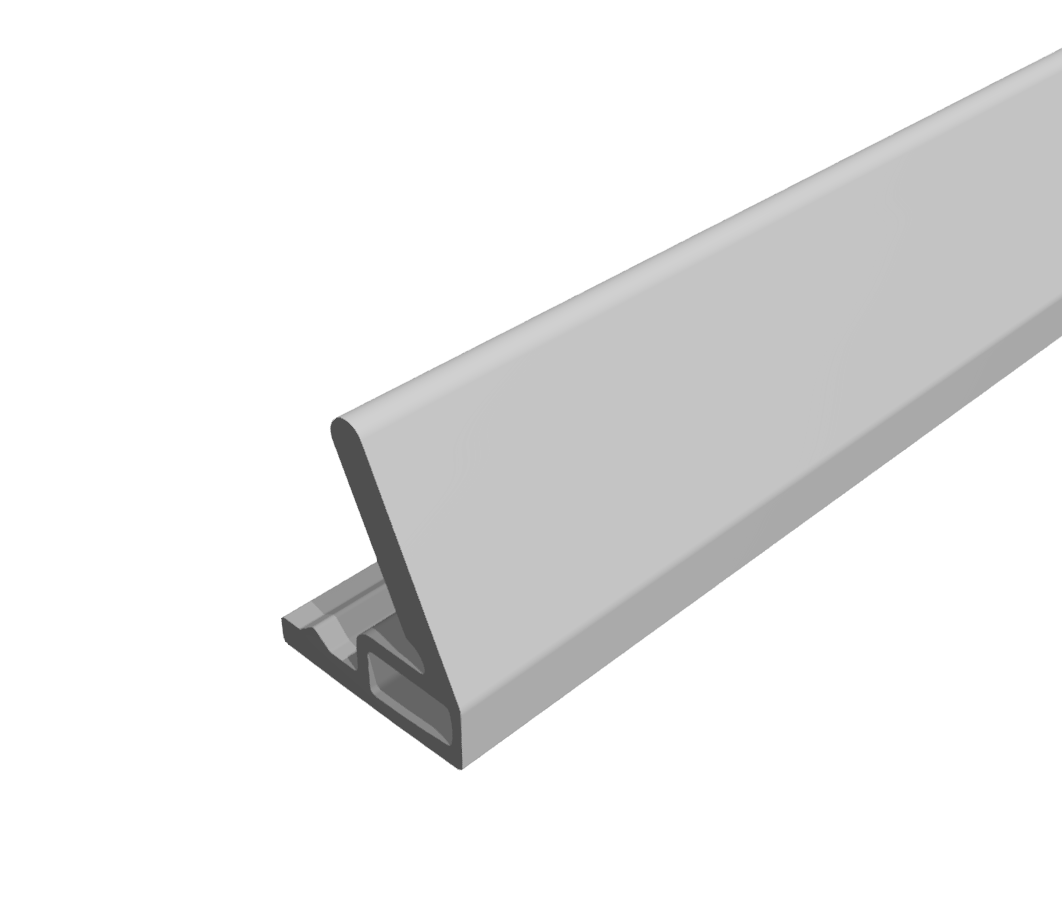

ZL-1955 SN3000

Panel-Fixing Strip D30 8-10mm, grey

Delivery length 3000 mm

From €7.88*

Advantages of the i-Lean D30 ALU system

Lightweight and stable: The aluminum tubes are significantly lighter than steel tubes, but still offer lasting stability.
Easy assembly: The profiles can be easily sawn to the desired length and joined together with connectors.
Flexibility: Up to four connectors can be fitted to one profile tube at junctions, opening up a wide range of design options.
Compatibility: The basic diameter of 30 mm corresponds to the grid dimension of item Profile Series 6, enabling seamless integration.

Areas of application

The i-Lean D30 ALU System is ideal for:

Fast and sophisticated production equipment construction
Modular workstation design
Flexible production lines
Lean production environments

FAQ

How does i-Lean D30 ALU differ from conventional steel tube systems?

i-Lean D30 ALU is significantly lighter, easier to work with, and offers more flexibility during assembly without sacrificing stability.

Can I combine i-Lean D30 ALU with other systems?

Yes, the basic diameter of 30 mm makes it compatible with many common systems, especially item Profile Series 6.

What advantages does i-Lean D30 ALU offer for lean production?

The system enables quick adjustments, modular structures, and optimized workflows, which fits in perfectly with the principles of lean production.

Discover the possibilities of the i-Lean D30 ALU system at maunsystem now and revolutionize your production environment!
