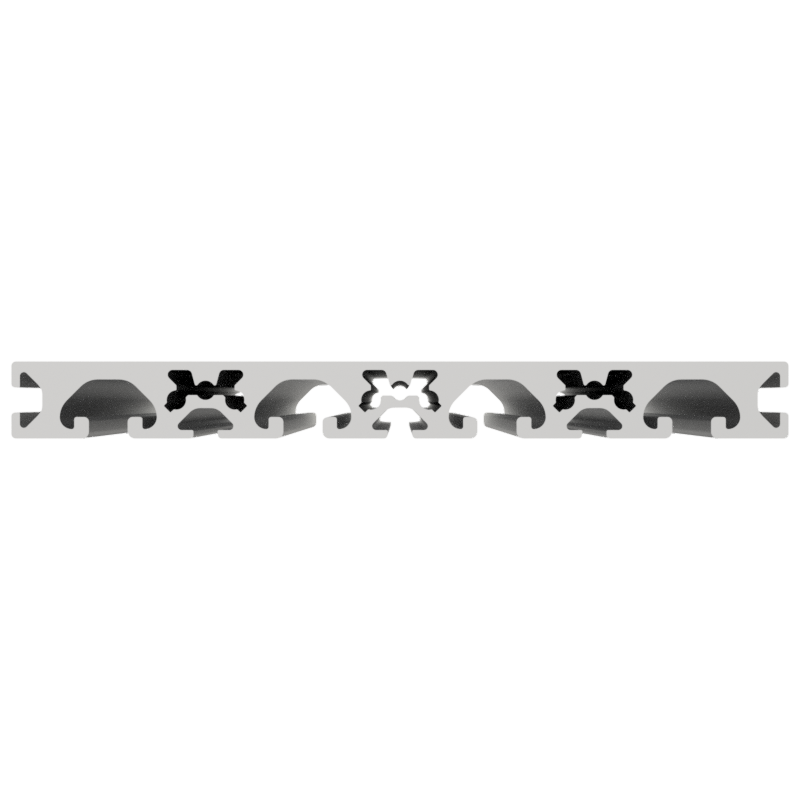

Profil 8 160x16, natur
Maunsystem GmbH
Loading...
| Quantity | Unit price |
|---|---|
| To 2 |
€319.62*
|
| From 3 |
€309.72*
|
| Accessories total price | €0.00 |
accessories
Accessories total price
€319.62 *
Product number:
PI-1002 SN6000
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1001295
Length:
6000 mm
Weight:
22.5 kg
Product information "Profil 8 160x16, natur"
Profiles 8 are suitable for a wide range of assemblies. The grooves and the core holes of the profiles 8 are designed for M8 screws.
Delivery length 6030 mm
Delivery length 6030 mm
Compatible with item 0.0.453.18
Details
Ix 11,4 cm4
Iy 13 cm4
Wx 5,7 cm3
Wy 6,2 cm3
Profilfläche 8,38 cm2
Gewicht 2,56 kg/m
Iy 13 cm4
Wx 5,7 cm3
Wy 6,2 cm3
Profilfläche 8,38 cm2
Gewicht 2,56 kg/m
Step-Datei
Download| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Compatible with: | item |
| Delivery unit: | Rods |
| Execution: | heavy |
| Groove shape: | Open grooves |
| Material: | Al Mg Si 0.5 F25, artificially aged |
| Nutauszugskraft: | F=5.000 N |
| Profile length: | 6000 mm bar |
| Series: | Series 8 |

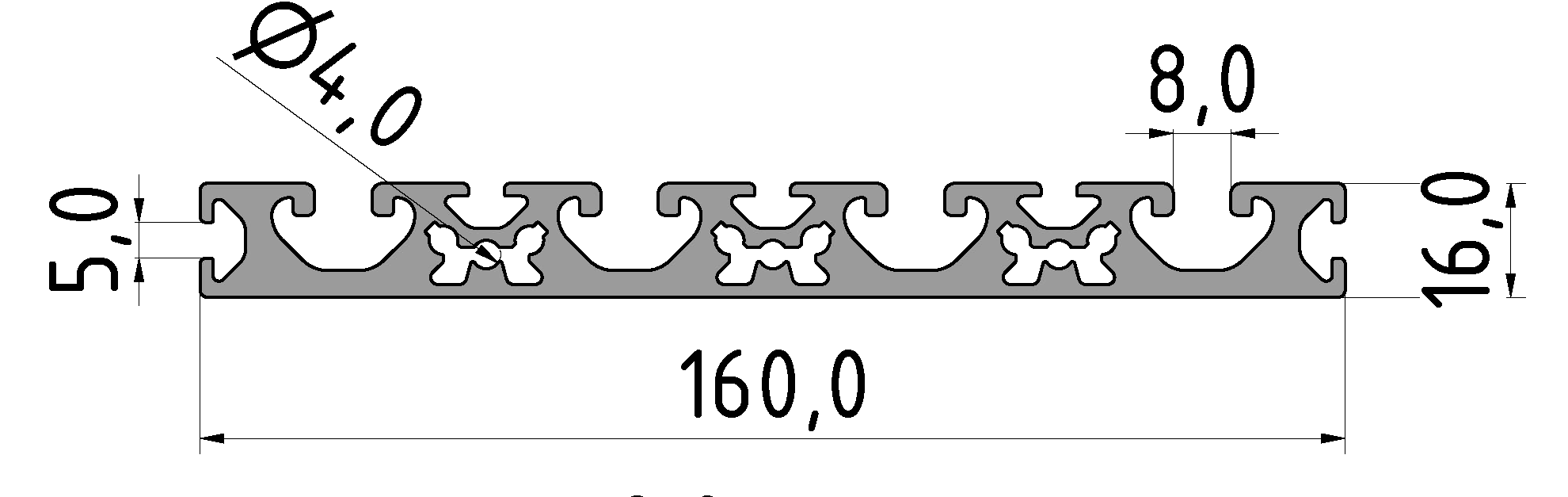

| Size: | 160x16 mm |
| Tolerances: | EN 12020-2 |
| Breite Profil: | 160 mm |
| Höhe Profil: | 16 mm |
PI-1002 SZ
Profile 8 160x16, natural
Profiles 8 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves and the core holes of the profiles 8 are designed for M8 screws.
Cut to size max. 6000 mm
.
