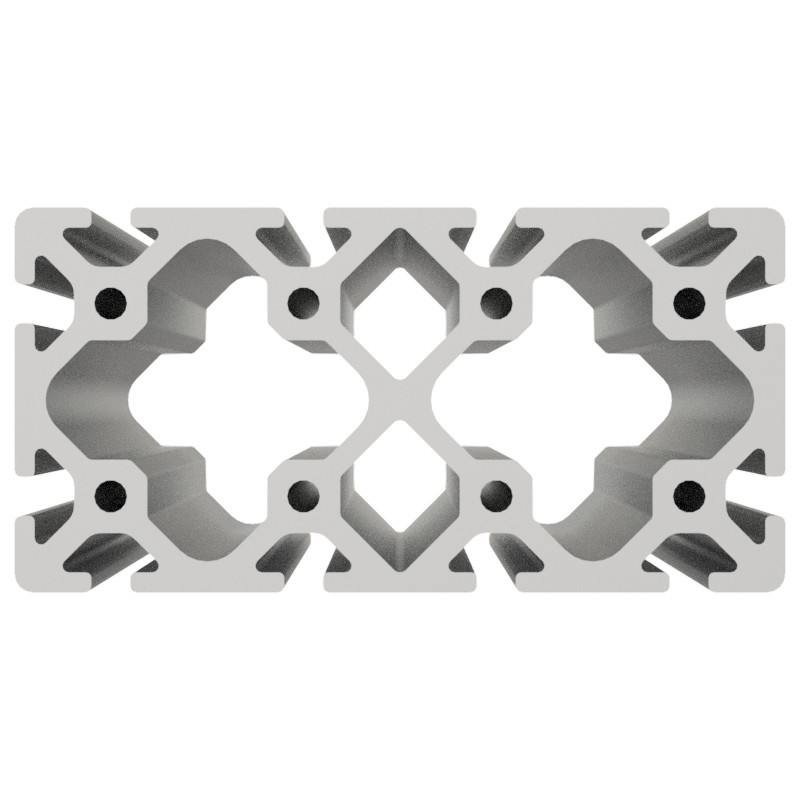

Profile 10 200x100, natural
Maunsystem GmbH
Loading...
€240.25*
Price per 1000 mm: €240.25
*
| Accessories total price | €0.00 |
accessories
Accessories total price
€240.25 *
Product number:
PI-7070 SZ
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1009564
Weight:
20.19 kg
Product information "Profile 10 200x100, natural"
Profiles 10 are suitable for a wide range of assemblies. The grooves and the core holes of the profiles 10 are designed for M10 screws.
Cut to size max. 6000 mm
Cut to size max. 6000 mm
Compatible with item 0.0.624.68
Details
Ix 838,60 cm4
Iy 2840,60 cm4
Wx 161,81 cm3
Wy 284,15 cm3
Profilfläche 74,45 cm2
Gewicht 20,15 kg/m
Iy 2840,60 cm4
Wx 161,81 cm3
Wy 284,15 cm3
Profilfläche 74,45 cm2
Gewicht 20,15 kg/m
| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Compatible with: | item |
| Contour: | Rectangular |
| Delivery unit: | Cuts |
| Execution: | heavy |
| Groove shape: | Open grooves |
| Material: | Al Mg Si 0.5 F25, artificially aged |
| Nutauszugskraft: | F=7.000 N |
| Profile length: | Cut length |
| Series: | Series 10 |

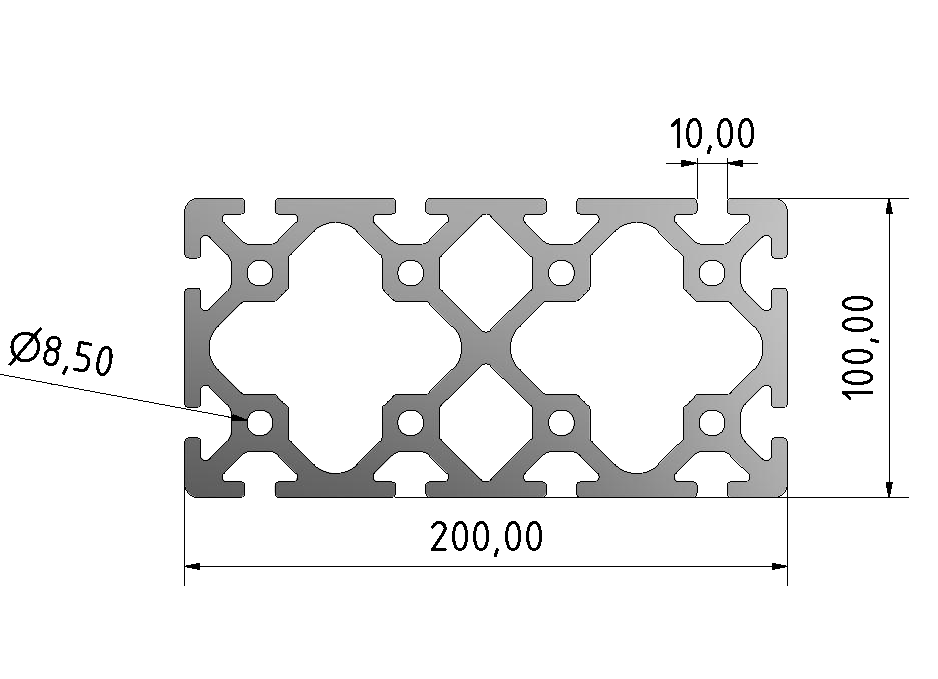

| Size: | 200x100 mm |
| Tolerances: | EN 12020-2 |
| Breite Profil: | 200 mm |
| Höhe Profil: | 100 mm |
PI-7070 SN6000
Profile 10 200x100, natural
Profiles 10 are suitable for a wide range of assemblies. The grooves and the core holes of the profiles 10 are designed for M10 screws.Delivery length 6030 mm
