Profile 20x40 natural-6

Profile 20x40 natural-6
3D
Click and move
Open AR View
Tap to place the object
Move the device to start
Profile 20x40 natural-6
Profile 20x40 natural-6
Profile 20x40 natural-6
Profile 20x40 natural-6
Profile 20x40 natural-6
Profile 20x40 natural-6
Profile 20x40 natural-6

€9.58*

Price per 1000 mm: €9.58 *
Zuschnittskosten: €2.10
Accessories total price €0.00

Prices excl. VAT plus shipping costs

accessories

Accessories total price

€9.58 *

Allowed range: 20 mm to 6000 mm, step size: 1 mm.
PDF-Datasheet
Product number: PB-1730 SZ
Manufacturer: Maunsystem GmbH
Manufacturer number: 1006855
Weight: 0.77 kg

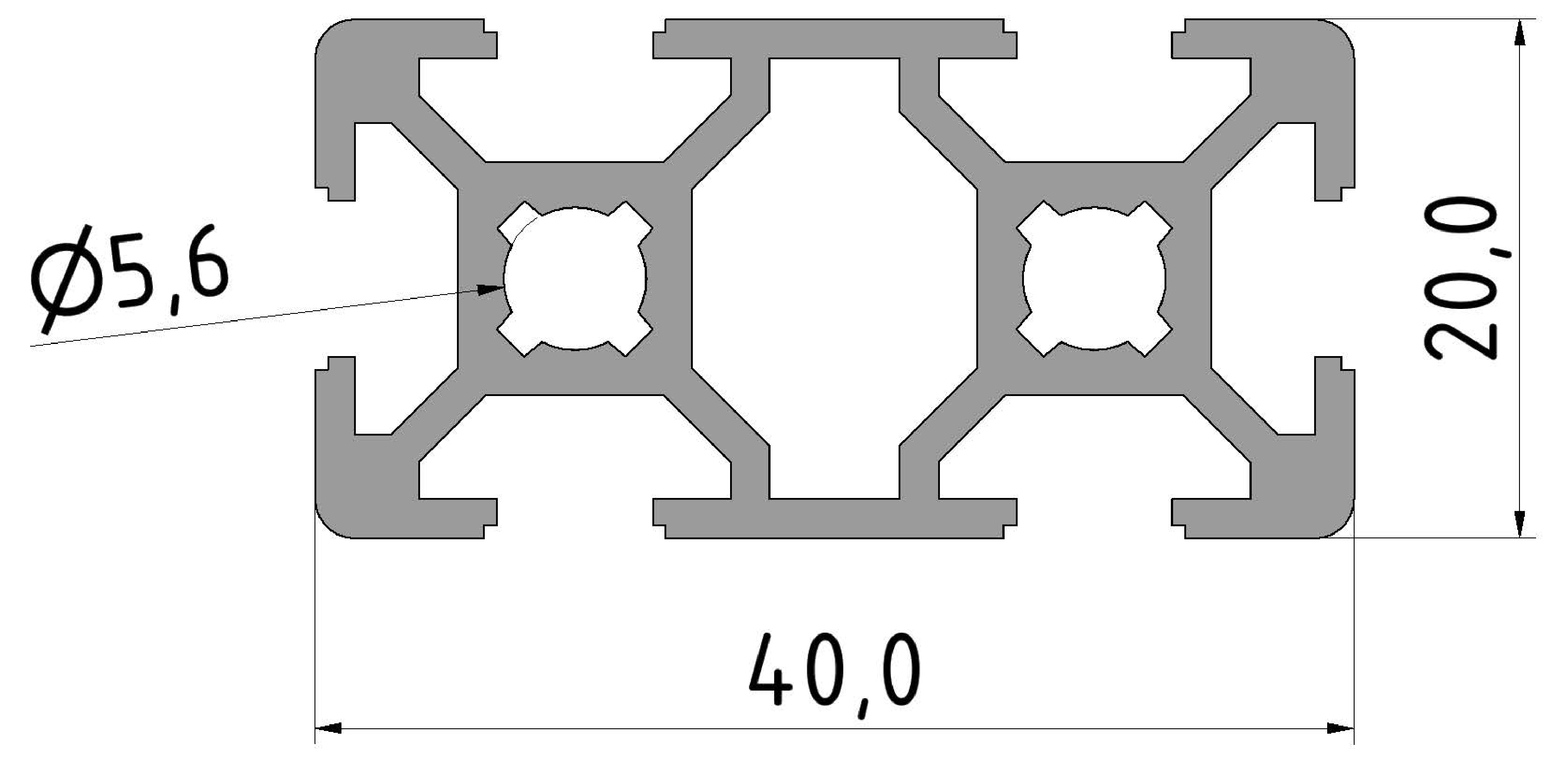

Product information "Profile 20x40 natural-6"

The compact design of Profiles 6 makes them particularly suitable for small and weight-optimised assemblies. The grooves and the core holes of the profiles 6 are designed for M6 screws.
Cut to size max. 6000 mm

Compatible with Bosch 3 842 992 891

Details

lx    4,61 cm4
ly    1,2 cm4
wx    2,31 cm3
wy    1,2 cm3
Profilfläche    2,87 cm2
Gewicht    0,77 kg/m

Step-Datei

Download
Colour: natural
Compatible with: Bosch
Contour: Rectangular
Delivery unit: Cuts
Execution: heavy
Groove shape: Open grooves
Modular dimension: Modular dimension 20
Nutauszugskraft: F=1.000 N
Profile length: Cut length
Series: Series 20-6
Size: 20x20 mm, 20x40 mm
Breite Profil: 20 mm, 40 mm
Höhe Profil: 20 mm
Profile 20x40 natural-6 Profile 20x40 natural-6
PB-1730 SN3000
Profile 20x40 natural-6
The compact design of Profiles 6 makes them particularly suitable for small and weight-optimised assemblies. The grooves and the core holes of the profiles 6 are designed for M6 screws.

€35.20*
Profile 20x40 natural-6 Profile 20x40 natural-6
PB-1730 SN6000
Profile 20x40 natural-6
The compact design of Profiles 6 makes them particularly suitable for small and weight-optimised assemblies. The grooves and the core holes of the profiles 6 are designed for M6 screws.

€43.42*

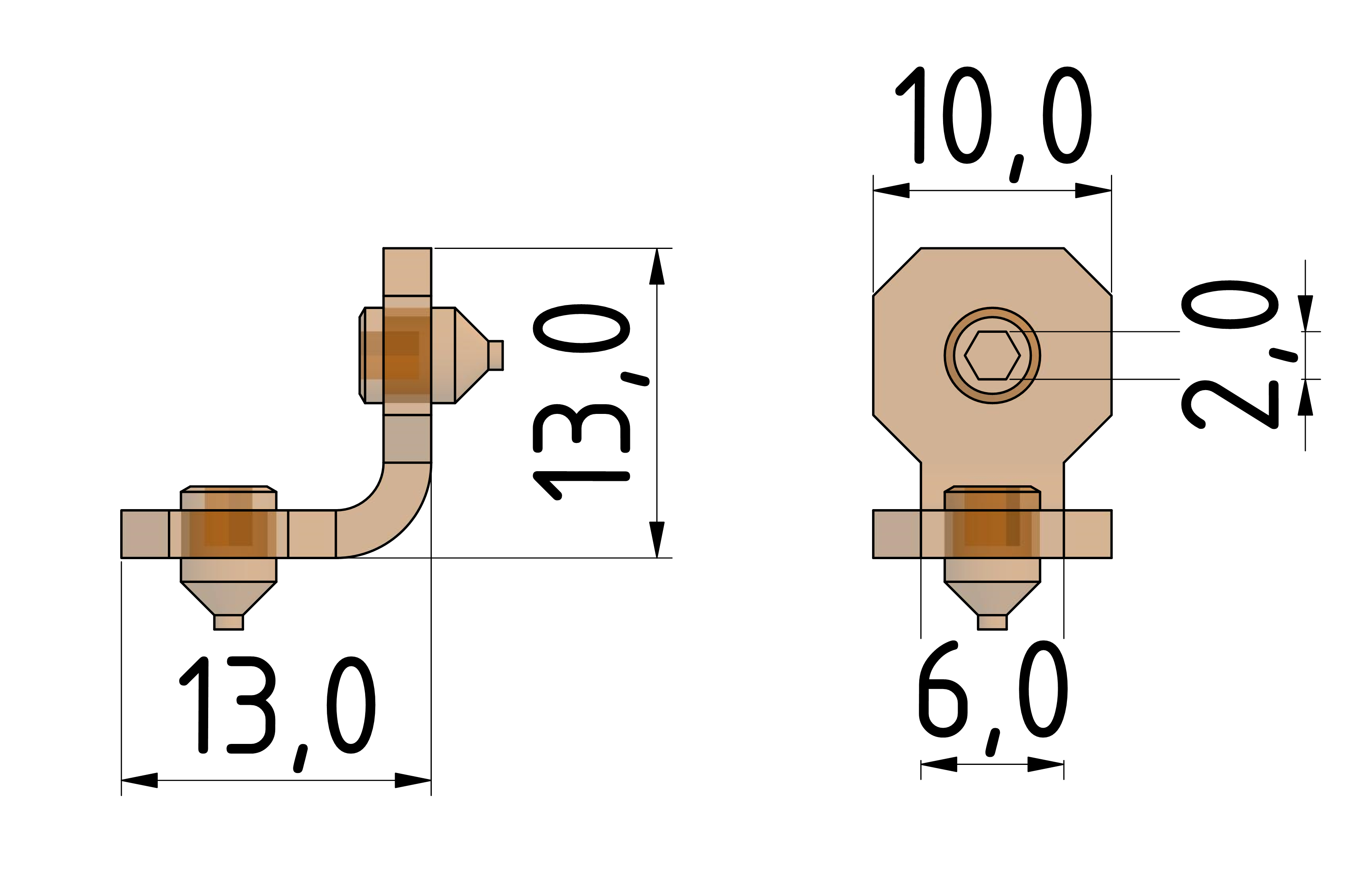

Inner Connector Set-6 Inner Connector Set-6
VB-1008
Inner Connector Set-6
The inner connector is used for connecting two angle profiles in the 90 degrees. It is not required profile machining.

€1.50*

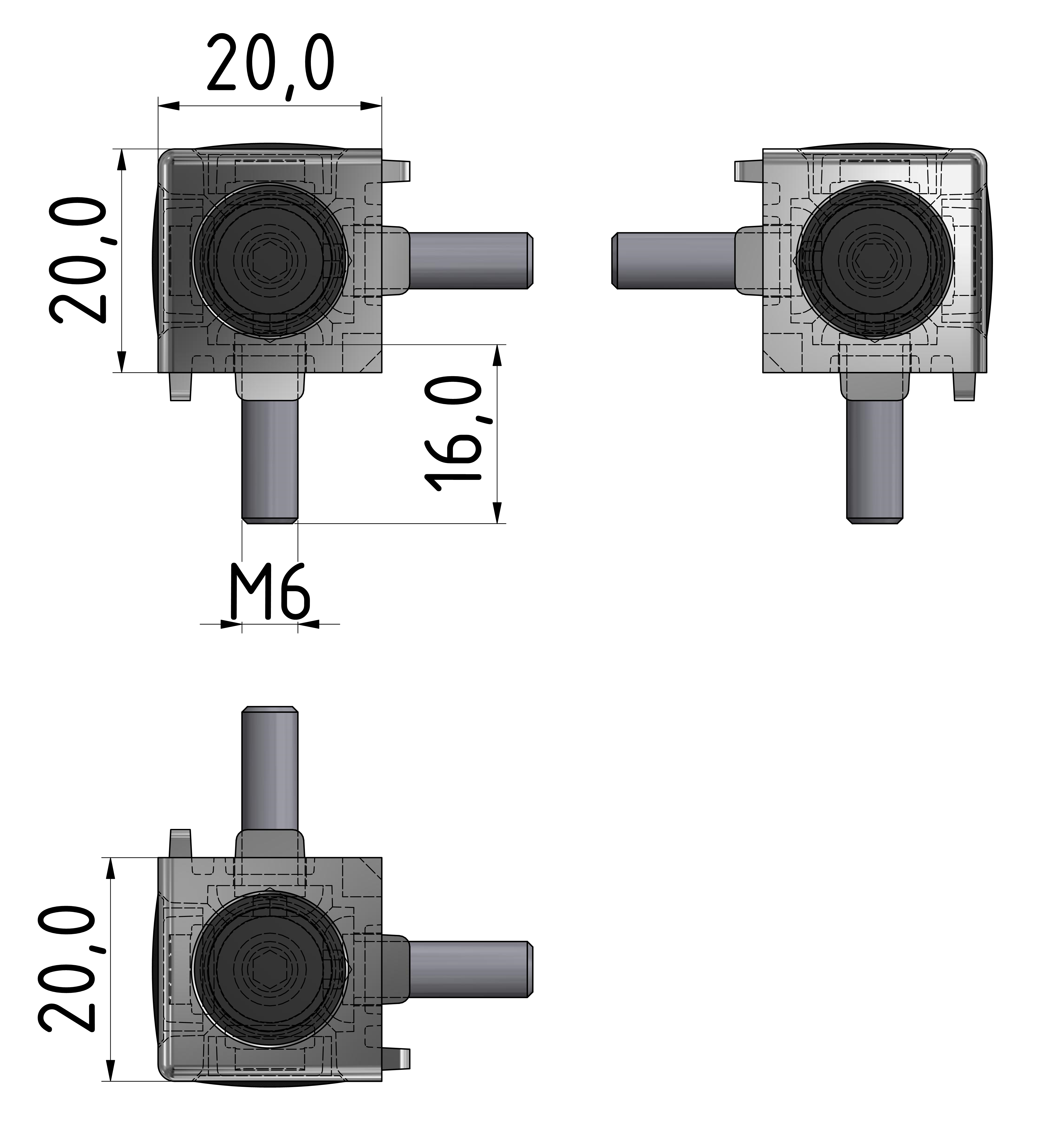

Cube Connector Set 3D 20, natural-6 Cube Connector Set 3D 20, natural-6
VB-1080
Cube Connector Set 3D 20, natural-6
Connecting sets enable the construction of visually appealing 3D room corners with 3 profiles or a corner angle with 2 profiles. A thread must be drilled into the end face of the corner profiles.

€5.41*

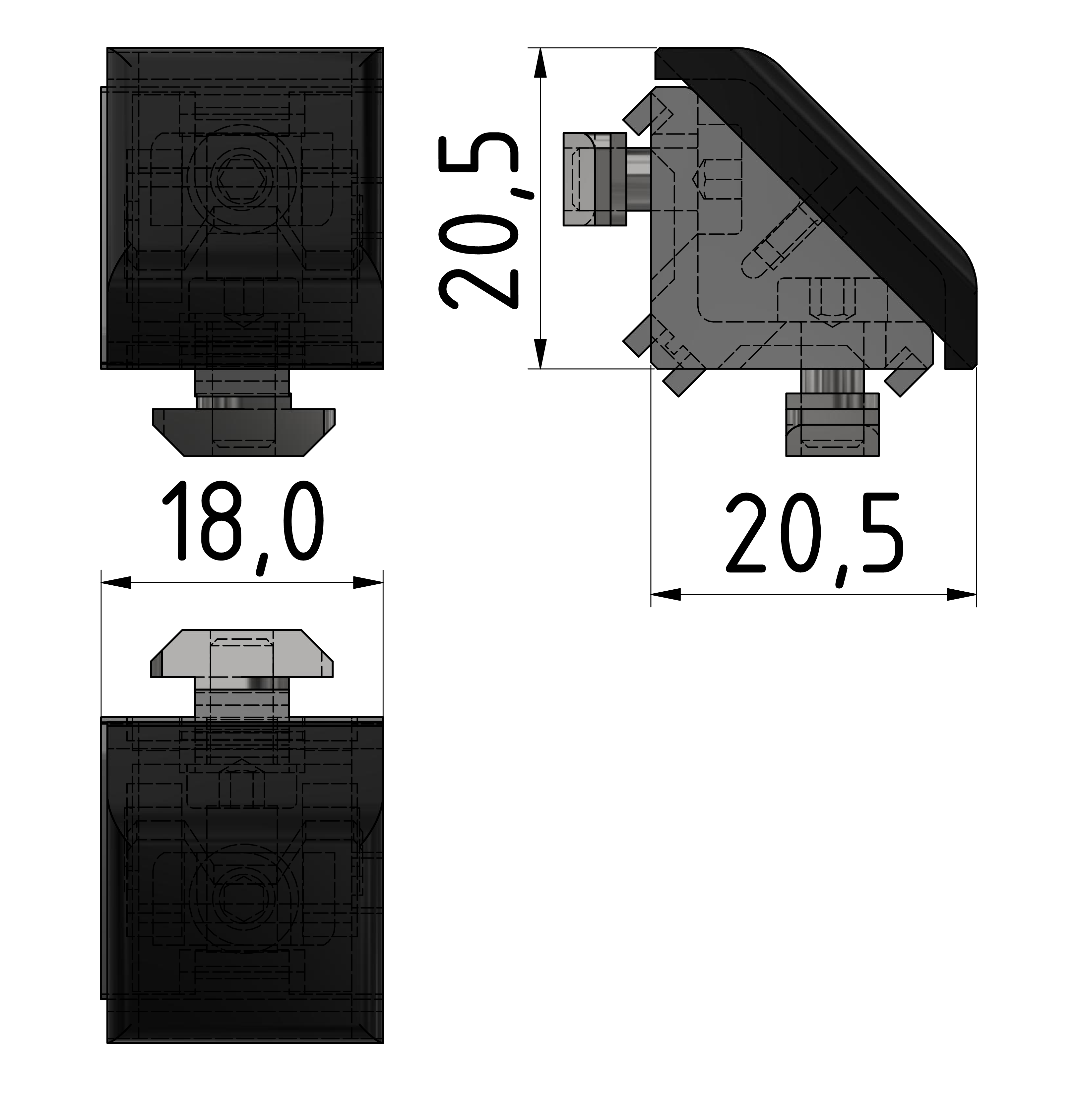

Angle Bracket Set 20x20, natural-6 Angle Bracket Set 20x20, natural-6
ZB-1005
Angle Bracket Set 20x20, natural-6
Angles are a force-fit and processing wireless connection. These are also used as additional reinforcement of connections and as a fastener for attachments. Integral safety devices for fixing the profile are available. These are removed if necessary.

€2.66*
