Profile 30x30 2N180° light natural-8

Profile 30x30 2N180° light natural-8
Profile 30x30 2N180° light natural-8
Profile 30x30 2N180° light natural-8
3D
Click and move
Open AR View
Tap to place the object
Move the device to start
Profile 30x30 2N180° light natural-8
Profile 30x30 2N180° light natural-8
Profile 30x30 2N180° light natural-8
Profile 30x30 2N180° light natural-8
Profile 30x30 2N180° light natural-8
Profile 30x30 2N180° light natural-8
Profile 30x30 2N180° light natural-8
Profile 30x30 2N180° light natural-8
Profile 30x30 2N180° light natural-8

€49.97*

Accessories total price €0.00

Prices excl. VAT plus shipping costs

accessories

Accessories total price

€49.97 *

PDF-Datasheet
Product number: PB-1845 SN6000
Manufacturer: Maunsystem GmbH
Manufacturer number: 1001821
Length: 6000 mm
Weight: 5.7 kg

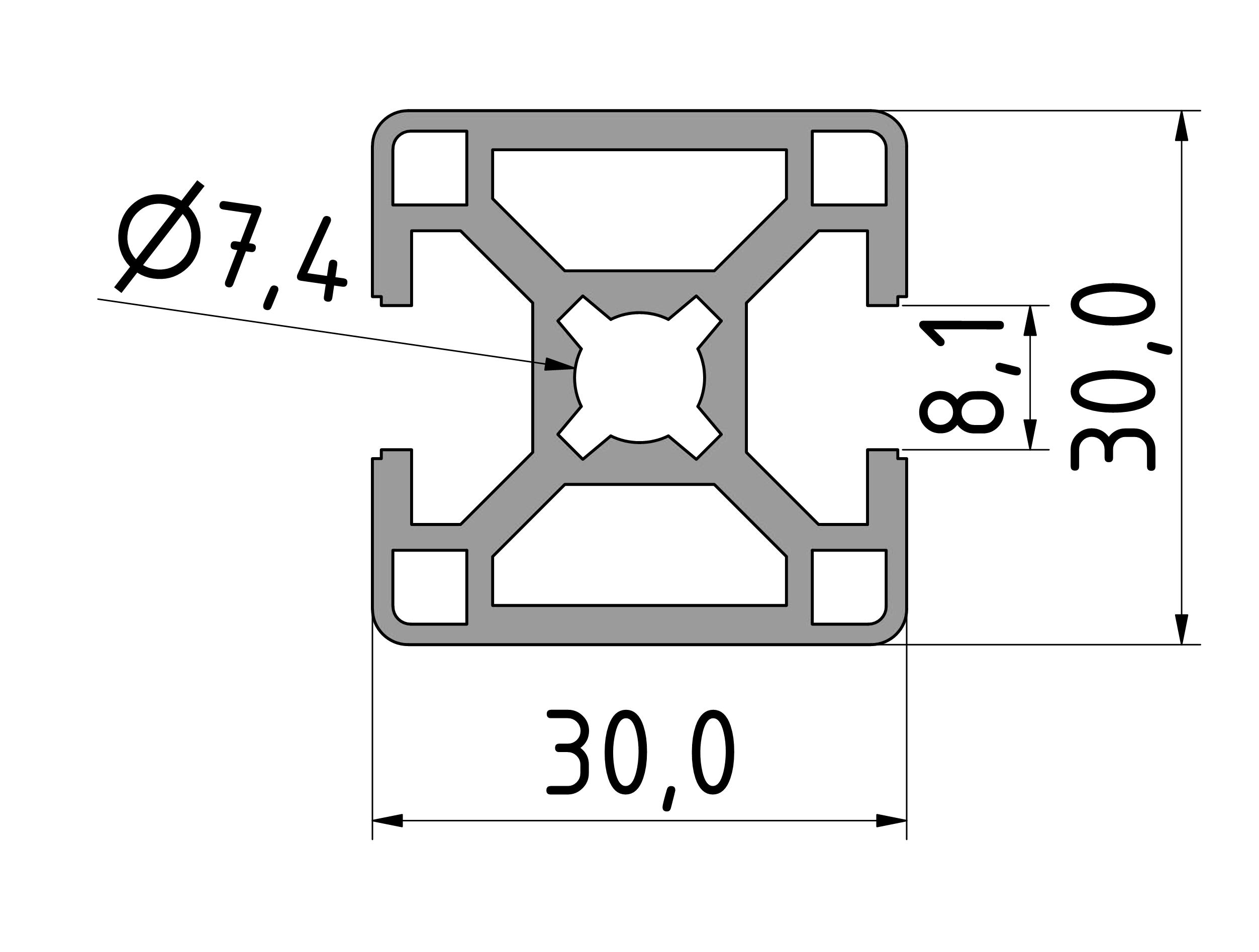

Product information " Profile 30x30 2N180° light natural-8 "

Profiles 8 are particularly suitable for weight-optimised assemblies. The grooves and the core holes of profiles 8 are designed for M8 screws.

Compatible with Bosch 3 842 992 399

Details

lx    3,48 cm4
ly    2,79 cm4
wx    2,32 cm3
wy    1,86 cm3
Profilfläche    3,51 cm2
Gewicht    0,95 kg/m

Step-Datei

Download
Anodised: E6EV1 10-15 µm silver
Colour: natural
Compatible with: Bosch
Contour: Square
Delivery unit: Rods
Execution: light
Groove shape: 2 sides closed 180°
Material: Al Mg Si 0.5 F25, artificially aged
Modular dimension: Modular dimension 30
Nutauszugskraft: F=1.000 N
Profile length: 6000 mm bar
Series: Series 30 8
Size: 30x30 mm
Tolerances: EN 12020-2
Breite Profil: 30 mm
Höhe Profil: 30 mm
