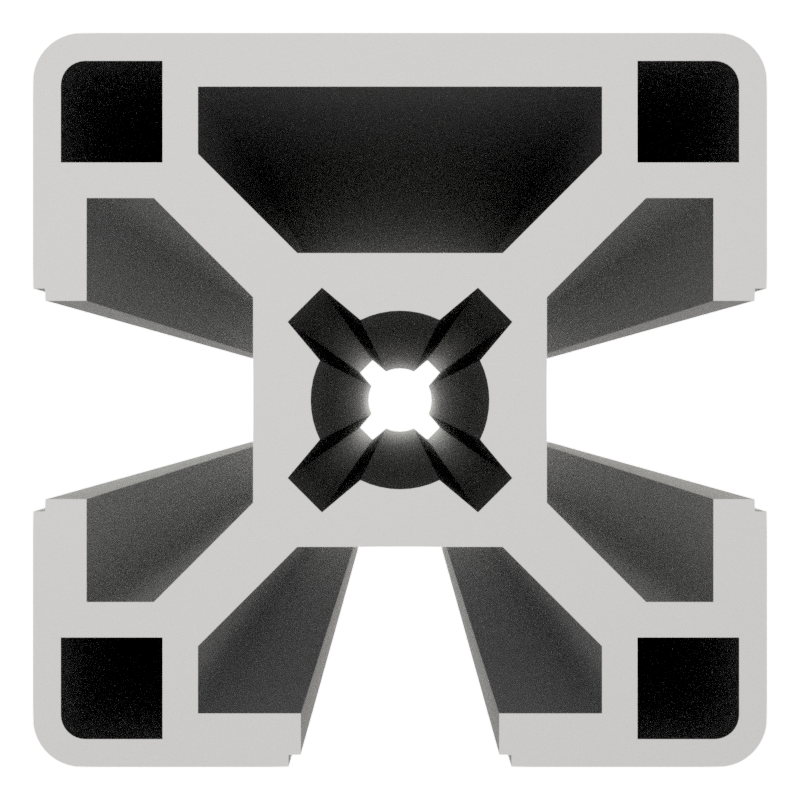

Profile 30x30 3N light natural-8

Profile 30x30 3N light natural-8
Profile 30x30 3N light natural-8
Profile 30x30 3N light natural-8
Profile 30x30 3N light natural-8
Product number: PB-1850 SN6000
Manufacturer: Maunsystem GmbH
Manufacturer number: 1001822
Length: 6000 mm
Weight: 5.4 kg
Product information " Profile 30x30 3N light natural-8 "
Profiles 8 are particularly suitable for weight-optimised assemblies. The grooves and the core holes of profiles 8 are designed for M8 screws.

Compatible with Bosch 3 842 992 400

Details

lx    3,1 cm4
ly    2,78 cm4
wx    1,97 cm3
wy    1,85 cm3
Profilfläche    3,32 cm2
Gewicht    0,9 kg/m

Step-Datei

Download
Anodised: E6EV1 10-15 µm silver
Colour: natural
Compatible with: Bosch
Contour: Square
Delivery unit: Rods
Execution: light
Groove shape: 1 side closed
Material: Al Mg Si 0.5 F25, artificially aged
Modular dimension: Modular dimension 30
Profile length: 6000 mm bar
Series: Series 30 8

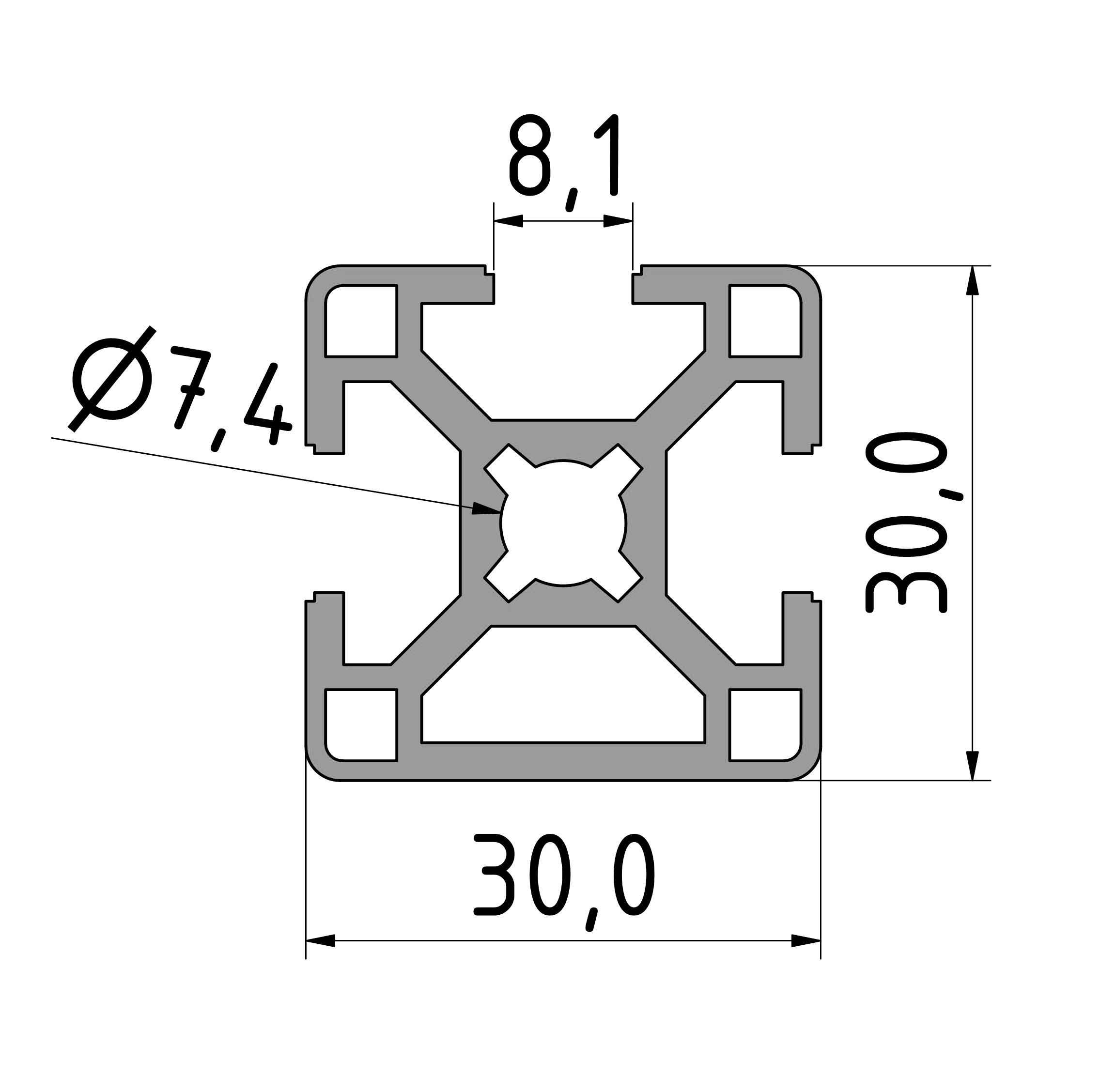

Size: 30x30 mm
Tolerances: EN 12020-2
