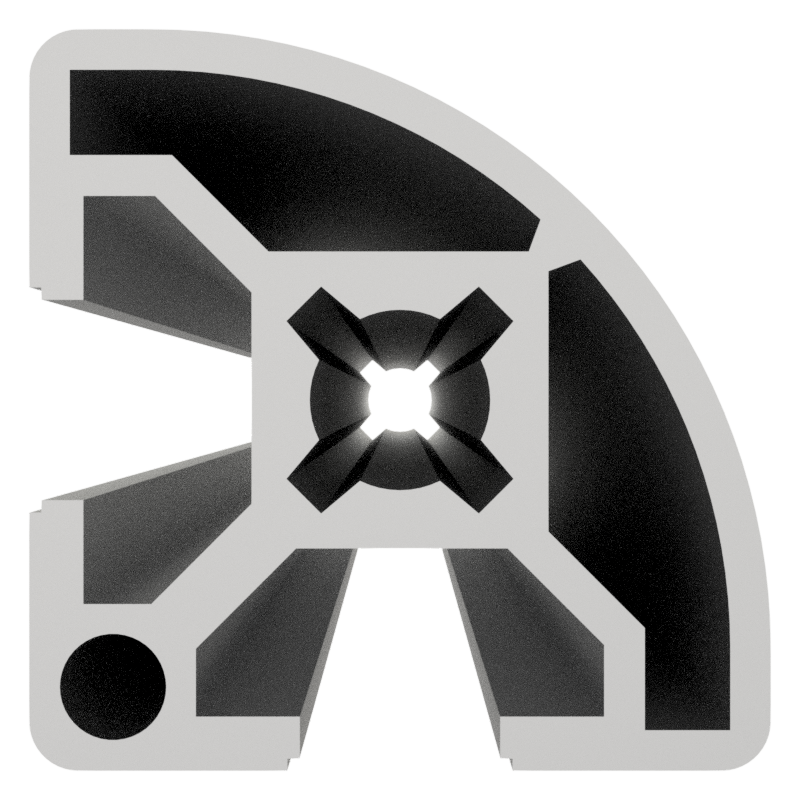

Profile 30x30 R light natural-8

Profile 30x30 R light natural-8
Profile 30x30 R light natural-8
Profile 30x30 R light natural-8
3D
Click and move
Open AR View
Tap to place the object
Move the device to start
Profile 30x30 R light natural-8
Profile 30x30 R light natural-8
Profile 30x30 R light natural-8
Profile 30x30 R light natural-8
Profile 30x30 R light natural-8
Profile 30x30 R light natural-8
Profile 30x30 R light natural-8
Profile 30x30 R light natural-8
Profile 30x30 R light natural-8

€50.40*

Accessories total price €0.00

Prices excl. VAT plus shipping costs

accessories

Accessories total price

€50.40 *

PDF-Datasheet
Product number: PB-1855 SN6000
Manufacturer: Maunsystem GmbH
Manufacturer number: 1001823
Length: 6000 mm
Weight: 4.68 kg

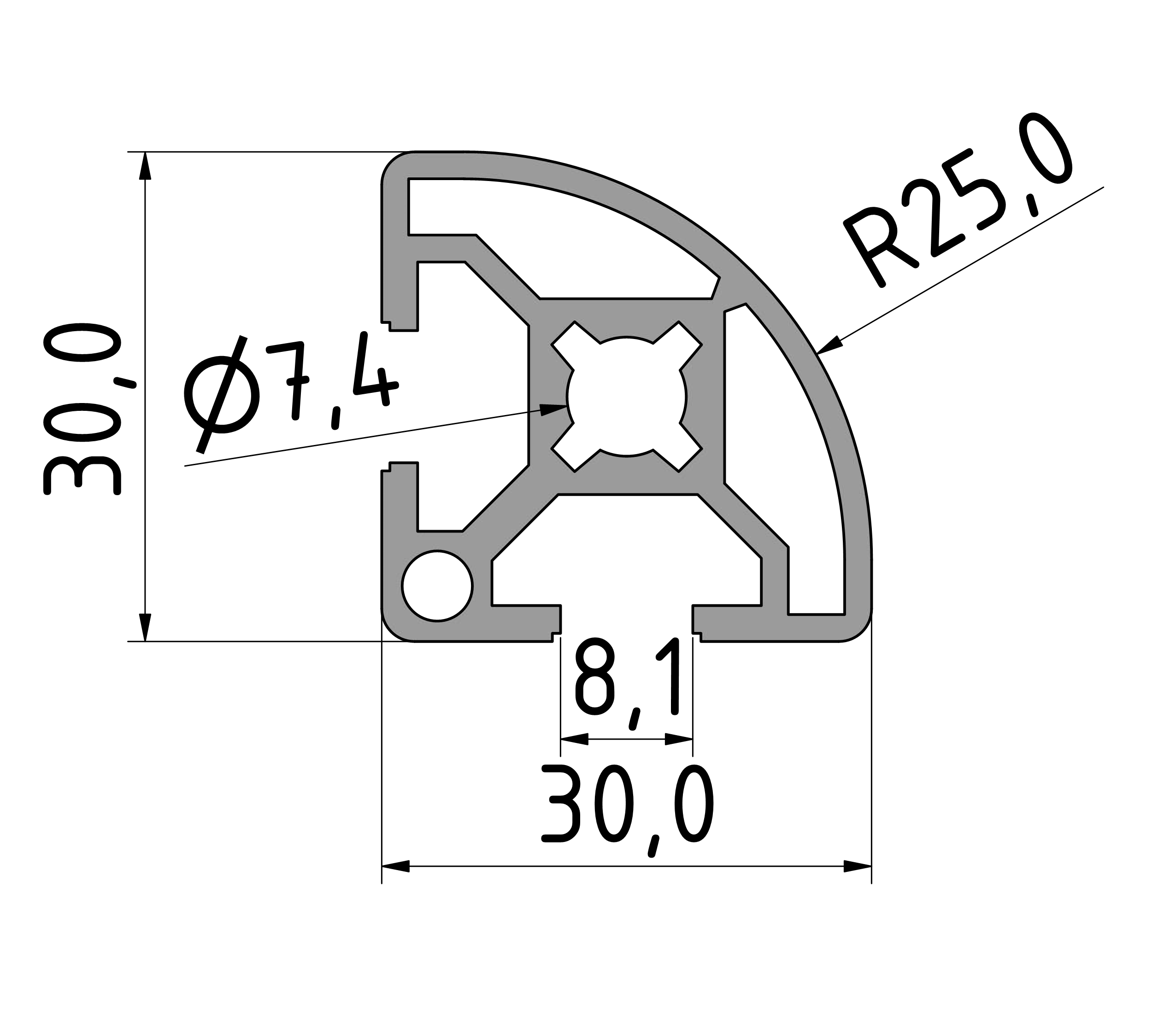

Product information " Profile 30x30 R light natural-8 "

Profiles 8 are particularly suitable for weight-optimised assemblies. The grooves and the core holes of profiles 8 are designed for M8 screws.

Compatible with Bosch 3 842 992 896

Details

l    2,28 cm4
w    1,41 cm3
Profilfläche    2,88 cm2
Gewicht    0,78 kg/m

Step-Datei

Download
Anodised: E6EV1 10-15 µm silver
Colour: natural
Compatible with: Bosch
Contour: Round
Delivery unit: Rods
Execution: light
Material: Al Mg Si 0.5 F25, artificially aged
Modular dimension: Modular dimension 30
Nutauszugskraft: F=1.000 N
Profile length: 6000 mm bar
Series: Series 30 8
Size: 30x30 mm
Tolerances: EN 12020-2
Breite Profil: 30 mm
Höhe Profil: 30 mm
Profile 30x30 R light natural-8 Profile 30x30 R light natural-8
PB-1855 SZ
Profile 30x30 R light natural-8
Profiles 8 are particularly suitable for weight-optimised assemblies. The grooves and the core holes of profiles 8 are designed for M8 screws. Cut to size max. 6000 mm

€8.94 / 1000 mm *
Details

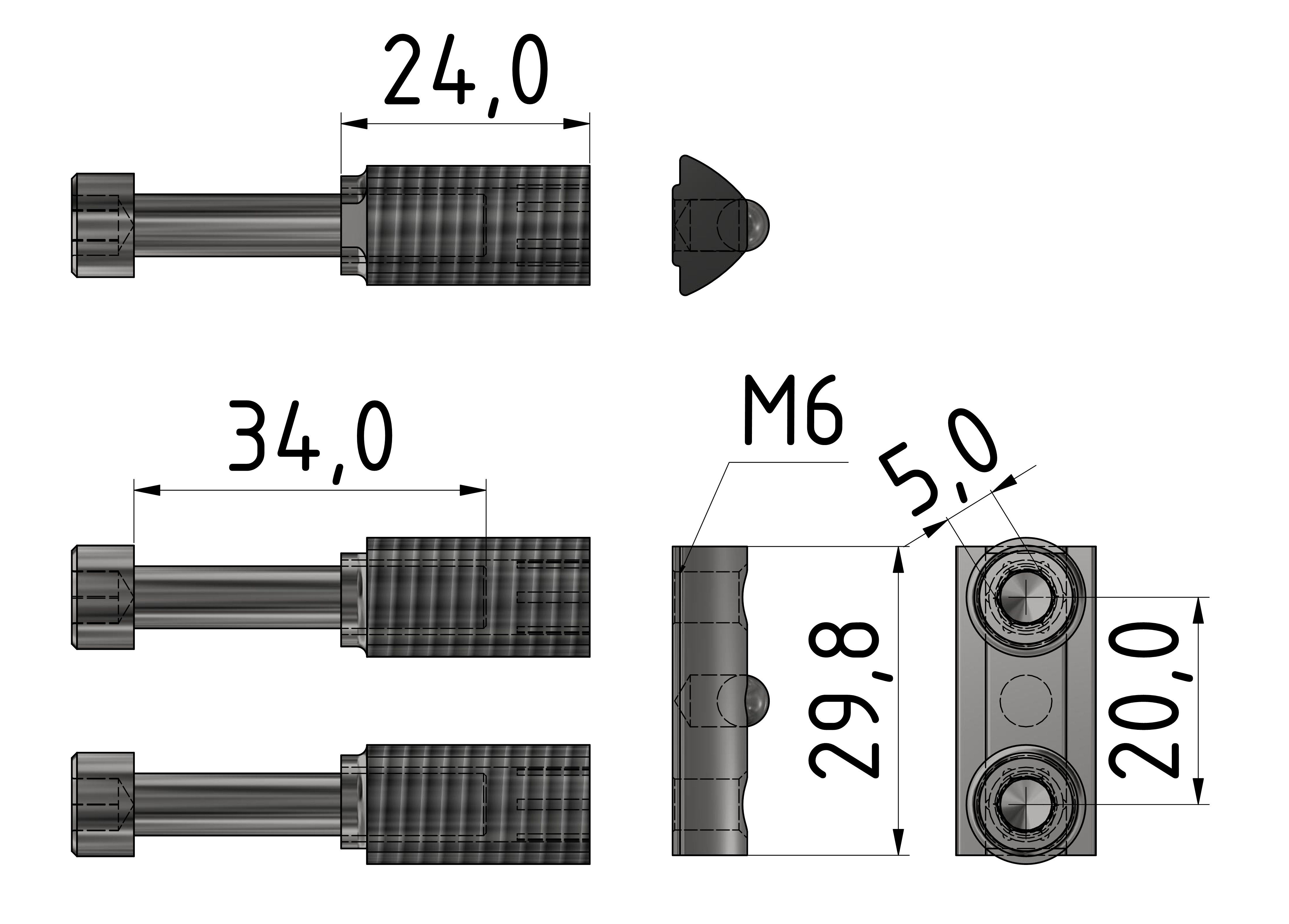

T- Matic Double Connector Set 30, bright zinc-plated-8 T- Matic Double Connector Set 30, bright zinc-plated-8
VB-2038
T- Matic Double Connector Set 30, bright zinc-plated-8
Extremely fast and flexible connection without mechanical processing Universal and force-fitting connection of all profiles in one series Can be subsequently moved in the groove. Can be retrofitted into an existing construction. Connector assembly only on one profile,

€10.10*

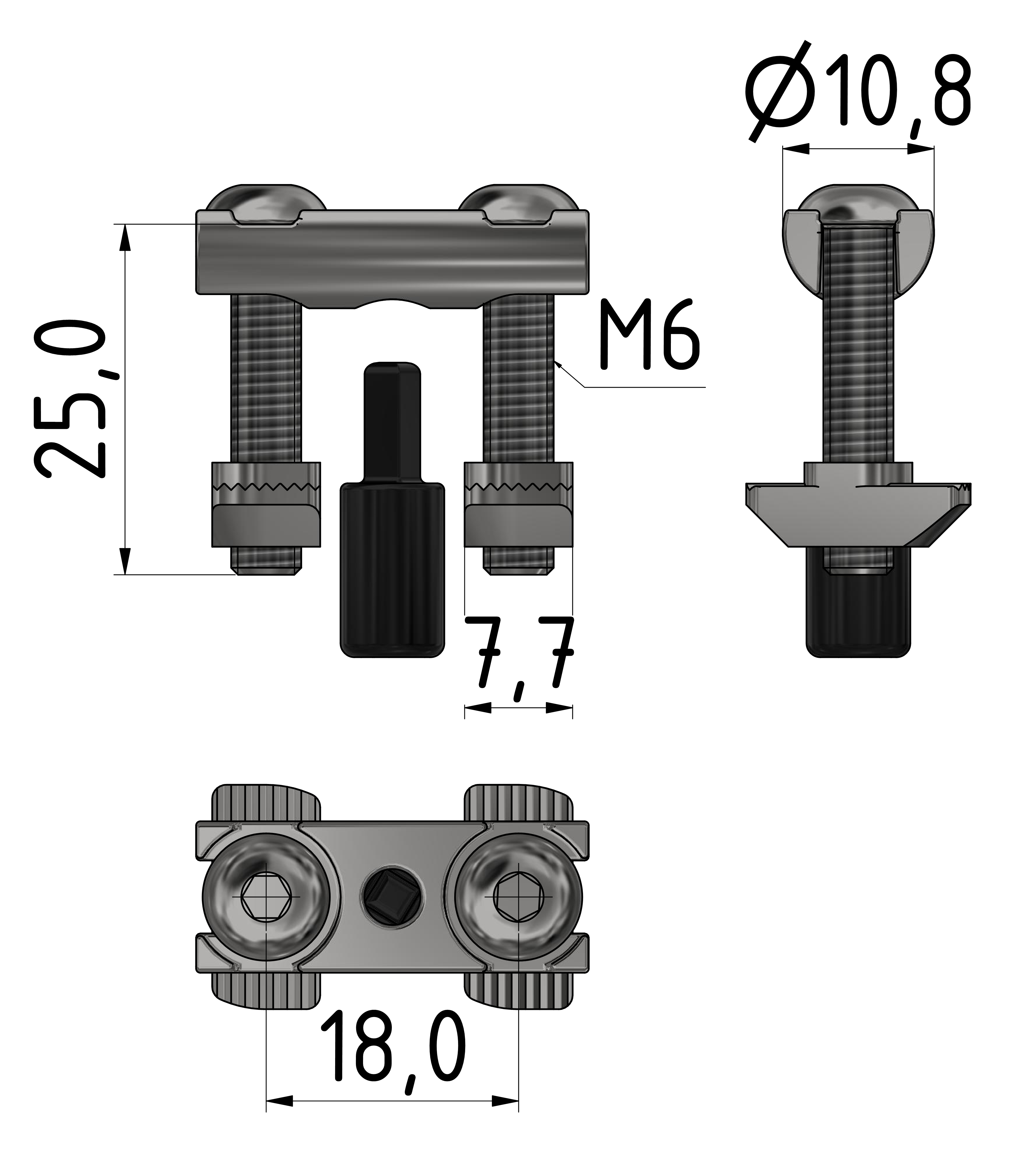

Bolt Connector Set 30, bright zinc-plated-8 Bolt Connector Set 30, bright zinc-plated-8
VB-2010
Bolt Connector Set 30, bright zinc-plated-8
The pin connector is used for connecting two rectangular profiles It is designed for very high loads, even fürTorsion suitable. The shoring in already assembled components is possible.

€3.15*

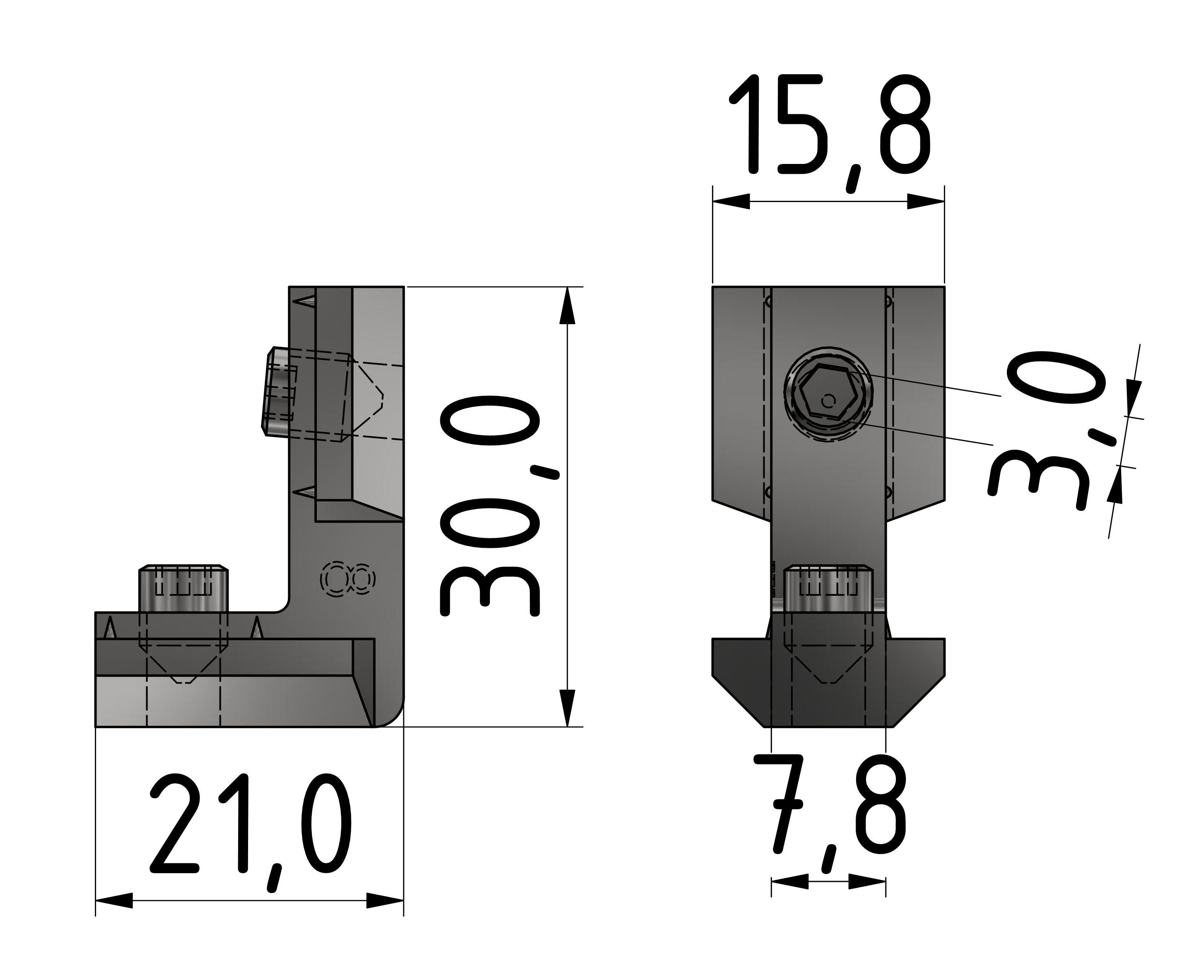

Inner Connector R Set, bright zinc-plated-8 Inner Connector R Set, bright zinc-plated-8
VB-2060
Inner Connector R Set, bright zinc-plated-8
The inner connector is used for connecting two angle profiles in the 90 degrees. It is not required profile machining.

€2.07*

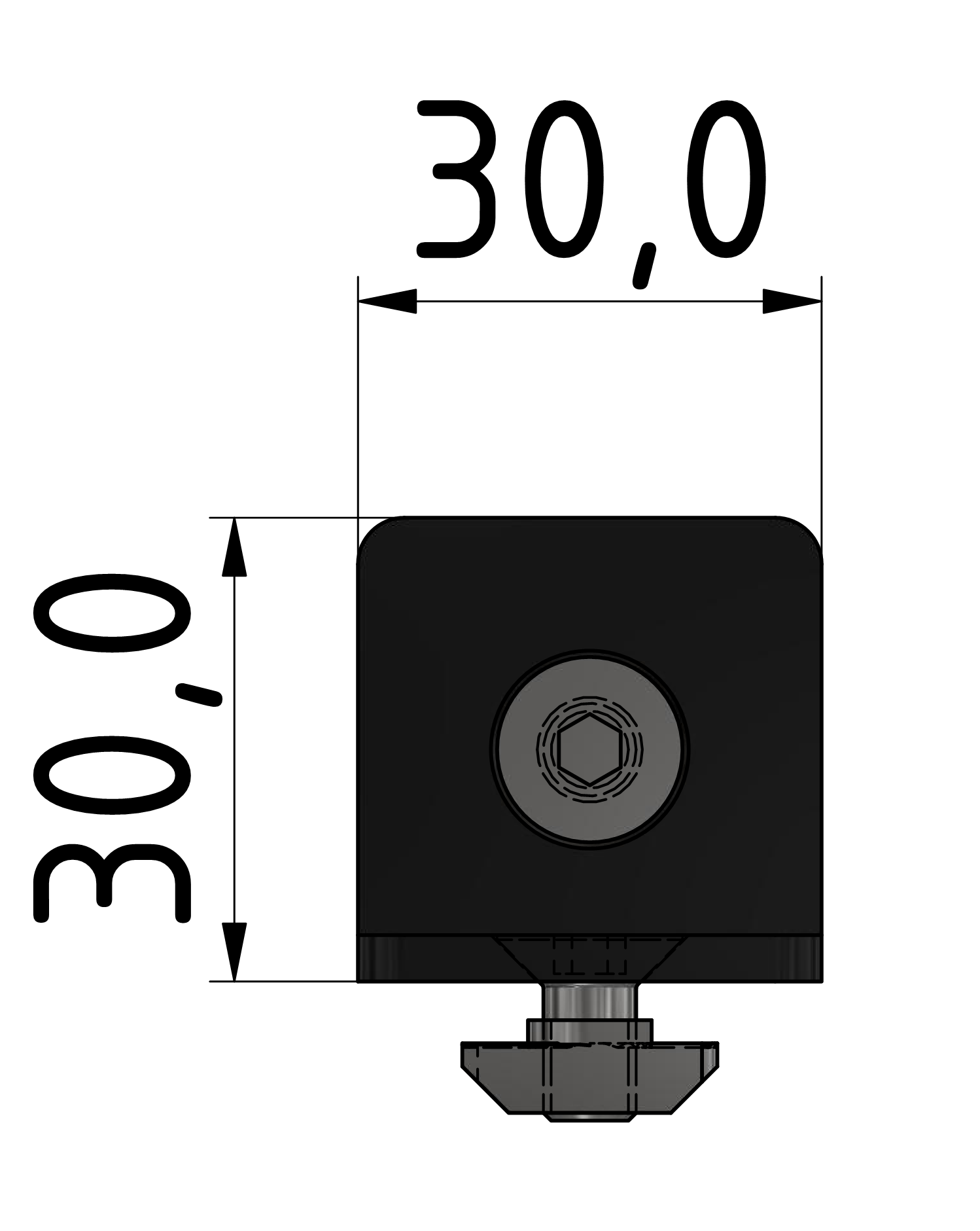

Angle Bracket Set 30 ST, black-/ Angle Bracket Set 30 ST, black-/
ZB-2031
Angle Bracket Set 30 ST, black-/
Very stable fasteners made of steel for the safe connection of profiles.

€2.76*
