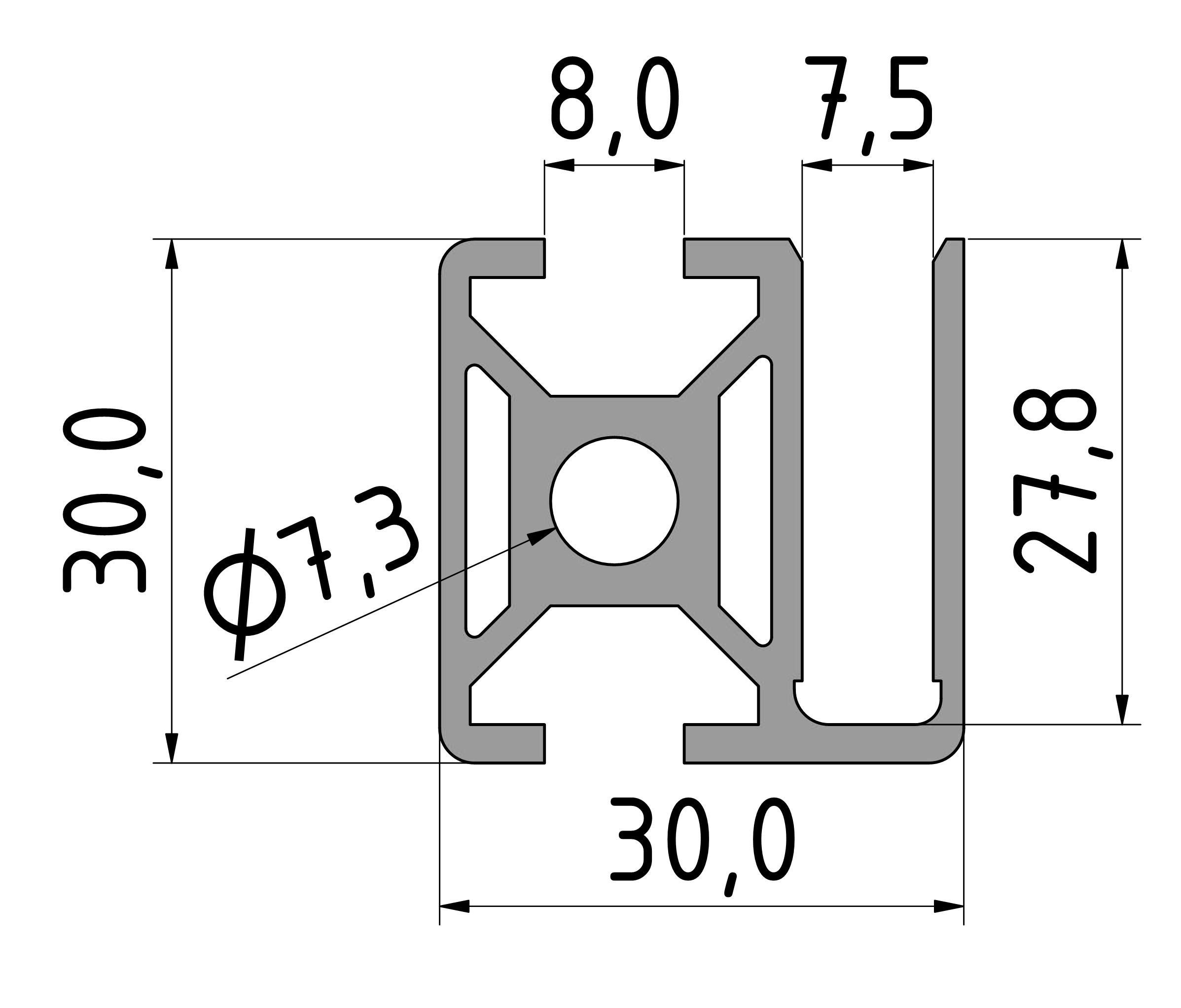

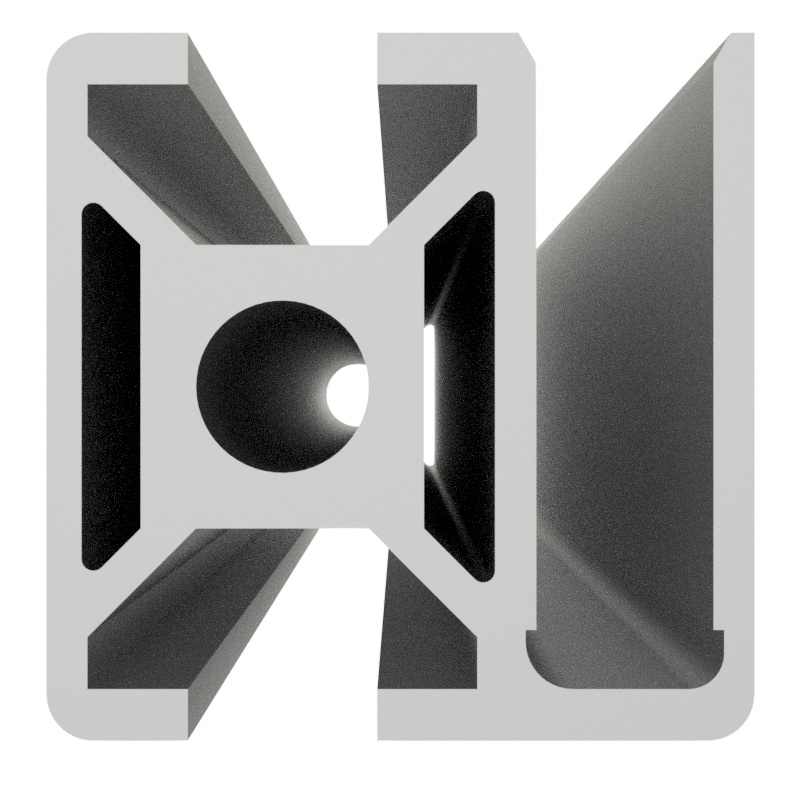

Profile 30x30 WG 40 natural-8
Maunsystem GmbH
slide 1 of 7
Loading...
Product number:
PB-1865 SN6000
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1001826
Length:
6000 mm
Weight:
5.1 kg
Product information " Profile 30x30 WG 40 natural-8 "
Profiles 8 are particularly suitable for weight-optimised assemblies. The grooves and the core holes of profiles 8 are designed for M8 screws.
Compatible with Bosch 3 842 992 972
Details
lx 2,48 cm4
ly 2,91 cm4
wx 1,58 cm3
wy 1,83 cm3
Profilfläche 3,13 cm2
Gewicht 0,85 kg/m
ly 2,91 cm4
wx 1,58 cm3
wy 1,83 cm3
Profilfläche 3,13 cm2
Gewicht 0,85 kg/m
Step-Datei
Download| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Compatible with: | Bosch |
| Contour: | Square |
| Delivery unit: | Rods |
| Execution: | heavy |
| Groove shape: | Clamp Profile |
| Material: | Al Mg Si 0.5 F25, artificially aged |
| Modular dimension: | Modular dimension 30 |
| Nutauszugskraft: | F=1.000 N |
| Profile length: | 6000 mm bar |
| Series: | Series 30 8 |
| Size: | 30x30 mm |
| Tolerances: | EN 12020-2 |
| Breite Profil: | 30 mm |
| Höhe Profil: | 30 mm |
