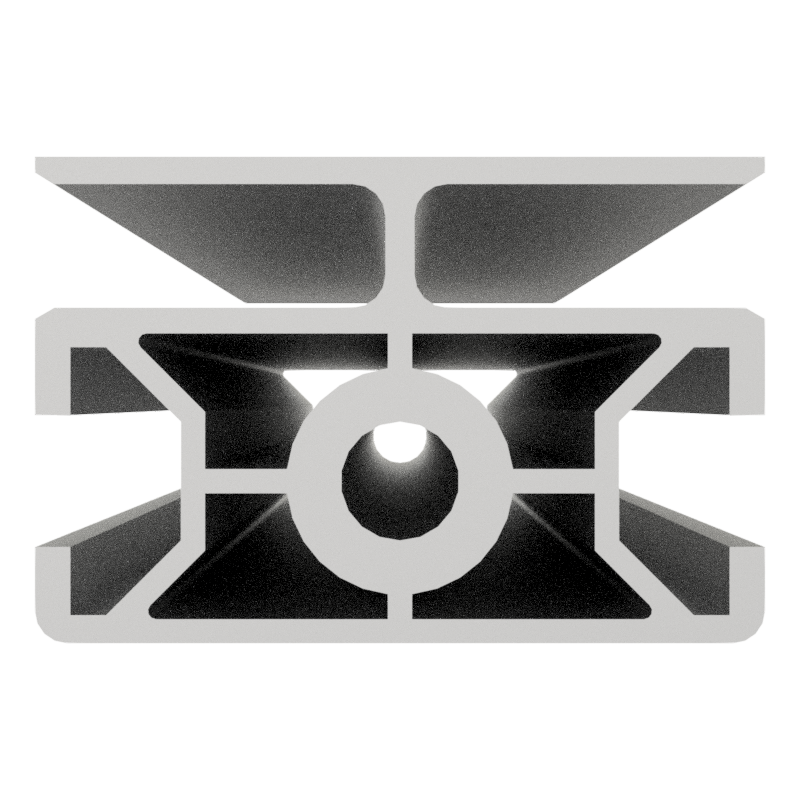

Profile 30x45 WG 40 natural-8
Maunsystem GmbH
slide 1 of 7
Loading...
Product number:
PB-1875 SN6000
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1001829
Length:
6000 mm
Weight:
7.2 kg
Product information " Profile 30x45 WG 40 natural-8 "
Profiles 8 are particularly suitable for weight-optimised assemblies. The grooves and the core holes of profiles 8 are designed for M8 screws.
Compatible with Bosch 3 842 992 973
Details
lx 6,95 cm4
ly 4,11 cm4
wx 3,09 cm3
wy 2,57 cm3
Profilfläche 4,44 cm2
Gewicht 1,2 kg/m
ly 4,11 cm4
wx 3,09 cm3
wy 2,57 cm3
Profilfläche 4,44 cm2
Gewicht 1,2 kg/m
Step-Datei
Download| Colour: | natural |
|---|---|
| Compatible with: | Bosch |
| Contour: | Square |
| Delivery unit: | Rods |
| Execution: | heavy |
| Groove shape: | Clamp Profile |
| Modular dimension: | Modular dimension 30 |
| Profile length: | 6000 mm bar |
| Series: | Series 30 8 |
| Size: | 30x45 mm |
| Breite Profil: | 45 mm |
| Höhe Profil: | 30 mm |
slide 1 of 1
PB-1875 SZ
Profile 30x45 WG 40 natural-8
Profiles 8 are particularly suitable for weight-optimised assemblies. The grooves and the core holes of profiles 8 are designed for M8 screws.
Cut to size max. 6000 mm
