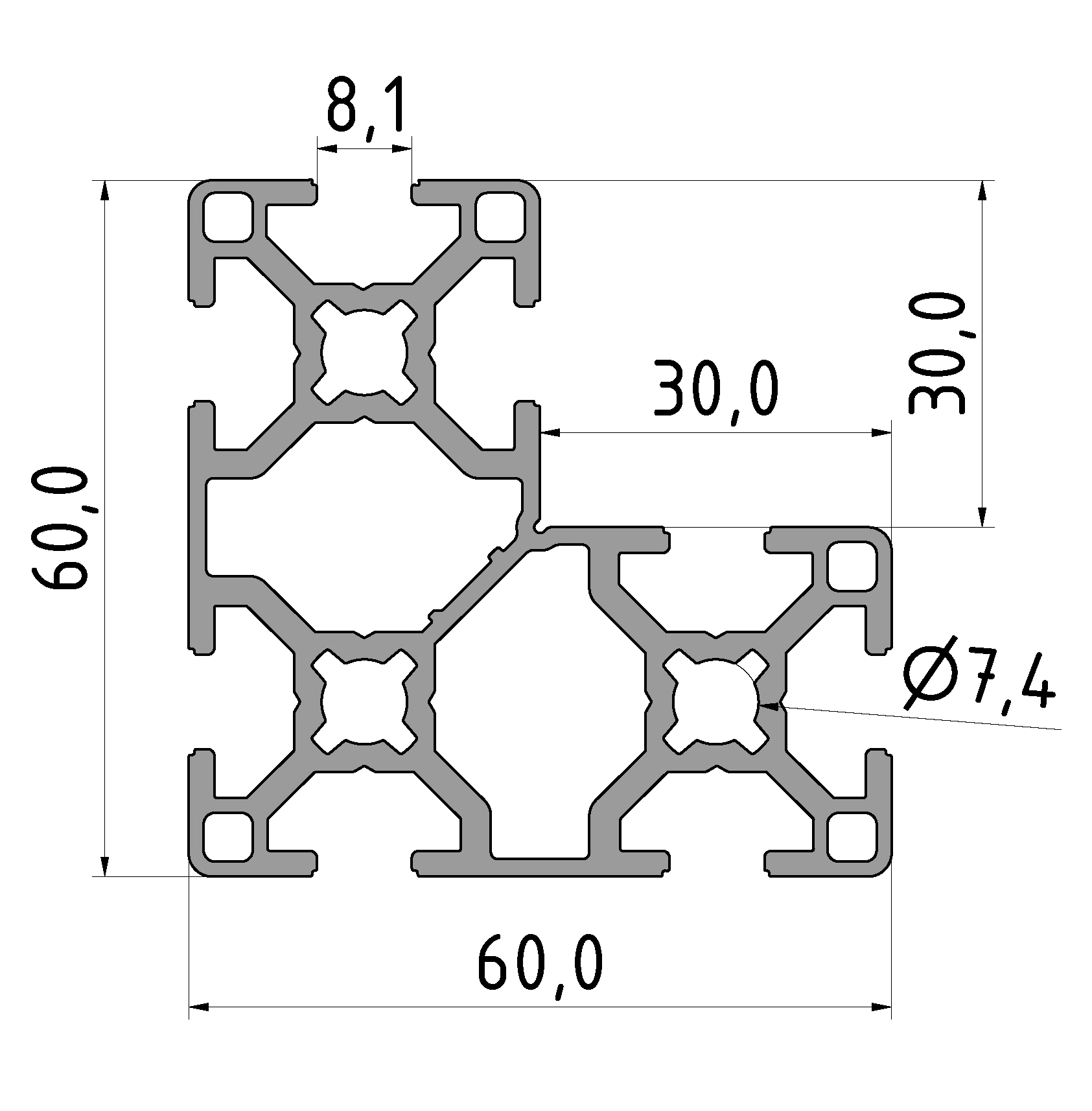

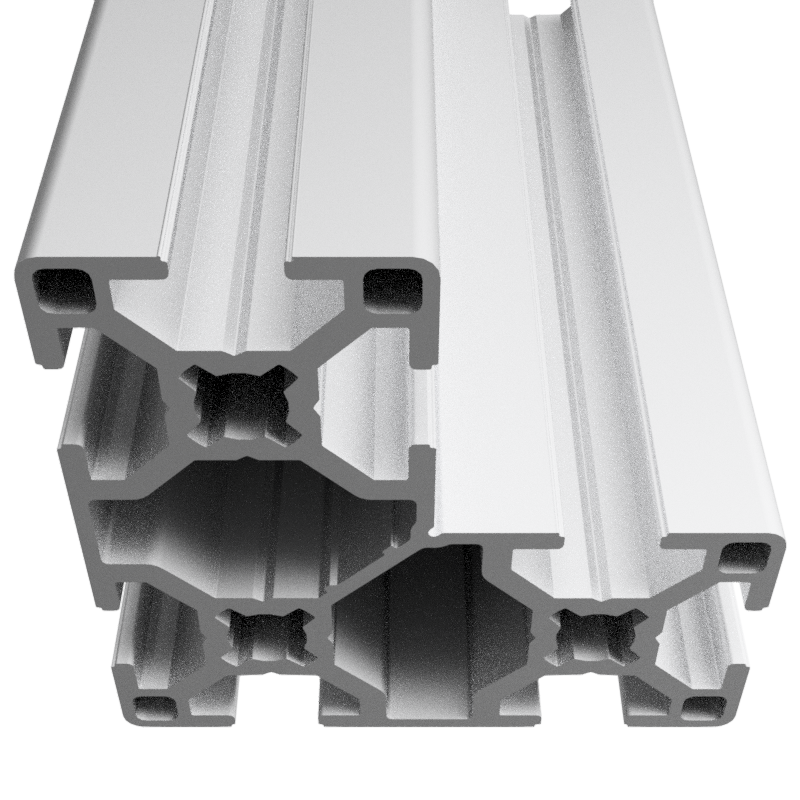

Profile 30x60x60 light natural-8

Profile 30x60x60 light natural-8
Profile 30x60x60 light natural-8
Profile 30x60x60 light natural-8
3D
Click and move
Open AR View
Tap to place the object
Move the device to start
Profile 30x60x60 light natural-8
Profile 30x60x60 light natural-8
Profile 30x60x60 light natural-8
Profile 30x60x60 light natural-8
Profile 30x60x60 light natural-8
Profile 30x60x60 light natural-8
Profile 30x60x60 light natural-8
Profile 30x60x60 light natural-8
Profile 30x60x60 light natural-8

€99.48*

Accessories total price €0.00

Prices excl. VAT plus shipping costs

accessories

Accessories total price

€99.48 *

PDF-Datasheet
Product number: PB-1880 SN6000
Manufacturer: Maunsystem GmbH
Manufacturer number: 1001830
Length: 6000 mm
Weight: 13.32 kg

Product information " Profile 30x60x60 light natural-8 "

Profiles 8 are particularly suitable for weight-optimised assemblies. The grooves and the core holes of profiles 8 are designed for M8 screws.

Compatible with Bosch 3 842 993 016

Details

l    26,12 cm4
w    7,51 cm3
Profilfläche    8,2 cm2
Gewicht    2,22 kg/m

Step-Datei

Download
Anodised: E6EV1 10-15 µm silver
Colour: natural
Compatible with: Bosch
Contour: Angle
Delivery unit: Rods
Execution: light
Groove shape: Open grooves
Material: Al Mg Si 0.5 F25, artificially aged
Modular dimension: Modular dimension 30
Nutauszugskraft: F=4.000 N
Profile length: 6000 mm bar
Series: Series 30 8
Size: 60x30 mm
Tolerances: EN 12020-2
Breite Profil: 60 mm
Höhe Profil: 60 mm
Profile 30x60x60 light natural-8 Profile 30x60x60 light natural-8
PB-1880 SZ
Profile 30x60x60 light natural-8
Profiles 8 are particularly suitable for weight-optimised assemblies. The grooves and the core holes of profiles 8 are designed for M8 screws. Cut to size max. 6000 mm

€19.07 / 1000 mm *
