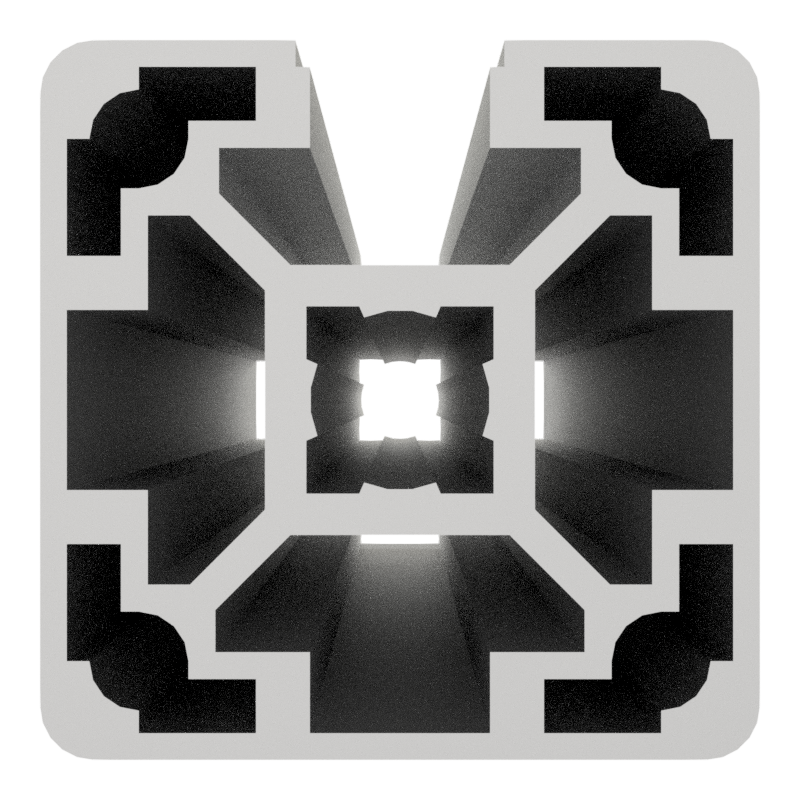

Profile 40x40 1N light natural-10

Profile 40x40 1N light natural-10
Profile 40x40 1N light natural-10
Profile 40x40 1N light natural-10
3D
Click and move
Open AR View
Tap to place the object
Move the device to start
Profile 40x40 1N light natural-10
Profile 40x40 1N light natural-10
Profile 40x40 1N light natural-10
Profile 40x40 1N light natural-10
Profile 40x40 1N light natural-10
Profile 40x40 1N light natural-10
Profile 40x40 1N light natural-10
Profile 40x40 1N light natural-10
Profile 40x40 1N light natural-10

€80.57*

Accessories total price €0.00

Prices excl. VAT plus shipping costs

accessories

Accessories total price

€80.57 *

PDF-Datasheet
Product number: PB-1126 SN6000
Manufacturer: Maunsystem GmbH
Manufacturer number: 1001601
Length: 6000 mm
Weight: 9.864 kg

Product information "Profile 40x40 1N light natural-10"

The profiles in pitch 40 with groove 10 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves are designed for M8 screws.
Delivery length 6030 mm

Compatible with Bosch 3 842 993 185

Compatible with Bosch 3 842 993 185

Step-Datei

Download
Anodised: E6EV1 10-15 µm silver
Colour: natural
Compatible with: Bosch
Contour: Square
Delivery unit: Rods
Execution: light
Groove shape: 3 sides closed
Material: Al Mg Si 0.5 F25, artificially aged
Modular dimension: Modular dimension 40
Nutauszugskraft: F=7.000 N
Profile length: 6000 mm bar
Series: Series 40-10

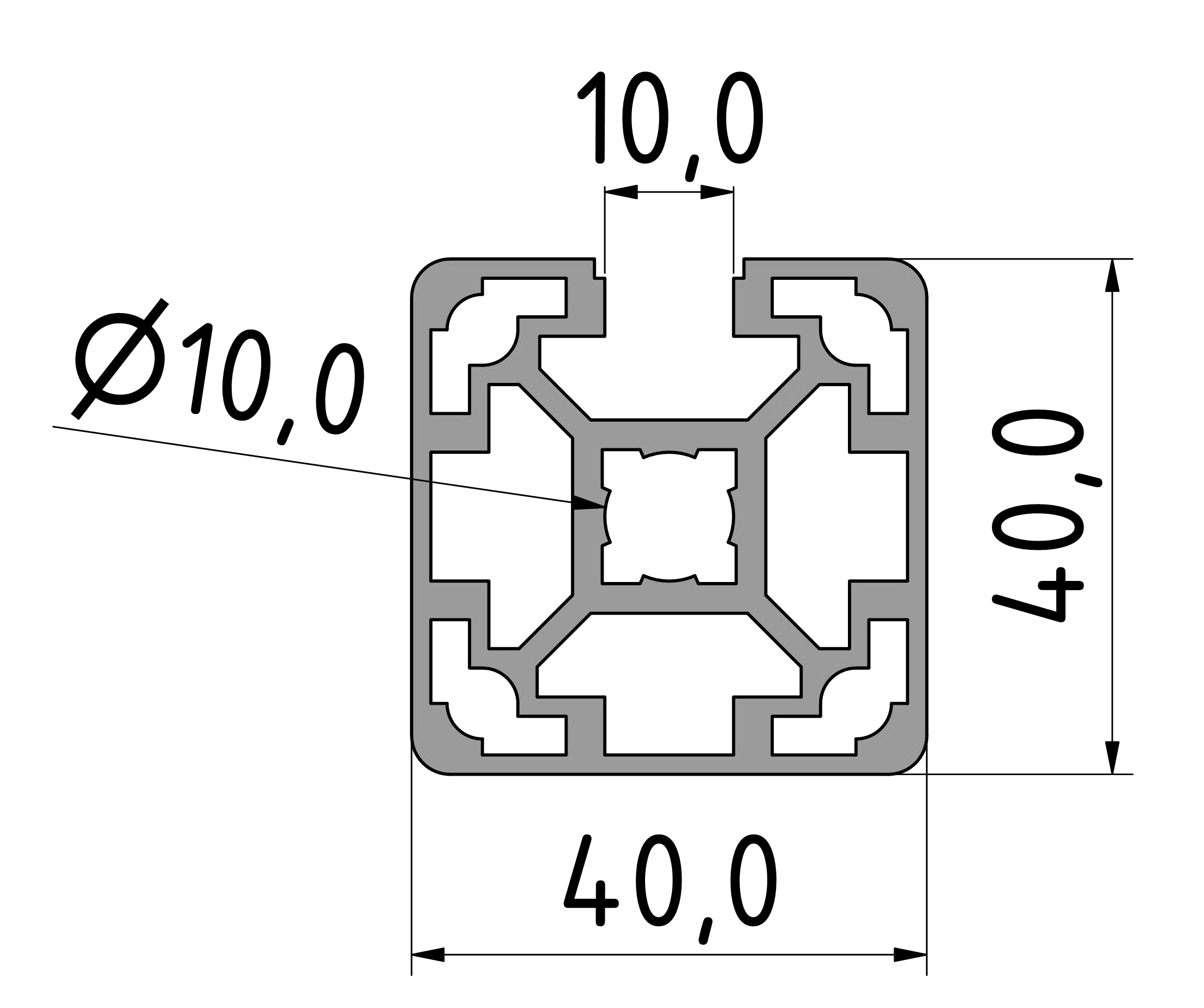

Size: 40x40 mm
Tolerances: EN 12020-2
Breite Profil: 40 mm
Höhe Profil: 40 mm
