Profile 40x40 2N 90° light natural-10

Profile 40x40 2N 90° light natural-10
Profile 40x40 2N 90° light natural-10
Profile 40x40 2N 90° light natural-10
Profile 40x40 2N 90° light natural-10

€80.57*

Total Price incl. Accessories €80.57*

Prices excl. VAT plus shipping costs

accessories

PDF-Datasheet
Product number: PB-1122 SN6000
Manufacturer: Maunsystem GmbH
Manufacturer number: 1001599
Length: 6000 mm
Weight: 9.576 kg

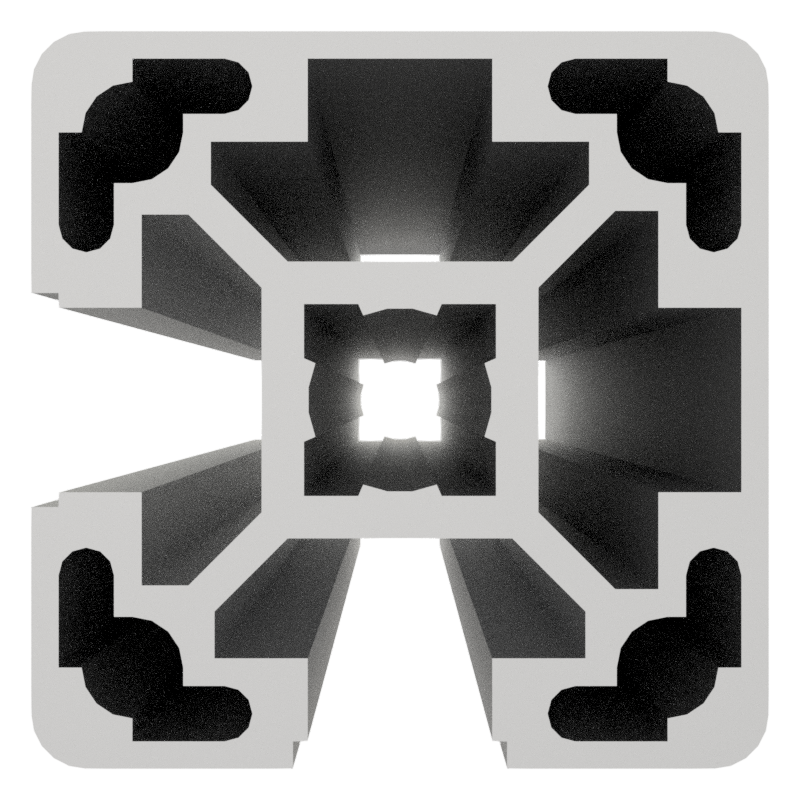

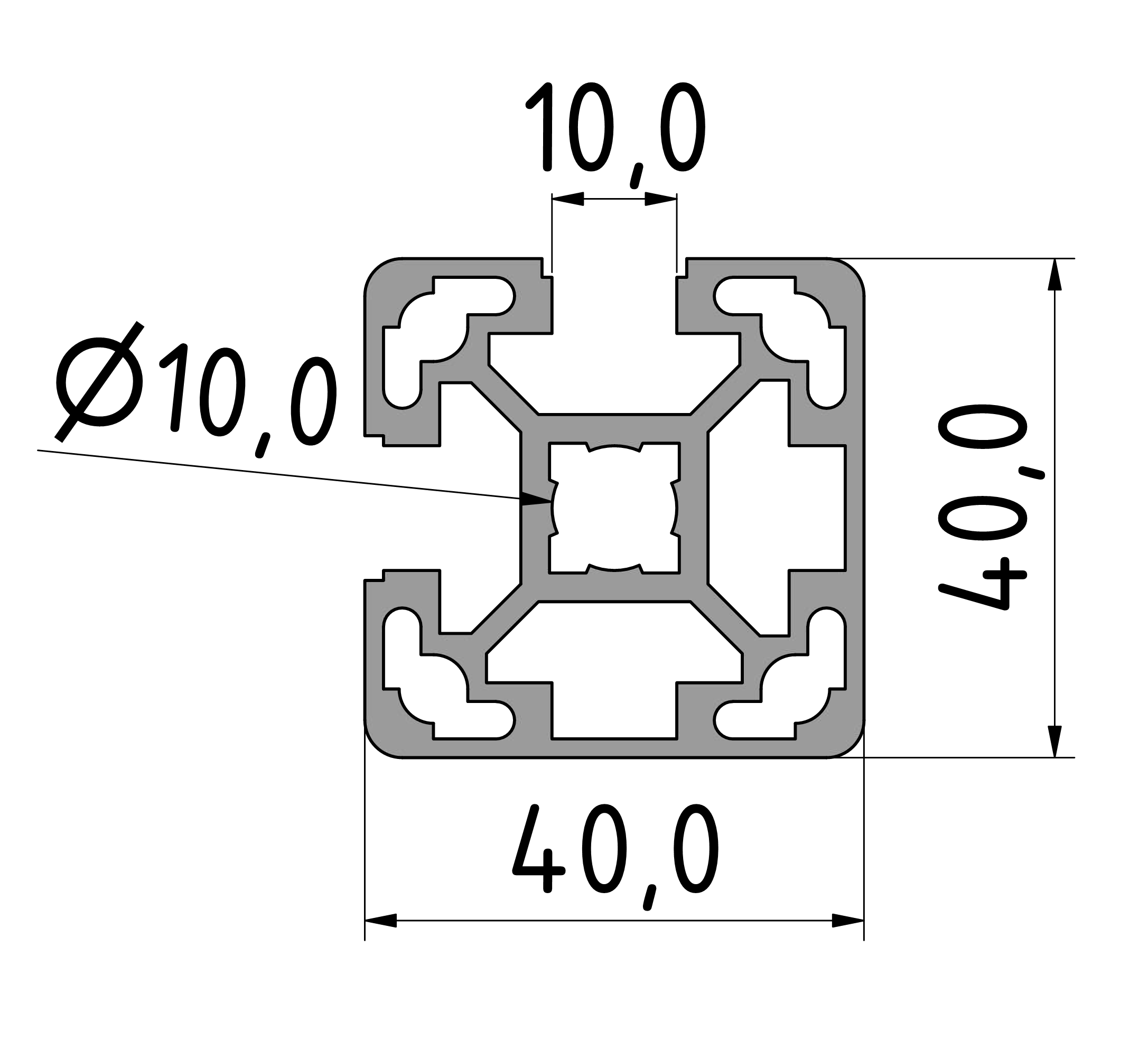

Product information "Profile 40x40 2N 90° light natural-10"
The profiles in pitch 40 with groove 10 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves are designed for M8 screws.
Delivery length 6030 mm

Compatible with Bosch 3 842 993 189

Compatible with Bosch 3 842 993 189

Anodised: E6EV1 10-15 µm silver
Colour: natural
Compatible with: Bosch
Delivery unit: Rods
Execution: light
Groove shape: 2 sides closed 90°
Material: Al Mg Si 0.5 F25, artificially aged
Modular dimension: Modular dimension 40
Profile length: 6000 mm bar
Series: Series 40-10
Size: 40x40 mm
Tolerances: EN 12020-2
Profile 40x40 2N 90° light natural-10 Profile 40x40 2N 90° light natural-10
PB-1122 SZ
Profile 40x40 2N 90° light natural-10
The profiles in pitch 40 with groove 10 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves are designed for M8 screws. Cut to size max. 6000 mm Compatible with Bosch 3 842 993 189

€16.68 / 1000 mm *
Details

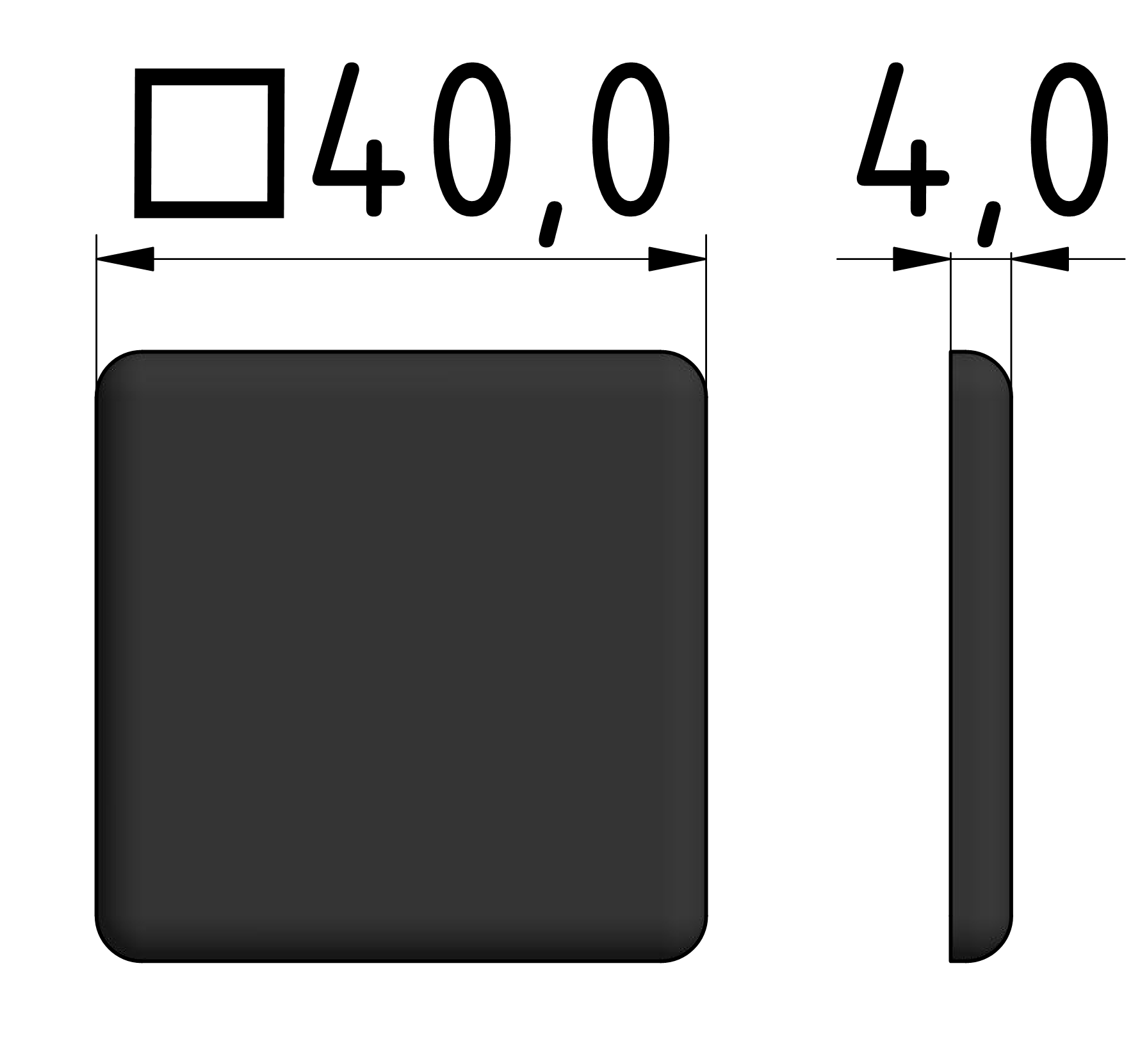

Cap 40x40- 10 Cap 40x40- 10
AB-3000-S
Cap 40x40- 10
Abgerundete Abdeckkappen für die Stirnfläche der verschiedenen Profilquerschnitte.Das Entgraten der Schnittfläche entfällt. Abdeckkappen werden durch Aufschlagen in die Kernbohrungen befestigt.

€0.55*
Cap 40x40- 10 Cap 40x40- 10
AB-3000-G
Cap 40x40- 10
Abgerundete Abdeckkappen für die Stirnfläche der verschiedenen Profilquerschnitte.Das Entgraten der Schnittfläche entfällt. Abdeckkappen werden durch Aufschlagen in die Kernbohrungen befestigt.

€0.55*
Angle Bracket Set 40 ST, black-10 Angle Bracket Set 40 ST, black-10
ZB-3127
Angle Bracket Set 40 ST, black-10
Mounting bracket made of steel for stable and secure connection of profiles

€3.50*
Bolt Connector Set 40, bright zinc-plated-10 Bolt Connector Set 40, bright zinc-plated-10
VB-3010
Bolt Connector Set 40, bright zinc-plated-10
The bolt connector is used to connect two profiles at right angles. It is suitable for very high loads, including torsion. It can be installed in already mounted assemblies.

€3.45*
Inner Connector Set R, bright zinc-plated-10 Inner Connector Set R, bright zinc-plated-10
VB-3095
Inner Connector Set R, bright zinc-plated-10
The inner connector is used for connecting two angle profiles in the 90 degrees. It is not required profile machining.

€2.20*
Qick Connector 0°, bright zink-plated-10 Qick Connector 0°, bright zink-plated-10
VB-3050
Qick Connector 0°, bright zink-plated-10
Universal and force-fitting connection of all profiles in a series Can be subsequently slid in the groove. Can be swivelled into the groove Can be retrofitted into an existing construction. Machining only on one profile

€1.99*
Qick Connector 90°, bright zink-plated-10 Qick Connector 90°, bright zink-plated-10
VB-3045
Qick Connector 90°, bright zink-plated-10
Universal and force-fitting connection of all profiles in a series Can be subsequently slid in the groove. Can be swivelled into the groove Can be retrofitted into an existing construction. Machining only on one profile

€1.99*
T- Matic Connector Set, bright zinc-plated-10 T- Matic Connector Set, bright zinc-plated-10
VB-3037
T- Matic Connector Set, bright zinc-plated-10
Extremely fast and flexible connection without machining mechansiche Universal and positive connection of all profiles in a series retrospectively in the groove moved. possible in an existing design retrofitting. Connector mounting only one profile,

€4.70*
