Profile 40x40 R light natural-10
Maunsystem GmbH
Loading...
Product number:
PB-1160 SN6000
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1001615
Length:
6000 mm
Weight:
7.68 kg
Product information " Profile 40x40 R light natural-10 "
The profiles in pitch 40 with groove 10 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves are designed for M8 screws.
Delivery length 6030 mm
Compatible with Bosch 3 842 993 184
Delivery length 6030 mm
Compatible with Bosch 3 842 993 184
Compatible with Bosch 3 842 993 184
Details
l 6,84 cm4
w 3,06 cm3
Profilfläche 4,75 cm2
Gewicht 1,28 kg/m
w 3,06 cm3
Profilfläche 4,75 cm2
Gewicht 1,28 kg/m
Step-Datei
Download| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Compatible with: | Bosch |
| Contour: | Round |
| Delivery unit: | Rods |
| Execution: | light |
| Material: | Al Mg Si 0.5 F25, artificially aged |
| Modular dimension: | Modular dimension 40 |

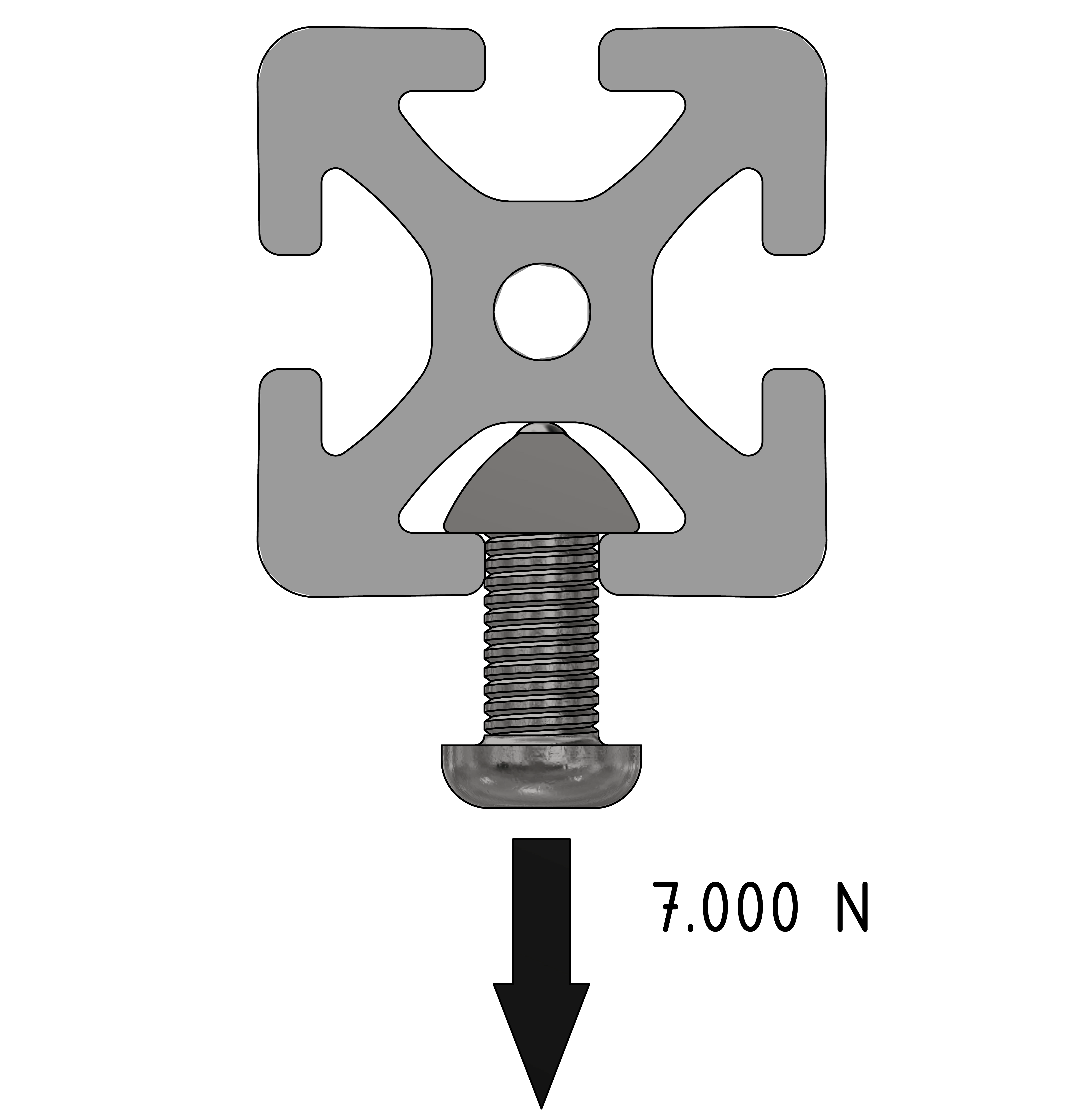

| Nutauszugskraft: | F=7.000 N |
| Profile length: | 6000 mm bar |
| Series: | Series 40-10 |
| Size: | 40x40 mm |
| Tolerances: | EN 12020-2 |
