€175.25*

Accessories total price €0.00

Prices excl. VAT plus shipping costs

accessories

Accessories total price

€175.25 *

PDF-Datasheet
Product number: PB-1885 SN6000
Manufacturer: Maunsystem GmbH
Manufacturer number: 1001831
Length: 6000 mm
Weight: 15.48 kg

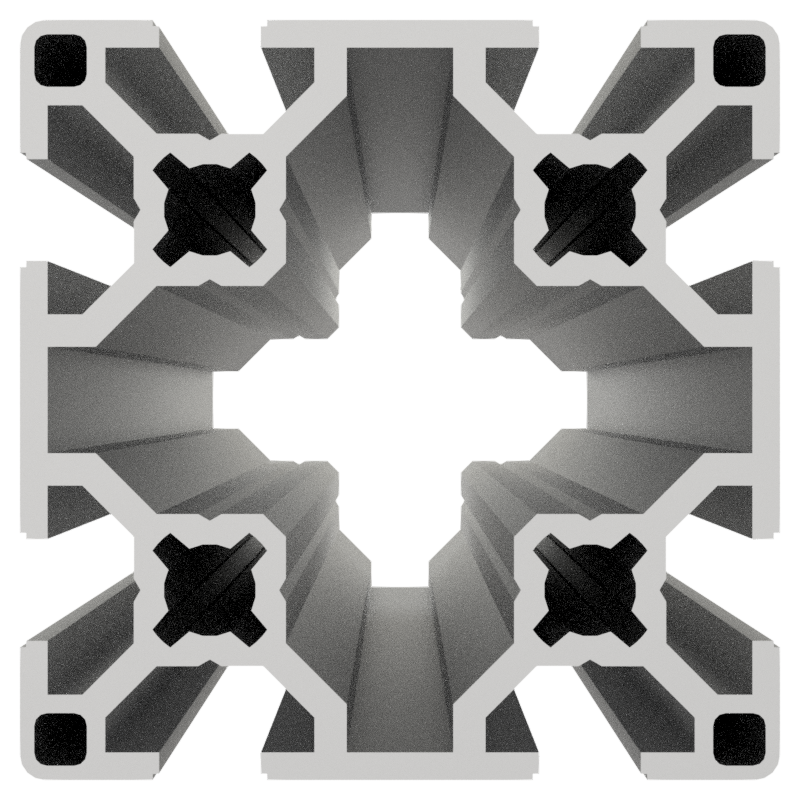

Product information " Profile 60x60 light natural-8 "

Profiles 8 are particularly suitable for weight-optimised assemblies. The grooves and the core holes of profiles 8 are designed for M8 screws.

Compatible with Bosch 3 842 993 033

Step-Datei

Download
Anodised: E6EV1 10-15 µm silver
Colour: natural
Compatible with: Bosch
Contour: Square
Delivery unit: Rods
Execution: light
Groove shape: Open grooves
Material: Al Mg Si 0.5 F25, artificially aged
Modular dimension: Modular dimension 30
Nutauszugskraft: F=4.000 N
Profile length: 6000 mm bar
Series: Series 30 8

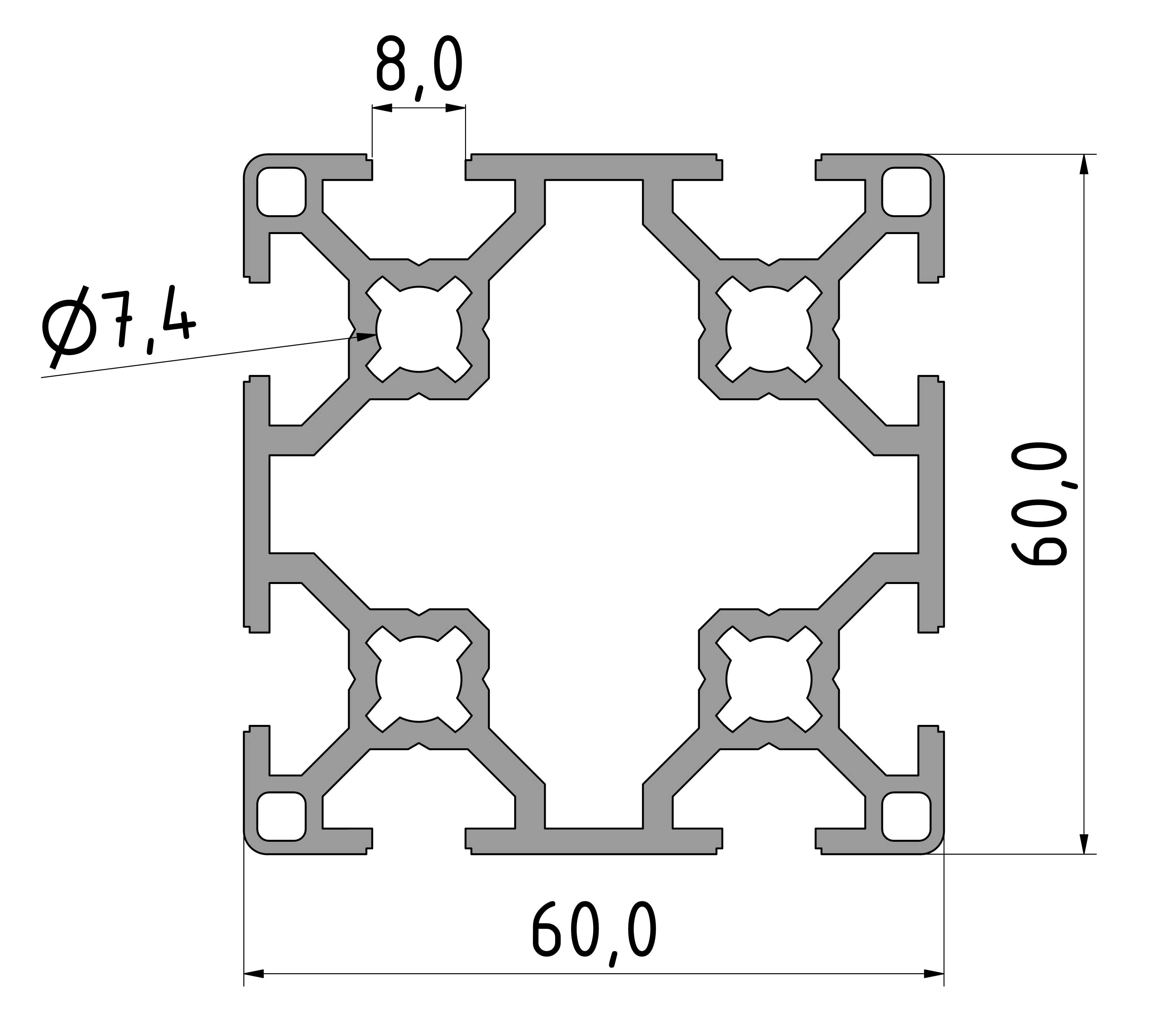

Size: 60x60 mm
Tolerances: EN 12020-2
Breite Profil: 60 mm
Höhe Profil: 60 mm
Profile 60x60 light natural-8 Profile 60x60 light natural-8
PB-1885 SZ
Profile 60x60 light natural-8
Profiles 8 are particularly suitable for weight-optimised assemblies. The grooves and the core holes of profiles 8 are designed for M8 screws. Cut to size max. 6000 mm
