Profile 8 120x40 light, natural

Profile 8 120x40 light, natural
Profile 8 120x40 light, natural
Profile 8 120x40 light, natural
Profile 8 120x40 light, natural
Profile 8 120x40 light, natural
Profile 8 120x40 light, natural
Profile 8 120x40 light, natural
Profile 8 120x40 light, natural

€51.54*

Total Price incl. Accessories €51.54*

Price per 1000 mm: €51.54 *
Zuschnittskosten: €3.15

Prices excl. VAT plus shipping costs

accessories

Profile 8 120x40 light, natural
€260.52 - €268.92*
Profile 8 120x40 light, natural
€260.52 - €268.92*
Cap 8 120x40, black
Colour: grey
€2.67 - €3.14*
Cap 8 120x40, black
Colour: grey
€2.67 - €3.14*
Cap 8 120x40, black
Colour: black
€1.50 - €1.96*
Cap 8 120x40, black
Colour: black
€1.50 - €1.96*
Angle Bracket Set 8 40x40, black
€3.45 - €4.17*
Angle Bracket Set 8 40x40, black
€3.45 - €4.17*
Angle Bracket Set V 8 40 Zn
€3.89 - €4.61*
Angle Bracket Set V 8 40 Zn
€3.89 - €4.61*
Automatic-Fastening Set 8, bright zinc-plated
€2.20 - €2.86*
Automatic-Fastening Set 8, bright zinc-plated
€2.20 - €2.86*
Standard-Fastening Set 8, bright zinc-plated
€0.60 - €0.68*
Standard-Fastening Set 8, bright zinc-plated
€0.60 - €0.68*
Universal-Fastening Set 8, bright zinc-plated
€1.30 - €1.47*
Universal-Fastening Set 8, bright zinc-plated
€1.30 - €1.47*
Allowed range: 20 mm to 6000 mm, step size: 1 mm.
PDF-Datasheet
Product number: PI-1155 SZ
Manufacturer: Maunsystem GmbH
Manufacturer number: 1006677
Weight: 4.384 kg
Product information "Profile 8 120x40 light, natural"
Profiles 8 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves and the core holes of the profiles 8 are designed for M8 screws.
Cut to size max. 6000 mm

Compatible with item 0.0.416.66

Details

lx    24,22 cm4
ly    220,54 cm4
wx    12,1 cm3
wy    36,76 cm3
Profilfläche    16,12 cm2
Gewicht    4,35 kg/m

Step-Datei

Download
Anodised: E6EV1 10-15 µm silver
Colour: natural
Compatible with: item
Contour: Rectangular
Delivery unit: Cuts
Execution: light
Groove shape: Open grooves
Material: Al Mg Si 0.5 F25, artificially aged
Nutauszugskraft: F=2.500 N
Profile length: Cut length
Series: Series 8
Size: 120x40 mm
Tolerances: EN 12020-2
Profile 8 120x40 light, natural Profile 8 120x40 light, natural
PI-1155 SN6000
Profile 8 120x40 light, natural
Profiles 8 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves and the core holes of the profiles 8 are designed for M8 screws.Delivery length 6030 mm

From €260.52*
Angle Bracket Set 8 40x40, black Angle Bracket Set 8 40x40, black
ZI-1100
Angle Bracket Set 8 40x40, black
Angles are a force-locking and unworkable connection. These are also used as additional reinforcement of connections and as a fastening element for attachments. Integrated twisting fuses for fixation in the profile are available. These are removed if necessary.

From €3.45*
Angle Bracket Set V 8 40 Zn Angle Bracket Set V 8 40 Zn
ZI-1098
Angle Bracket Set V 8 40 Zn
Angles are a force-locking and unworkable connection. These are also used as additional reinforcement of connections and as a fastening element for attachments. Integrated twisting fuses for fixation in the profile are available. These are removed if necessary.

From €3.89*
Automatic-Fastening Set 8, bright zinc-plated Automatic-Fastening Set 8, bright zinc-plated
VI-1102
Automatic-Fastening Set 8, bright zinc-plated
Extremely fast and flexible connection without mechanical processing Universal and friction-locked connection of all profiles in a series Can be subsequently moved in the groove. Can be retrofitted into an existing construction. Connector assembly only on one profile

From €2.20*
Standard-Fastening Set 8, bright zinc-plated Standard-Fastening Set 8, bright zinc-plated
VI-1022

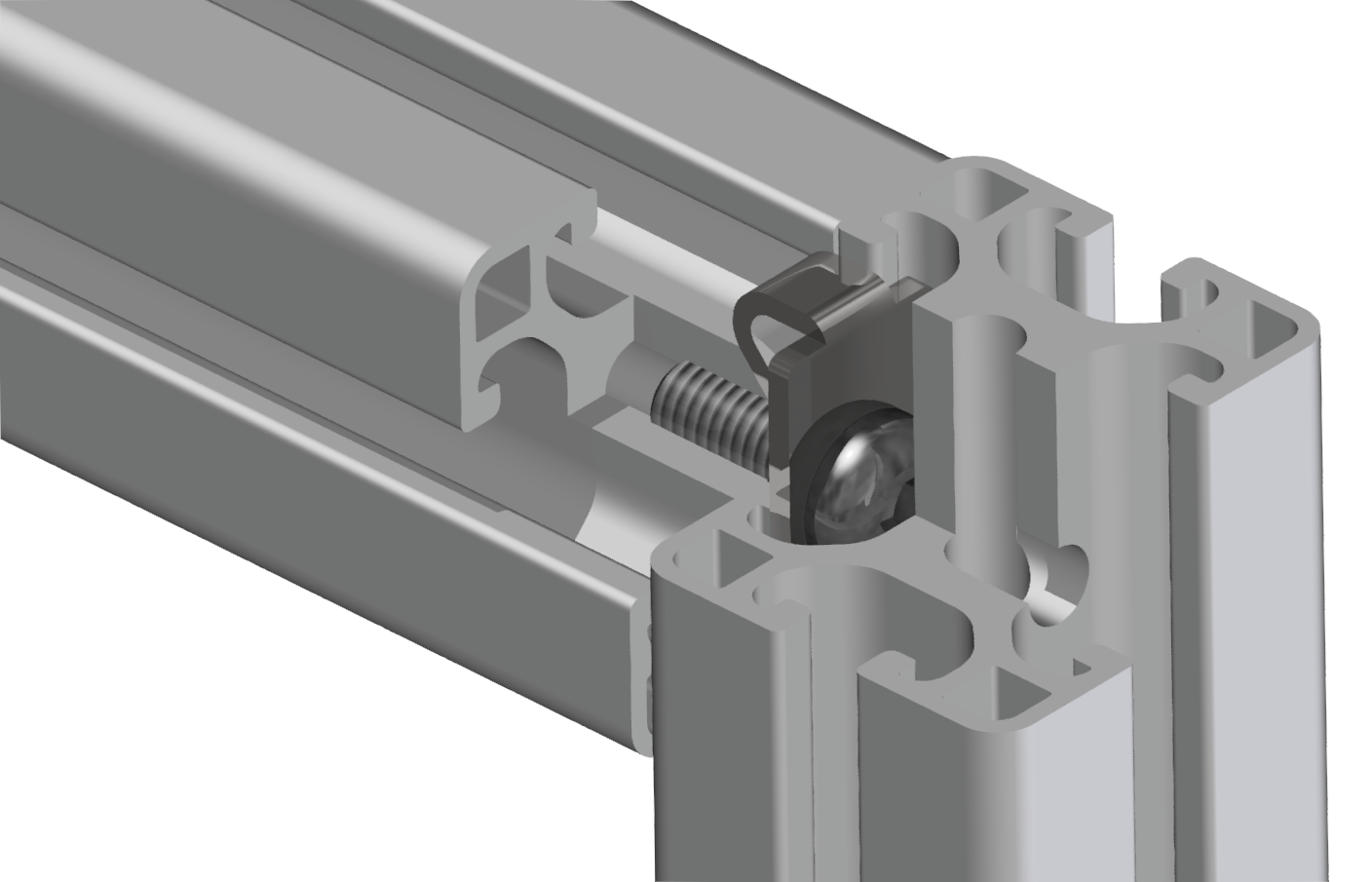

Standard-Fastening Set 8, bright zinc-plated
Force-fitting, high-strength, twist-proof connection of all profiles in a series. For profiles that are not moved

From €0.60*
Universal-Fastening Set 8, bright zinc-plated Universal-Fastening Set 8, bright zinc-plated
VI-1015
Universal-Fastening Set 8, bright zinc-plated
Universal and force-fitting connection of all profiles in a series Can be subsequently slid in the groove. Can be retrofitted into an existing construction. Machining only on one profile

From €1.30*
