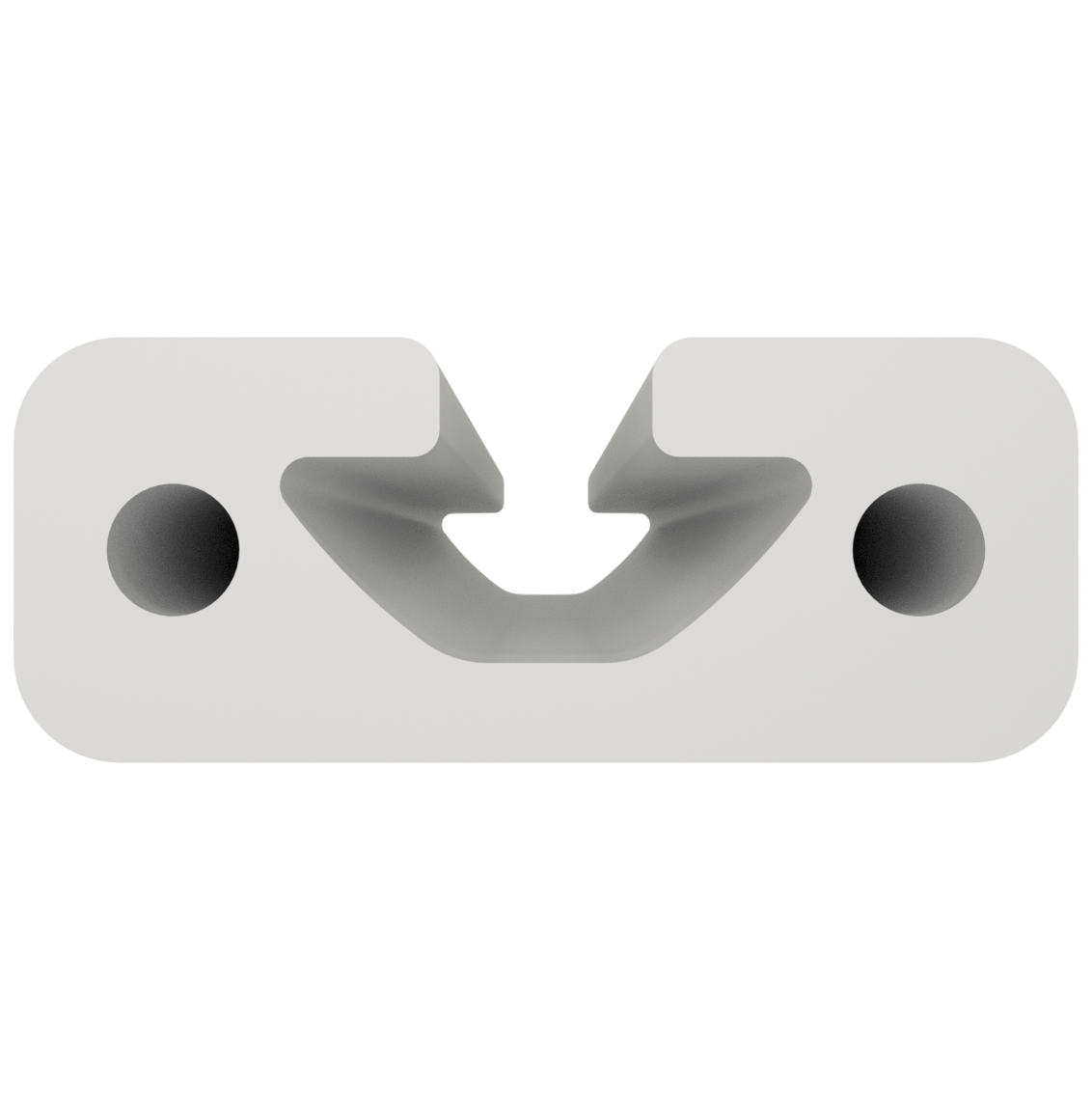

Profile 8 40x16, natural
Maunsystem GmbH
3D
Loading...
Product number:
PI-1010 SN3000
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1008045
Length:
3000 mm
Weight:
3.534 kg
Product information "Profile 8 40x16, natural"
Profiles 8 are suitable for a wide range of assemblies. The grooves and the core holes of the profiles 8 are designed for M8 screws.
Delivery length 3000 mm
Delivery length 3000 mm
Compatible with item 0.0.452.62
Details
lx 1,06 cm4
ly 6,75 cm4
wx 1,25 cm3
wy 3,37 cm3
Profilfläche 4,15 cm2
Gewicht 1,12 kg/m
ly 6,75 cm4
wx 1,25 cm3
wy 3,37 cm3
Profilfläche 4,15 cm2
Gewicht 1,12 kg/m
Step-Datei
Download| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Contour: | Rectangular |
| Delivery unit: | Rods |
| Execution: | heavy |
| Groove shape: | Open grooves |
| Material: | Al Mg Si 0.5 F25, artificially aged |
| Nutauszugskraft: | F=5.000 N |
| Profile length: | 3000 mm bar |
| Series: | Series 8 |
| Size: | 40x16 mm |
| Tolerances: | EN 12020-2 |
PI-1010 SN6000
Profile 8 40x16, natural
Profiles 8 are suitable for a wide range of assemblies. The grooves and the core holes of the profiles 8 are designed for M8 screws.Delivery length 6030 mm
PI-1010 SN2000
Profile 8 40x16, natural
Profiles 8 are suitable for a wide range of assemblies. The grooves and the core holes of the profiles 8 are designed for M8 screws.Delivery length 2000 mm
PI-1010 SZ
Profile 8 40x16, natural
Profiles 8 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves and the core holes of the profiles 8 are designed for M8 screws.
Cut to size max. 6000 mm
