Profile 830 R30-90°, natural
Maunsystem GmbH
Product number:
PI-2110 SN6000
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1001309
Length:
6000 mm
Weight:
5.034 kg
Product information "Profile 830 R30-90°, natural"
Profiles R are especially suitable for the construction of angled protective bonnets, racks and other assemblies. The closed outer surface is visually appealing and easy to clean.
Delivery length 6030 mm
Delivery length 6030 mm
Details
Ix 2,50 cm4
Iy 2,50 cm4
Wx 1,84 cm3
Wy 1,84 cm3
Profilfläche 0,309 cm2
Gewicht 0,839 kg/m
Iy 2,50 cm4
Wx 1,84 cm3
Wy 1,84 cm3
Profilfläche 0,309 cm2
Gewicht 0,839 kg/m
Step-Datei
Download| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Contour: | Round |
| Delivery unit: | Rods |
| Execution: | heavy |
| Groove shape: | Radius profiles |
| Material: | Al Mg Si 0.5 F25, artificially aged |
| Nutauszugskraft: | F=500 N |
| Profile length: | 6000 mm bar |
| Series: | Series 8 30 |
| Size: | 30x30 mm |
| Tolerances: | EN 12020-2 |
PI-2110 SZ
Profile 830 R30-90°, natural
Profiles 8-30 are particularly suitable for weight-optimised assemblies. The grooves and the core holes of profiles 8 are designed for M8 screws.
Cut to size max. 6000 mm
ZI-2060
Angle Bracket Set 830 30x30
Angles are a force-locking and machining-free connection. These are also used as additional reinforcement of connections and as a fastening element for add-on parts. Integrated anti-twist devices for fixing in the profile are provided. These are removed if required.

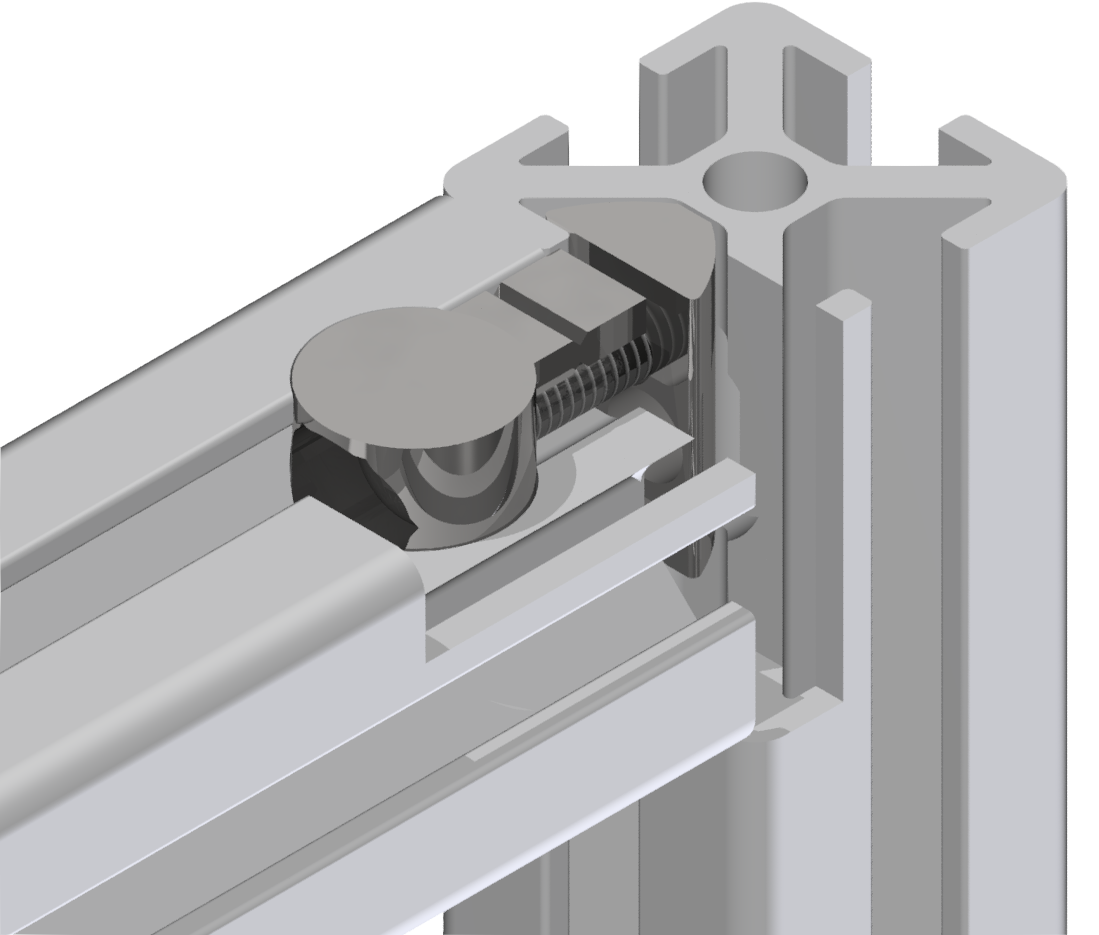

VI-2015
