Universal-Butt-Fastening Set 6, bright zinc-plated
Maunsystem GmbH
3D
Loading...
| Quantity | Unit price |
|---|---|
| To 99 |
€3.60*
|
| To 499 |
€3.20*
|
| From 500 |
€3.10*
|
accessories
Product number:
VI-3016
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1002472
Weight:
0.027 kg

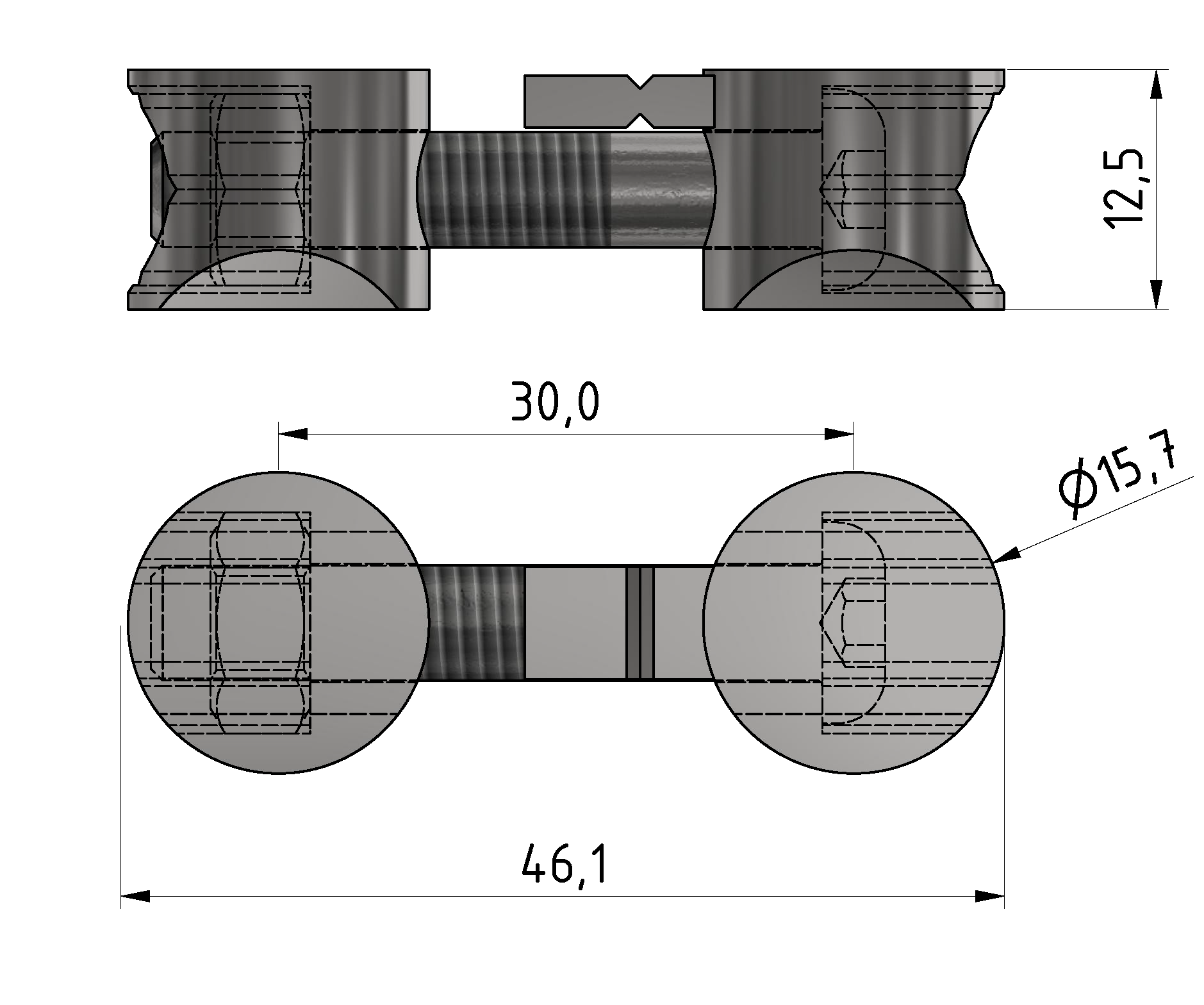

Product information "Universal-Butt-Fastening Set 6, bright zinc-plated"
The universal butt joint kit offers the possibility of butt jointing profiles. The connector should always be installed in pairs.
Compatible with item 0.0.419.53
Details
- 1 Stück VI-3010 Universalspanner, verzinkt-6
- 1 Stück VI-3012 Universalspanner ohne Nase, verzinkt - 6
- 1 Stück S-1076 Zylinderkopfschraube M6x35 DIN 912, verzinkt
- 1 Stück Mutter M6 DIN EN ISO 4032 verzinkt
Step-Datei
Download| Angle freely selectable: | no |
|---|---|
| Bending moment: | very good |
| Can be retrofitted to existing construction: | yes |
| Colour: | galvanized |
| Connector type : | Universal fasteners |
| Displacement force: | very goof |
| Linear sliding: | yes |
| Material: | Galvanized steel |
| Part type : | Verbinder |
| Profile processing: | 2x hole |
| Series: | Series 6 |
| Torsional moment: | very good |
W-1020
Ball-Headed Key 4 A/F
Klinge Stahl, Chrom-Vanadium-Stahl, verchromt, Kunsttoffgriff TPE
W-1150

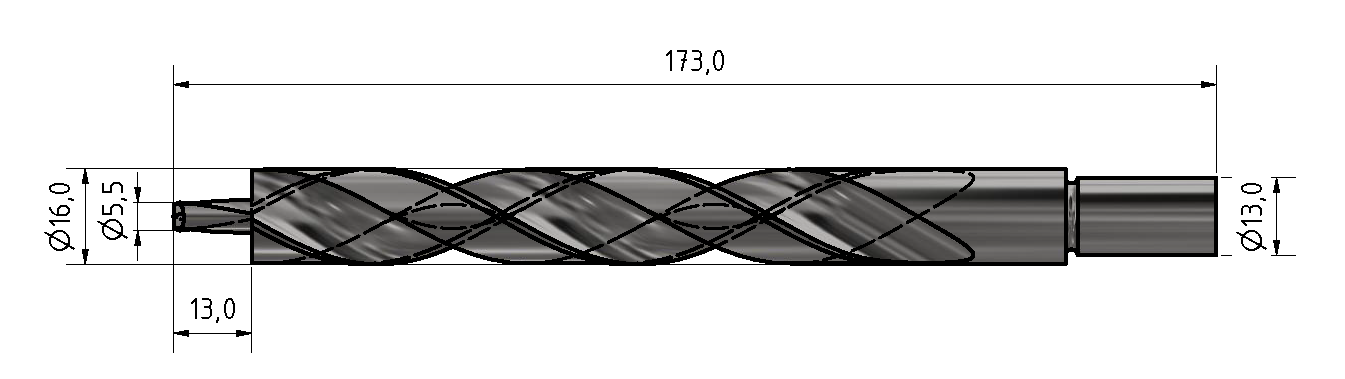

Step Drill, Universal Connection 6
Bohrer zum Erstellen von Senkungen für Universalverbindungen 6 Kompatibel zu item 0.0.431.19
