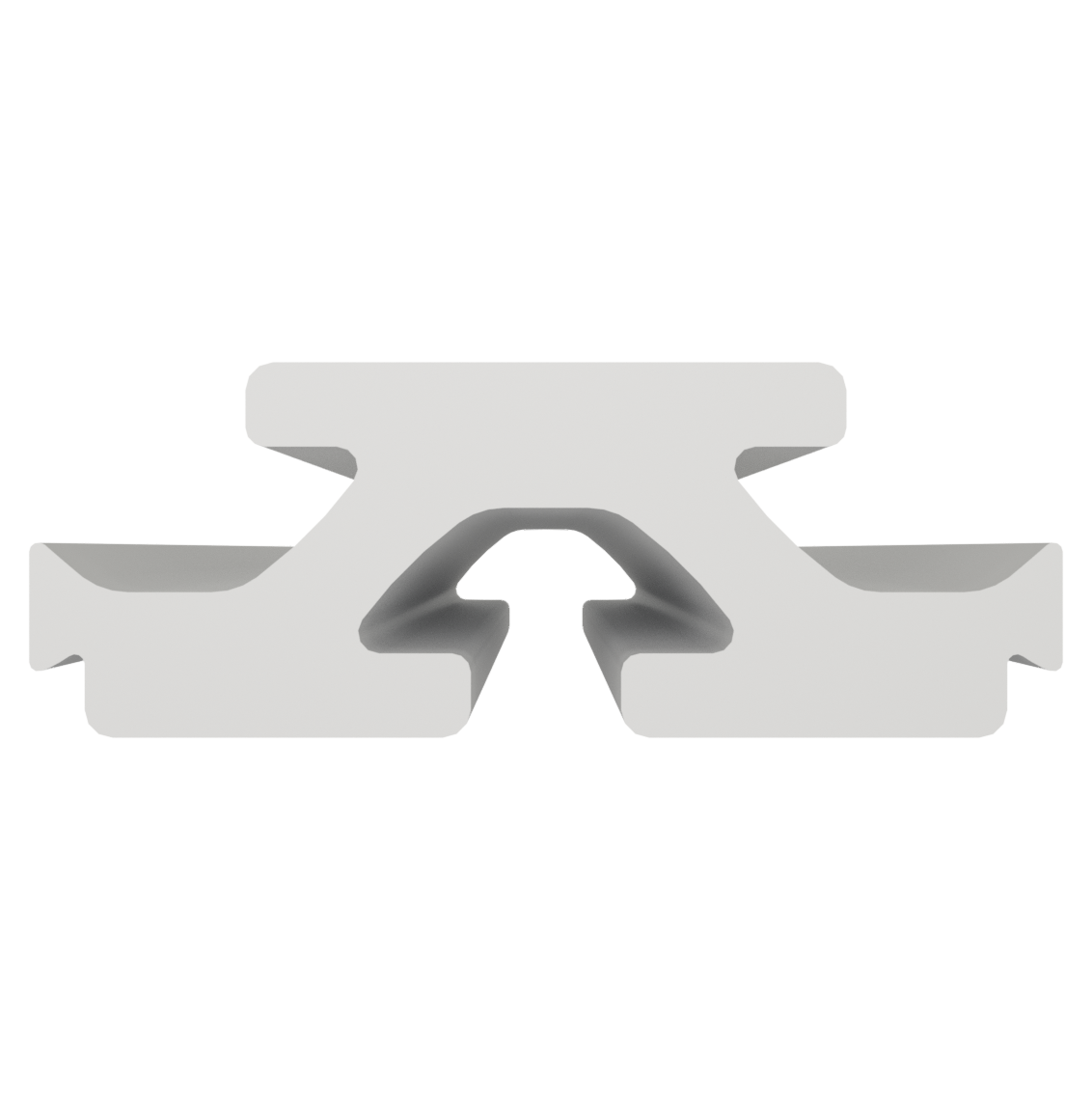

Bed Plate Connection Profile 8 55x20, natural
Maunsystem GmbH
Plattenverbindungsprofil 8 55x20 natur – zur flächenbündigen Verbindung von Abdeckplatten oder Flächenelementen. Ideal für Verkleidungen und modulare Systeme.
Loading...
€28.50*
Price per 1000 mm: €28.50
*
Zuschnittskosten: €2.10
| Accessories total price | €0.00 |
accessories
Accessories total price
€28.50 *
Product number:
PI-1004 SZ
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1007532
Weight:
1.543 kg
Product information "Bed Plate Connection Profile 8 55x20, natural"
Plate profiles 8 are used for the production of variably sized surfaces with grooves 8 in a 40. grid. The fastening can be done on profile racks of different types
Cut to size max. 6000 mm
Compatible with item 0.0.465.80
Details
Ix 2,12 cm4
Iy 11,3 cm4
Wx 1,98 cm3
Wy 4,1 cm3
Profilfläche 5,71 cm2
Gewicht 1,54 kg/m
Iy 11,3 cm4
Wx 1,98 cm3
Wy 4,1 cm3
Profilfläche 5,71 cm2
Gewicht 1,54 kg/m
Step-Datei
Download| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Compatible with: | item |
| Contour: | Rectangular |
| Delivery unit: | Cuts |
| Execution: | heavy |
| Groove shape: | Open grooves |
| Material: | Al Mg Si 0.5 F25, artificially aged |
| Nutauszugskraft: | F=5.000 N |
| Profile length: | Cut length |
| Series: | Series 8 |

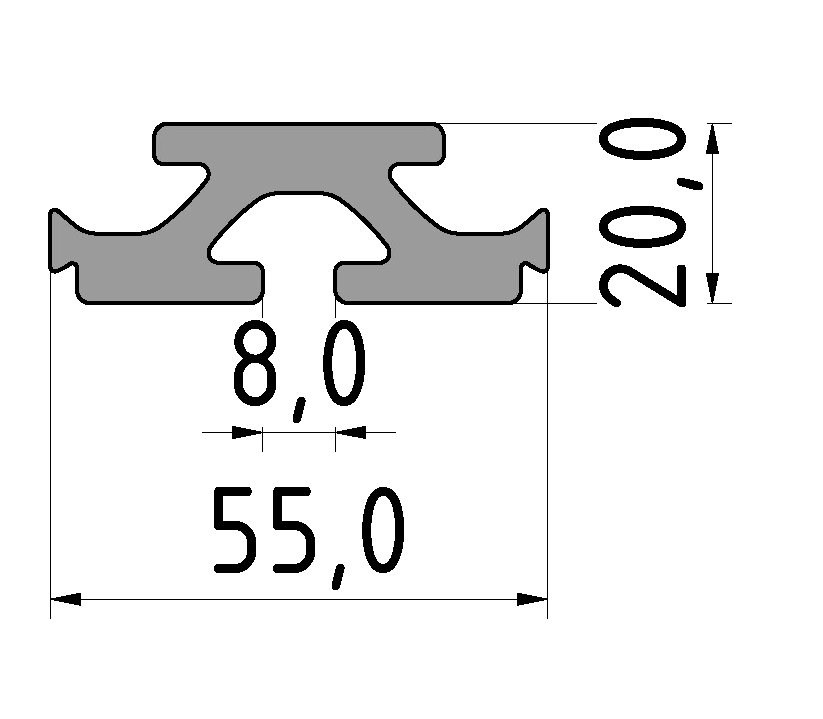

| Size: | 20x55 mm |
| Tolerances: | EN 12020-2 |
| Breite Profil: | 55 mm |
| Höhe Profil: | 20 mm |
