Profile 10 100x100, natural
Maunsystem GmbH
Loading...
| Quantity | Unit price |
|---|---|
| To 1 |
€513.81*
|
| To 11 |
€497.93*
|
| From 12 |
€487.94*
|
| Accessories total price | €0.00 |
accessories
Accessories total price
€570.90 *
Product number:
PI-7060 SN6000
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1000167
Length:
6000 mm
Weight:
63.9 kg

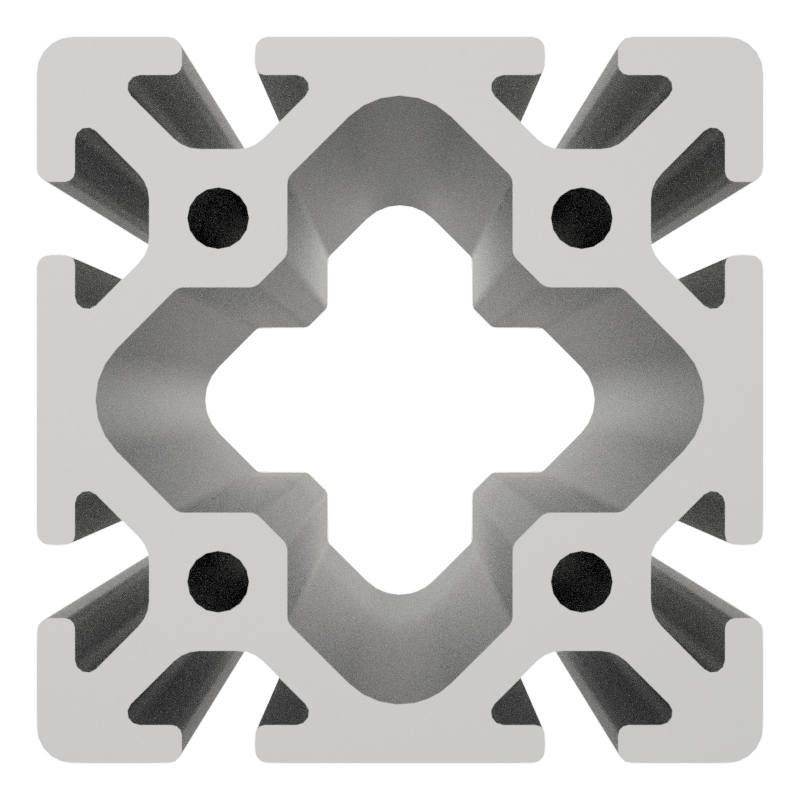

Product information "Profile 10 100x100, natural"
Profiles 10 are suitable for a wide range of assemblies. The grooves and the core holes of the profiles 10 are designed for M10 screws.
Delivery length 6030 mm
Delivery length 6030 mm
Compatible with item 0.0.624.55

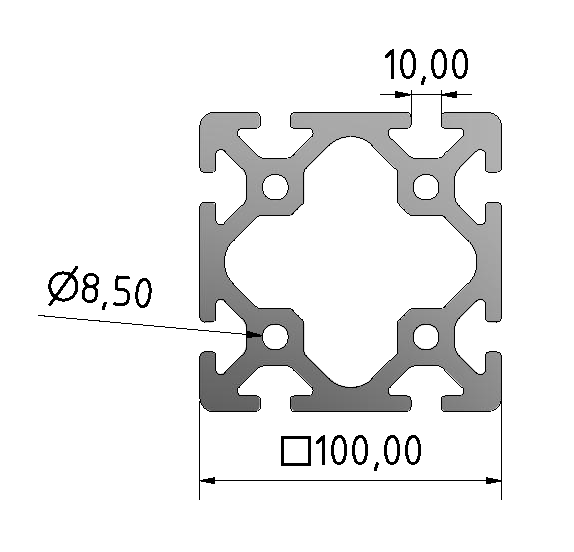

Details
Ix 431,40 cm4
Iy 300,35 cm4
Wx 86,25 cm3
Wy 86,25 cm3
Profilfläche 39,55 cm2
Gewicht 10,65 kg/m
Iy 300,35 cm4
Wx 86,25 cm3
Wy 86,25 cm3
Profilfläche 39,55 cm2
Gewicht 10,65 kg/m
| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Compatible with: | item |
| Contour: | Square |
| Delivery unit: | Rods |
| Execution: | heavy |
| Groove shape: | Open grooves |
| Material: | Al Mg Si 0.5 F25, artificially aged |
| Nutauszugskraft: | F=7.000 N |
| Profile length: | 6000 mm bar |
| Series: | Series 10 |
| Size: | 100x100 mm |
| Tolerances: | EN 12020-2 |
PI-7060 SZ
Profile 10 100x100, natural
Profiles 10 are suitable for a wide range of assemblies. The grooves and the core holes of the profiles 10 are designed for M10 screws.Cut to size max. 6000 mm
