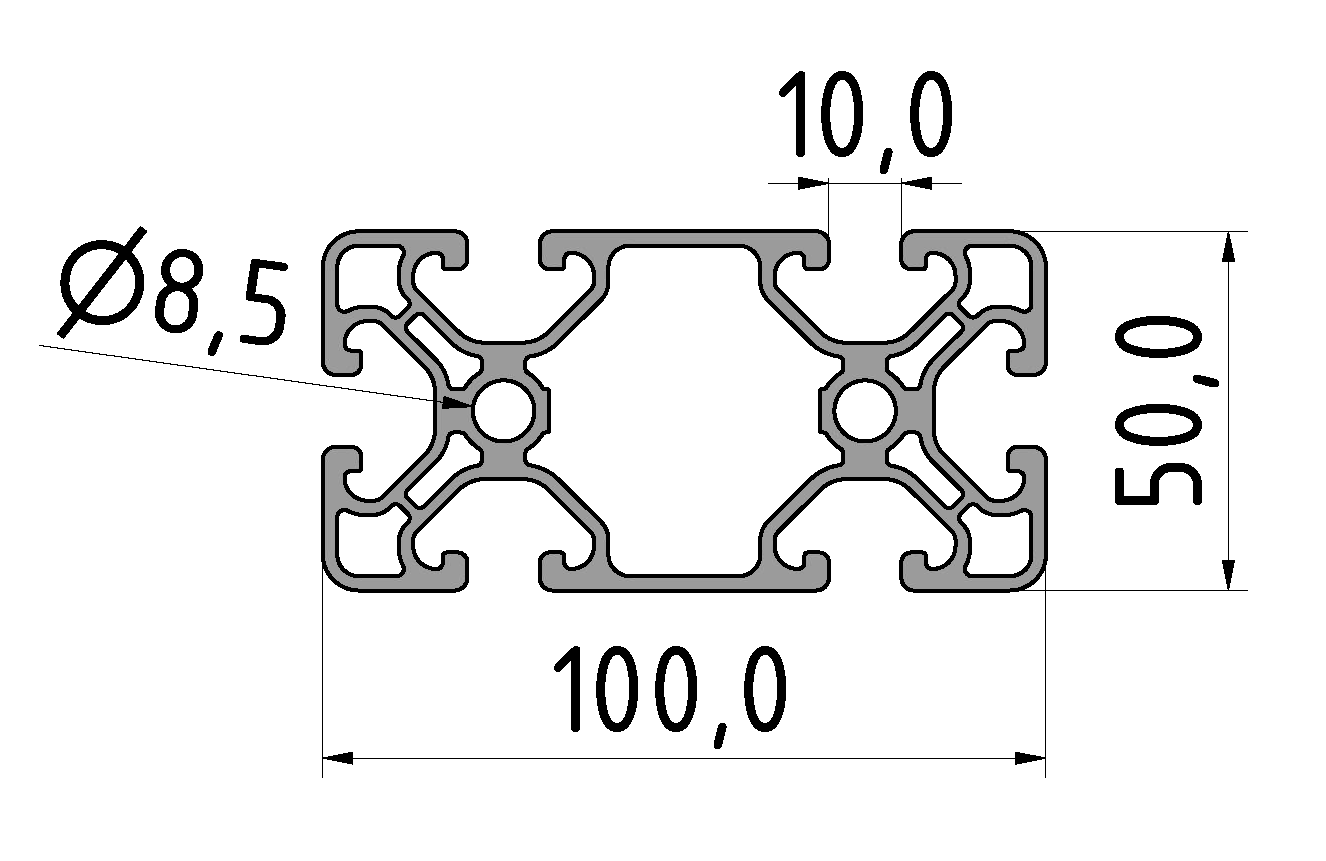

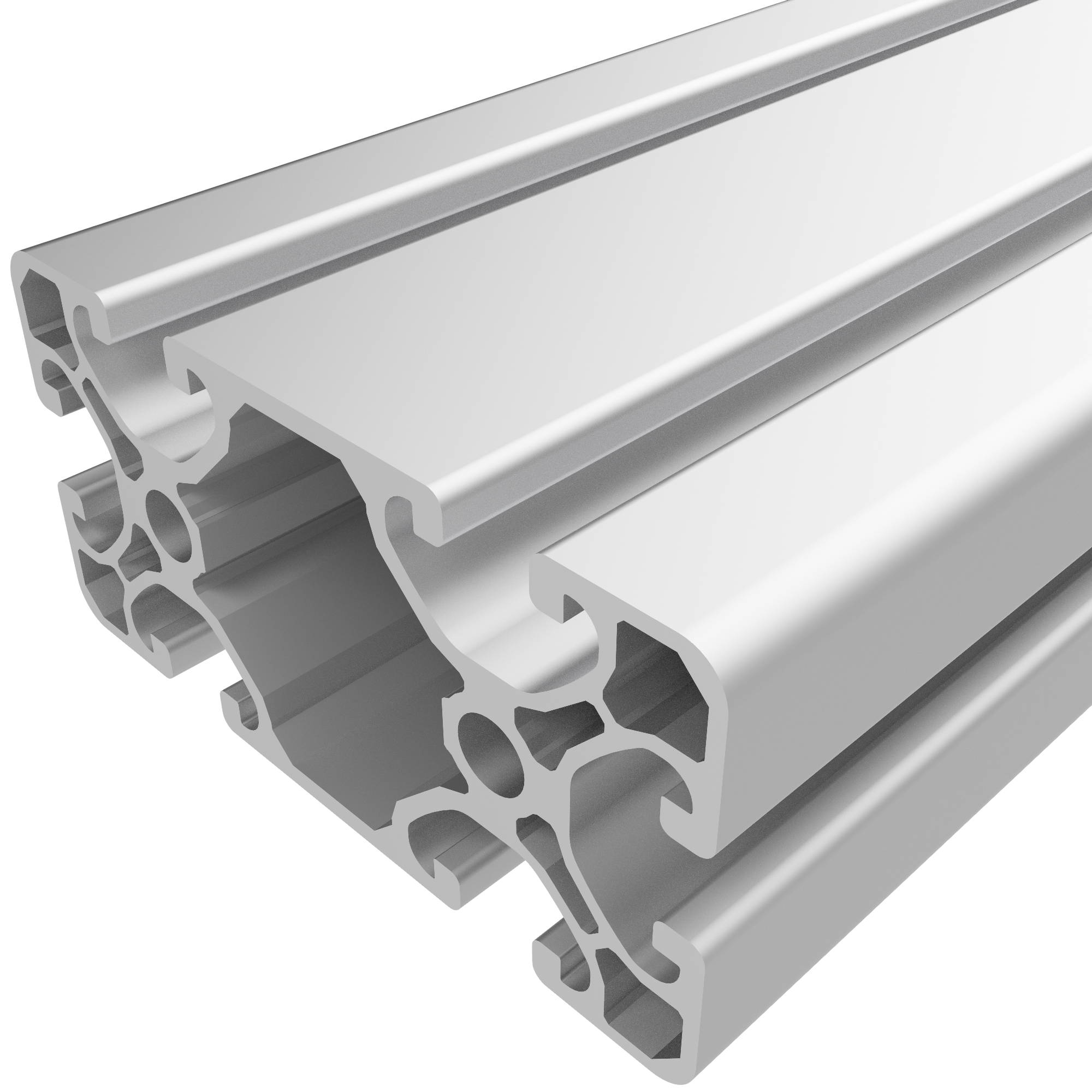

Profile 10 100x50 E, natural
Profile length:
Cut length
Maunsystem GmbH
Loading...
€41.72*
| Accessories total price | €0.00 |
Below you will find matching articles
Accessories total price
€41.72 *
Product number:
PI-7040 SZ
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1007539
Weight:
3.627 kg
Description
Product information "Profile 10 100x50 E, natural"
Die Profile 10 E sind geeignet für gewichtsoptinierte Baugruppen aller Art. Durch die verschiedenen Profilgeometrien kann der Materialbedarf an die Anwendung angepasst werden. Die Nuten und die Kernlöcher der Profile 10 E sind ausgelegt für Schrauben M10.
Zuschnitt max. 6000 mm
Zuschnitt max. 6000 mm
Compatible with item 0.0.625.14
Details
Ix 36,4 cm4
Iy 143,75 cm4
Wx 14,56 cm3
Wy 28,75 cm3
Profile cross-section 13,4 cm2
Weight 3,62 kg/m
Iy 143,75 cm4
Wx 14,56 cm3
Wy 28,75 cm3
Profile cross-section 13,4 cm2
Weight 3,62 kg/m
Step-Datei
| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Compatible with: | item |
| Contour: | Rectangular |
| Delivery unit: | Cuts |
| Execution: | economy |
| Groove shape: | Open grooves |
| Material: | Al Mg Si 0.5 F25, artificially aged |
| Profile height: | 50 mm |
| Profile length: | Cut length |
| Profile width: | 100 mm |
| Series: | Series 10 |
| Size: | 50x100 mm |

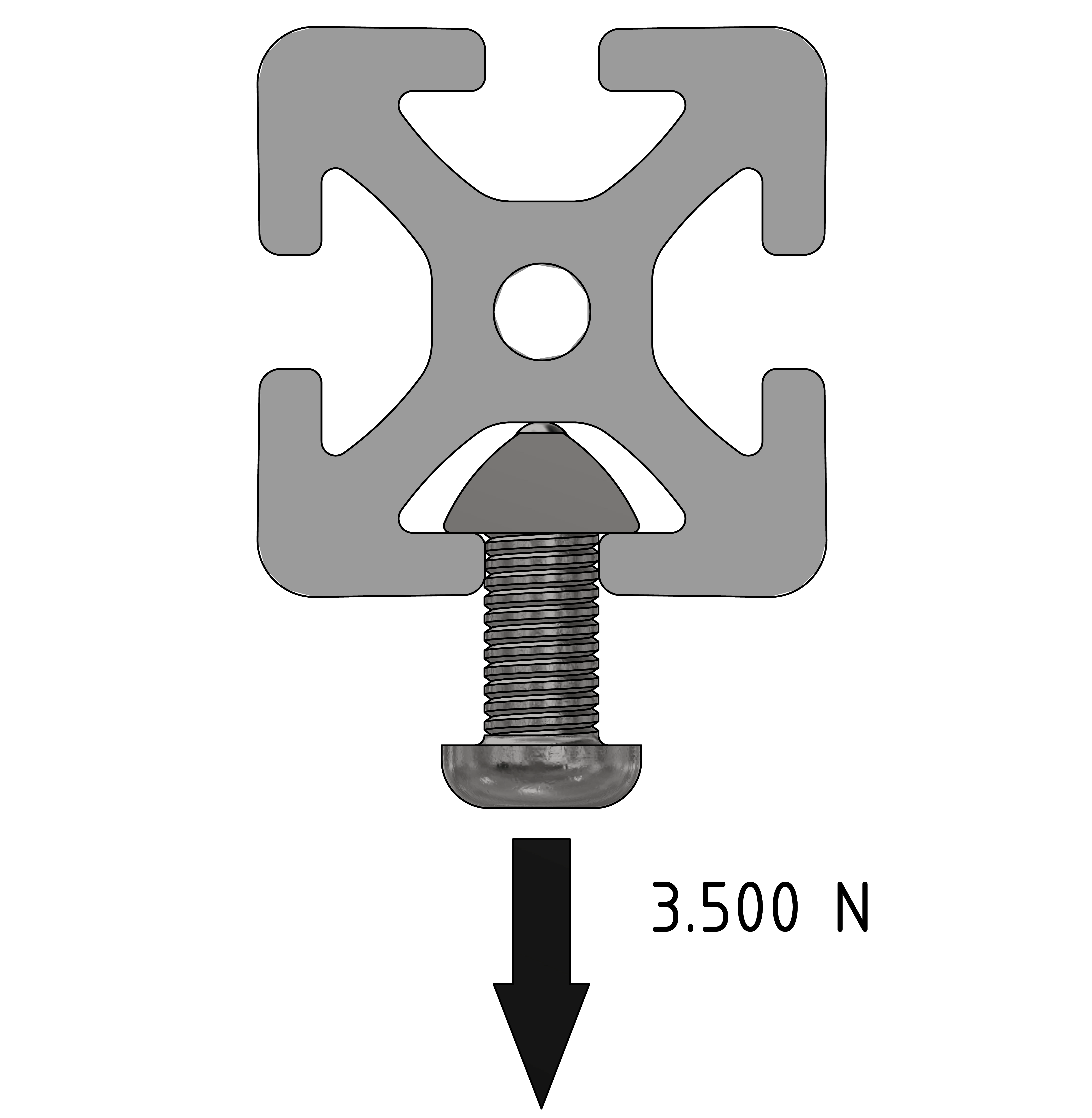

| Slot pull-out force: | F=3.500 N |
| Tolerances: | EN 12020-2 |
Skip product gallery

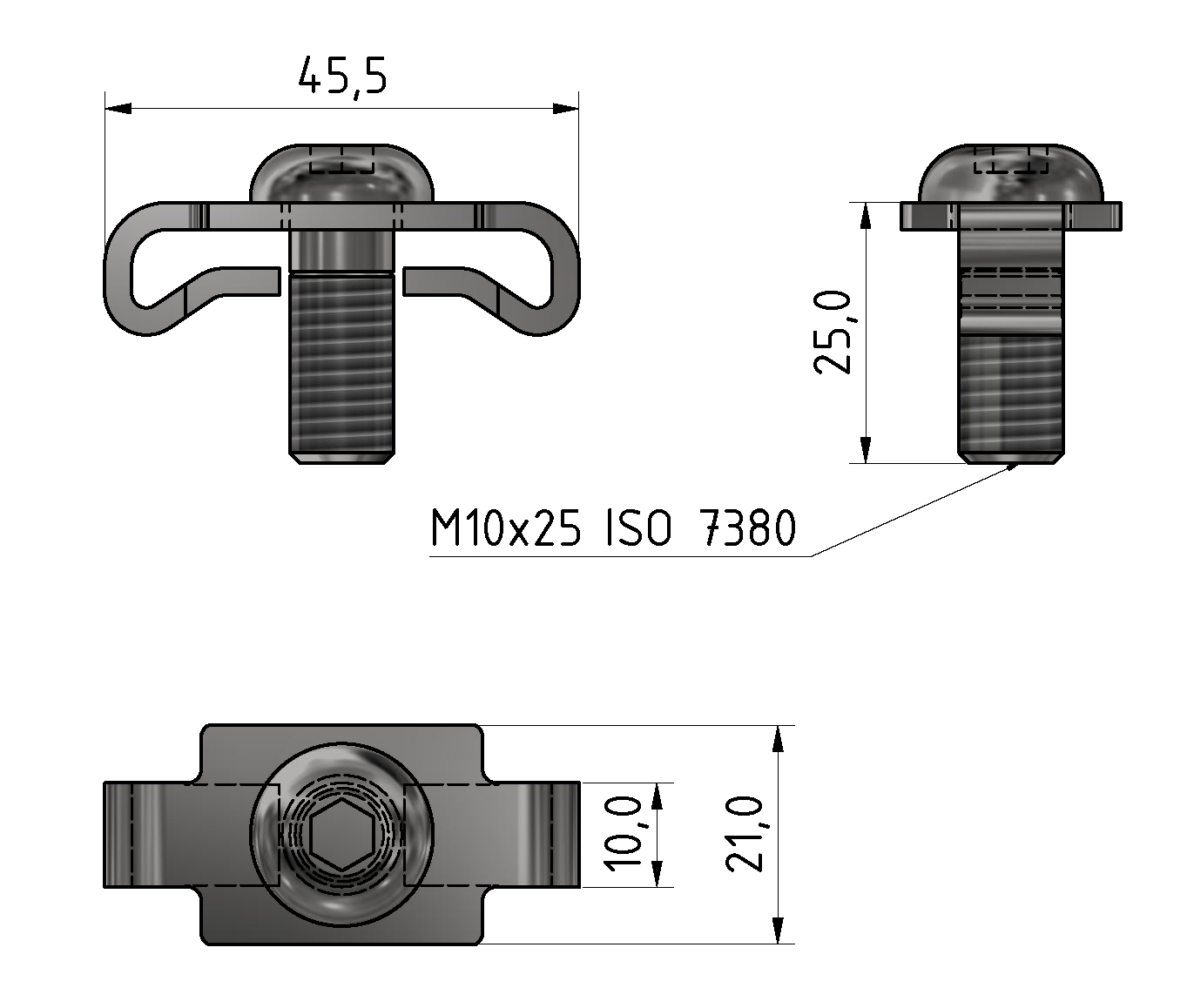

![Standard-Fastening Set 8, stainless]( "Standard-Fastening Set 8, stainless")
