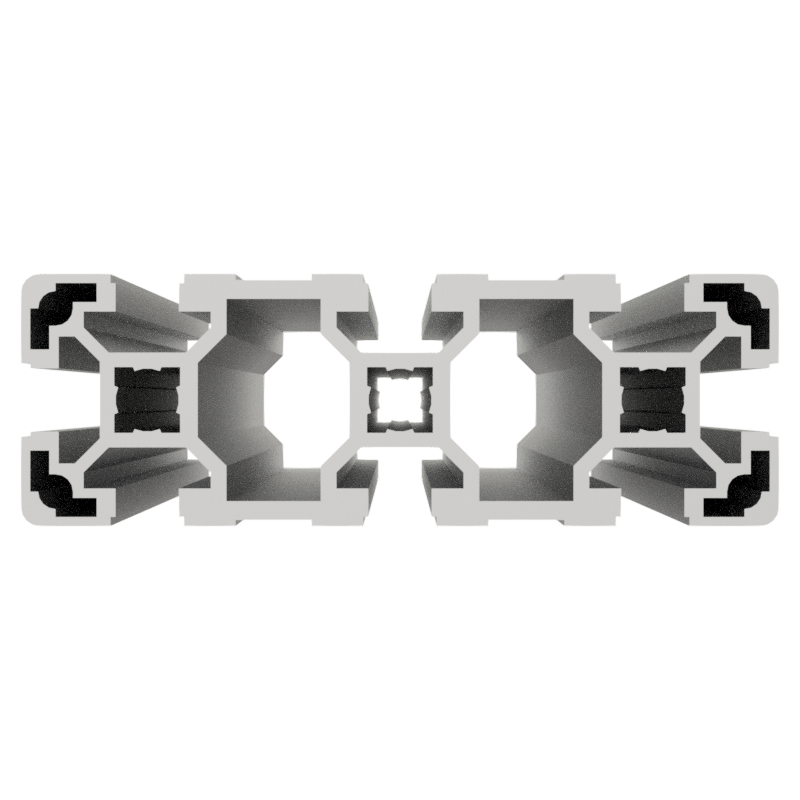

Profile 40x120 light natural-10

Profile 40x120 light natural-10
Profile 40x120 light natural-10
Profile 40x120 light natural-10
Profile 40x120 light natural-10
Product number: PB-1140 SN6000
Manufacturer: Maunsystem GmbH
Manufacturer number: 1001313
Length: 6000 mm
Weight: 25.2 kg
Product information " Profile 40x120 light natural-10 "
The profiles in pitch 40 with groove 10 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves are designed for M8 screws.
Delivery length 6030 mm

Compatible with Bosch 3 842 993 136

Compatible with Bosch 3 842 993 139

Details

lx    203,2 cm4
ly    27,8 cm4
wx    33,9 cm3
wy    13,9 cm3
Profilfläche    15,5 cm2
Gewicht    4,2 kg/m

Step-Datei

Download
Anodised: E6EV1 10-15 µm silver
Colour: natural
Compatible with: Bosch
Contour: Rectangular
Delivery unit: Rods
Execution: light
Groove shape: Open grooves
Material: Al Mg Si 0.5 F25, artificially aged
Modular dimension: Modular dimension 40
Profile length: 6000 mm bar
Series: Series 40-10
Size: 120x40 mm
Tolerances: EN 12020-2
