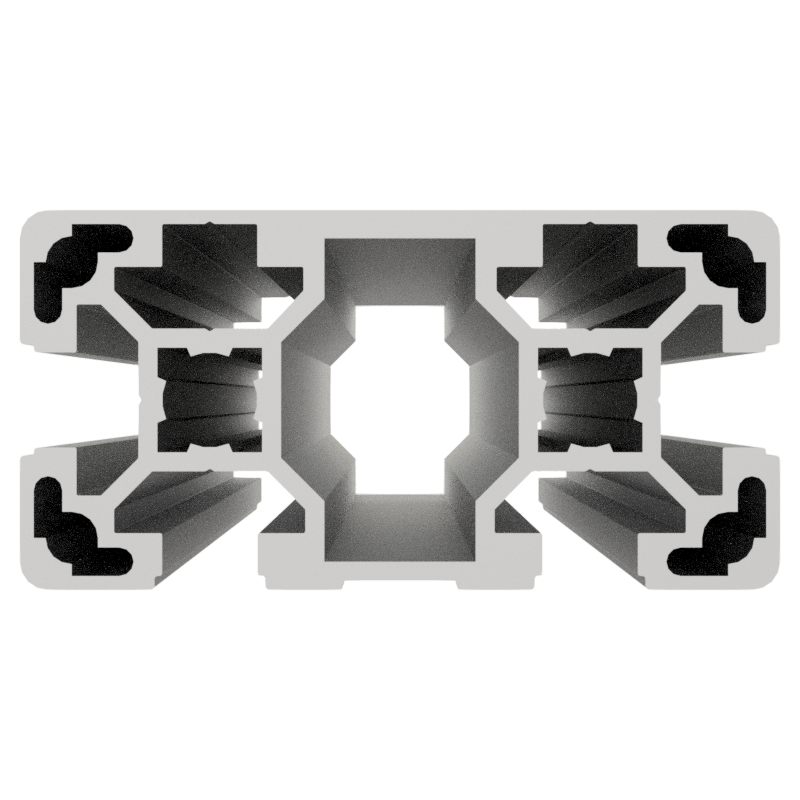

Profile 40x80 4N 270° light natural-10

Profile 40x80 4N 270° light natural-10
Profile 40x80 4N 270° light natural-10
Profile 40x80 4N 270° light natural-10
3D
Click and move
Profile 40x80 4N 270° light natural-10
Profile 40x80 4N 270° light natural-10
Profile 40x80 4N 270° light natural-10
Profile 40x80 4N 270° light natural-10
Profile 40x80 4N 270° light natural-10
Profile 40x80 4N 270° light natural-10
Profile 40x80 4N 270° light natural-10
Profile 40x80 4N 270° light natural-10
Profile 40x80 4N 270° light natural-10

€63.27*

Price per 1000 mm: €63.27 *
Zuschnittskosten: €2.10
Accessories total price €0.00

Prices excl. VAT plus shipping costs

accessories

Accessories total price

€63.27 *

Allowed range: 20 mm to 6000 mm, step size: 1 mm.
PDF-Datasheet
Product number: PB-1115 SZ
Manufacturer: Maunsystem GmbH
Manufacturer number: 1006816

Product information "Profile 40x80 4N 270° light natural-10"

The profiles in pitch 40 with groove 10 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves are designed for M8 screws.
Cut to size max. 6000 mm
Compatible with Bosch 3 842 993 424

Compatible with Bosch 3 842 993 424

Step-Datei

Download
Anodised: E6EV1 10-15 µm silver
Colour: natural
Compatible with: Bosch
Contour: Rectangular
Delivery unit: Cuts
Execution: light
Groove shape: 1 side closed
Material: Al Mg Si 0.5 F25, artificially aged
Modular dimension: Modular dimension 40
Nutauszugskraft: F=7.000 N
Profile length: Cut length
Series: Series 40-10

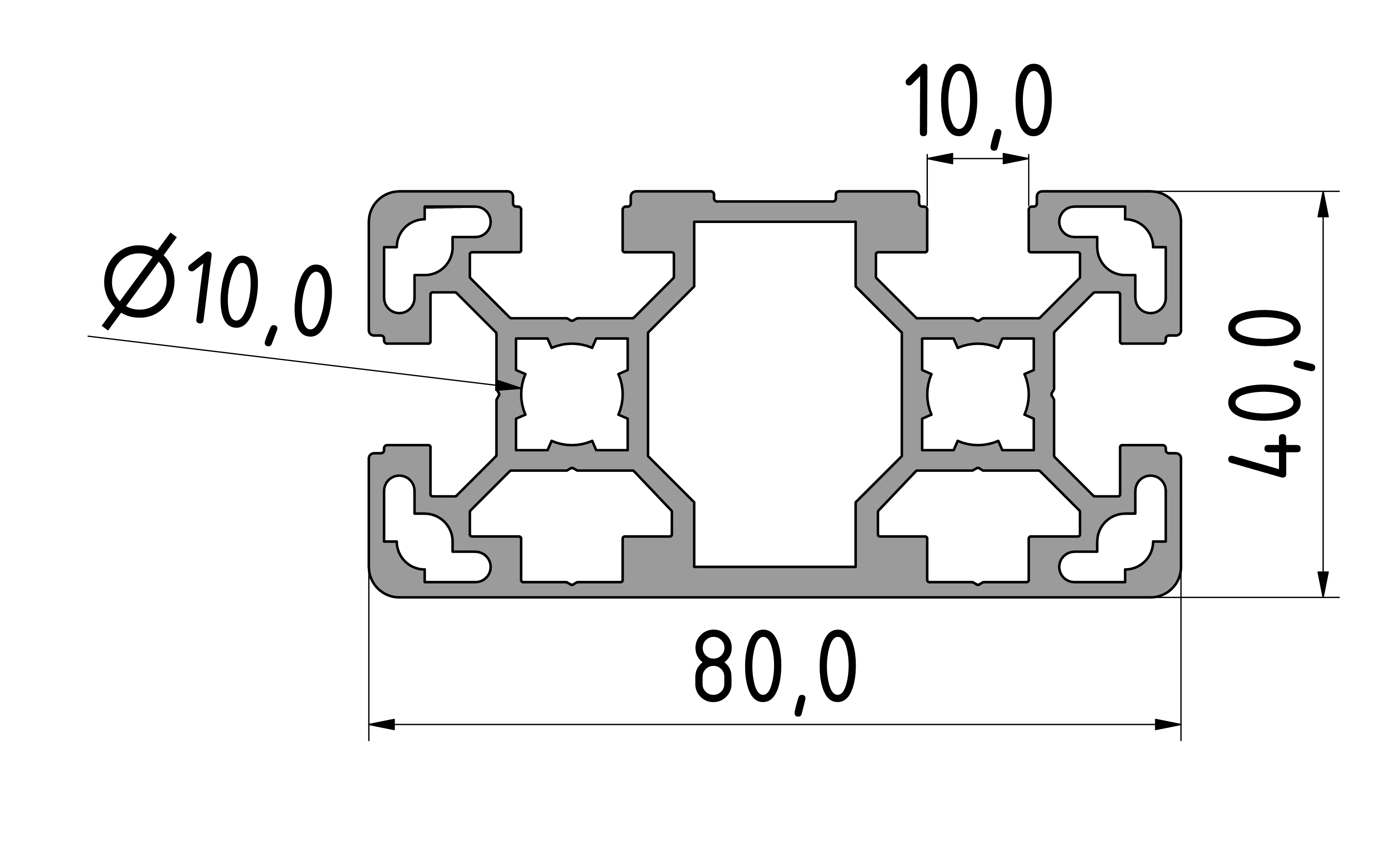

Size: 80x40 mm
Tolerances: EN 12020-2
Breite Profil: 80 mm
Höhe Profil: 40 mm
