€86.25*

Accessories total price €0.00

Prices excl. VAT plus shipping costs

accessories

Accessories total price

€86.25 *

PDF-Datasheet
Product number: PB-1210 SN6000
Manufacturer: Maunsystem GmbH
Manufacturer number: 1001619
Length: 6000 mm
Weight: 9.3 kg

Product information " Profile 45x45 light natural-10 "

The profiles in pitch 45 with groove 10 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves are designed for M8 screws.
Delivery length 6030 mm

Compatible with Bosch 3 842 992 425

Compatible with Bosch 3 842 992 425

Details

l    11 cm4
w    4,89 cm3
Profilfläche    5,73 cm2
Gewicht    1,55 kg/m

Step-Datei

Download
Colour: natural
Compatible with: Bosch
Contour: Square
Delivery unit: Rods
Execution: light
Groove shape: Open grooves
Modular dimension: Modular dimension 45
Nutauszugskraft: F=7.000 N
Profile length: 6000 mm bar
Series: Series 45-10
Size: 45x45 mm
Breite Profil: 45 mm
Höhe Profil: 45 mm
Profile 45x45 light natural-10 Profile 45x45 light natural-10
PB-1210 SN3000
Profile 45x45 light natural-10
The profiles in pitch 45 with groove 10 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves are designed for M8 screws.Delivery length 3000 mmCompatible with Bosch 3 842 992 425

€48.30*
Profile 45x45 light natural-10 Profile 45x45 light natural-10
PB-1210 SN2000
Profile 45x45 light natural-10
The profiles in pitch 45 with groove 10 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves are designed for M8 screws.Delivery length 2000 mmCompatible with Bosch 3 842 992 425

€32.20*
Profile 45x45 light natural-10 Profile 45x45 light natural-10
PB-1210 SZ
Profile 45x45 light natural-10
The profiles in pitch 45 with groove 10 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves are designed for M8 screws. Cut to size max. 6000 mm Compatible with Bosch 3 842 992 425

€14.38 / 1000 mm *
Details
Angle Bracket Set 45x45 - 10 Angle Bracket Set 45x45 - 10
ZB-3095-N
Angle Bracket Set 45x45 - 10
Angles are a force-fit and processing wireless connection. These are also used as additional reinforcement of connections and as a fastener for attachments. Integral safety devices for fixing the profile are available. These are removed if necessary.

€3.10*

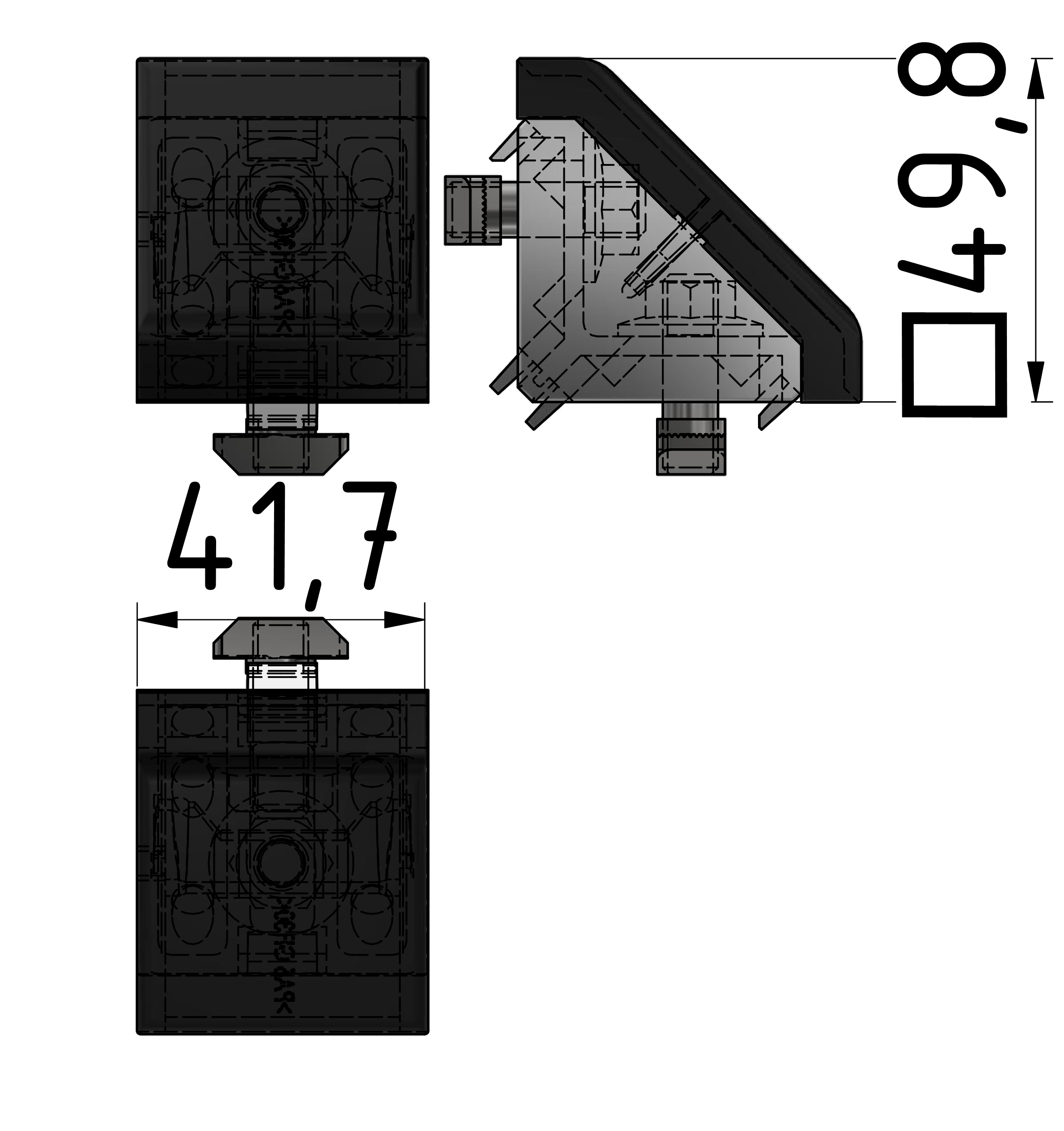

Angle Bracket Set 45x45 - 10 Angle Bracket Set 45x45 - 10
ZB-3095-W
Angle Bracket Set 45x45 - 10
Angles are a force-fit and processing wireless connection. These are also used as additional reinforcement of connections and as a fastener for attachments. Integral safety devices for fixing the profile are available. These are removed if necessary.

Variants from €3.10*
€4.71*
Angle Bracket Set 45x45 - 10 Angle Bracket Set 45x45 - 10
ZB-3095-G
Angle Bracket Set 45x45 - 10
Angles are a force-fit and processing wireless connection. These are also used as additional reinforcement of connections and as a fastener for attachments. Integral safety devices for fixing the profile are available. These are removed if necessary.

€3.10*

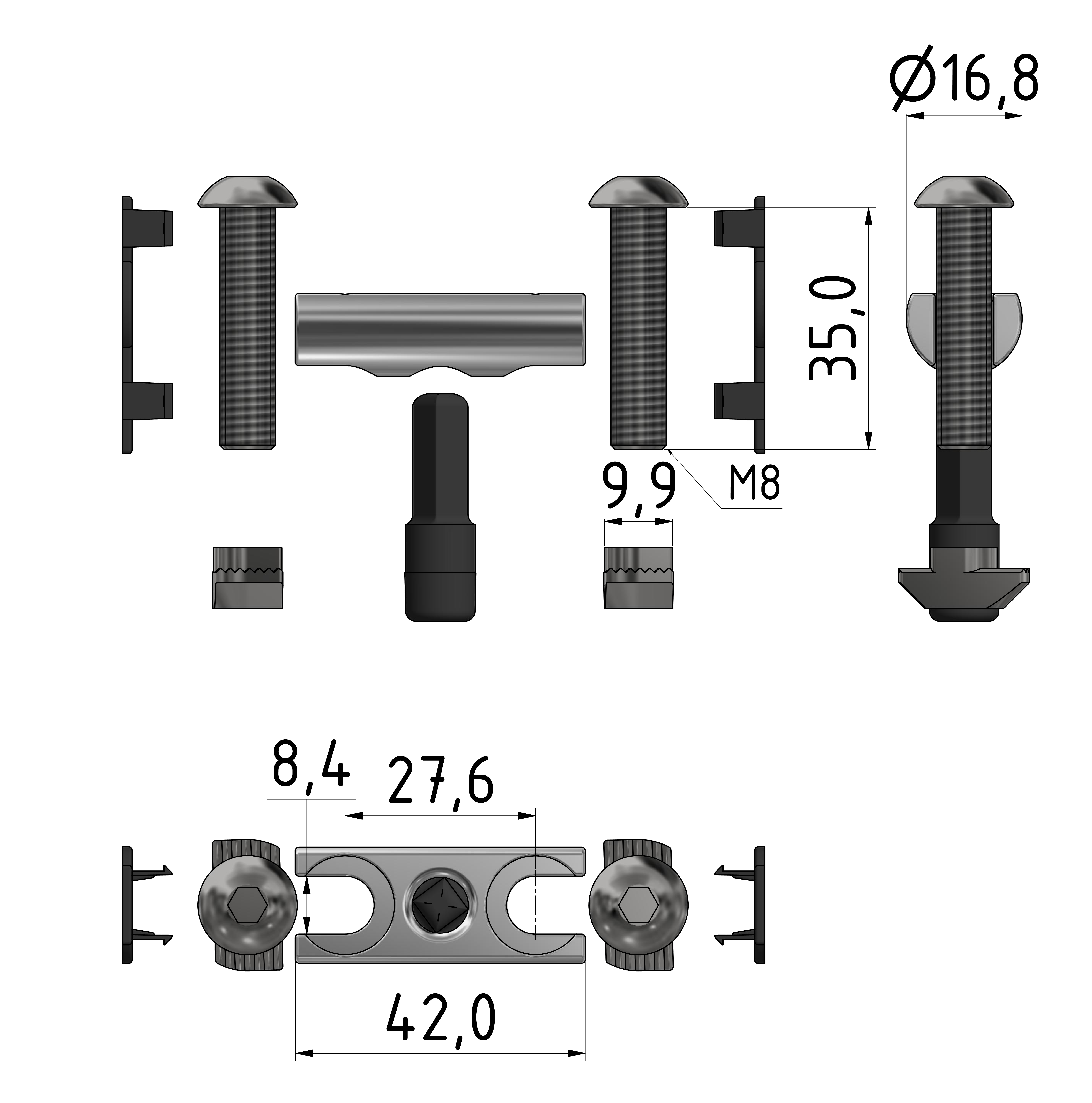

Bolt Connector Set 45, bright zinc-plated-10 Bolt Connector Set 45, bright zinc-plated-10
VB-3015
Bolt Connector Set 45, bright zinc-plated-10
The bolt connector is used to connect two profiles at right angles. It is suitable for very high loads, including torsion. It can be installed in already mounted assemblies.

€3.45*

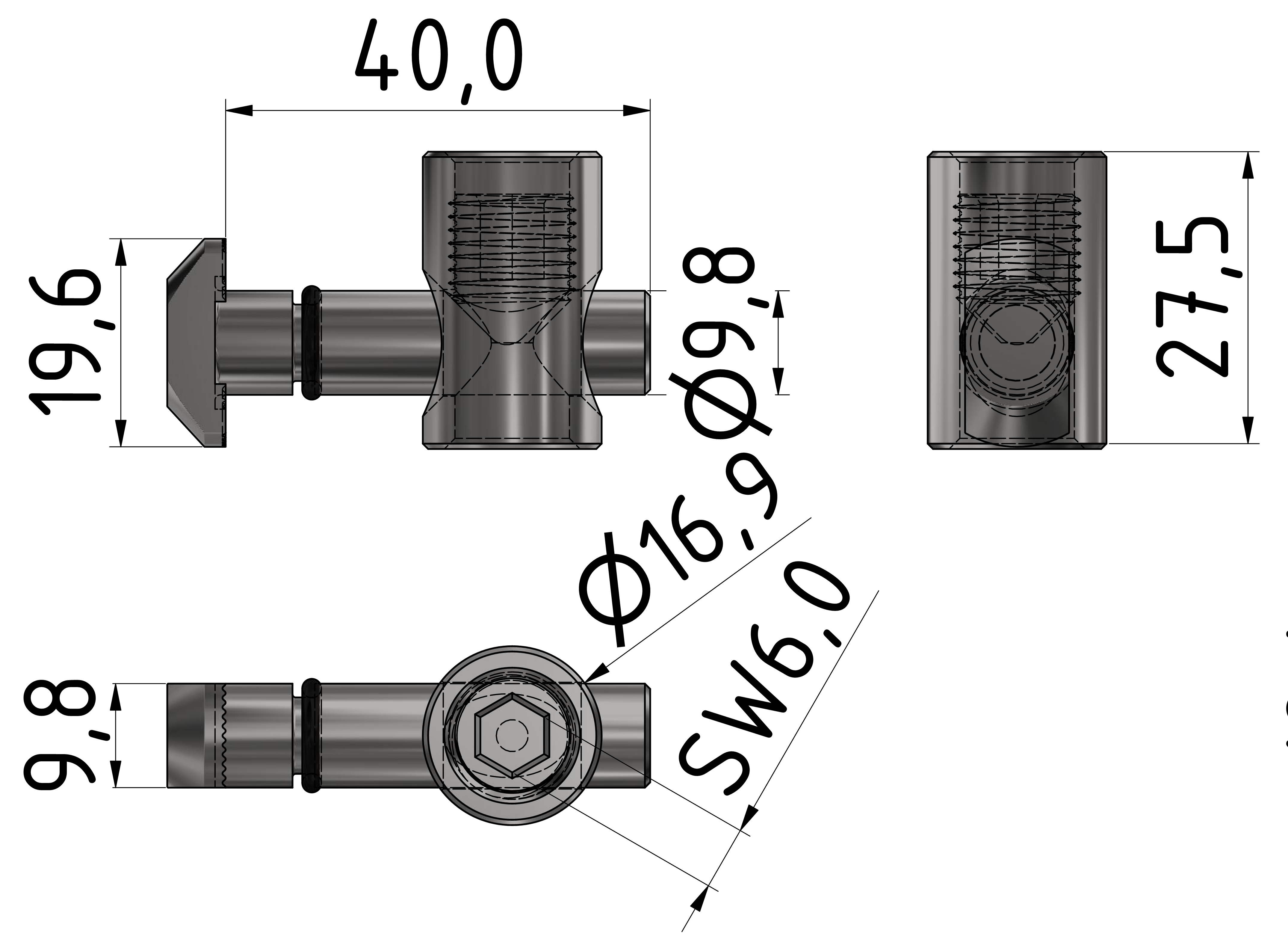

Qick Connector 0°, bright zink-plated-10 Qick Connector 0°, bright zink-plated-10
VB-3050
Qick Connector 0°, bright zink-plated-10
Universal and force-fitting connection of all profiles in a series Can be subsequently slid in the groove. Can be swivelled into the groove Can be retrofitted into an existing construction. Machining only on one profile

€1.99*

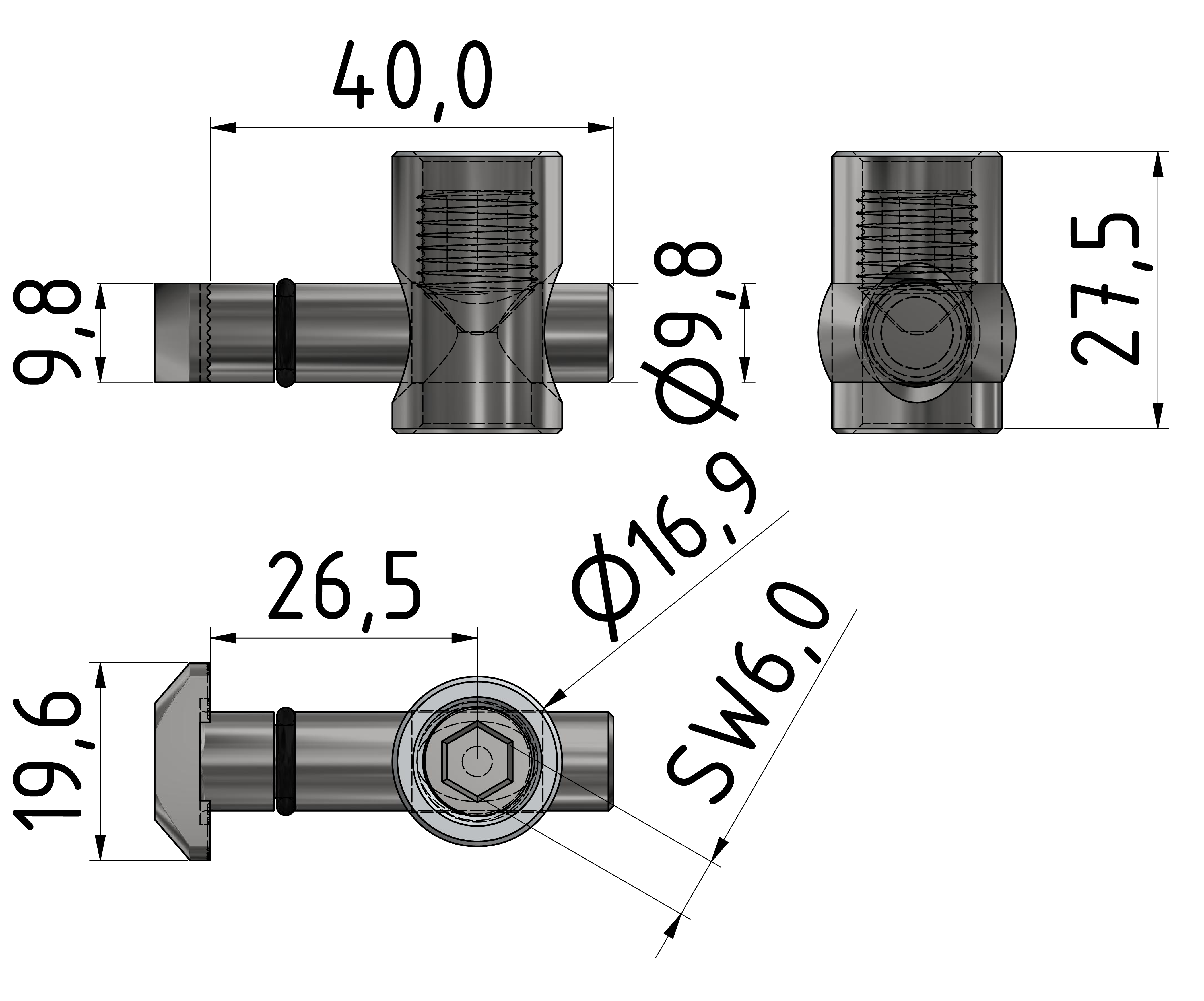

Qick Connector 90°, bright zink-plated-10 Qick Connector 90°, bright zink-plated-10
VB-3045
Qick Connector 90°, bright zink-plated-10
Universal and force-fitting connection of all profiles in a series Can be subsequently slid in the groove. Can be swivelled into the groove Can be retrofitted into an existing construction. Machining only on one profile

€1.99*

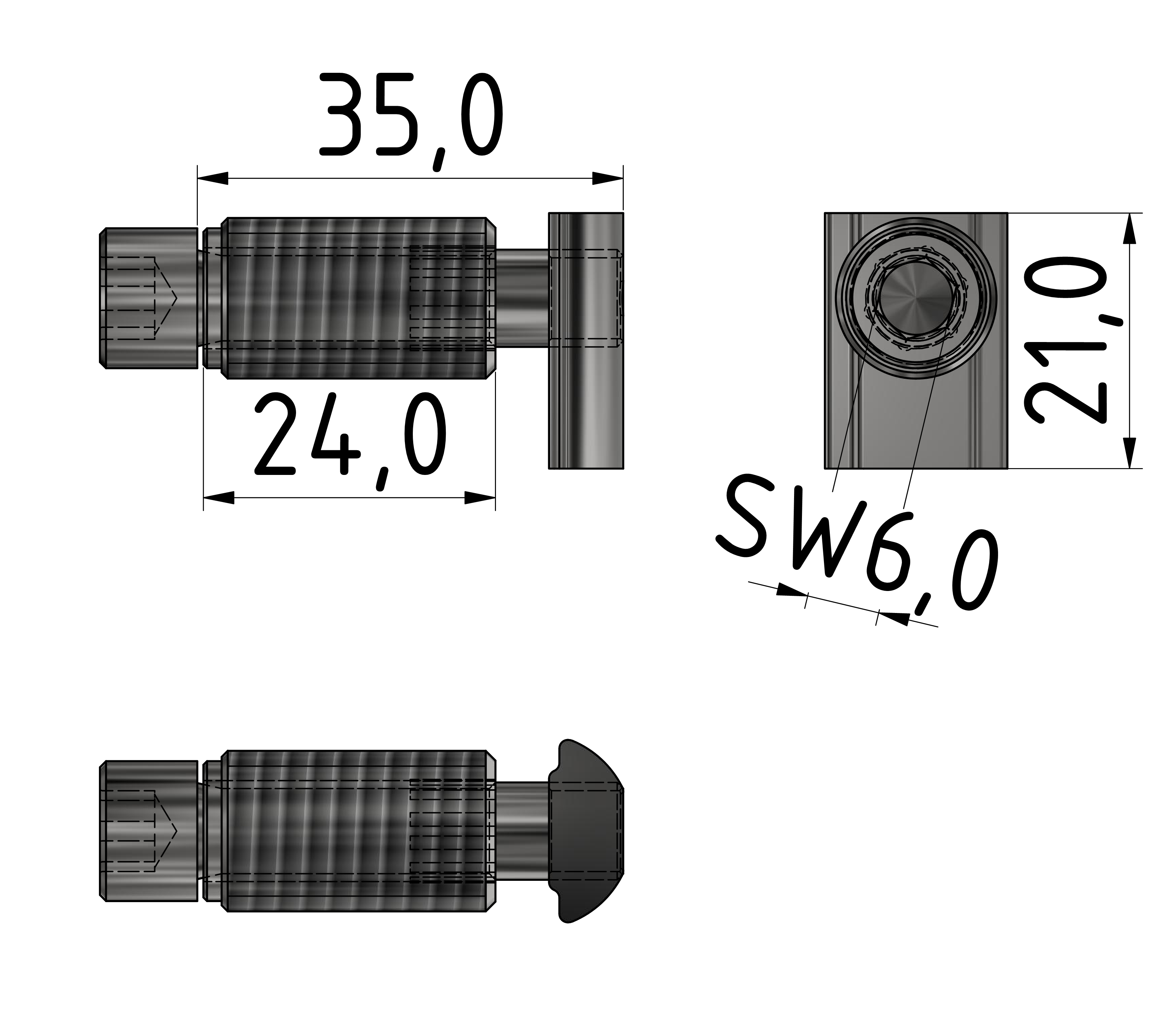

T- Matic light Connector Set, bright zinc-plated-10 T- Matic light Connector Set, bright zinc-plated-10
VB-3035
T- Matic light Connector Set, bright zinc-plated-10
Extremely fast and flexible connection without machining mechansiche Universal and positive connection of all profiles in a series retrospectively in the groove moved. possible in an existing design retrofitting. Connector mounting only one profile,

€4.70*
