Profile 45x90 light natural-10

Profile 45x90 light natural-10
3D
Click and move
Open AR View
Tap to place the object
Move the device to start
Profile 45x90 light natural-10
Profile 45x90 light natural-10
Profile 45x90 light natural-10
Profile 45x90 light natural-10
Profile 45x90 light natural-10
Profile 45x90 light natural-10
Profile 45x90 light natural-10

€86.71*

Accessories total price €0.00

Prices excl. VAT plus shipping costs

accessories

Accessories total price

€86.71 *

PDF-Datasheet
Product number: PB-1245 SN2000
Manufacturer: Maunsystem GmbH
Manufacturer number: 1010159
Length: 2000 mm
Weight: 6.132 kg

Product information " Profile 45x90 light natural-10 "

The profiles in pitch 45 with groove 10 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves are designed for M8 screws.
Delivery length 6030 mm

Compatible with Bosch 3 842 992 432

Compatible with Bosch 3 842 992 432

Details

lx    81,82 cm4
ly    23,53 cm4
wx    18,18 cm3
wy    1,46 cm3
Profilfläche    11,29 cm2
Gewicht    3,05 kg/m

Step-Datei

Download
Anodised: E6EV1 10-15 µm silver
Compatible with: Bosch
Delivery unit: Rods
Execution: light
Groove shape: Open grooves
Material: Al Mg Si 0.5 F25, artificially aged
Modular dimension: Modular dimension 45
Nutauszugskraft: F=7.000 N
Profile length: 2000 mm bar
Series: Series 45-10
Size: 45x90 mm
Tolerances: EN 12020-2
Breite Profil: 90 mm
Höhe Profil: 45 mm
Profile 45x90 light natural-10 Profile 45x90 light natural-10
PB-1245 SN6000
Profile 45x90 light natural-10
The profiles in pitch 45 with groove 10 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves are designed for M8 screws.Compatible with Bosch 3 842 992 432

€193.20*
Profile 45x90 light natural-10 Profile 45x90 light natural-10
PB-1245 SN3000
Profile 45x90 light natural-10
The profiles in pitch 45 with groove 10 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves are designed for M8 screws.Delivery length 6030 mmCompatible with Bosch 3 842 992 432

€130.07*
Profile 45x90 light-10 Profile 45x90 light-10
PB-1245 SZ
Profile 45x90 light-10
The profiles in pitch 45 with groove 10 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves are designed for M8 screws. Cut to size max. 6000 mm Compatible with Bosch 3 842 992 432

€35.88 / 1000 mm *
Details

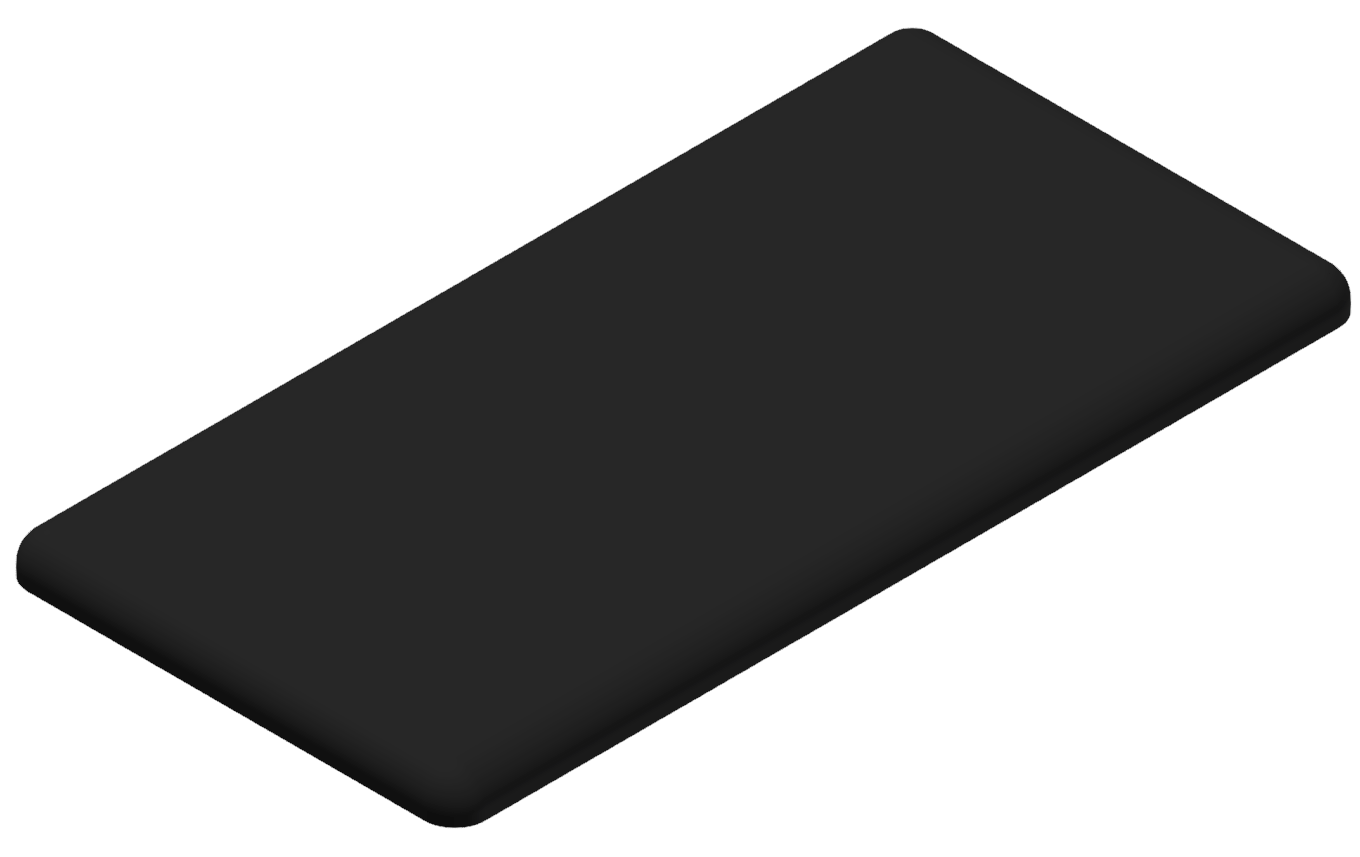

Cap 45x90-10 Cap 45x90-10
AB-3040-S
Cap 45x90-10
Abgerundete Abdeckkappen für die Stirnfläche der verschiedenen Profilquerschnitte.Das Entgraten der Schnittfläche entfällt. Abdeckkappen werden durch Aufschlagen in die Kernbohrungen befestigt.

€1.10*

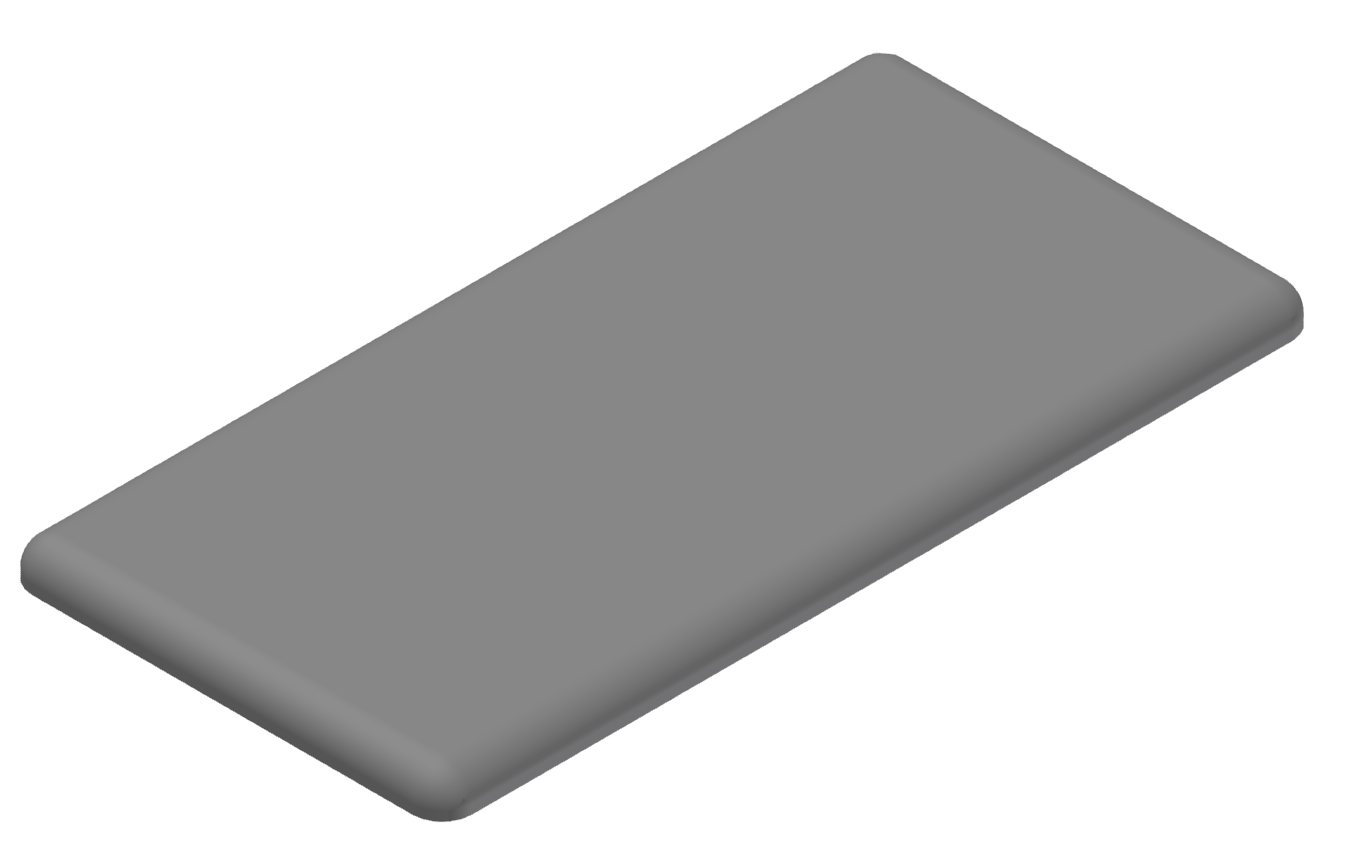

Cap 45x90-10 Cap 45x90-10
AB-3040-G
Cap 45x90-10
Abgerundete Abdeckkappen für die Stirnfläche der verschiedenen Profilquerschnitte.Das Entgraten der Schnittfläche entfällt. Abdeckkappen werden durch Aufschlagen in die Kernbohrungen befestigt.

Variants from €1.10*
€3.00*
Angle Bracket Set 45x45 - 10 Angle Bracket Set 45x45 - 10
ZB-3095-N
Angle Bracket Set 45x45 - 10
Angles are a force-fit and processing wireless connection. These are also used as additional reinforcement of connections and as a fastener for attachments. Integral safety devices for fixing the profile are available. These are removed if necessary.

€3.10*
Angle Bracket Set 45x45 - 10 Angle Bracket Set 45x45 - 10
ZB-3095-W
Angle Bracket Set 45x45 - 10
Angles are a force-fit and processing wireless connection. These are also used as additional reinforcement of connections and as a fastener for attachments. Integral safety devices for fixing the profile are available. These are removed if necessary.

Variants from €3.10*
€4.71*
Angle Bracket Set 45x45 - 10 Angle Bracket Set 45x45 - 10
ZB-3095-G
Angle Bracket Set 45x45 - 10
Angles are a force-fit and processing wireless connection. These are also used as additional reinforcement of connections and as a fastener for attachments. Integral safety devices for fixing the profile are available. These are removed if necessary.

€3.10*
Bolt Connector Set 90, bright zinc-plated-10 Bolt Connector Set 90, bright zinc-plated-10
VB-3030
Bolt Connector Set 90, bright zinc-plated-10
The bolt connector is used to connect two profiles at right angles. It is suitable for very high loads, including torsion. It can be installed in already mounted assemblies.

€3.95*
Qick Connector 0°, bright zink-plated-10 Qick Connector 0°, bright zink-plated-10
VB-3050
Qick Connector 0°, bright zink-plated-10
Universal and force-fitting connection of all profiles in a series Can be subsequently slid in the groove. Can be swivelled into the groove Can be retrofitted into an existing construction. Machining only on one profile

€1.99*
Qick Connector 90°, bright zink-plated-10 Qick Connector 90°, bright zink-plated-10
VB-3045
Qick Connector 90°, bright zink-plated-10
Universal and force-fitting connection of all profiles in a series Can be subsequently slid in the groove. Can be swivelled into the groove Can be retrofitted into an existing construction. Machining only on one profile

€1.99*
T- Matic light Connector Set, bright zinc-plated-10 T- Matic light Connector Set, bright zinc-plated-10
VB-3035
T- Matic light Connector Set, bright zinc-plated-10
Extremely fast and flexible connection without machining mechansiche Universal and positive connection of all profiles in a series retrospectively in the groove moved. possible in an existing design retrofitting. Connector mounting only one profile,

€4.70*
