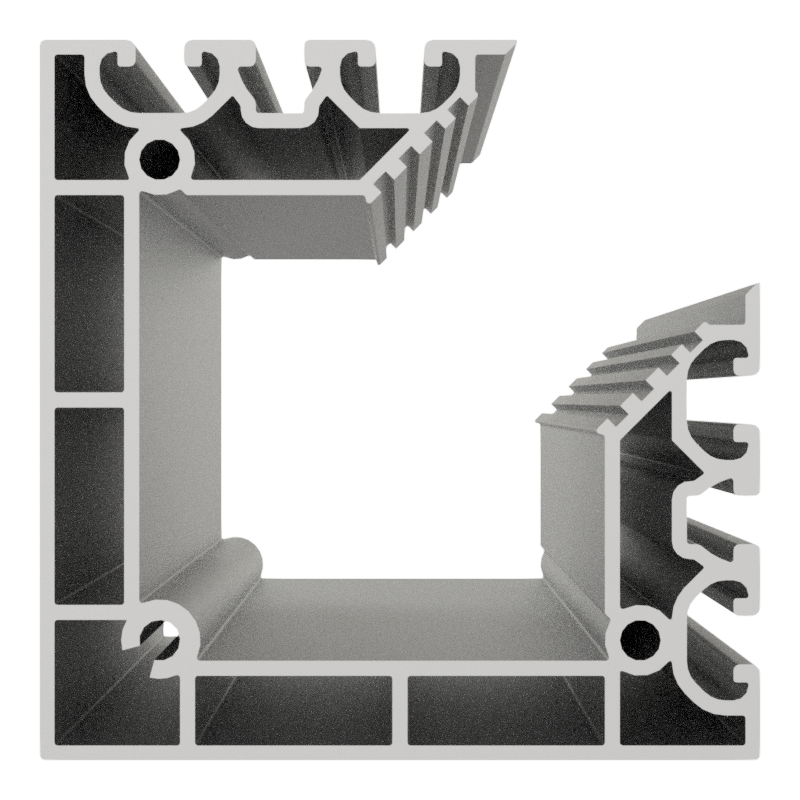

Profile 8 120x120, natural
Maunsystem GmbH
Loading...
| Quantity | Unit price |
|---|---|
| To 6 |
€759.81*
|
| From 7 |
€723.70*
|
| Accessories total price | €0.00 |
accessories
Accessories total price
€759.81 *
Product number:
PI-6180 SN6000
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1014570
Length:
6000 mm
Weight:
74.562 kg
Product information "Profile 8 120x120, natural"
Profiles 8 are suitable for a wide range of assemblies. The grooves and the core holes of the profiles 8 are designed for M8 screws.
Delivery length 6030 mm
Delivery length 6030 mm
Compatible with item 0.0.643.02

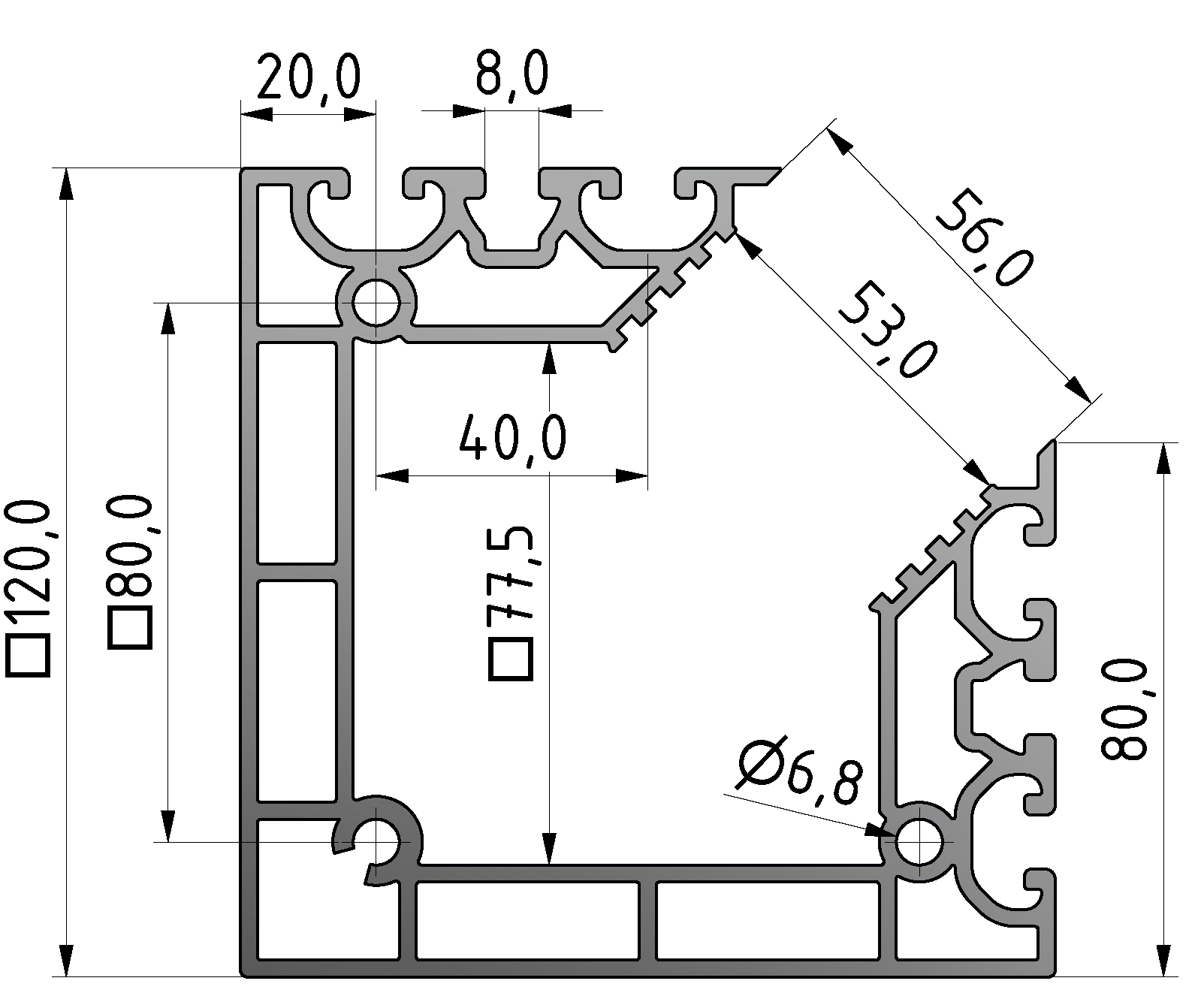

Details
Ix 409,2 cm4
Iy 409,0 cm4
Wx 61,46m3
Wy 61,46 cm3
Profilfläche 24,32 cm2
Gewicht 6,57 kg/m
Step-Datei
Download| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Compatible with: | item |
| Contour: | Square |
| Delivery unit: | Rods |
| Execution: | heavy, XMS |
| Groove shape: | 2 sides closed 90° |
| Material: | Al Mg Si 0.5 F25, artificially aged |
| Nutauszugskraft: | F=2.500 N |
| Profile length: | 6000 mm bar |
| Series: | Series 8 |
| Size: | 120x120 mm |
| Tolerances: | EN 12020-2 |
| Breite Profil: | 120 mm |
| Höhe Profil: | 120 mm |
| Funktionsintegration: | Kabelkanalöffnung |
PI-6180 SZ
Profile 8 120x120, natural
Profiles 8 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves and the core holes of the profiles 8 are designed for M8 screws.
Cut to size max. 6000 mm
