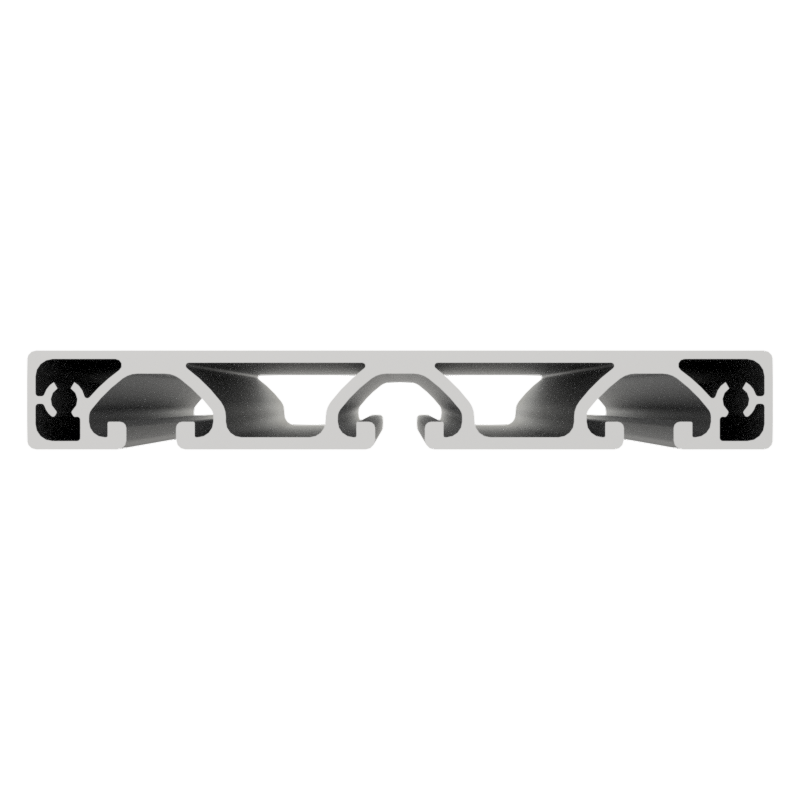

Profile 8 120x16 E, natural
Maunsystem GmbH
3D
Loading...
| Quantity | Unit price |
|---|---|
| To 15 |
€165.00*
|
| From 16 |
€157.14*
|
accessories
Product number:
PI-1019 SN6000
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1001303
Length:
6000 mm
Weight:
3.6 kg
Product information "Profile 8 120x16 E, natural"
Profiles 8 are suitable for a wide range of assemblies. The grooves and the core holes of the profiles 8 are designed for M8 screws.
Delivery length 6030 mm
Delivery length 6030 mm
Compatible with item 0.0.650.85
Details
Ix 2,31 cm4
Iy 87,54 cm4
Wx 2,77 cm3
Wy 14,59 cm3
Profilfläche 6,97 cm2
Gewicht 1,89 kg/m
Iy 87,54 cm4
Wx 2,77 cm3
Wy 14,59 cm3
Profilfläche 6,97 cm2
Gewicht 1,89 kg/m
Step-Datei
Download| Colour: | natural |
|---|---|
| Compatible with: | item |
| Contour: | Rectangular |
| Delivery unit: | Rods |
| Execution: | economy |
| Groove shape: | Open grooves |
| Nutauszugskraft: | F=1.750 N |
| Profile length: | 6000 mm bar |
| Series: | Series 8 |

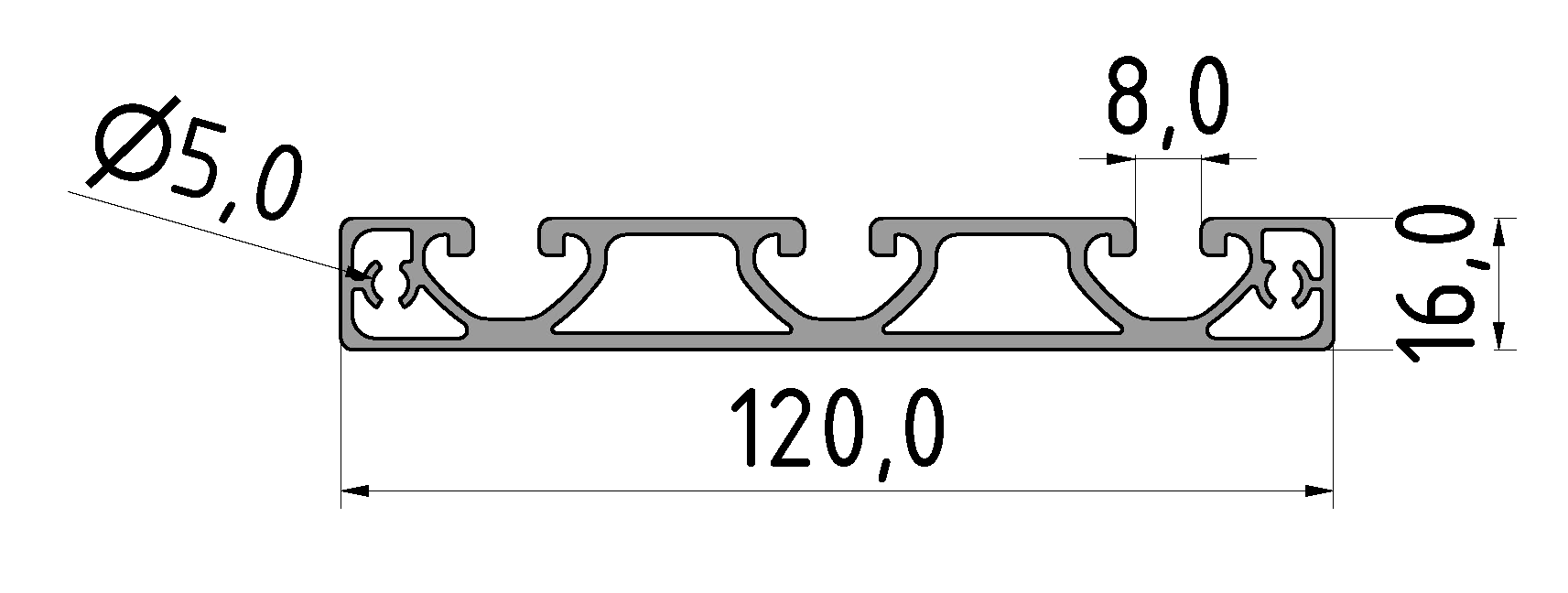

| Size: | 120x16 mm |
PI-1019 SZ
Profile 8 120x16 E, natural
Profiles 8 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves and the core holes of the profiles 8 are designed for M8 screws.
Cut to size max. 6000 mm
