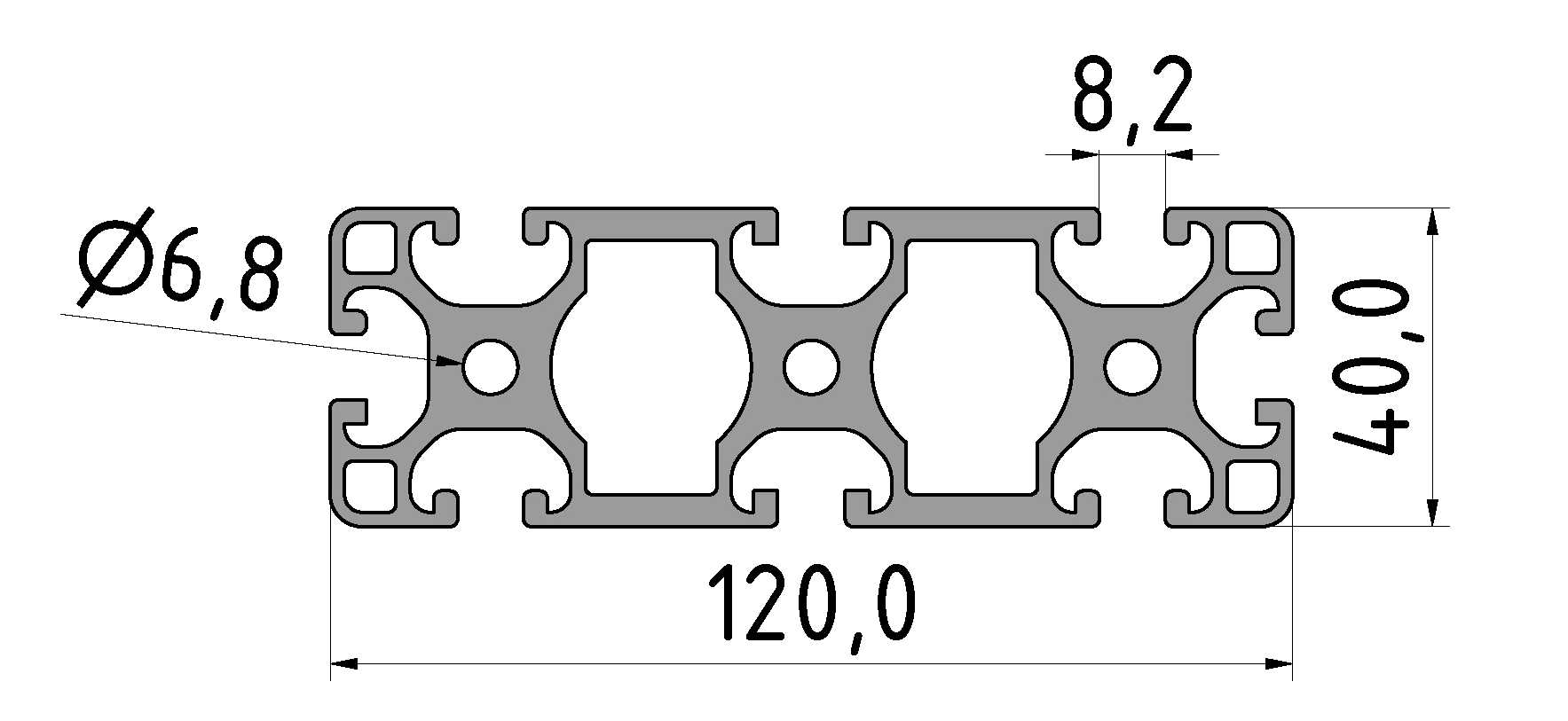

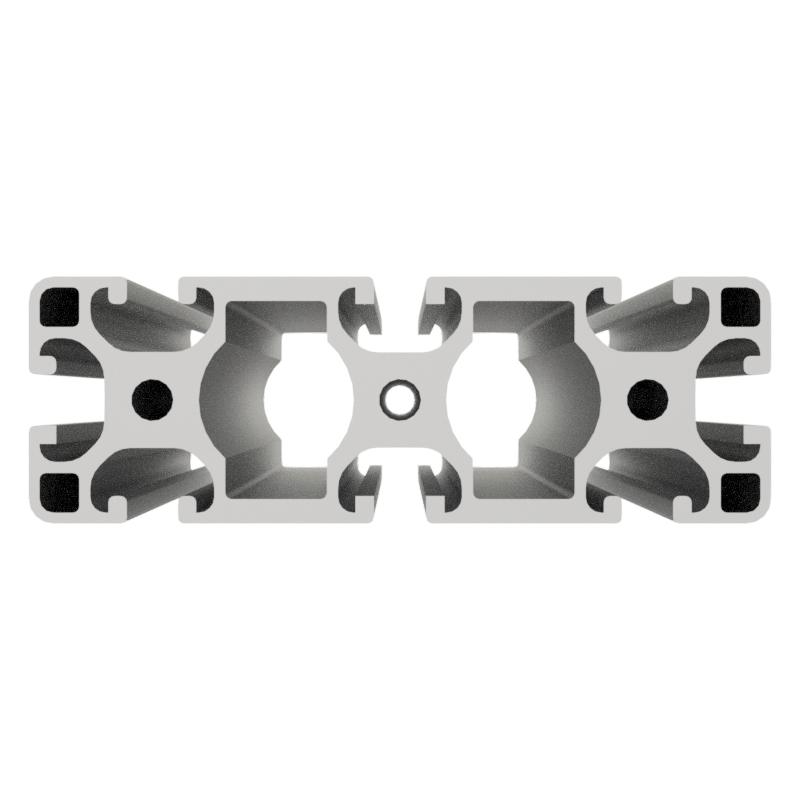

Profile 8 120x40 medium, natural
Maunsystem GmbH
Product number:
PI-1150 SN6000
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1001438
Length:
6000 mm
Weight:
28.59 kg
Product information "Profile 8 120x40 medium, natural"
Profiles 8 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves and the core holes of the profiles 8 are designed for M8 screws.
Delivery length 6030 mm
Delivery length 6030 mm
Details
lx 24,6 cm4
ly 221,5 cm4
wx 12,2 cm3
wy 37,01 cm3
Profilfläche 16,21 cm2
Gewicht 4,76 kg/m
ly 221,5 cm4
wx 12,2 cm3
wy 37,01 cm3
Profilfläche 16,21 cm2
Gewicht 4,76 kg/m
Step-Datei
Download| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Compatible with: | item |
| Contour: | Rectangular |
| Delivery unit: | Rods |
| Execution: | light |
| Groove shape: | Open grooves |
| Material: | Al Mg Si 0.5 F25, artificially aged |
| Nutauszugskraft: | F=2.500 N |
| Profile length: | 6000 mm bar |
| Series: | Series 8 |
| Size: | 120x40 mm |
| Tolerances: | EN 12020-2 |
PI-1150 SZ
Profile 8 120x40 medium, natural
Profiles 8 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves and the core holes of the profiles 8 are designed for M8 screws.
Cut to size max. 6000 mm
