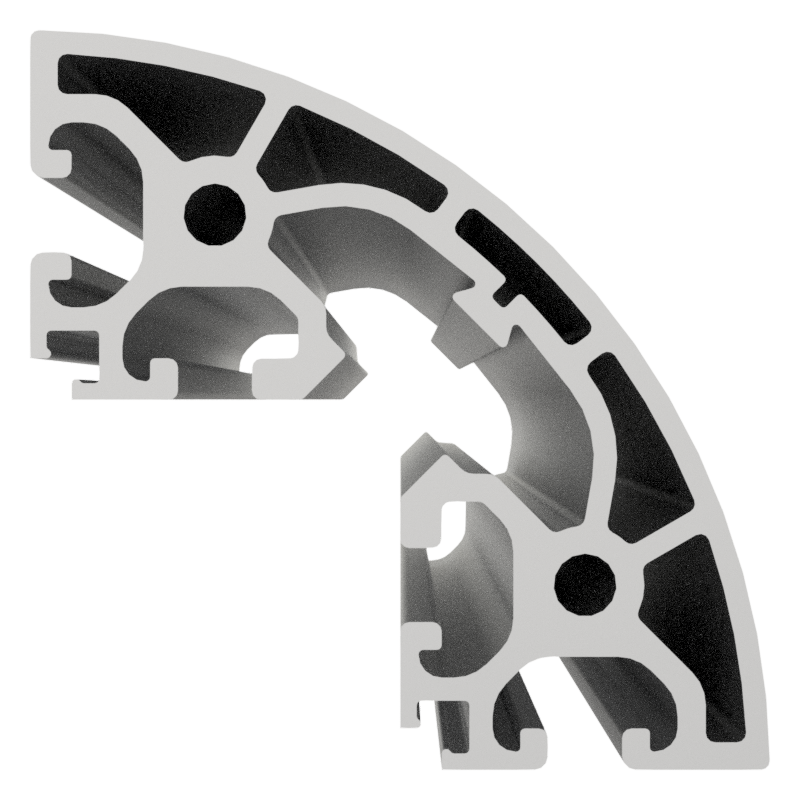

Profile 8 160x160, natural
Maunsystem GmbH
Loading...
| Quantity | Unit price |
|---|---|
| To 2 |
€450.10*
|
| From 3 |
€421.50*
|
| Accessories total price | €0.00 |
accessories
Accessories total price
€450.10 *
Product number:
PI-6130 SN6000
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1014560
Length:
6000 mm
Weight:
22.02 kg
Product information "Profile 8 160x160, natural"
Profiles 8 are suitable for a wide range of assemblies. The grooves and the core holes of the profiles 8 are designed for M8 screws.
Delivery length 6030 mm
Compatible with item 0.0.465.85
Delivery length 6030 mm
Compatible with item 0.0.465.85

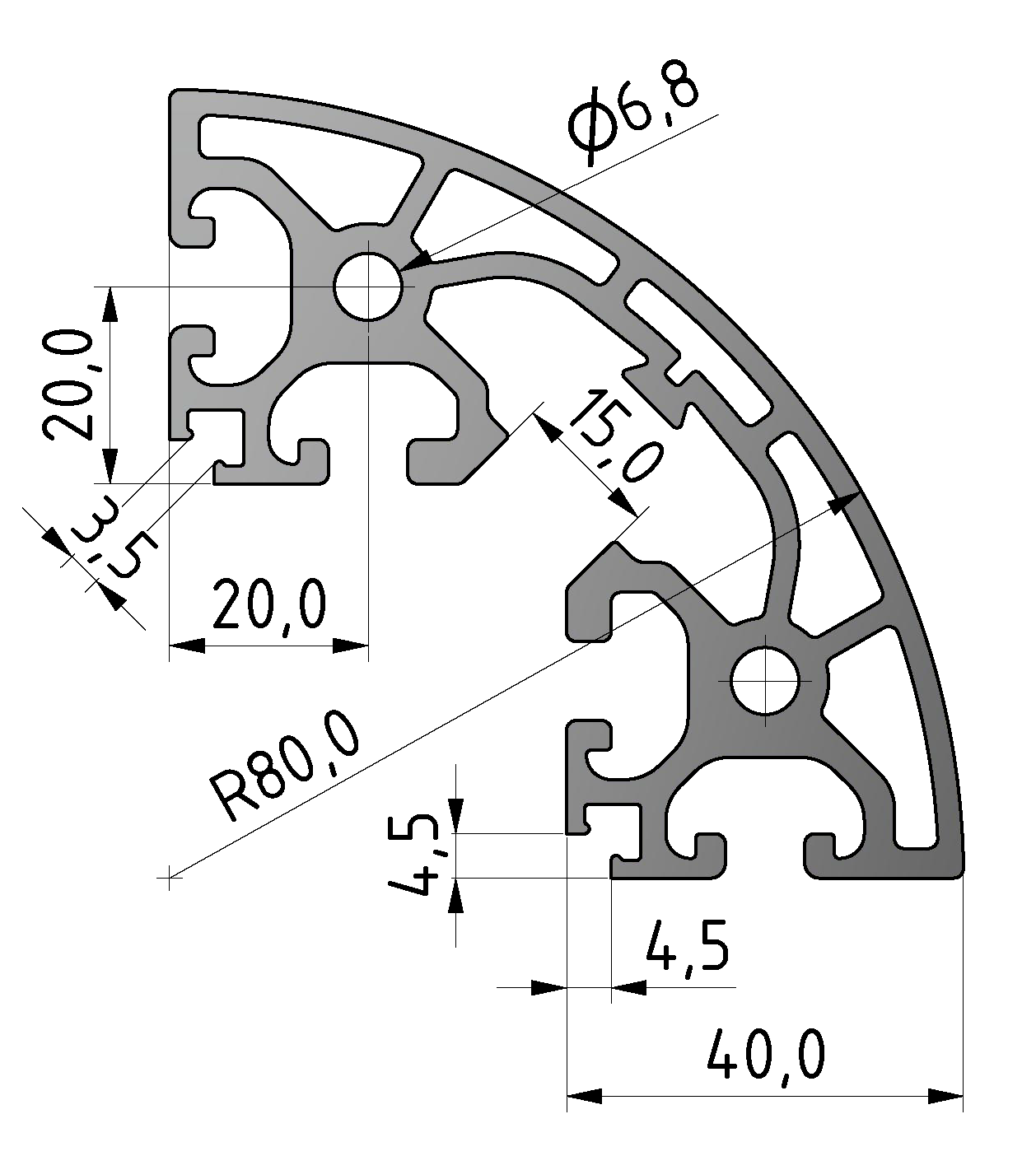

Details
Ix 71,4cm4
Iy 711 cm4
Wx 17,44cm3
Wy 17,44cm3
Profilfläche 13,34cm2
Gewicht 6,67kg/m
Iy 711 cm4
Wx 17,44cm3
Wy 17,44cm3
Profilfläche 13,34cm2
Gewicht 6,67kg/m
Step-Datei
Download| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Compatible with: | item |
| Contour: | Round |
| Delivery unit: | Rods |
| Execution: | heavy, XMS |
| Groove shape: | Radius profiles |
| Material: | Al Mg Si 0.5 F25, artificially aged |
| Nutauszugskraft: | F=2.500 N |
| Profile length: | 6000 mm bar |
| Series: | Series 8 |
| Size: | 80x40 mm |
| Tolerances: | EN 12020-2 |
| Funktionsintegration: | Kabelkanalöffnung |
PI-6130 SZ
Profile 8 160x160, natural
Profiles 8 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves and the core holes of the profiles 8 are designed for M8 screws.
Cut to size max. 6000 mm
Compatible with item 0.0.411.08
