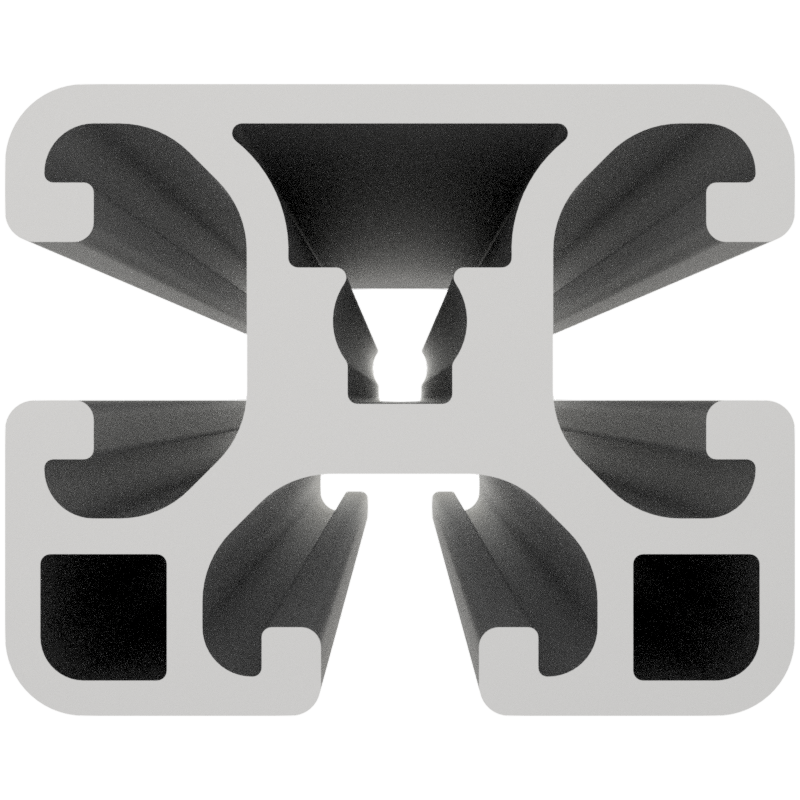

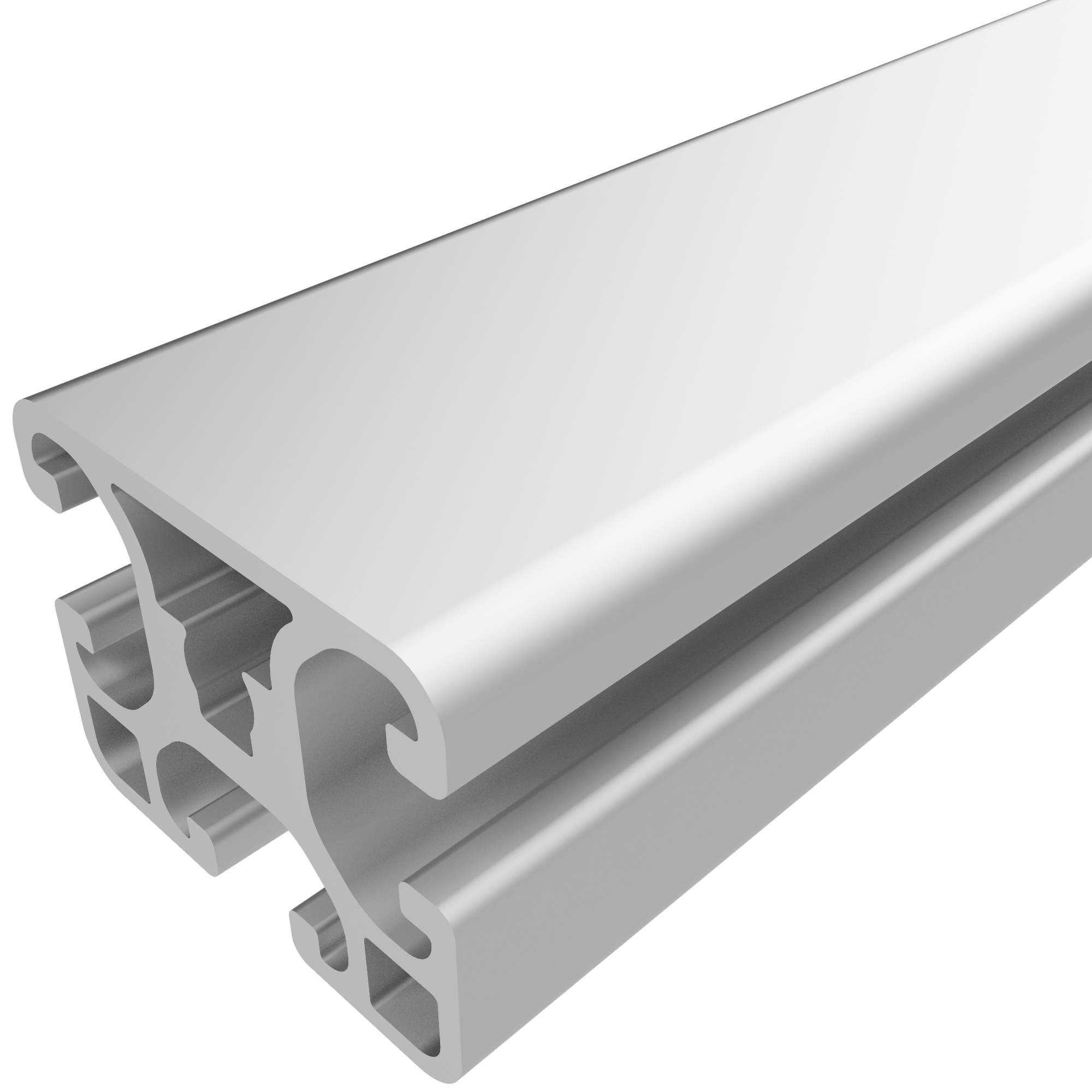

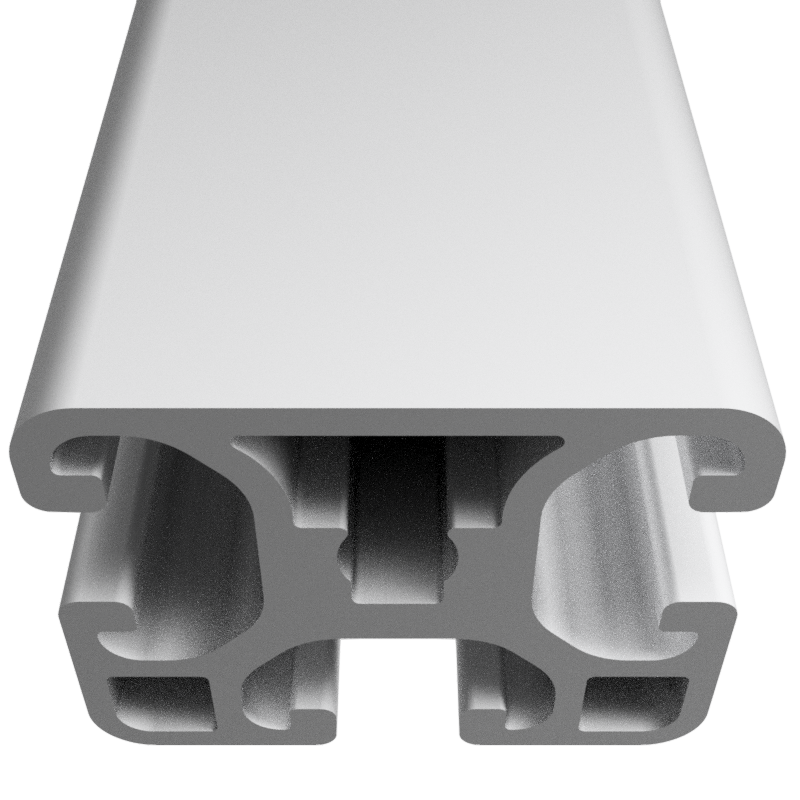

Profile 8 40x32 light, natural
Maunsystem GmbH
Loading...
| Quantity | Unit price |
|---|---|
| To 9 |
€98.04*
|
| From 10 |
€92.28*
|
| Accessories total price | €0.00 |

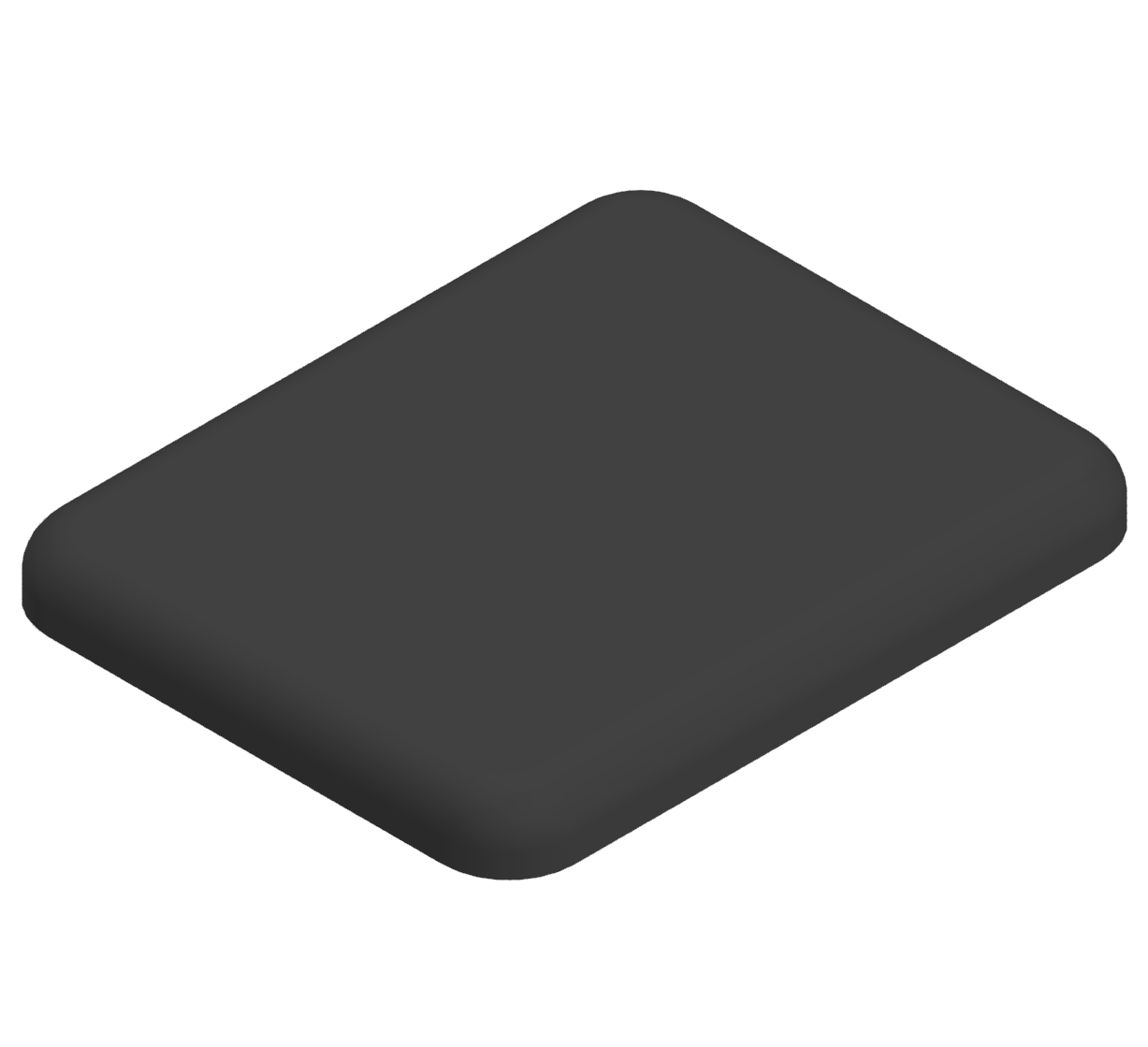

accessories
Accessories total price
€98.04 *
Product number:
PI-1194 SN6000
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1001448
Length:
6000 mm
Weight:
8.298 kg
Product information "Profile 8 40x32 light, natural"
Profiles 8 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves and the core holes of the profiles 8 are designed for M8 screws.
Delivery length 6030 mm
Delivery length 6030 mm
Compatible with item 0.0.494.95
Details
Ix 5,06 cm4
Iy 7,19 cm4
Wx 3,14 cm3
Wy 3,59 cm3
Profilfläche 4,97 cm2
Gewicht 1,34 kg/m
Iy 7,19 cm4
Wx 3,14 cm3
Wy 3,59 cm3
Profilfläche 4,97 cm2
Gewicht 1,34 kg/m
Step-Datei
Download| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Compatible with: | item |
| Contour: | Rectangular |
| Delivery unit: | Rods |
| Execution: | light |
| Groove shape: | Clamp Profile |
| Material: | Al Mg Si 0.5 F25, artificially aged |

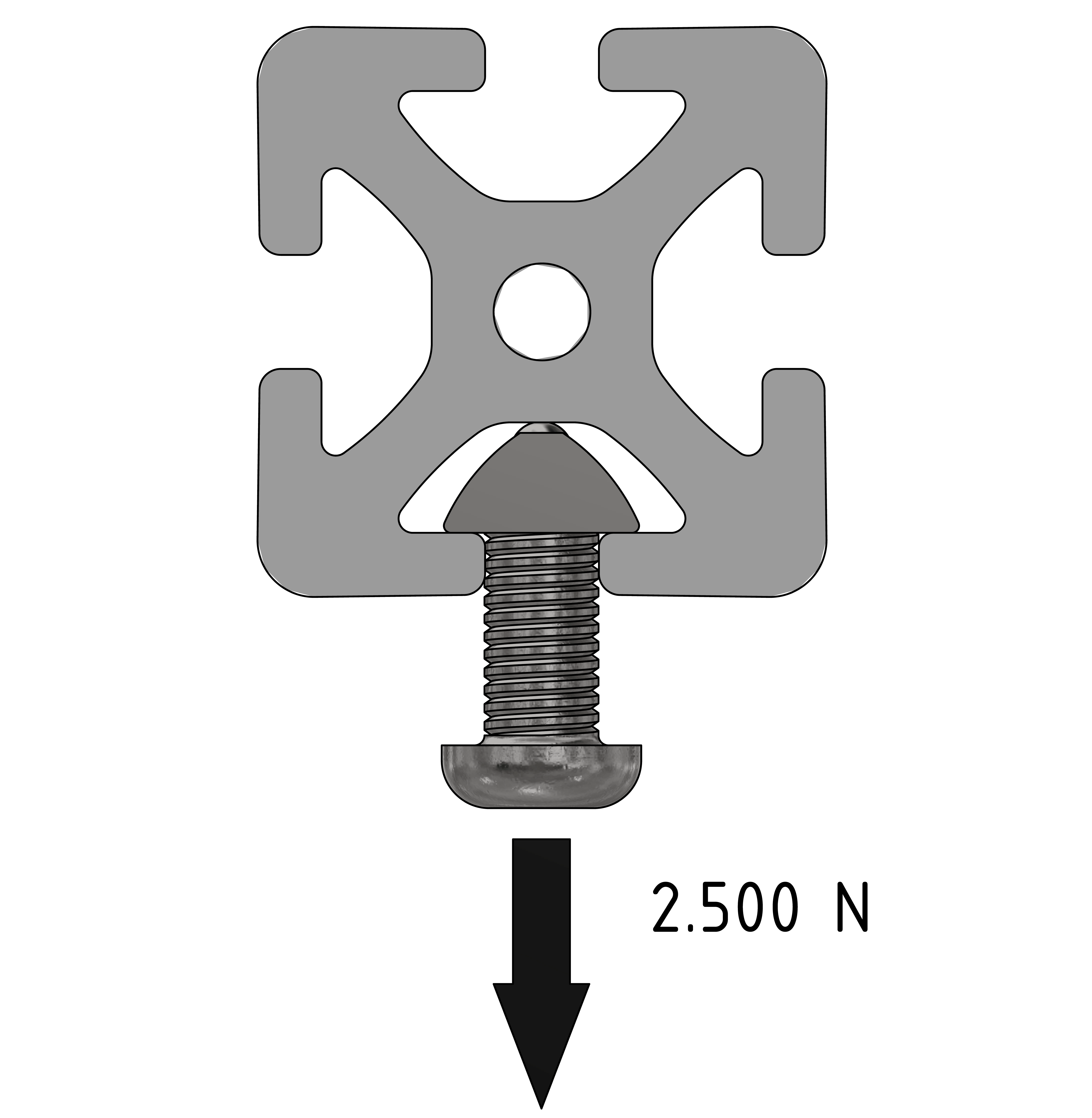

| Nutauszugskraft: | F=2.500 N |
| Profile length: | 6000 mm bar |
| Series: | Series 8 |

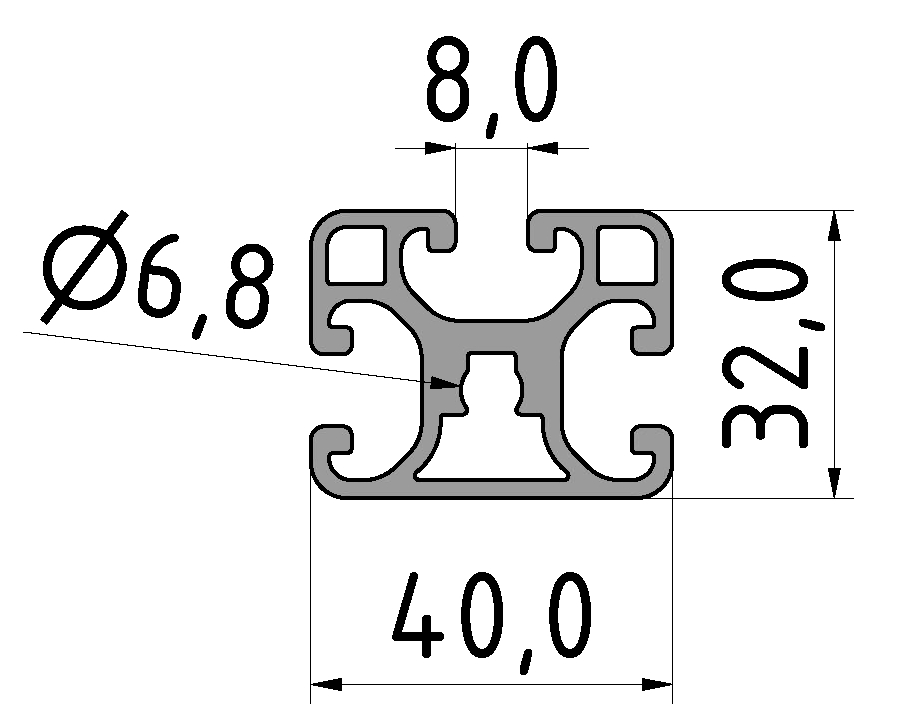

| Size: | 40x32 mm |
| Tolerances: | EN 12020-2 |
PI-1194 SZ
Profile 8 40x32 light, natural
Profiles 8 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves and the core holes of the profiles 8 are designed for M8 screws.
Cut to size max. 6000 mm
