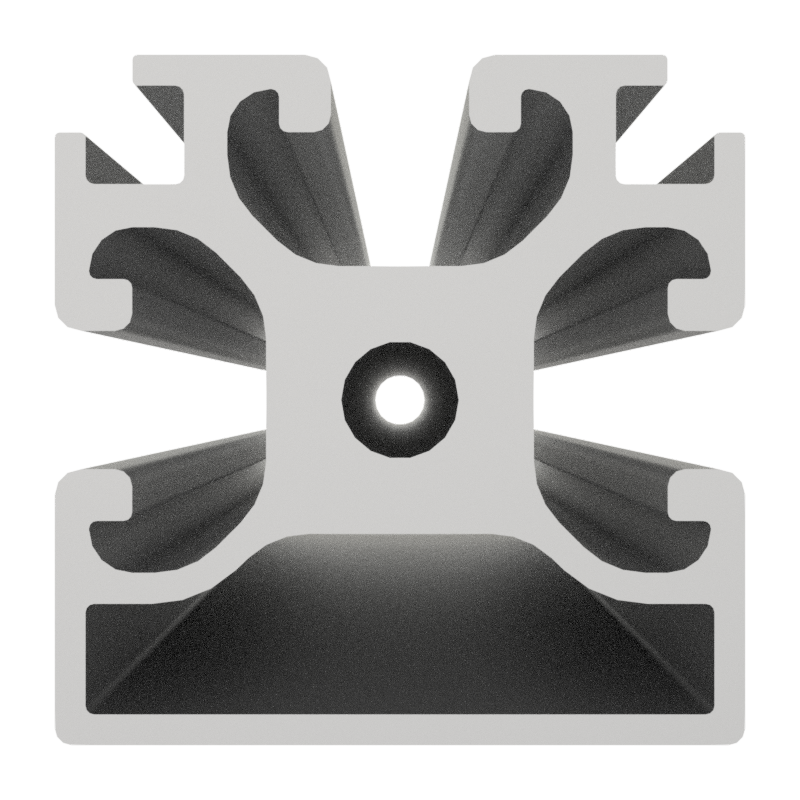

Profile 8 40x40, natural
Maunsystem GmbH
Loading...
€180.03*
| Accessories total price | €0.00 |
accessories
Accessories total price
€180.03 *
Product number:
PI-6160 SN6000
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1014566
Length:
6000 mm
Weight:
11.34 kg
Product information "Profile 8 40x40, natural"
Profiles 8 are suitable for a wide range of assemblies. The grooves and the core holes of the profiles 8 are designed for M8 screws.
Delivery length 6030 mm
Delivery length 6030 mm
Compatible with item 0.0.649.99
Details
Ix 8,3 cm4
Iy 8,52 cm4
Wx 4,04 m3
Wy 4,26cm3
Profilfläche 6,11cm2
Gewicht 1,65 kg/m
Step-Datei
Download| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Compatible with: | item |
| Delivery unit: | Rods |
| Execution: | light |
| Groove shape: | 1 side closed |
| Material: | Al Mg Si 0.5 F25, artificially aged |
| Nutauszugskraft: | F=2.500 N |
| Profile length: | 6000 mm bar |
| Series: | Series 8 Z |

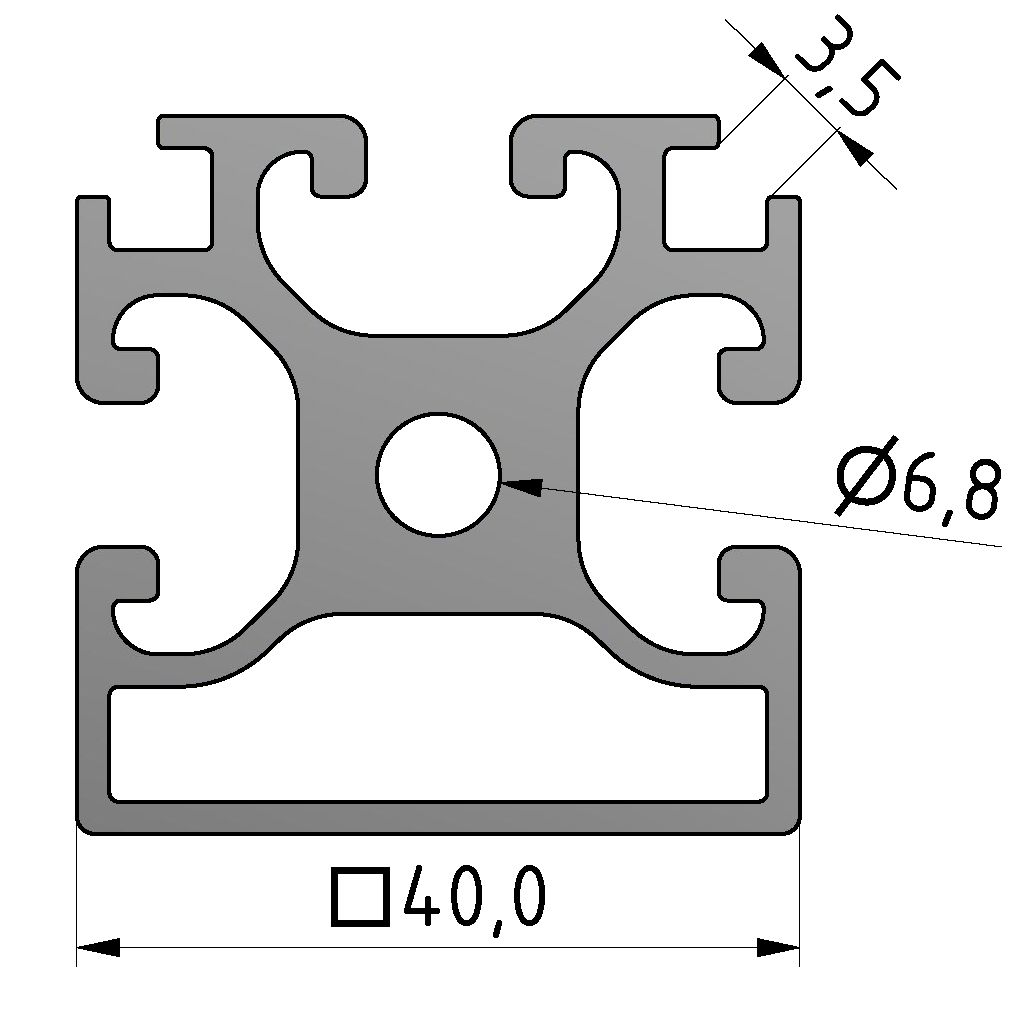

| Size: | 40x40 mm |
| Tolerances: | EN 12020-2 |
PI-6160 SZ
Profile 8 40x40, natural
Profiles 8 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves and the core holes of the profiles 8 are designed for M8 screws.
Cut to size max. 6000 mm
