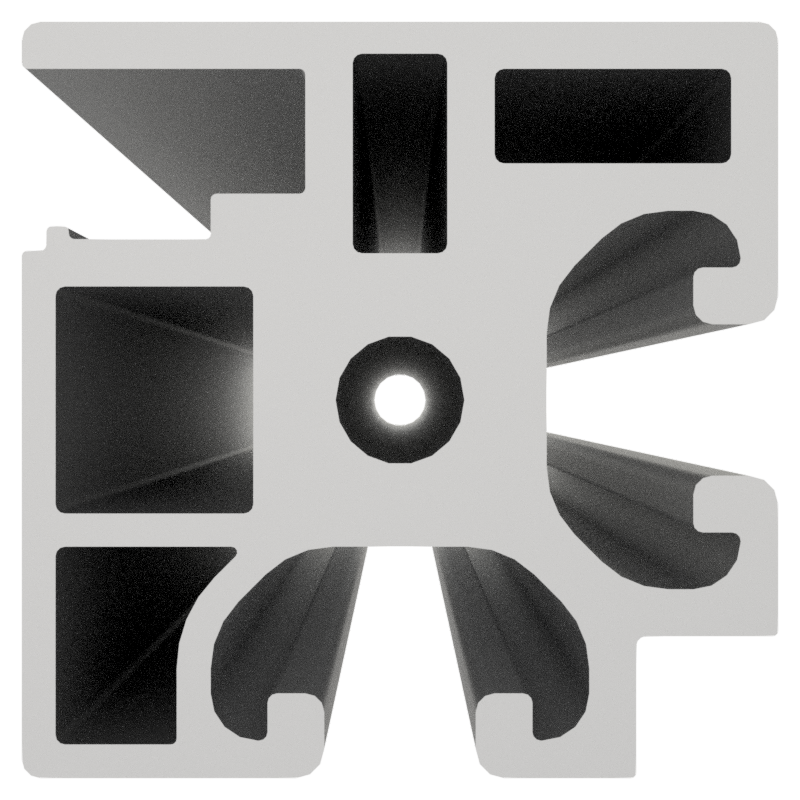

Profile 8 40x40, natural
Maunsystem GmbH
Loading...
| Quantity | Unit price |
|---|---|
| To 6 |
€213.26*
|
| From 7 |
€203.03*
|
| Accessories total price | €0.00 |
accessories
Accessories total price
€213.26 *
Product number:
PI-6170 SN6000
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1014568
Length:
6000 mm
Weight:
11.34 kg
Product information "Profile 8 40x40, natural"
Profiles 8 are suitable for a wide range of assemblies. The grooves and the core holes of the profiles 8 are designed for M8 screws.
Delivery length 6030 mm
Delivery length 6030 mm
Compatible with item 0.0.649.50
Details

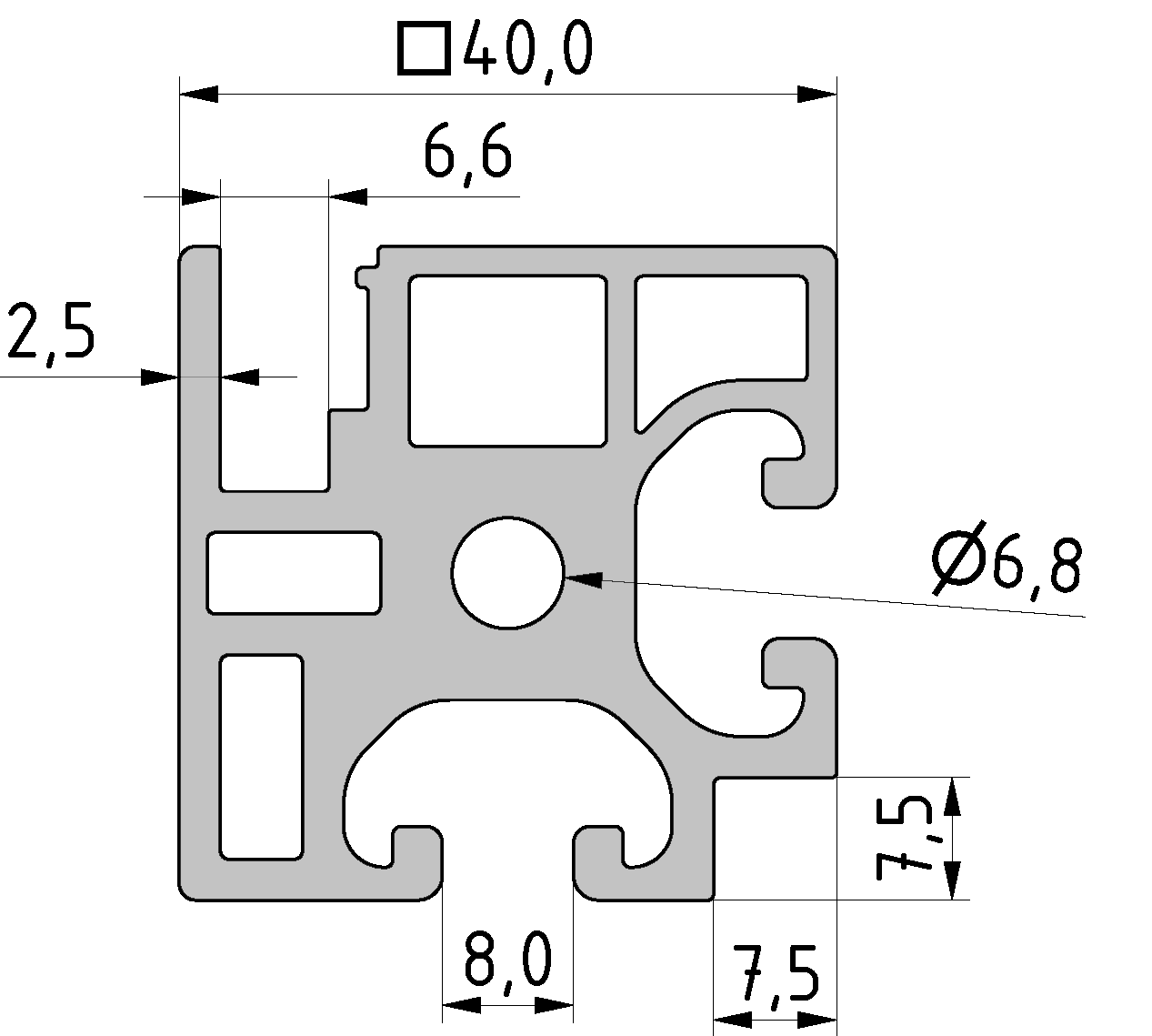

Ix 8,74 cm4
Iy 9,58 cm4
Wx 4,31 m3
Wy 4,45cm3
Profilfläche 7,01cm2
Gewicht 1,89 kg/m
Step-Datei
Download| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Compatible with: | item |
| Contour: | Square |
| Delivery unit: | Rods |
| Execution: | light, XMS |
| Groove shape: | 1 side closed |
| Material: | Al Mg Si 0.5 F25, artificially aged |
| Nutauszugskraft: | F=2.500 N |
| Profile length: | 6000 mm bar |
| Size: | 40x40 mm |
| Tolerances: | EN 12020-2 |
| Breite Profil: | 40 mm |
| Höhe Profil: | 40 mm |
| Funktionsintegration: | Flächenbefestigung |
PI-6170 SZ
Profile 8 40x40, natural
Profiles 8 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves and the core holes of the profiles 8 are designed for M8 screws.
Cut to size max. 6000 mm
