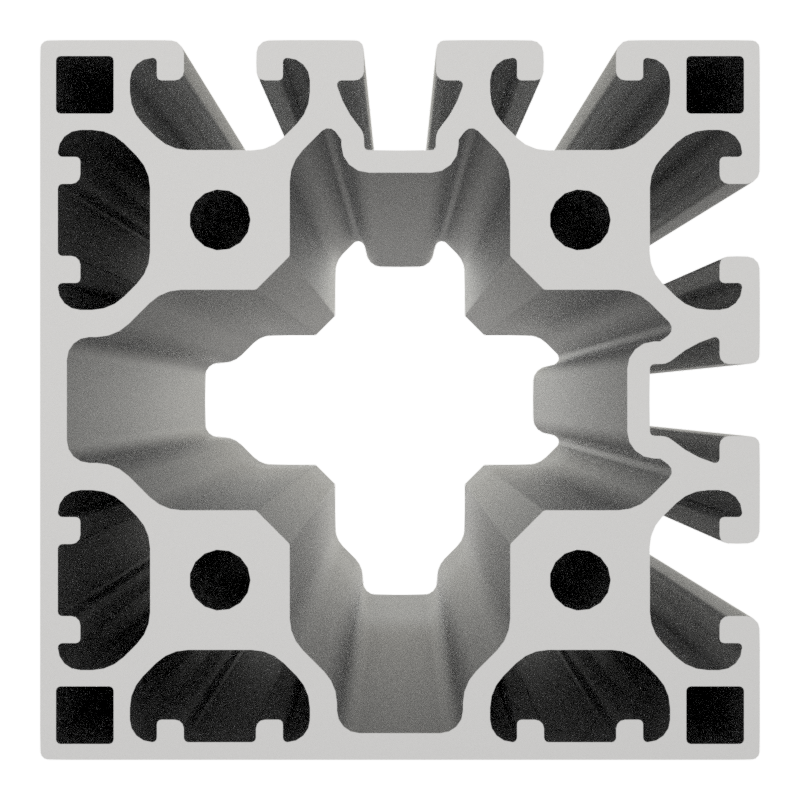

Profile 8 80x80, natural
Maunsystem GmbH
Product number:
PI-6140 SZ
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1014563
Weight:
5.541 kg
Product information "Profile 8 80x80, natural"

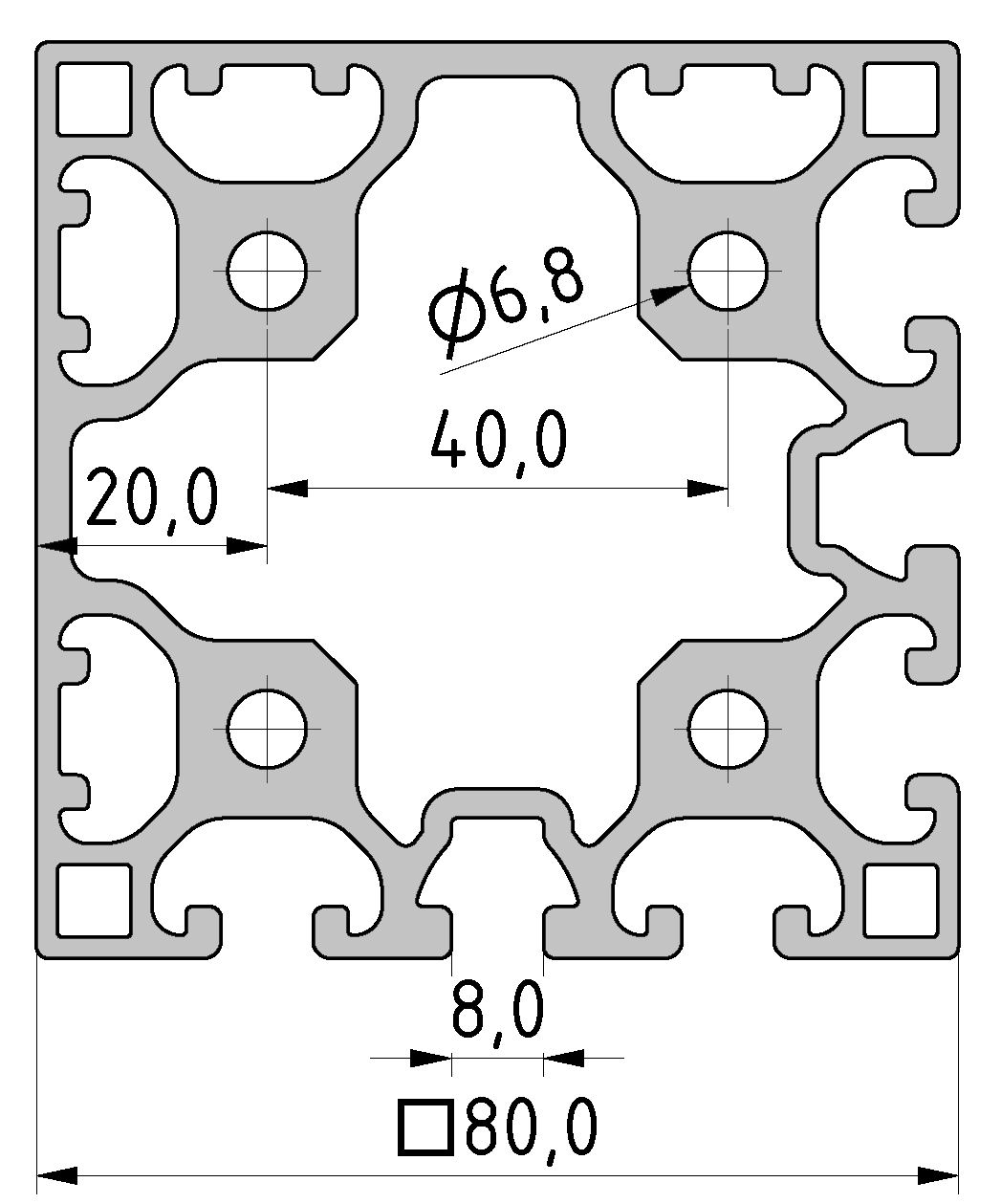

Profiles 8 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves and the core holes of the profiles 8 are designed for M8 screws.
Cut to size max. 6000 mm
Compatible with item 0.0.649.40
Details
Ix 139,84 cm4
Iy 139,84 cm4
Wx 34,79 m3
Wy 34,79 cm3
Profilfläche 20,5 cm2
Gewicht 5,53 kg/m
Step-Datei
Download| Colour: | natural |
|---|---|
| Contour: | Square |
| Delivery unit: | Cuts |
| Execution: | light |
| Groove shape: | 2 sides closed 90° |
| Profile length: | Cut length |
| Series: | Series 8 Z |
| Size: | 80x80 mm |
| Eloxal: | E6EV1 10-15 µm silber |
| Toleranzen : | EN 12020-2 |
| Material: | Al Mg Si 0,5 F25, warmausgehärtet |
PI-6140 SN6000
Profile 8 80x80, natural
Profiles 8 are suitable for a wide range of assemblies. The grooves and the core holes of the profiles 8 are designed for M8 screws.Delivery length 6030 mm
