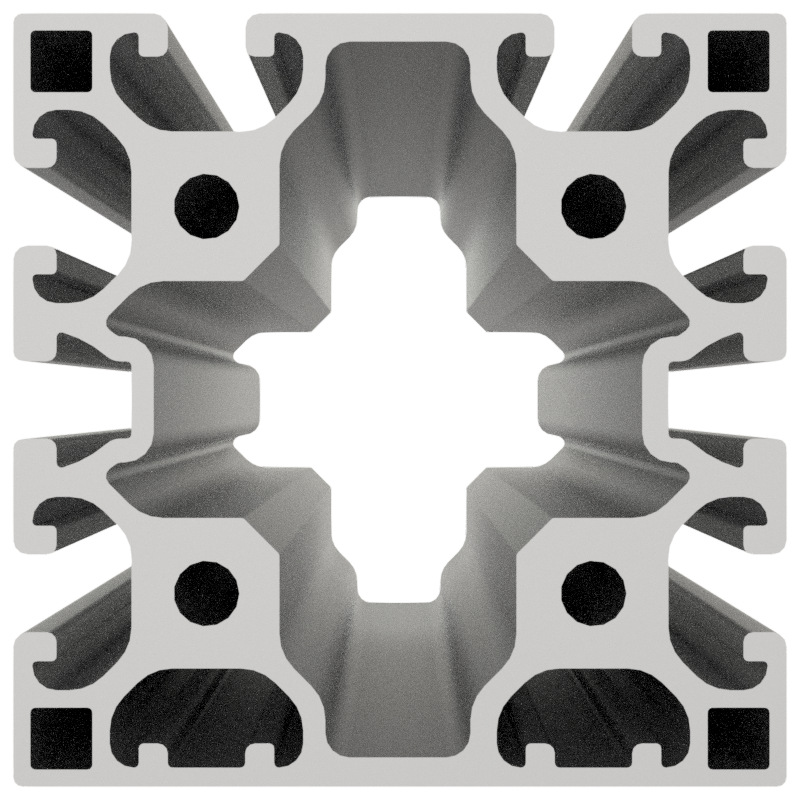

Profile 8 80x80, natural
Maunsystem GmbH
Loading...
€89.14*
Price per 1000 mm: €89.14
*
Zuschnittskosten: €3.15
| Accessories total price | €0.00 |
accessories
Accessories total price
€89.14 *
Product number:
PI-6150 SZ
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1014565
Weight:
7.142 kg
Product information "Profile 8 80x80, natural"

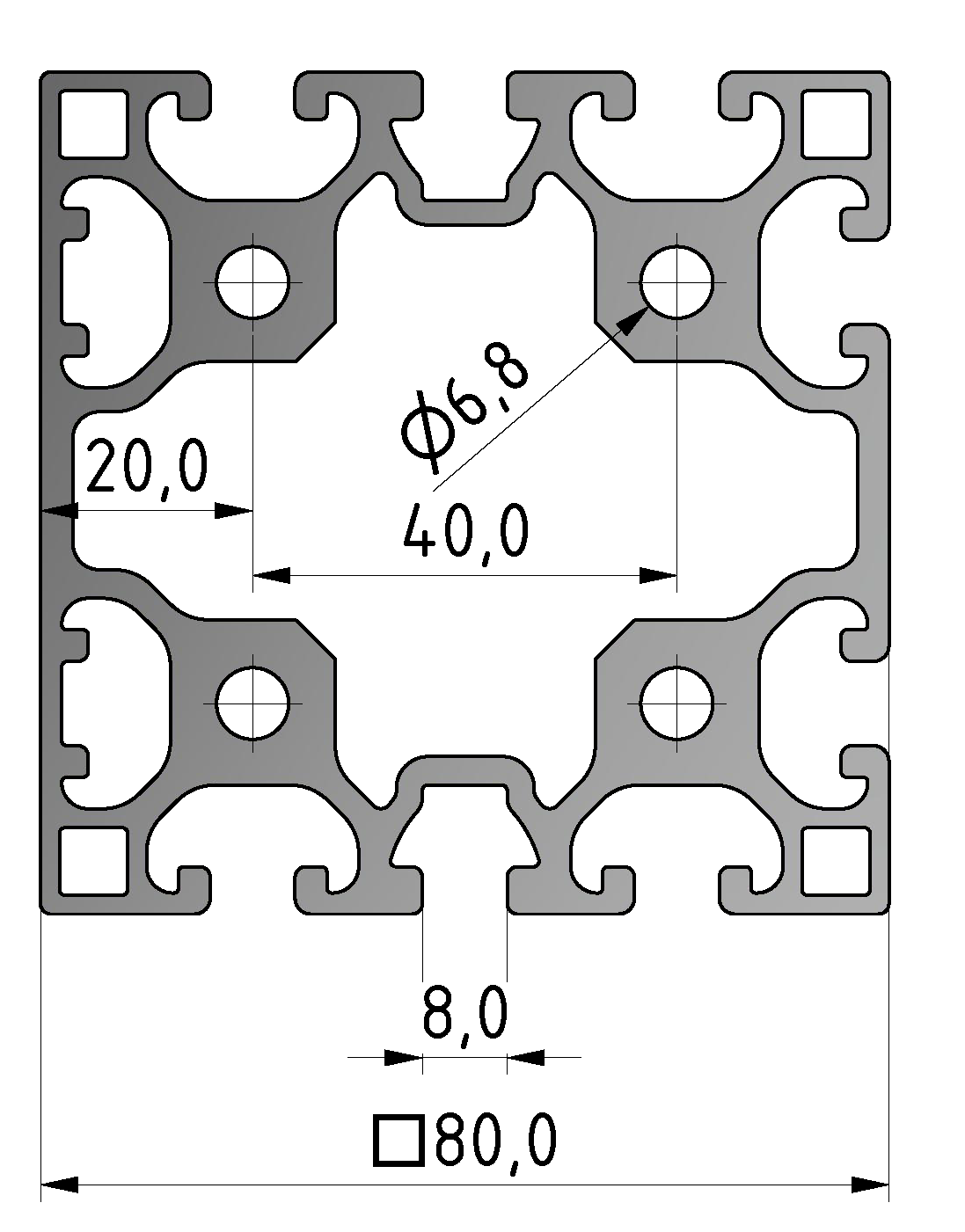

Profiles 8 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves and the core holes of the profiles 8 are designed for M8 screws.
Cut to size max. 6000 mm
Compatible with item 0.0.649.39
Details
Ix 135,42 cm4
Iy 136,27 cm4
Wx 33,27 m3
Wy 34,07 cm3
Profilfläche 20,05cm2
Gewicht 5,43 kg/m
Step-Datei
Download| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Compatible with: | item |
| Contour: | Square |
| Delivery unit: | Cuts |
| Execution: | light, XMS |
| Groove shape: | 1 side closed |
| Material: | Al Mg Si 0.5 F25, artificially aged |
| Nutauszugskraft: | F=2.500 N |
| Profile length: | Cut length |
| Series: | Series 8 |
| Size: | 80x80 mm |
| Tolerances: | EN 12020-2 |
| Breite Profil: | 80 mm |
| Höhe Profil: | 80 mm |
| Funktionsintegration: | Türdichtungsnut |
PI-6150 SN6000
Profile 8 80x80, natural
Profiles 8 are suitable for a wide range of assemblies. The grooves and the core holes of the profiles 8 are designed for M8 screws.Delivery length 6030 mm
