Profile 8 W80x80 E, natural
Maunsystem GmbH
€46.30*
Total Price incl. Accessories €46.30*
Price per 1000 mm: €46.30
*
Zuschnittskosten: €3.15
accessories
Product number:
PI-1545 SZ
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1006727
Weight:
2.27 kg
Product information "Profile 8 W80x80 E, natural"
Angle and flat profiles can be used in a variety of ways, e.g. for edging panel elements, as end or support strips, etc.
Cut to size max. 3000 mm
Compatible with item 7.0.001.12
Compatible with item 7.0.001.12
Details
- Baureihe Baureihe 8
- Eigenschaft natur
- ESD ESD-sicher = Ja
- Fläche A = 8,6 cm2 Flächenträgheitsmoment Torsion It = 2,85 cm4
- Flächenträgheitsmoment um x-Achse Ix = 48,52 cm4
- Flächenträgheitsmoment um y-Achse Iy = 48,52 cm4
- Gewicht spez. Länge [kg/m] m = 2,32 kg/m
- Liefereinheit Zuschnitt max. 3000 mm
- Material Al, eloxiert

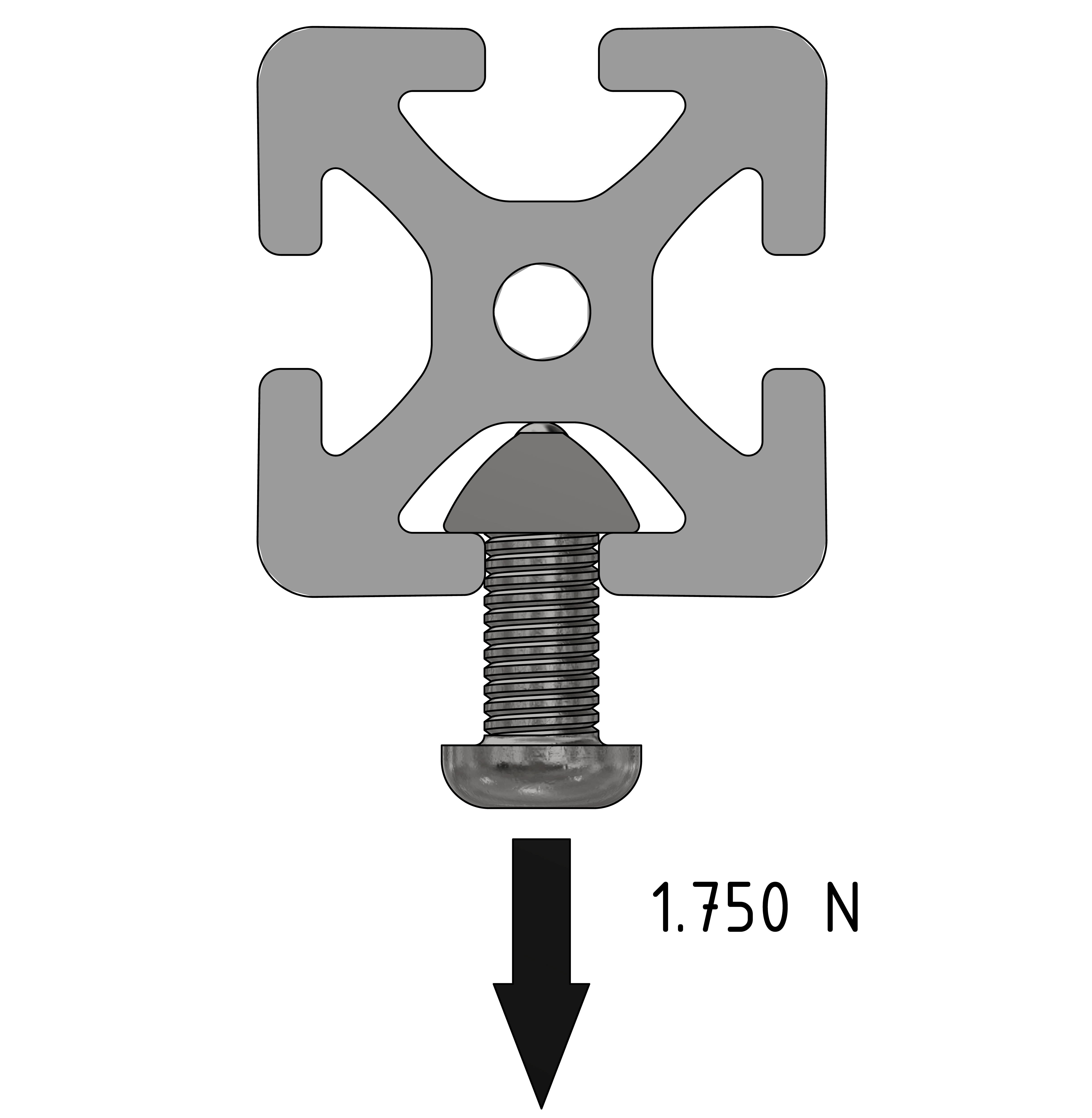

- zulässige Nutauszugskraft F = 1750 N
- Widerstandsmoment um x-Achse Wx = 8,92 cm3
- Widerstandsmoment um y-Achse Wy = 8,92 cm3
| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Compatible with: | item |
| Contour: | Angle |
| Delivery unit: | Cuts |
| Execution: | economy |
| Groove shape: | Open grooves |
| Material: | Al Mg Si 0.5 F25, artificially aged |
| Profile length: | Cut length |
| Series: | Series 8 |
| Size: | 80x80 mm |
| Tolerances: | EN 12020-2 |
PI-1545 SN3000
Profile 8 W80x80 E, natural
Angle and flat profiles can be used in a variety of ways, e.g. for edging panel elements, as end or support strips, etc.Delivery length 200 mm
