Product number: PB-1150 SN6000

Manufacturer: Maunsystem GmbH

Manufacturer number: 1001318

Length: 6000 mm

Weight: 29.88 kg

Product information " Profile 80x80 light natural-10 "

The profiles in pitch 40 with groove 10 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves are designed for M8 screws.
Delivery length 6030 mm

Compatible with Bosch 3 842 993 423

Compatible with Bosch 3 842 993 423

Details

l    132,6 cm4
w    33,16 cm3
Profilfläche    18,45 cm2
Gewicht    4,98 kg/m

Step-Datei

Download

Colour:	natural
Compatible with:	Bosch
Delivery unit:	Rods
Execution:	light
Groove shape:	Open grooves
Modular dimension:	Modular dimension 40
Nutauszugskraft:	F=7.000 N
Profile length:	6000 mm bar
Series:	Series 40-10
Size:	80x80 mm

PB-1150 SN3000

Profile 80x80 light natural-10

The profiles in pitch 45 with groove 10 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves are designed for M8 screws.Delivery length 3000 mmCompatible with Bosch 3 842 993 423

€162.15*

PB-1150 SN2000

Profile 80x80 light natural-10

€109.25*

PB-1150 SZ

Profile 80x80 light natural-10

The profiles in pitch 45 with groove 10 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves are designed for M8 screws. Cut to size max. 6000 mm Compatible with Bosch 3 842 993 423

€48.32 / 1000 mm *

Details

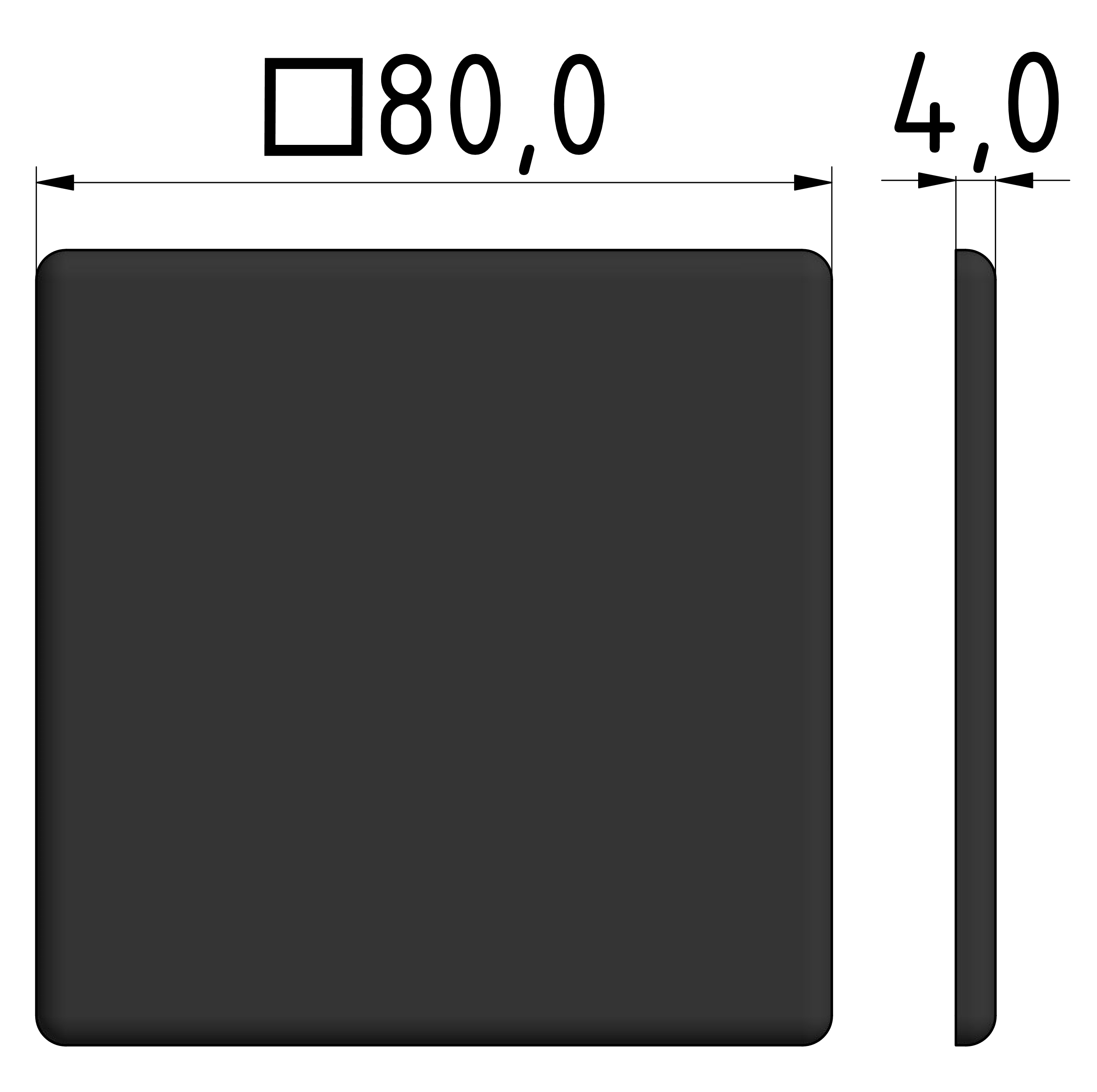

AB-3015-S

Cap 80x80-10

Abgerundete Abdeckkappen für die Stirnfläche der verschiedenen Profilquerschnitte.Das Entgraten der Schnittfläche entfällt. Abdeckkappen werden durch Aufschlagen in die Kernbohrungen befestigt.

€0.90*

AB-3015-G

Cap 80x80-10

Abgerundete Abdeckkappen für die Stirnfläche der verschiedenen Profilquerschnitte.Das Entgraten der Schnittfläche entfällt. Abdeckkappen werden durch Aufschlagen in die Kernbohrungen befestigt.

€0.90*

Bolt Connector Set 80, bright zinc-plated-10

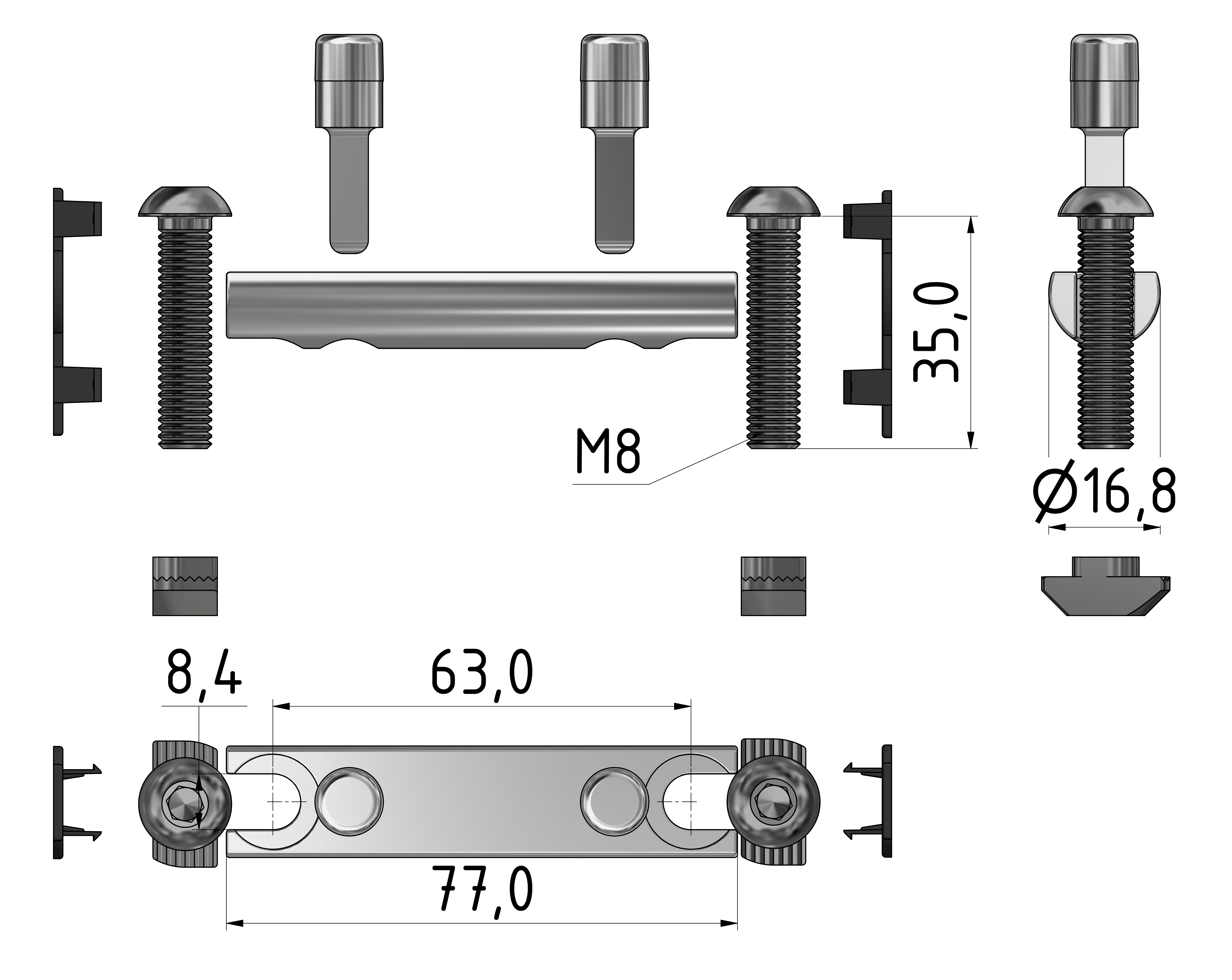

VB-3025

Bolt Connector Set 80, bright zinc-plated-10

The bolt connector is used to connect two profiles at right angles. It is suitable for very high loads, including torsion. It can be installed in already mounted assemblies.

€3.89*

Inner Connector Set R, bright zinc-plated-10

VB-3095

Inner Connector Set R, bright zinc-plated-10

The inner connector is used for connecting two angle profiles in the 90 degrees. It is not required profile machining.

€2.20*

T- Matic Connector Set, bright zinc-plated-10

VB-3037

T- Matic Connector Set, bright zinc-plated-10

Extremely fast and flexible connection without machining mechansiche Universal and positive connection of all profiles in a series retrospectively in the groove moved. possible in an existing design retrofitting. Connector mounting only one profile,

€4.70*

ZB-3127

Angle Bracket Set 40 ST, black-10

Mounting bracket made of steel for stable and secure connection of profiles

€3.50*
