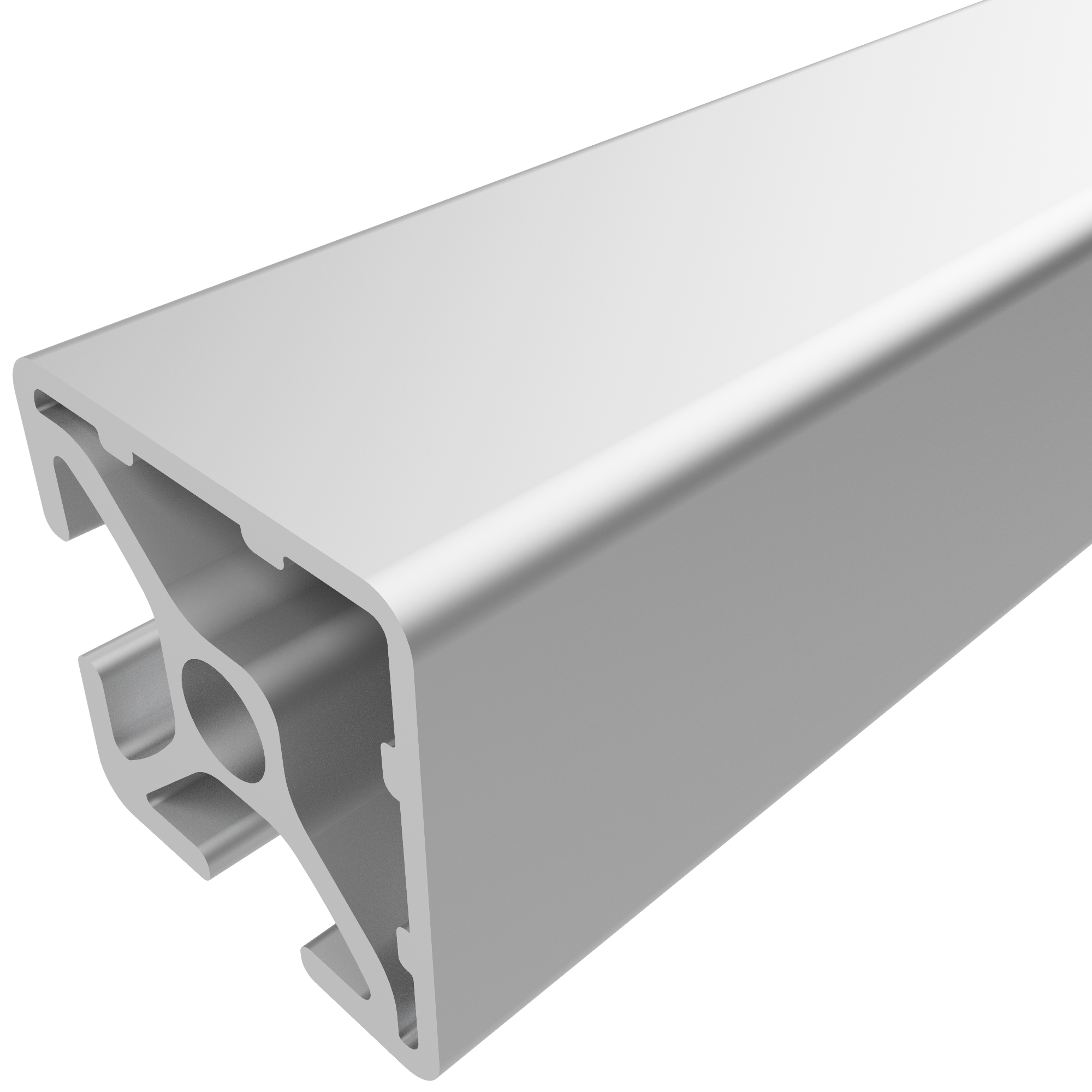

Profile 830 30x30 2N90, natural
Maunsystem GmbH
Product number:
PI-2050 SN6000
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1001308
Length:
6000 mm
Weight:
5.916 kg
Product information "Profile 830 30x30 2N90, natural"
Profiles 8 30 with closed grooves are suitable for weight-optimised assemblies of all kinds. With the closed groove side, visually appealing and low-maintenance constructions can be realised. The grooves and core holes of Profiles 8 30 are designed for M8 screws.
Delivery length 6030 mm
Delivery length 6030 mm
Details
Ix 3,76 cm4
Iy 3,76 cm4
Wx 2,512 cm3
Wy 2,512 cm3
Profilfläche 0,363 cm2
Gewicht 0,986 kg/m
Iy 3,76 cm4
Wx 2,512 cm3
Wy 2,512 cm3
Profilfläche 0,363 cm2
Gewicht 0,986 kg/m
Step-Datei
Download| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Compatible with: | item |
| Delivery unit: | Rods |
| Execution: | heavy |
| Groove shape: | 2 sides closed 90° |
| Material: | Al Mg Si 0.5 F25, artificially aged |
| Nutauszugskraft: | F=500 N |
| Profile length: | 6000 mm bar |
| Series: | Series 8 30 |
| Size: | 30x30 mm |
| Tolerances: | EN 12020-2 |
