Profile 830 60x30 2N, natural
Maunsystem GmbH
Loading...
| Quantity | Unit price |
|---|---|
| To 7 |
€121.99*
|
| From 8 |
€114.06*
|
| Accessories total price | €0.00 |
accessories
Accessories total price
€121.99 *
Product number:
PI-2030 SN6000
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1001306
Length:
6000 mm
Weight:
11.556 kg
Product information "Profile 830 60x30 2N, natural"
Profiles 8 30 with closed grooves are suitable for weight-optimised assemblies of all kinds. With the closed groove side, visually appealing and low-maintenance constructions can be realised. The grooves and core holes of Profiles 8 30 are designed for M8 screws.
Delivery length 6030 mm
Delivery length 6030 mm
Details
Ix 7,054 cm4
Iy 22,12 cm4
Wx 4,511 cm3
Wy 7,384 cm3
Profilfläche 0,71 cm2
Gewicht 1,962 kg/m
Iy 22,12 cm4
Wx 4,511 cm3
Wy 7,384 cm3
Profilfläche 0,71 cm2
Gewicht 1,962 kg/m
Step-Datei
Download| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Compatible with: | item |
| Contour: | Rectangular |
| Delivery unit: | Rods |
| Execution: | heavy |
| Groove shape: | 1 side closed |
| Material: | Al Mg Si 0.5 F25, artificially aged |
| Nutauszugskraft: | F=500 N |
| Profile length: | 6000 mm bar |
| Series: | Series 8 30 |
| Size: | 60x30 mm |
| Tolerances: | EN 12020-2 |
PI-2030 SZ
Profile 830 60x30 2N, natural
Profiles 8-30 are particularly suitable for weight-optimised assemblies. The grooves and the core holes of profiles 8 are designed for M8 screws.
Cut to size max. 6000 mm

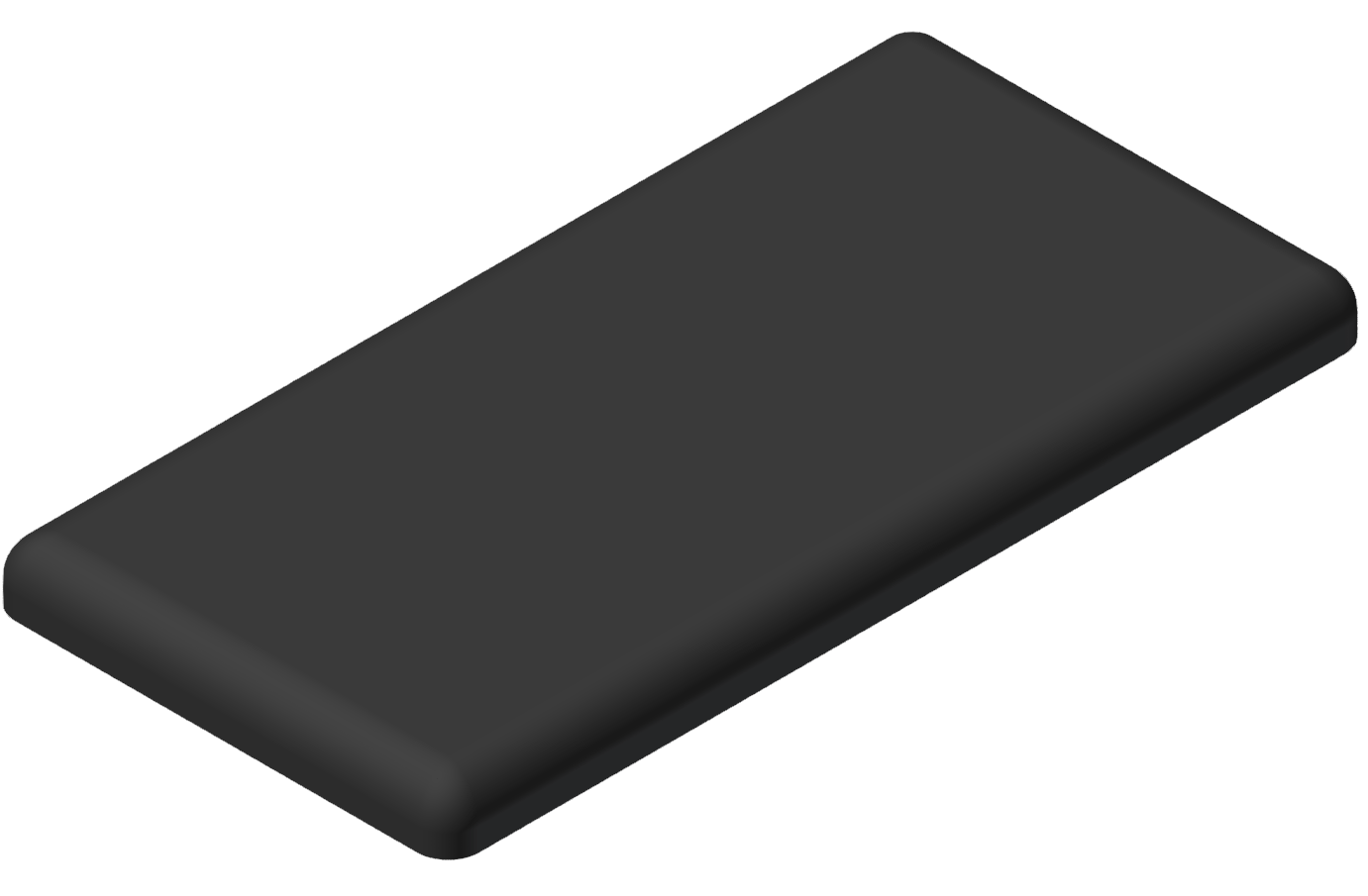

AI-2015
Cap 830 60x30, black
Abgerundete Abdeckkappen für die Stirnfläche der verschiedenen Profilquerschnitte.Das Entgraten der Schnittfläche entfällt. Abdeckkappen werden durch Aufschlagen in die Kernbohrungen befestigt.
